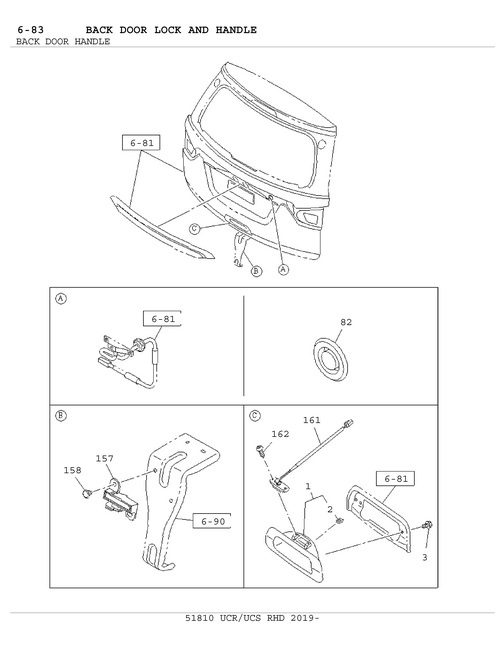

6-83 | BACK DOOR LOCK AND HANDLE
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

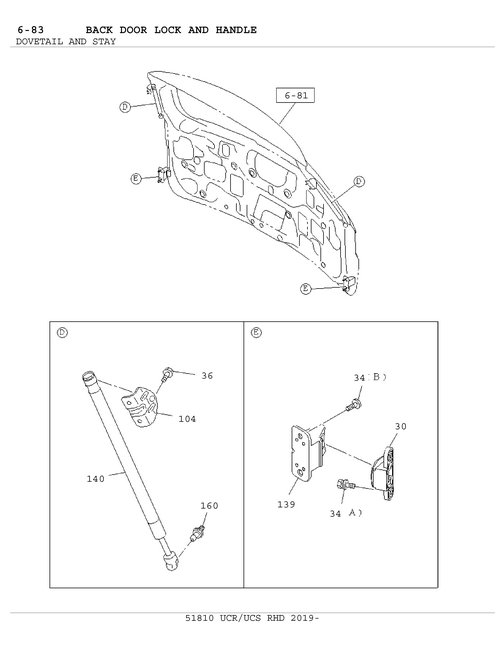

| 34 | I8-98228 811-1 | BOLT; DOVETAIL TO BACK DOOR | 4 | 1812- | AB | (B) | ||
| 36 | I8-98049 357-0 | BOLT; LINK | 4 | 1812- | AB | 03.895 M6X16 FLANGE | ||
| 140 | I8-98188 525-1 | STAY; TAIL GATE | 1 | 1812- | AB | |||
| 157 | I8-98190 526-1 | ANTENNA; DOOR LOCK | 1 | 1812- | AB | PASSIVE ENTRY AND START SYS | ||
| 82 | I8-94107 655-0 | PLUG; BACK DOOR | 1 | 1812- | AB | EXC. PASSIVE ENTRY AND STAR OD=3 0 | ||
| 158 | I8-97372 006-0 | FASTENER; DOOR LOCK | 2 | 1812- | AB | PASSIVE ENTRY AND START SYS 03.602 | ||
| 1 | I8-97425 505-0 | HANDLE; OUTSIDE,BACK DOOR | 1 | 1812- | AB | BODY COLOR TITANIUM SILVER M EXC. KD PREPARATORY PACK VA SILVER | ||
| 140 | I8-98188 524-1 | STAY; TAIL GATE | 1 | 1812- | AB | |||
| 2 | I8-98261 064-0 | NUT; HANDLE TO BACK DOOR | 2 | 1812- | AB | EXC. KD PREPARATORY PACK VA | ||
| 3 | I8-98048 996-0 | BOLT; TAIL GATE HANDLE | 2 | 1812- | AB | 10. 765 M6X8 FLANGE | ||
| 34 | I8-98125 360-1 | BOLT; DOVETAIL TO BACK DOOR | 4 | 1812- | AB | (A) M6X16 W/LK&PL WASHER | ||
| 30 | I8-98189 933-2 | DOVETAIL; BACK DOOR | 2 | 1812- | AB |
