6-86 | TRUNK OPENER AND FUEL LID
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

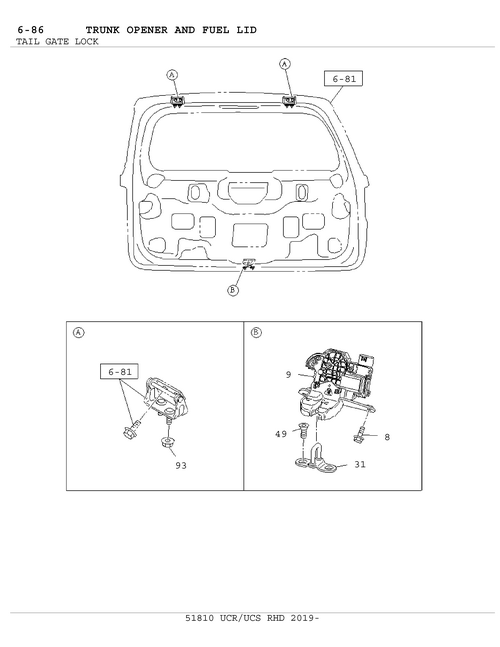

| 8 | I8-98224 562-1 | BOLT; TAIL GATE LOCK | 2 | 1812- | AB | |||
| 49 | I8-98049 356-0 | SCREW; STRIKER TO TAIL GATE | 2 | 1812- | AB | M8X2 0 W/TORQUES | ||
| 31 | I8-98188 326-0 | STRIKER; TAIL GATE | 1 | 1812- | AB | |||

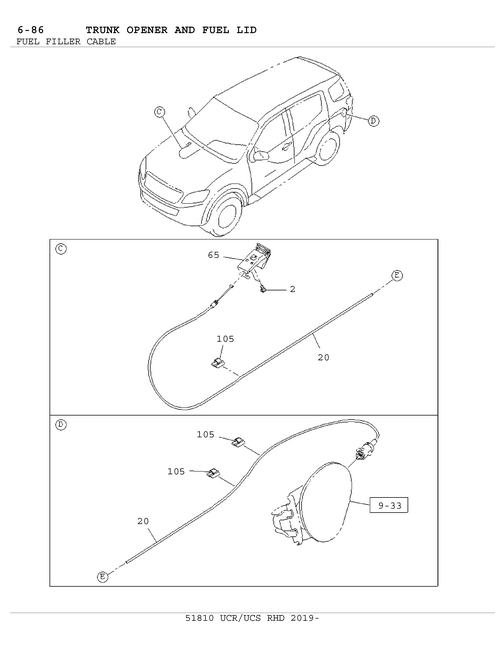

| 65 | I8-98103 120-0 | KNOB; FUEL FILLER DOOR | 1 | 1812- | AB | BLACK | ||
| 105 | I8-98158 303-0 | CLIP; CABLE,FUEL LID OPENER | 10 | 1812- | AB | ID= 7 | ||
| 20 | I8-98189 124-1 | CABLE; TRUNK LID & FUEL FILLER | 1 | 1812- | AB | |||
| 93 | I8-98049 361-0 | NUT; LOCK | 4 | 1812- | AB | M8 FLANGE | ||
| 9 | I8-98188 325-1 | LOCK; TRUNK LID | 1 | 1812- | AB | |||
| 2 | I8-98167 449-0 | SCREW; LEVER TO BODY | 2 | 1812- | AB | 08.083 M5X16 TAPPING |
