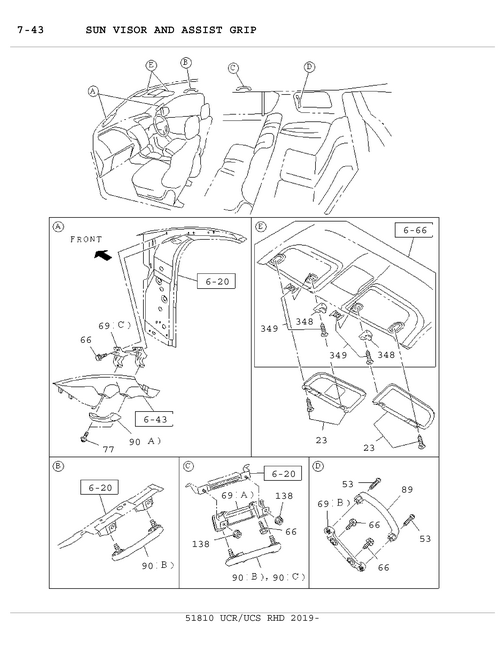

7-43 | SUN VISOR AND ASSIST GRIP
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 90 | I8-97419 356-5 | GRIP; ASSIST,ROOF | 2 | 1812- | AB | (B) GRAY | ||
| 349 | I8-97307 749-0 | CLIP; RETAINER SUNSHADE | 2 | 1812- | AB | 6-SPEAKER SYSTEM BASE<UW5>,8-SP EM CUSTOM<U8 7> | ||
| 90 | I8-97423 347-4 | GRIP; ASSIST,ROOF | 1 | 1812- | AB | GRADE CUSTOM(RBD) (C) GRAY | ||
| 69 | I8-98198 281-0 | BRACKET; ASSIST GRIP | 1 | 1812- | AB | (B) | ||
| 90 | I8-97419 356-5 | GRIP; ASSIST,ROOF | 2 | 1812- | AB | GRADE BASIC(RBA) (B) GRAY | ||
| 66 | I8-98050 320-0 | BOLT; ASSIST GRIP BRKT | 8 | 1812- | AB | M6X16 FLANGE | ||
| 23 | I8-97417 458-4 | SUN VISOR | 1 | 1812- | AB | AIR BAG DRIVER & PASSENGER(AK5) RIVER & PASSENGER & SIDE & ROOF SUNVISOR DRIVER & PASSENGER W/V OR<DH6 >,SUNVISOR PASSENGER SIDE MIRROR<D34 > GRAY | ||
| 348 | I8-97403 990-0 | RETAINER; SUNSHADE | 2 | 1812- | AB | 6-SPEAKER SYSTEM BASE<UW5>,8-SP EM CUSTOM<U8 7> GRAY | ||
| 23 | I8-97419 363-3 | SUN VISOR | 1 | 1812- | AB | INTERIOR COLOR DARK GRAY(117) AIR BAG DRIVER & PASSENGER(AK5) RIVER & PASSENGER & SIDE & ROOF EXC. SUNVISOR DRIVER & PASSENGE MIRROR<DH6>,SUNVISOR PASSENGER NITY MIRROR<D3 4> GRAY | ||
| 23 | I8-97416 683-2 | SUN VISOR | 1 | 1812- | A | SUNVISOR PASSENGER SIDE W/VANIT 3 4> GRAY | ||
| 77 | I0-36230 625-0 | SCREW; ASSIST GRIP | 4 | 1812- | AB | M6X25 | ||
| 69 | I8-98198 262-0 | BRACKET; ASSIST GRIP | 2 | 1812- | AB | (A) | ||
| 23 | I8-97461 817-0 | SUN VISOR | 1 | 1812- | B | INTERIOR COLOR DARK GRAY(117) EXC. SUNVISOR DRIVER & PASSENGE MIRROR<DH6>,SUNVISOR PASSENGER NITY MIRROR<D3 4> GRAY | ||
| 69 | I8-98220 691-0 | BRACKET; ASSIST GRIP | 1 | 1812- | AB | (C) | ||
| 90 | I8-97419 357-6 | GRIP; ASSIST,ROOF | 1 | 1812- | AB | GRADE CUSTOM(RBD) (C) GRAY | ||
| 138 | I0-91180 106-0 | NUT; BRKT,HEADER SHELF | 4 | 1812- | AB | 01.062 M6 FLANGE | ||
| 69 | I8-98220 692-0 | BRACKET; ASSIST GRIP | 1 | 1812- | AB | (C) | ||
| 66 | I8-98050 320-0 | BOLT; ASSIST GRIP BRKT | 4 | 1812- | AB | M6X16 FLANGE | ||
| 69 | I8-98198 282-0 | BRACKET; ASSIST GRIP | 1 | 1812- | AB | (B) | ||
| 90 | I8-97416 698-4 | GRIP; ASSIST,ROOF | 2 | 1812- | AB | (A) GRAY | ||
| 53 | I8-97811 323-0 | SCREW; ASSIST HANDLE | 4 | 1812- | AB | M6X32 |
