8-15 | FIXING PARTS; WIRING HARNESS
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

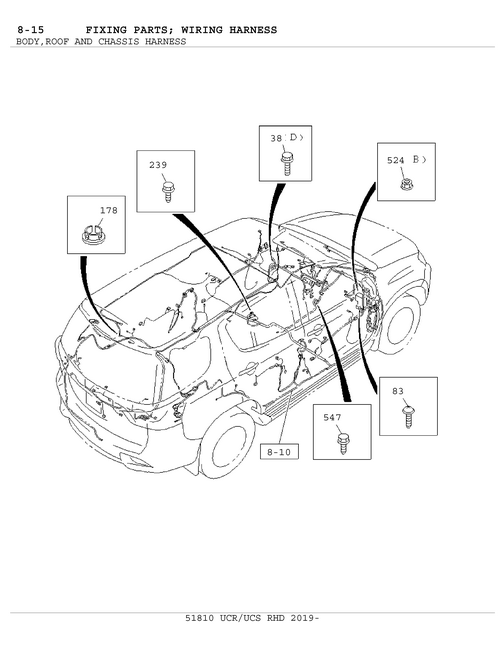

| 38 | I0-28650 616-0 | BOLT; CLIP,HARNESS | 5 | 1812- | AB | 02 . 343 (D) M6X16 FLANGE | ||
| 547 | I8-98164 836-0 | BOLT | 1 | 1812- | AB | M6X14 W/PL WASHER | ||
| 178 | I8-97027 381-0 | GROMMET; HARNESS | 1 | 1812- | AB | 9647 | ||
| 16 | I8-97173 307-0 | CLIP; HARNESS | 2 | 1812- | AB | (A) L=155 | ||

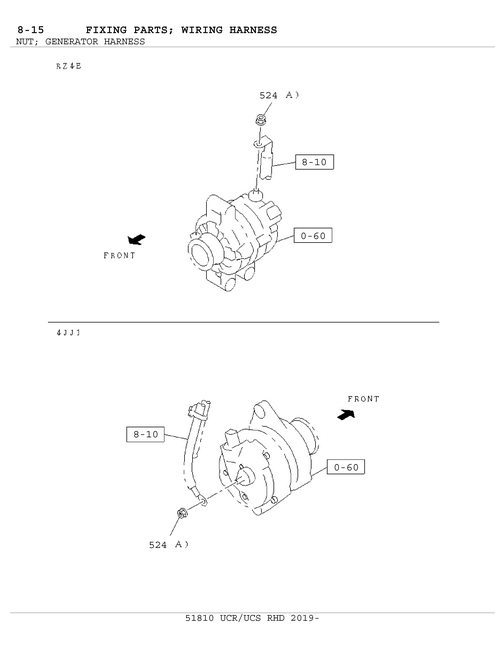

| 524 | I0-91180 108-0 | NUT; HARNESS | 1 | 1812- | AB | 01. 062 (A) M8 FLANGE | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 1 | 1812- | AB | 01. 062 (B) M6 FLANGE | ||

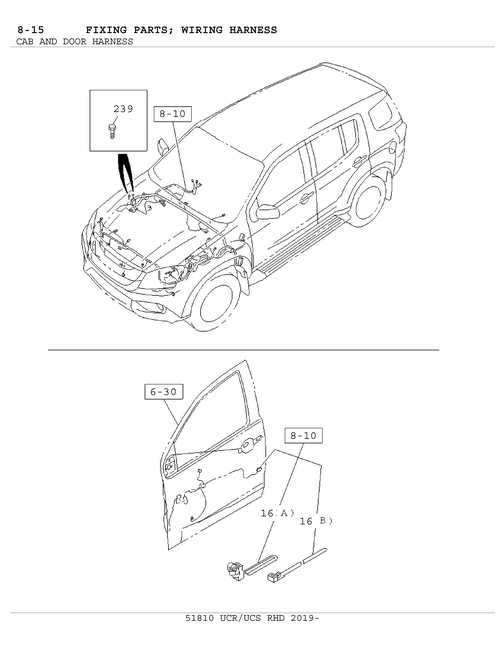

| 239 | I8-98164 836-0 | BOLT; GRAND | 7 | 1812- | AB | M6X14 W/PL WASHER | ||
| 16 | I8-97378 707-0 | CLIP; HARNESS | 3 | 1812- | AB | AIR BAG DRIVER & PASSENGER(AK5),A RIVER & PASSENGER DELETE(AK6) PASSIVE ENTRY AND START SYSTEM<AP (B) L=140 | ||
| 16 | I8-97378 707-0 | CLIP; HARNESS | 1 | 1812- | AB | AIR BAG DRIVER & PASSENGER(AK5),A RIVER & PASSENGER DELETE(AK6) (B) L=140 | ||

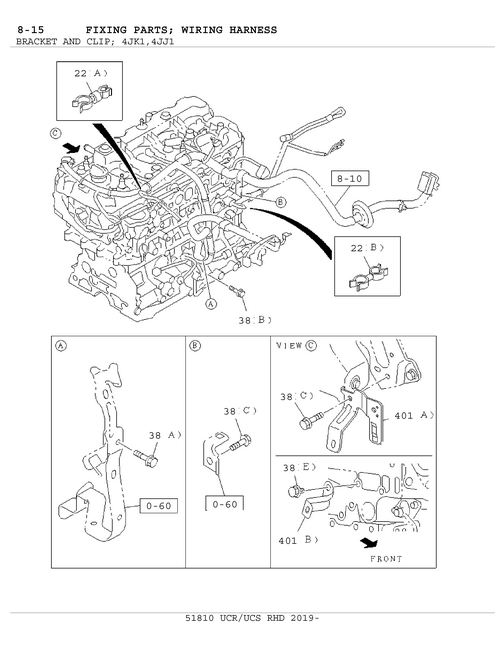

| 401 | I8-98224 801-0 | BRACKET; HARNESS,GEN | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS EMISSION SYSTEM R15-04(K75),EURO2 CATION(NT2),EURO4 SPECIFICATION(N (B) | ||
| 38 | I0-28050 816-0 | BOLT; CLIP,HARNESS | 1 | 1812- | AB | 02 . 343 (C) M8X16 FLANGE | ||

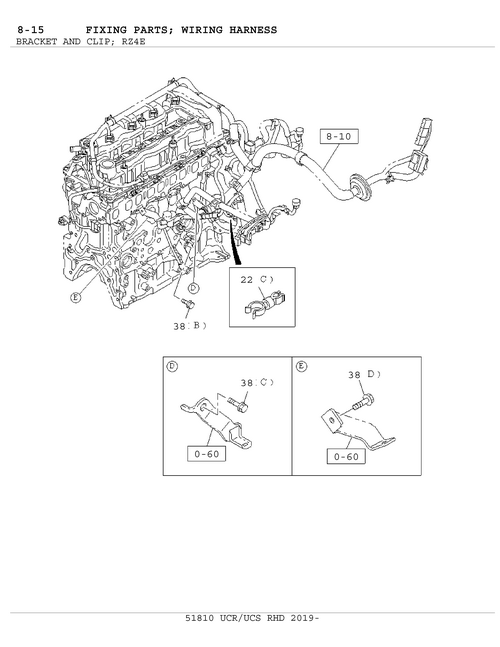

| 38 | I0-28050 812-A | BOLT; CLIP,HARNESS | 1 | 1812- | AB | RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6N(Y5Z),M/T MVL 6 Y (Y6P) 02 . 343 (B) M8X12 FLANGE | ||
| 22 | I8-98212 981-0 | CLIP; ENG HARNESS | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS EURO2 SPECIFICATION(NT2),EURO4 SP ION(NT4) (B) ID=7.5 & 7.5 | ||

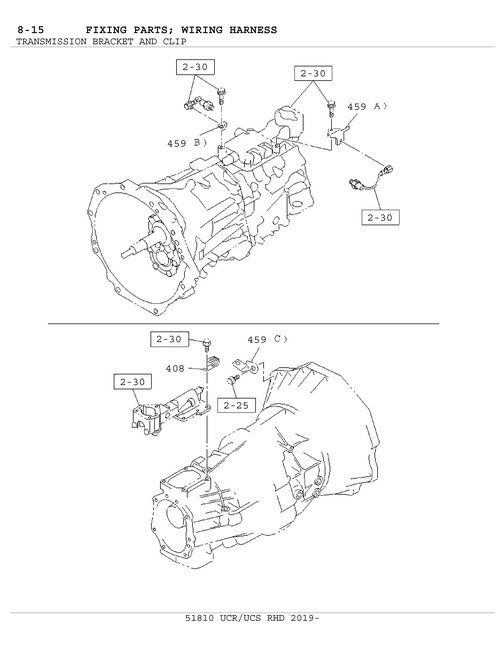

| 408 | I8-97367 984-1 | CLIP; TRANS HARNESS | 4 | 1812- | AB | 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 03.671 ID=12 VINYL CHLORIDE | ||
| 83 | I0-74360 525-0 | SCREW; HARNESS | 1 | 1812- | AB | 16 . 549 M5X25 TAPPING W/PL WASHER | ||
| 16 | I8-97378 707-0 | CLIP; HARNESS | 1 | 1812- | AB | AIR BAG DRIVER & PASSENGER(AK5),A RIVER & PASSENGER DELETE(AK6) EXC. PASSIVE ENTRY AND START SYST (B) L=140 | ||
| 22 | I8-98212 982-0 | CLIP; ENG HARNESS | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS (A) ID=11.8 & 7.5 | ||
| 38 | I0-28050 612-0 | BOLT; CLIP,HARNESS | 2 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS 03.162 (A) M6X12 FLANGE | ||
| 16 | I8-97378 707-0 | CLIP; HARNESS | 3 | 1812- | AB | AIR BAG DRIVER & PASSENGER & SIDE AY0) (B) L=140 | ||
| 459 | I8-98050 882-0 | BRACKET; SUPPORT,HARNESS | 1 | 1901- | AB | M/T MUA 5 SPEED 5H(MWQ) (C) | ||
| 16 | I8-97173 307-0 | CLIP; HARNESS | 2 | 1812- | AB | (A) L=155 | ||
| 38 | I0-28050 812-A | BOLT; CLIP,HARNESS | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS 02 . 343 (B) M8X12 FLANGE | ||
| 38 | I0-28151 012-0 | BOLT; CLIP,HARNESS | 1 | 1812- | AB | 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS EMISSION SYSTEM R15-04(K75),EURO2 CATION(NT2),EURO4 SPECIFICATION(N 02.343 (E) M10X12 FLANGE | ||
| 16 | I8-97378 707-0 | CLIP; HARNESS | 3 | 1812- | AB | AIR BAG DRIVER & PASSENGER & SIDE AY0) (B) L=140 |
