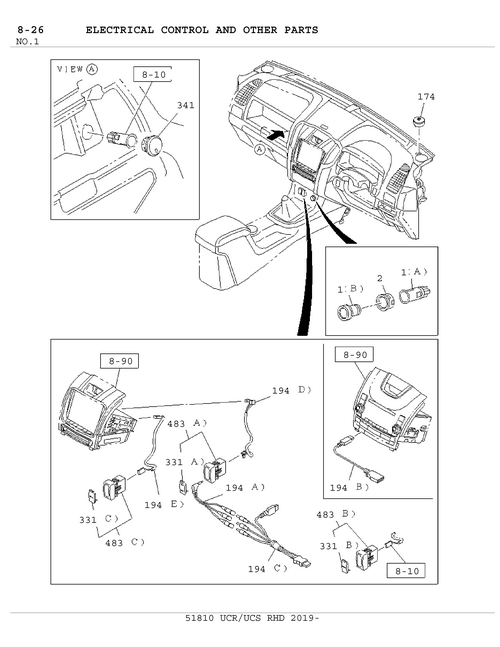

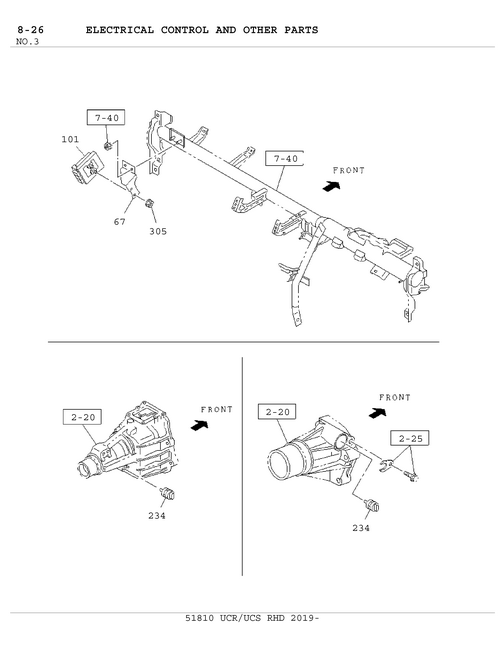

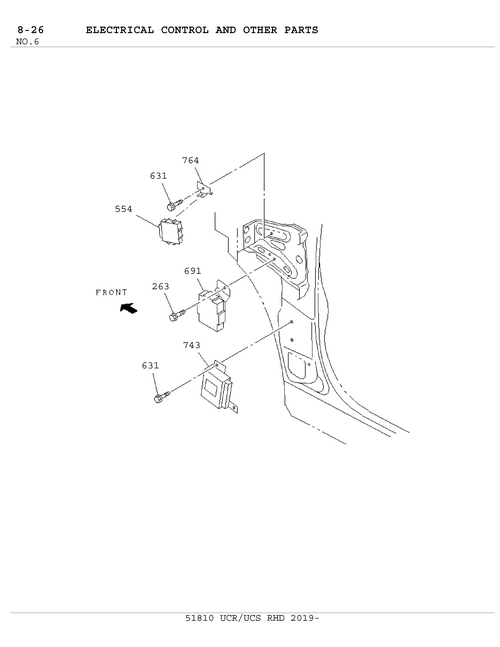

8-26 | ELECTRICAL CONTROL AND OTHER PARTS
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 764 | I8-98333 314-1 | BRACKET; CONTROL UNIT | 1 | 1812- | AB | |||
| 331 | I8-98480 066-0 | COVER; SW | 1 | 1812- | AB | GRADE CUSTOM(RBD) (B) | ||
| 631 | I0-28450 616-0 | BOLT; CONT UNIT | 2 | 1812- | AB | 09.171 M6X16 FLANGE | ||
| 631 | I0-28650 616-0 | BOLT; CONT UNIT | 1 | 1812- | AB | 02.343 M6X16 FLANGE | ||
| 174 | I8-98153 855-0 | INDICATOR; ANTI THEFT | 1 | 1812- | AB | REMOTE CONT DOOR LOCK W/ANTI | ||
| 501 | I8-98163 895-0 | GROMMET; SCREW | 1 | 1812- | AB | 9655 | ||
| 67 | I8-98113 342-0 | BRACKET; CONT UNIT | 1 | 1812- | AB | A/T 5 SPEED-AISIN(MA1) | ||
| 743 | I8-98190 502-1 | CONTROL UNIT; BCM | 1 | 1812- | AB | PASSIVE ENTRY AND START SYSTE | ||
| 691 | I8-98327 851-0 | CONTROLLER; TRANSFER | 1 | 1812- | B | 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) | ||
| 341 | I8-98142 409-1 | COVER ASM | 1 | 1812- | AB | EXC. I/P MOUNT OUTLET<KC5> | ||
| 448 | I0-28650 625-0 | BOLT; SENSOR | 2 | 1812- | AB | AIR BAG DRIVER & PASSENGER & AY0) 00. 685 M6X2 5 FLANGE | ||
| 483 | I8-98398 314-0 | SWITCH | 1 | 1812- | AB | GRADE CUSTOM(RBD) (B) | ||
| 452 | I0-28650 616-0 | BOLT; BRKT | 4 | 1812- | AB | 02.343 M6X16 FLANGE | ||
| 799 | I8-98167 449-0 | SCREW; SENSOR | 4 | 1812- | AB | AIR BAG DRIVER & PASSENGER & AY0) 08.083 M5X16 TAPPING | ||
| 101 | I8-98239 695-0 | CONTROL UNIT; ELEC,A/T | 1 | 1812- | AB | 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EMISSION SYSTEM R15-04(K75),E CATION(NT2) | ||
| 508 | I8-98165 180-0 | PROTECTOR | 1 | 1812- | AB | (B) | ||
| 743 | I8-98190 500-1 | CONTROL UNIT; BCM | 1 | 1812- | AB | EXC. PASSIVE ENTRY AND START | ||
| 805 | I8-98197 956-1 | BRACKET; DISPLAY | 1 | 1812- | AB | |||
| 1 | I8-98123 117-0 | LIGHTER; CIGAR | 1 | 1812- | AB | (B) | ||
| 508 | I8-98165 179-0 | PROTECTOR | 1 | 1812- | AB | (A) | ||
| 691 | I8-98327 851-0 | CONTROLLER; TRANSFER | 1 | 1812- | B | RZ4E-TC ENG(RDZ) M/T MVL 6 SPEED 6Y(Y6P) | ||
| 448 | I0-28650 625-0 | BOLT; SENSOR | 2 | 1812- | AB | AIR BAG DRIVER & PASSENGER(AK RIVER & PASSENGER & SIDE & RO 00. 685 M6X2 5 FLANGE | ||
| 803 | I8-98210 821-0 | COVER; CAMERA | 1 | 1812- | AB | AM/FM,CLOCK,BLUE TOOTH,CD PLAY IO DELETE(UL5) EXC. 2ND SEAT DVD MONITOR<U4 8 | ||
| 805 | I8-98211 399-1 | BRACKET; DISPLAY | 1 | 1812- | AB | |||
| 1 | I8-98123 114-0 | LIGHTER; CIGAR | 1 | 1812- | AB | (A) | ||
| 803 | I8-98210 821-0 | COVER; CAMERA | 1 | 1812- | AB | AM/FM,CLOCK,BLUE TOOTH,CD PLA 2ND SEAT DVD MONITOR<U4 8 > | ||
| 744 | I8-98059 533-2 | SENSOR; AIR BAG | 2 | 1812- | AB | AIR BAG DRIVER & PASSENGER(AK (A) | ||
| 305 | I0-91180 106-0 | NUT; CONT UNIT | 2 | 1812- | AB | A/T 5 SPEED-AISIN(MA1),A/T 6 Y6A) 01. 062 M6 FLANGE | ||
| 452 | I0-28650 616-0 | BOLT; BRKT | 4 | 1812- | AB | 2ND SEAT DVD MONITOR<U4 8 > 02.343 M6X16 FLANGE | ||
| 2 | I8-98123 118-0 | BEZEL; CIGAR LIGHTER | 1 | 1812- | AB | |||
| 263 | I0-28650 616-0 | BOLT; CONT UNIT | 1 | 1812- | B | 02.343 M6X16 FLANGE | ||
| 691 | I8-98327 851-0 | CONTROLLER; TRANSFER | 1 | 1812- | B | 4JJ1-TCX ENG(LS0) M/T MVL 6 SPEED 6N(Y5Z) | ||
| 341 | I8-98123 123-0 | COVER ASM | 1 | 1812- | AB | I/P MOUNT OUTLET<KC5 > | ||
| 587 | I8-94152 495-0 | SCREW; CAMERA | 1 | 1812- | AB | 12.182 M5X14 | ||
| 554 | I8-98320 046-1 | CONTROL UNIT; HEAD LAMP | 1 | 1812- | AB |
