8-28 | CHASSIS ELECTRICAL
MUX
MU-X 2019
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

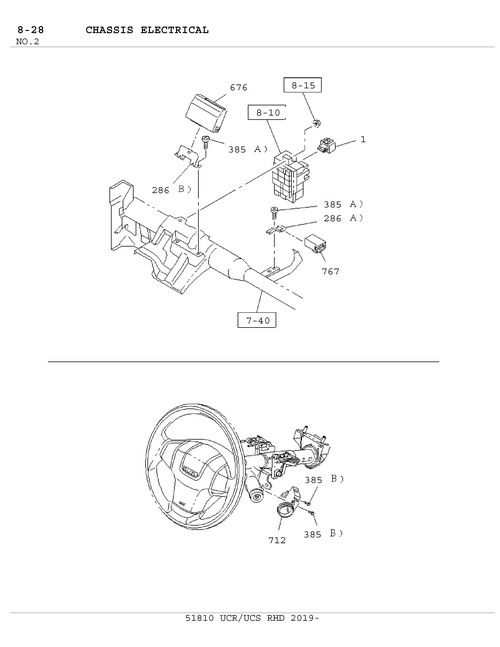

| 1 | I8-98270 253-0 | UNIT; FLASHER | 1 | 1812- | AB | |||
| 676 | I8-98384 357-0 | CONTROL UNIT; KEYLESS ENTRY | 1 | 1812- | AB | PASSIVE ENTRY AND START SYSTEM | ||

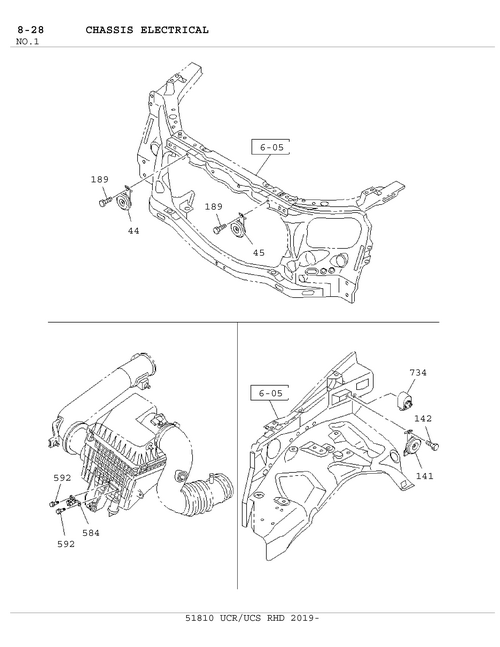

| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 1812- | AB | 3331 | ||
| 286 | I8-98102 503-0 | BRACKET | 1 | 1812- | AB | PASSIVE ENTRY AND START SYSTEM E CONT DOOR LOCK<AP5> (A) | ||
| 141 | I8-98164 588-0 | HORN; ANTI THEFT | 1 | 1812- | AB | REMOTE CONT DOOR LOCK W/ANTI T | ||
| 767 | I8-98306 421-0 | RECEIVER ASM; KEYLESS ENTRY | 1 | 1812- | AB | PASSIVE ENTRY AND START SYSTEM | ||
| 286 | I8-98102 502-2 | BRACKET | 1 | 1812- | AB | PASSIVE ENTRY AND START SYSTEM (B) | ||
| 189 | I8-98164 836-0 | BOLT; HORN | 1 | 1812- | AB | DUAL TONE HORN<U0 5> 02.559 M6X14 W/PL WASHER | ||
| 189 | I8-98164 836-0 | BOLT; HORN | 1 | 1812- | AB | 02.559 M6X14 W/PL WASHER | ||
| 385 | I8-98167 449-0 | BOLT; CONT UNIT | 1 | 1812- | AB | PASSIVE ENTRY AND START SYSTEM E CONT DOOR LOCK<AP5> 08.083 (A) M5X16 TAPPING | ||
| 592 | I0-28650 616-0 | BOLT; SENSOR | 2 | 1812- | AB | 02.343 M6X16 FLANGE | ||
| 142 | I8-98164 836-0 | BOLT; HORN,ANTI THEFT | 1 | 1812- | AB | REMOTE CONT DOOR LOCK W/ANTI T 02.559 M6X14 W/PL WASHER | ||
| 767 | I8-98076 338-1 | RECEIVER ASM; KEYLESS ENTRY | 1 | 1812- | AB | REMOTE CONT DOOR LOCK<AP5 > | ||
| 734 | I8-98192 897-0 | ALARM; MULTI | 1 | 1812- | AB | PASSIVE ENTRY AND START SYSTEM | ||
| 712 | I8-98255 847-0 | CONTROL UNIT; ANTI THEFT | 1 | 1812- | AB | IMMOBILIZER SYSTEM< 7KC> EXC. PASSIVE ENTRY AND START SY MALAYSIA EQUIPMENT(B10) | ||
| 385 | I8-98167 449-0 | BOLT; CONT UNIT | 2 | 1812- | AB | PASSIVE ENTRY AND START SYSTEM 08.083 (A) M5X16 TAPPING | ||
| 44 | I8-98084 022-1 | HORN; HIGH NOTE | 1 | 1812- | AB | DUAL TONE HORN<U0 5> | ||
| 385 | I0-36230 412-0 | BOLT; CONT UNIT | 2 | 1812- | AB | IMMOBILIZER SYSTEM< 7KC> EXC. PASSIVE ENTRY AND START SY 02.510 (B) M4X12 W/LK&PL WASHER | ||
| 45 | I8-98084 023-0 | HORN; LOW NOTE | 1 | 1812- | AB |
