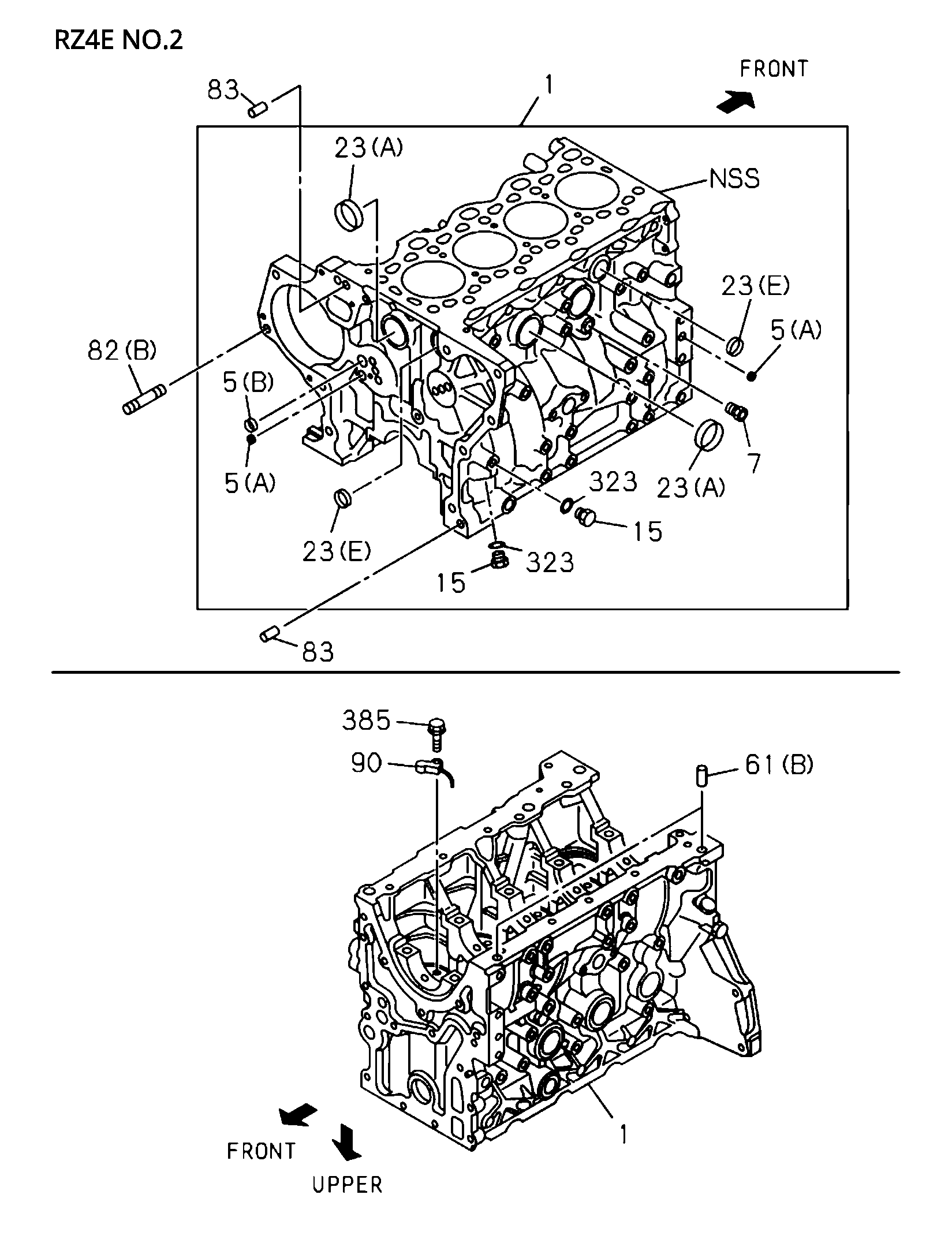

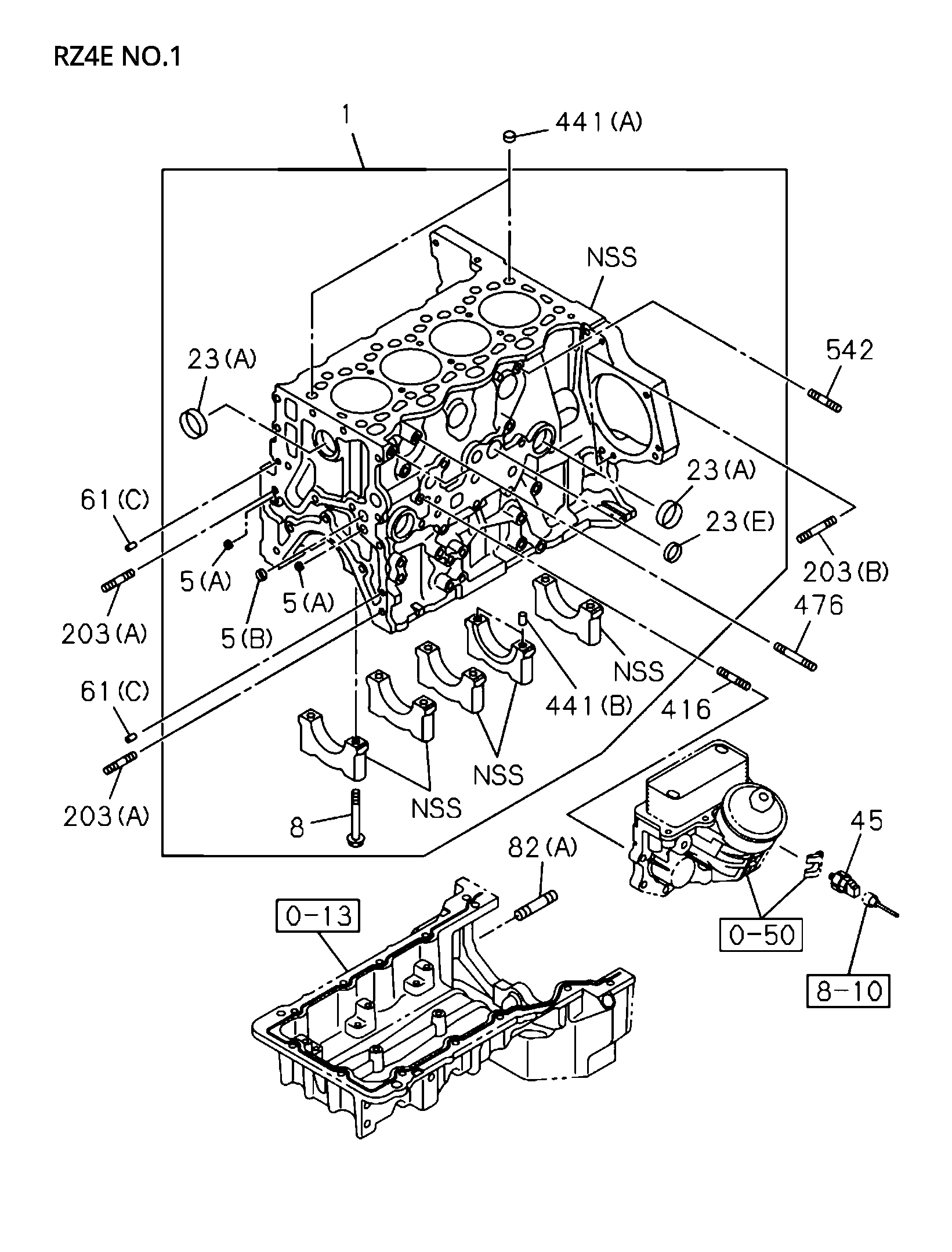

| 1 |
I8-98348 629-3 |
|
BLOCK ASM; CYL |
1 |
2103- |
|
A |
|
| 23 |
I5-11219 018-0 |
|
CUP; SEALING,C/BL FRT 8. RR |
2 |
2103- |
|
B |
(A) OD=36 IMA |
| 385 |
I0-28050 820-0 |
|
BOLT; OIL PIPE |
4 |
2103- |
|
A |
M8X20 FLANGE |
| 5 |
I5-09600 013-0 |
|
CUP; SEALING.OIL GALLERY |
4 |
2103- |
|
A |
(A) OD=12.3 IMA |
| 441 |
I8-94200 819-0 |
|
DOWEL; CYL BLOCK |
2 |
2103- |
|
A |
(A) OD=15.25 IMA |
| 13 |
I8-94453 344-0 |
|
DOWEL; C/BL TO HD |
2 |
2103- |
|
B |
OD=14 IMA |
| 476 |
I0-44011 070-0 |
|
STUD; BRKT |
2 |
2103- |
|
A |
M10X70 L=85 |
| 23 |
I5-11219 018-0 |
|
CUP; SEALING,C/BL FRT & RR |
2 |
2103- |
|
B |
(A) OD=36 IMA |
| 1 |
I8-98348 629-3 |
|
BLOCK ASM; CYL |
1 |
2103- |
|
A |
|
| 5 |
I5-09600 013-0 |
|
CUP; SEALING.OIL GALLERY |
4 |
2103- |
|
A |
(A) OD=12.3 IMA |
| 1 |
I8-98348 629-3 |
|
BLOCK ASM; CYL |
1 |
2103- |
|
A |
|
| 211 |
I0-28650 825-0 |
|
BOLT; CRANKCASE |
12 |
2103- |
|
B |
(B) M8X25 FLANGE |
| 7 |
I9-09664 001-0 |
|
PLUG; WATER DRAIN |
1 |
2103- |
|
B |
PT1/4 IMA |
| 21 |
I5-09600 013-0 |
|
CUP; SEALING.RR |
1 |
2103- |
|
B |
(C) OD=12.3 IMA |
| 82 |
I0-44011 050-0 |
|
STUD; FLYWHEEL HSG |
1 |
2103- |
|
A |
(A) M10X50 L=65 IMA |
| 61 |
I9-08150 616-0 |
|
PIN; STRAIGHT |
2 |
2103- |
|
A |
(C) L=16 IMA |
| 23 |
I5-11219 018-0 |
|
CUP; SEALING,C/BL FRT & RR |
10 |
2103- |
|
A |
(A) OD=36 IMA |
| 23 |
I5-11219 018-0 |
|
CUP; SEALING,C/BL FRT & RR |
10 |
2103- |
|
A |
(A) OD=36 IMA |
| 82 |
I8-97515 875-0 |
|
STUD; FLYWHEEL HSG |
1 |
2103- |
|
A |
(B) M10X65 L=80 |
| 23 |
I5-11219 018-0 |
|
CUP; SEALING.C/BL FRT 8. RR |
10 |
2103- |
|
A |
(A) OD=36 IMA |
| 15 |
I8-98336 980-0 |
|
PLUG; OIL GALLERY |
2 |
2103- |
|
A |
M12X11 IMA |
| 21 |
I5-11219 018-0 |
|
CUP; SEALING.RR |
1 |
2103- |
|
B |
(B) OD=36 IMA |
| 23 |
I8-97333 120-0 |
|
CUP; SEALING,C/BL FRT 8. RR |
3 |
2103- |
|
A |
(E) OD=24 IMA |
| 8 |
I8-98257 516-0 |
|
BOLT; BRG CAP |
10 |
2103- |
|
A |
M11X88 FLANGE |
| 203 |
I0-41010 820-0 |
|
STUD; C/BL |
2 |
2103- |
|
A |
(A) M8X20 L=32 |
| 213 |
I9-09571 410-0 |
|
GASKET; NIPPLE,OIL FEED |
1 |
2103- |
|
B |
ID=10.2 OD-16.0 |
| 401 |
I0-28050 616-0 |
|
BOLT; SENSOR |
1 |
2103- |
|
B |
M6X16 FLANGE |
| 45 |
I8-97176 230-0 |
|
SWITCH; OIL PRESSURE |
1 |
2103- |
|
AB |
IMA |
| 7 |
I9-09664 001-0 |
|
PLUG; WATER DRAIN |
1 |
2103- |
|
A |
PT1/4 IMA |
| 7 |
I9-09664 001-0 |
|
PLUG; WATER DRAIN |
1 |
2103- |
|
B |
PT1/4 IMA |
| 90 |
I8-98247 320-0 |
|
PIPE; OILJET |
4 |
2103- |
|
A |
IMA |
| 416 |
I0-49140 828-0 |
|
STUD; OIL FILTER |
2 |
2103- |
|
A |
M8X28 L=46 |
| 70 |
I5-11129 006-0 |
|
CUP; SEALING.FRT & RR |
6 |
2103- |
|
B |
OD=16 IMA |
| 542 |
I0-41010 816-0 |
|
STUD |
2 |
2103- |
|
A |
M8X16 L=28 |
| 23 |
I5-11219 018-0 |
|
CUP; SEALING.C/BL FRT & RR |
2 |
2103- |
|
B |
(A) OD=36 IMA |
| 70 |
I5-11129 006-0 |
|
CUP; SEALING.FRT 8. RR |
6 |
2103- |
|
B |
OD=16 IMA |
| 83 |
I8-94483 674-0 |
|
PIN; FLYWHEEL HSG |
2 |
2103- |
|
A |
L=22 IMA |
| 7 |
I9-09664 001-0 |
|
PLUG; WATER DRAIN |
1 |
2103- |
|
A |
PT1/4 IMA |
| 1 |
I8-98348 629-3 |
|
BLOCK ASM; CYL |
1 |
2103- |
|
A |
|
| 23 |
I8-97333 120-0 |
|
CUP; SEALING,C/BL FRT & RR |
3 |
2103- |
|
A |
(E) OD=24 IMA |
| 5 |
I5-11129 006-0 |
|
CUP; SEALING.OIL GALLERY |
2 |
2103- |
|
A |
(B) OD=16 IMA |
| 203 |
I0-49140 818-0 |
|
STUD; C/BL |
2 |
2103- |
|
A |
(B) M8X18 L=36 |
| 323 |
I9-09571 412-0 |
|
GASKET; PLUG |
2 |
2103- |
|
A |
ID=12.2 OD-18 IMA |
| 8 |
I8-98257 516-0 |
|
BOLT; BRG CAP |
10 |
2103- |
|
A |
M11X88 FLANGE |
| 45 |
I8-97176 230-0 |
|
SWITCH; OIL PRESSURE |
1 |
2103- |
|
AB |
IMA |
| 441 |
I8-94453 344-0 |
|
DOWEL; CYL BLOCK |
2 |
2103- |
|
A |
(B) OD=14 IMA |
| 61 |
I8-94483 674-0 |
|
PIN; STRAIGHT |
2 |
2103- |
|
A |
(B) L=22 IMA |
| 15 |
I8-98336 980-0 |
|
PLUG; OIL GALLERY |
2 |
2103- |
|
A |
M12X11 IMA |
| 5 |
I5-11129 006-0 |
|
CUP; SEALING.OIL GALLERY |
2 |
2103- |
|
A |
(B) OD=16 IMA |
| 23 |
I5-11219 008-0 |
|
CUP; SEALING.C/BL FRT & RR |
2 |
2103- |
|
B |
(B) OD=18 IMA |
| 23 |
I5-11219 008-0 |
|
CUP; SEALING,C/BL FRT 8. RR |
2 |
2103- |
|
B |
(B) OD=18 IMA |
