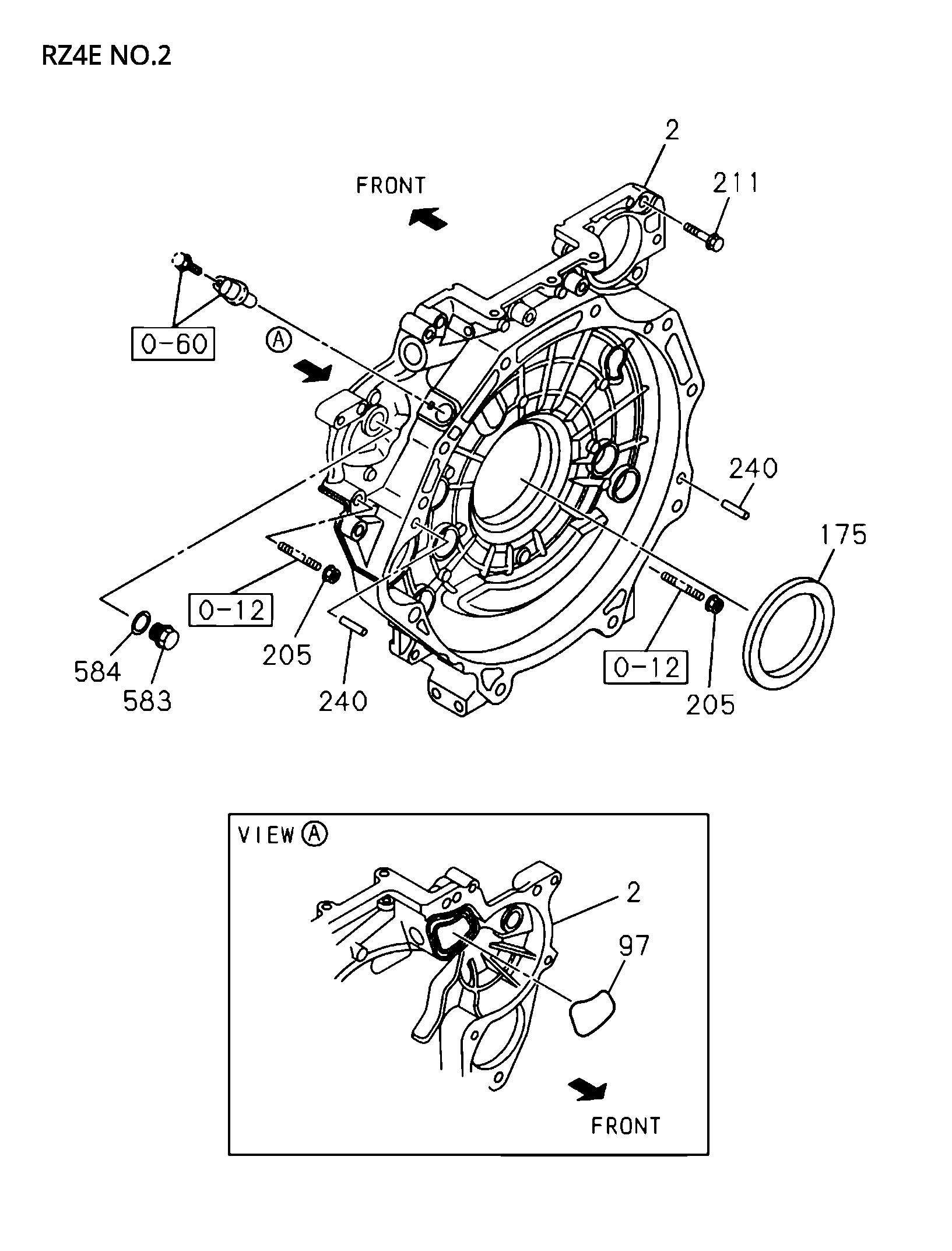

0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 98 | I0-91180 208-0 | NUT; STUD.INJ PUMP | 2 | 2103- | B | M8 FLANGE | ||
| 584 | I1-09630 088-0 | GASKET; PLUG.FRT COVER | 1 | 2103- | A | ID=20.2 OD=26 IMA | ||
| 36 | I0-28050 816-0 | BOLT; GEAR CASE | 1 | 2103- | B | (C) M8X16 FLANGE | ||
| 32 | I8-98248 248-0 | GASKET; GEAR CASE TO C/BL | 1 | 2103- | A | |||
| 80 | I0-91180 206-0 | NUT; COVER | 2 | 2103- | B | M6 FLANGE | ||
| 62 | I0-28650 620-0 | BOLT; COVER | 4 | 2103- | B | (A) M6X20 FLANGE | ||
| 2 | I8-97503 450-0 | HOUSING; FLYWHEEL | 1 | 2103- | A | |||
| 211 | I0-28161 040-0 | BOLT; HSG | 14 | 2103- | A | M10X40 FLANGE IMA | ||
| 54 | I8-98248 078-2 | COVER; GEAR CASE | 1 | 2103- | A | |||
| 103 | I8-98259 275-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2103- | A | ID=57 OD=76 | ||
| 144 | I0-91180 108-0 | NUT; COVER | 2 | 2103- | A | M8 FLANGE | ||
| 81 | I0-41010 616-0 | STUD; GEAR CASE COVER FIX | 2 | 2103- | B | (B) M6X16 L=25 | ||
| 175 | I8-98259 276-0 | SEAL; OIL,CR/SHF,RR | 1 | 2103- | A | ID-83 OD-108 | ||
| 240 | I9-08151 030-0 | PIN; FLYWHEEL HSG | 2 | 2103- | A | L=30 | ||
| 103 | I8-98259 275-0 | SEAL; OIL.CR/SHF.FRT | 1 | 2103- | A | ID=57 OD=76 | ||
| 510 | I8-98247 221-4 | PUMP ASM; VACUUM | 1 | 2103- | A | |||
| 73 | I0-28050 612-0 | BOLT; COVER FIX | 2 | 2103- | B | M6X12 FLANGE | ||
| 202 | I0-91180 208-0 | NUT; BRIO- | 1 | 2103- | B | M8 FLANGE | ||
| 97 | I8-98248 823-1 | GASKET; BLOCK TO HSG | 1 | 2103- | A | |||
| 238 | I0-28050 830-0 | BOLT; DIST | 1 | 2103- | B | M8X30 FLANGE | ||
| 205 | I0-91180 210-0 | NUT; HSG | 2 | 2103- | A | M10 FLANGE | ||
| 36 | I0-28050 845-0 | BOLT; GEAR CASE | 2 | 2103- | B | (F) M8X45 FLANGE | ||
| 510 | I8-98247 221-4 | PUMP ASM; VACUUM | 1 | 2103- | A | |||
| 621 | I0-91180 208-0 | NUT; VAC PUMP | 3 | 2103- | B | M8 FLANGE | ||
| 36 | I0-28650 825-0 | BOLT; GEAR CASE | 16 | 2103- | B | (D) M8X25 FLANGE | ||
| 517 | I8-98317 822-0 | GASKET; VAC PUMP | 1 | 2103- | A | (C) | ||
| 36 | I0-28050 835-0 | BOLT; GEAR CASE | 1 | 2103- | B | (E) M8X35 FLANGE | ||
| 62 | I0-28050 820-0 | BOLT; COVER | 8 | 2103- | A | (C) M8X20 FLANGE | ||
| 583 | I8-98368 785-0 | PLUG; FRT COVER | 1 | 2103- | A | M20X14 IMA | ||
| 104 | I8-98248 079-0 | COVER; DUST,OIL SEAL FRT.CR/SHF | 1 | 2103- | A | |||
| 36 | I0-28650 830-0 | BOLT; GEAR CASE | 2 | 2103- | B | (B) M8X30 FLANGE | ||
| 510 | I8-98247 221-4 | PUMP ASM; VACUUM | 1 | 2103- | A | |||
| 175 | I8-98259 276-0 | SEAL; OIL,CR/SHF,RR | 1 | 2103- | A | ID-83 QD-108 | ||
| 54 | I8-98248 078-2 | COVER; GEAR CASE | 1 | 2103- | A | |||
| 185 | I0-28650 825-0 | BOLT; RETTOC/BL | 5 | 2103- | B | M8X25 FLANGE | ||
| 36 | I0-28050 860-0 | BOLT; GEAR CASE | 1 | 2103- | B | (A) M8X60 FLANGE | ||
| 124 | I0-28050 616-0 | BOLT; TIMING COVER | 3 | 2103- | B | M6X16 FLANGE | ||
| 518 | I0-28050 825-0 | BOLT; VAC PUMP | 3 | 2103- | A | M8X25 FLANGE | ||
| 62 | I0-28050 612-0 | BOLT; COVER | 3 | 2103- | A | (B) M6X12 FLANGE | ||
| 211 | I0-28161 040-0 | BOLT; HSG | 14 | 2103- | A | M10X40 FLANGE IMA | ||
| 518 | I0-28050 825-0 | BOLT; VAC PUMP | 3 | 2103- | A | M8X25 FLANGE |
