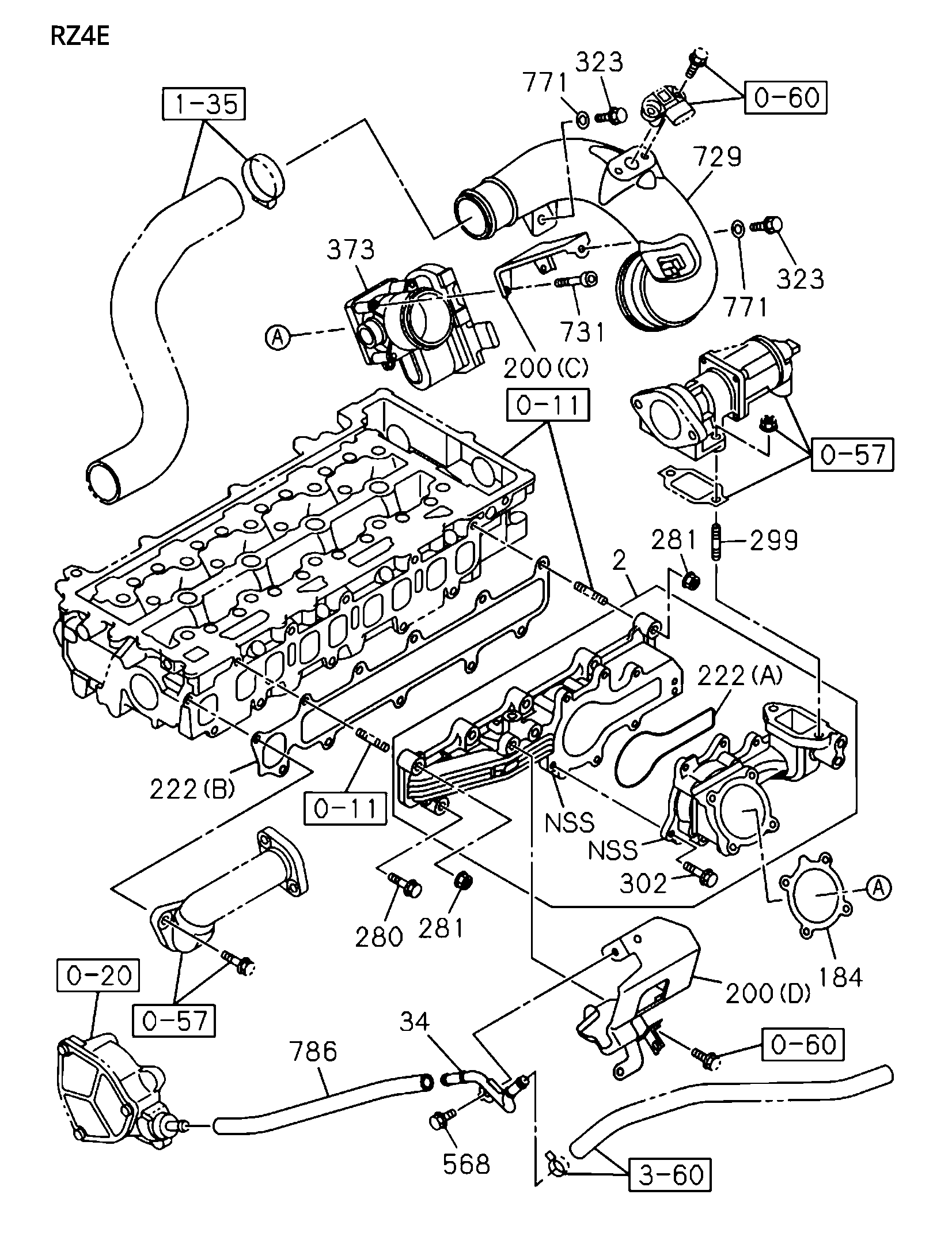

0-25 | INLET MANIFOLD
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I0-91180 208-0 | NUT; INL MANIF | 2 | 2103- | B | M8 FLANGE | ||
| 2 | I8-98247 596-0 | COVER; INL | 1 | 2103- | A | |||
| 771 | I0-91610 706-0 | WASHER; DUCT | 2 | 2103- | A | ID=6.4 OD=18 IMA | ||
| 568 | I0-28050 612-0 | BOLT; PIPE | 1 | 2103- | A | M6X12 FLANGE | ||
| 184 | I8-98248 259-0 | GASKET; T/V | 1 | 2103- | A | |||
| 323 | I0-28050 616-0 | BOLT; DUCT | 3 | 2103- | B | M6X16 FLANGE | ||
| 222 | I8-98247 601-0 | GASKET; INL COVER | 1 | 2103- | A | (B) | ||
| 786 | I8-98247 222-1 | HOSE; VAC | 1 | 2103- | A | |||
| 771 | I0-91610 706-0 | WASHER; DUCT | 3 | 2103- | B | ID=6.4 OD=18 IMA | ||
| 373 | I8-98247 395-1 | THROTTLE ASM; INT | 1 | 2103- | A | |||
| 731 | I0-58330 650-0 | BOLT; THROTTLE ASM | 4 | 2103- | AB | M6X50 HEX SOCKET | ||
| 373 | I8-98247 395-1 | THROTTLE ASM; INT | 1 | 2103- | A | |||
| 222 | I8-98288 833-0 | GASKET; INL COVER | 1 | 2103- | A | (A) | ||
| 771 | I0-91610 706-0 | WASHER; DUCT | 3 | 2103- | B | ID=6.4 OD=18 IMA | ||
| 729 | I8-98281 106-1 | DUCT; INLET | 1 | 2103- | A | |||
| 323 | I0-28050 616-0 | BOLT; DUCT | 2 | 2103- | A | M6X16 FLANGE | ||
| 184 | I8-98248 259-0 | GASKET; T/V | 1 | 2103- | A | |||
| 200 | I8-98289 346-1 | BRACKET; AIR DUCT | 1 | 2103- | A | (C) | ||
| 281 | I0-91180 208-0 | NUT; INL COVER | 2 | 2103- | A | M8 FLANGE | ||
| 280 | I0-28050 835-0 | BOLT; INL COVER | 7 | 2103- | A | M8X3S FLANGE | ||
| 34 | I8-98248 085-3 | PIPE; VAC | 1 | 2103- | A | |||
| 771 | I0-91610 706-0 | WASHER; DUCT | 2 | 2103- | A | ID=6.4 OD=18 IMA | ||
| 323 | I0-28050 616-0 | BOLT; DUCT | 2 | 2103- | A | M6X16 FLANGE | ||
| 302 | I0-28050 625-0 | BOLT; INL MANIF COVER | 7 | 2103- | A | M6X25 FLANGE IMA | ||
| 729 | I8-98281 106-1 | DUCT; INLET | 1 | 2103- | A | |||
| 323 | I0-28050 616-0 | BOLT; DUCT | 3 | 2103- | B | M6X16 FLANGE | ||
| 299 | I0-41010 825-0 | STUD; EGRVLV | 2 | 2103- | A | M8X25 L=37 | ||
| 731 | I0-58330 650-0 | BOLT; THROTTLE ASM | 4 | 2103- | AB | M6XS0 HEX SOCKET | ||
| 139 | I0-28650 820-0 | BOLT; BRKT FIX | 3 | 2103- | B | M8X20 FLANGE |
