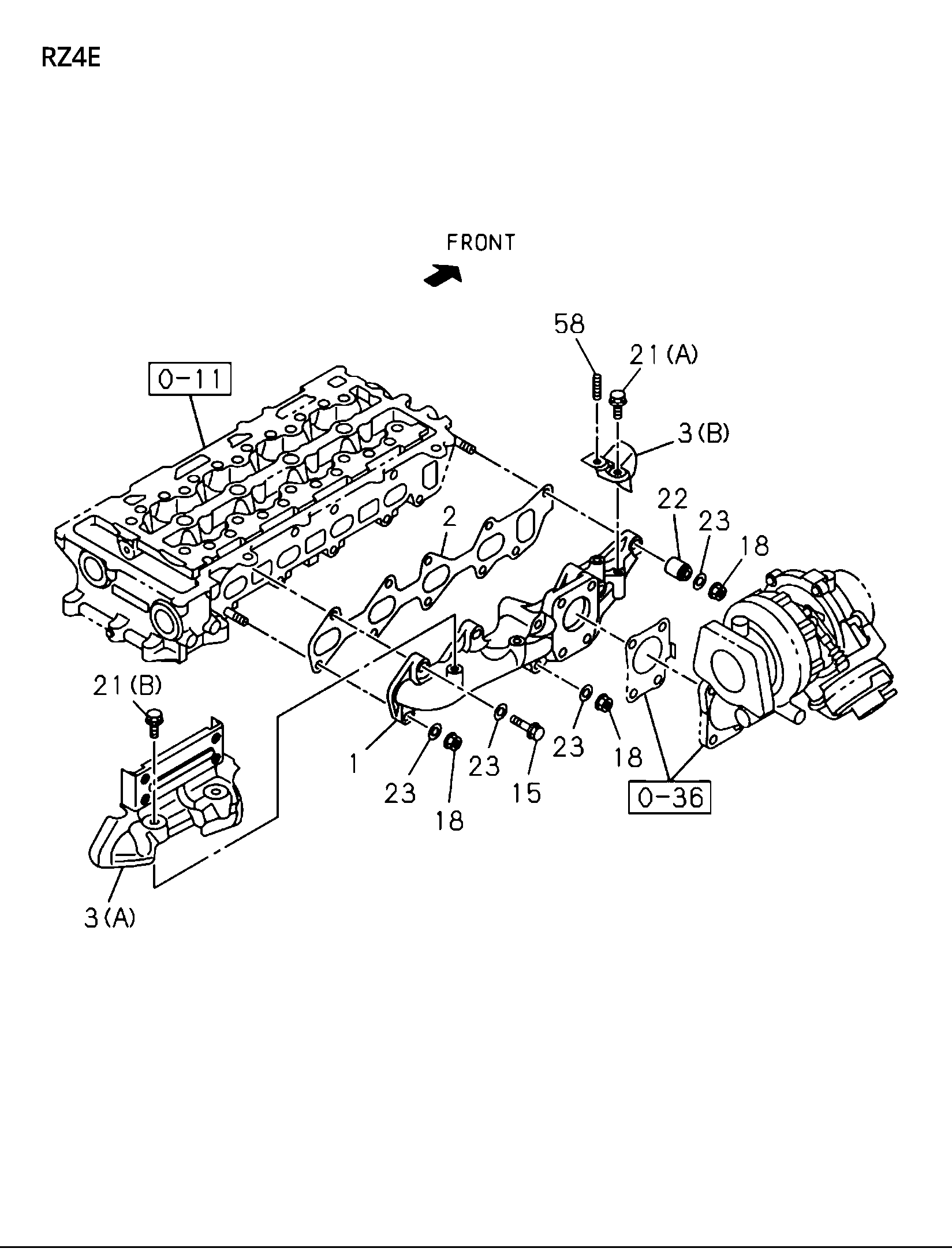

| 19 |
I8-97379 383-0 |
|
STUD; MANIF TO CYL HD |
2 |
2103- |
|
B |
M10X33 L=48 |
| 2 |
I8-98247 606-2 |
|
GASKET; EXH MANIF TO HD |
1 |
2103- |
|
A |
|
| 33 |
I5-09500 013-0 |
|
WASHER; EXH MANIF |
8 |
2103- |
|
B |
ID=10.5 |
| 58 |
I8-98360 821-0 |
|
STUD; HEAT PROTECTOR |
1 |
2103- |
|
A |
M8X25 L=33 |
| 21 |
I0-28050 812-0 |
|
BOLT; HEAT PROTECTOR |
1 |
2103- |
|
A |
(A) M8X12 FLANGE |
| 21 |
I0-28050 812-0 |
|
BOLT; HEAT PROTECTOR |
2 |
2103- |
|
B |
(A) M8X12 FLANGE |
| 18 |
I8-97309 942-0 |
|
NUT; EXH MANIF |
7 |
2103- |
|
A |
M10 FLANGE |
| 2 |
I8-98247 606-2 |
|
GASKET; EXH MANIF TO HD |
1 |
2103- |
|
A |
|
| 15 |
I8-98032 158-0 |
|
BOLT; EXH MANIF |
6 |
2103- |
|
B |
M10X30 FLANGE IMA |
| 23 |
I5-09500 013-0 |
|
WASHER; PL EXH MANIF BRKT |
10 |
2103- |
|
A |
ID=10.5 |
| 15 |
I8-98032 158-0 |
|
BOLT; EXH MANIF |
6 |
2103- |
|
B |
M10X30 FLANGE IMA |
| 22 |
I8-98307 650-0 |
|
SPACER; EXH MANIF BRKT |
2 |
2103- |
|
A |
|
| 1 |
I8-98247 605-3 |
|
MANIFOLD; EXHAUST |
1 |
2103- |
|
A |
|
| 21 |
I0-28050 812-0 |
|
BOLT; HEAT PROTECTOR |
1 |
2103- |
|
A |
(A) M8X12 FLANGE |
| 18 |
I8-97309 942-0 |
|
NUT; EXH MANIF |
7 |
2103- |
|
A |
M10 FLANGE |
| 3 |
I8-98247 218-2 |
|
PROTECTOR; HEAT,EXH MANIF |
1 |
2103- |
|
A |
(C) |
| 15 |
I8-98032 158-0 |
|
BOLT; EXH MANIF |
3 |
2103- |
|
A |
M10X30 FLANGE IMA |
| 21 |
I0-28050 820-0 |
|
BOLT; HEAT PROTECTOR |
2 |
2103- |
|
A |
(B) M8X20 FLANGE |
| 15 |
I8-98032 158-0 |
|
BOLT; EXH MANIF |
3 |
2103- |
|
A |
M10X30 FLANGE IMA |
| 21 |
I0-28050 812-0 |
|
BOLT; HEAT PROTECTOR |
2 |
2103- |
|
B |
(A) M8X12 FLANGE |
| 1 |
I8-98247 605-3 |
|
MANIFOLD; EXHAUST |
1 |
2103- |
|
A |
|
| 3 |
I8-97541 163-0 |
|
PROTECTOR; HEAT,EXH MANIF |
1 |
2103- |
|
A |
(B) |
