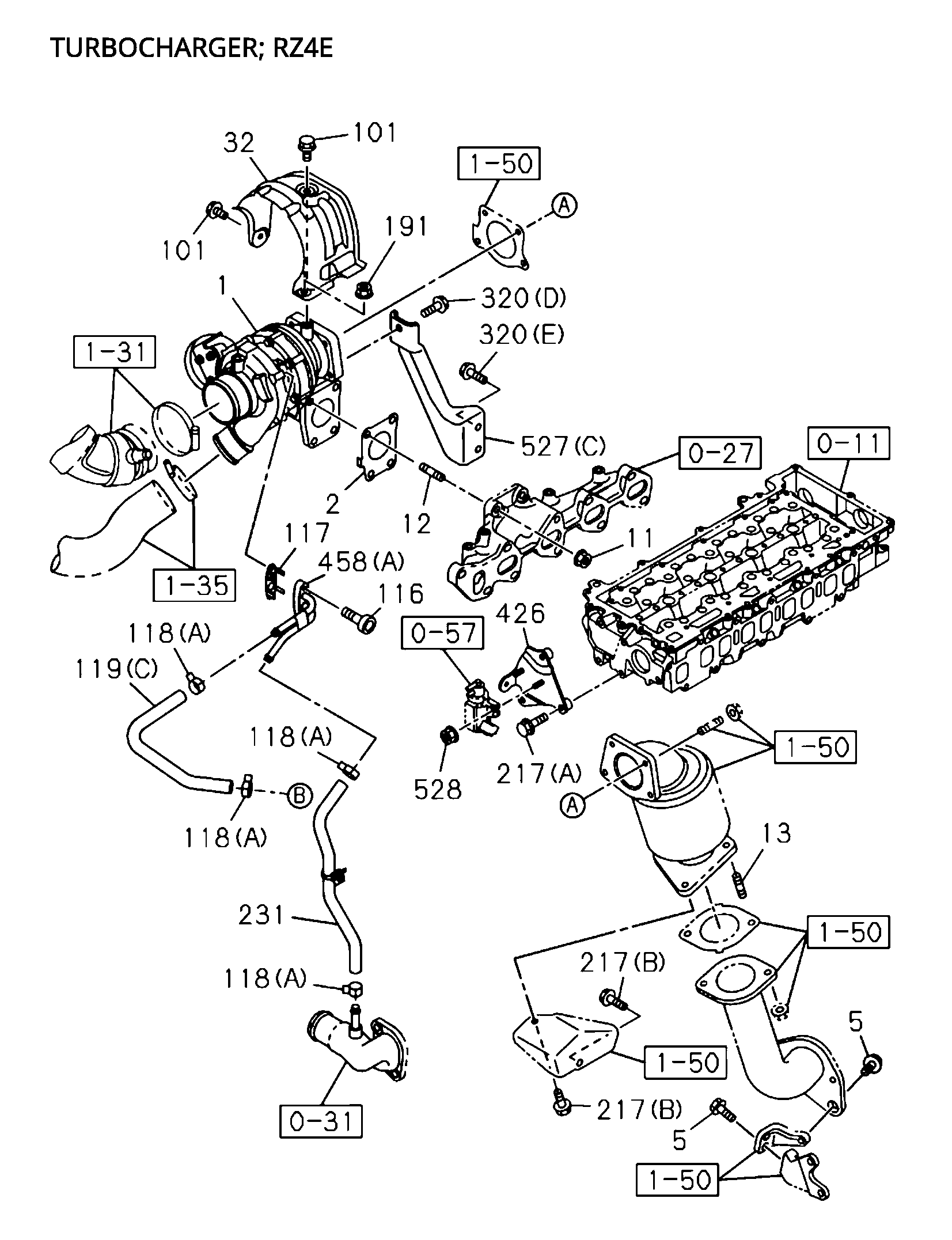

0-36 | TURBOCHARGER SYSTEM
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 11 | I8-97309 942-0 | NUT; TURBOCHARGER | 4 | 2103- | A | M10 FLANGE | ||
| 217 | I0-28661 230-0 | BOLT; BRKT | 3 | 2103- | B | (A) M12X30 FLANGE | ||
| 217 | I0-28050 820-0 | BOLT; BRKT | 5 | 2103- | B | (E) M8X20 FLANGE | ||
| 380 | I8-97498 118-0 | HOSE; RUBBER,PIPE TO PIPE | 1 | 2103- | A | A/T 6 SPEED-AISIN<Y6A> (B) | ||
| 540 | I8-97498 115-0 | PIPE; WATER | 1 | 2103- | A | (B) | ||
| 231 | I8-98332 238-0 | HOSE; RUBBER.TURBOCHARGER OUT | 1 | 2103- | A | |||
| 460 | I0-91180 210-0 | NUT; PIPE | 1 | 2103- | A | A/T 6 SPEED-AISIN<Y6A> M10 FLANGE | ||
| 117 | I8-98299 210-0 | GASKET; WATER PIPE | 1 | 2103- | A | |||
| 66 | I0-44011 025-0 | STUD; EXH PIPE | 2 | 2103- | B | M10X25 L=40 | ||
| 426 | I8-98332 270-0 | BRACKET; VLV | 1 | 2103- | A | |||
| 32 | I8-98247 223-2 | PROTECTOR; HEAT.TURBOCHARGER | 1 | 2103- | A | |||
| 458 | I8-98298 390-1 | PIPE; WATER.TURBOCHARGER | 1 | 2103- | A | |||
| 527 | I8-98248 089-2 | BRACKET; TURBOCHARGER | 1 | 2103- | A | (C) | ||
| 1 | I8-97652 435-0 | TURBOCHARGERASM | 1 | 2103- | A | EUR02 SPECIFICATION(NT2) | ||
| 540 | I8-97498 116-0 | PIPE; WATER | 1 | 2103- | A | A/T 6 SPEED-AI5IN<Y6A> (D) | ||
| 11 | I8-97309 942-0 | NUT; TURBOCHARGER | 4 | 2103- | A | M10 FLANGE | ||
| 231 | I8-98332 238-0 | HOSE; RUBBERJURBOCHARGER OUT | 1 | 2103- | A | |||
| 528 | I0-91180 106-0 | NUT; VLV | 2 | 2103- | A | M6 FLANGE | ||
| 101 | I0-28050 820-0 | BOLT; HEAT PROTECTOR | 2 | 2103- | A | M8X20 FLANGE | ||
| 32 | I8-98247 223-2 | PROTECTOR; HEAT,TURBOCHARGER | 1 | 2103- | A | |||
| 12 | I8-97378 063-0 | STUD; TURBOCHARGER | 4 | 2103- | A | M10X28.5 L=41.5 IMA | ||
| 21 | I0-28050 825-0 | BOLT; PIPE | 2 | 2103- | A | A/T 6 5PEED-AISIN<Y6A> (D) M8X25 FLANGE | ||
| 118 | I8-98179 581-0 | CLIP; WATER HOSE | 4 | 2103- | A | (A) ID=15.1 | ||
| 12 | I8-97378 063-0 | STUD; TURBOCHARGER | 2 | 2103- | B | M10X28.5 L=41.5 IMA | ||
| 540 | I8-97498 116-0 | PIPE; WATER | 1 | 2103- | A | A/T 6 SPEED-AI5IN<Y6A> (D) | ||
| 21 | I0-28050 816-0 | BOLT; PIPE | 2 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> M8X16 FLANGE | ||
| 2 | I8-98248 088-2 | GASKET; TURBOCHARGER TO EXH MANIF | 1 | 2103- | A | |||
| 21 | I0-28050 816-0 | BOLT; PIPE | 1 | 2103- | B | (B) M8X16 FLANGE | ||
| 217 | I0-28050 830-0 | BOLT; BRKT | 2 | 2103- | A | (C) M8X30 FLANGE | ||
| 118 | I8-97944 127-0 | CLIP; WATER HOSE | 4 | 2103- | AB | (B) ID=20.8 | ||
| 460 | I0-91180 210-0 | NUT; PIPE | 1 | 2103- | A | A/T 6 SPEED-AISIN<Y6A> M10 FLANGE | ||
| 380 | I8-97498 118-0 | HOSE; RUBBER,PIPE TO PIPE | 1 | 2103- | A | A/T 6 SPEED-AISIN<Y6A> (B) | ||
| 217 | I0-28151 020-0 | BOLT; BRKT | 2 | 2103- | A | (D) M10X20 FLANGE | ||
| 488 | I8-97519 138-0 | HOSE; RUBBER | 1 | 2103- | A | A/T 6 SPEED-AISIN<Y6A> COOLER W/FRESH AIR<C65> | ||
| 2 | I8-98248 088-2 | GASKET; TURBOCHARGER TO EXH MANIF | 1 | 2103- | A | |||
| 21 | I0-28050 816-0 | BOLT; PIPE | 2 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> M8X16 FLANGE | ||
| 12 | I8-97378 063-0 | STUD; TURBOCHARGER | 2 | 2103- | B | M10X28.5 L=41.5 IMA | ||
| 118 | I8-98179 581-0 | CLIP; WATER HOSE | 6 | 2103- | B | (A) ID=15.1 | ||
| 118 | I8-97944 127-0 | CUP; WATER HOSE | 2 | 2103- | A | (B) ID=20.8 | ||
| 526 | I8-98299 210-0 | GASKET; PLATE | 1 | 2103- | B | |||
| 118 | I8-98179 581-0 | CLIP; WATER HOSE | 6 | 2103- | B | (A) ID=15.1 | ||
| 309 | I0-28050 835-0 | BOLT; TURBOCHARGER | 1 | 2103- | B | (B) M8X35 FLANGE | ||
| 5 | I0-28751 025-0 | BOLT; BRIG" TO EXH PIPE | 5 | 2103- | A | M10X25 FLANGE | ||
| 101 | I0-28050 812-0 | BOLT; HEAT PROTECTOR | 3 | 2103- | B | M8X12 FLANGE | ||
| 13 | I0-44011 025-0 | STUD; EXH PIPE | 2 | 2103- | A | M10X25 L=40 | ||
| 118 | I8-98179 581-0 | CLIP; WATER HOSE | 4 | 2103- | A | (A) ID=15.1 | ||
| 12 | I8-97378 063-0 | STUD; TURBOCHARGER | 4 | 2103- | A | M10X28.5 L=41.5 IMA | ||
| 460 | I0-91180 108-0 | NUT; PIPE | 2 | 2103- | A | (A) M8 FLANGE | ||
| 118 | I8-97944 127-0 | CUP; WATER HOSE | 2 | 2103- | A | (B) ID=20.8 | ||
| 320 | I0-28151 020-0 | BOLT; BRKT.TURBOCHARGER | 2 | 2103- | A | (C) M10X20 FLANGE | ||
| 460 | I0-91180 108-0 | NUT; PIPE | 2 | 2103- | A | (A) M8 FLANGE | ||
| 101 | I0-28050 820-0 | BOLT; HEAT PROTECTOR | 2 | 2103- | A | M8X20 FLANGE | ||
| 540 | I8-97498 115-0 | PIPE; WATER | 1 | 2103- | A | (B) | ||
| 119 | I8-98298 388-0 | HOSE; WATER.TURBOCHARGER | 1 | 2103- | A | (C) | ||
| 191 | I0-91180 108-0 | NUT; HEAT PROTECTOR | 1 | 2103- | A | M8 FLANGE | ||
| 101 | I0-28050 812-0 | BOLT; HEAT PROTECTOR | 3 | 2103- | B | M8X12 FLANGE | ||
| 11 | I8-97309 942-0 | NUT; TURBOCHARGER | 2 | 2103- | B | M10 FLANGE | ||
| 21 | I0-28050 816-0 | BOLT; PIPE | 1 | 2103- | B | (B) M8X16 FLANGE | ||
| 21 | I0-28050 825-0 | BOLT; PIPE | 2 | 2103- | A | A/T 6 5PEED-AISIN<Y6A> (D) M8X25 FLANGE | ||
| 118 | I8-97944 127-0 | CLIP; WATER HOSE | 4 | 2103- | AB | (B) ID=20.8 | ||
| 488 | I8-97519 138-0 | HOSE; RUBBER | 1 | 2103- | A | A/T 6 SPEED-AISIN<Y6A> COOLER W/FRESH AIR<C65> | ||
| 116 | I0-58330 620-0 | BOLT; WATER PIPE | 2 | 2103- | A | M6X20 HEX SOCKET | ||
| 458 | I8-98298 390-1 | PIPE; WATER,TURBOCHARGER | 1 | 2103- | A | |||
| 320 | I8-98189 923-0 | BOLT; BRKT.TURBOCHARGER | 1 | 2103- | AB | (D) M10X25 FLANGE | ||
| 11 | I8-97309 942-0 | NUT; TURBOCHARGER | 2 | 2103- | B | M10 FLANGE |
