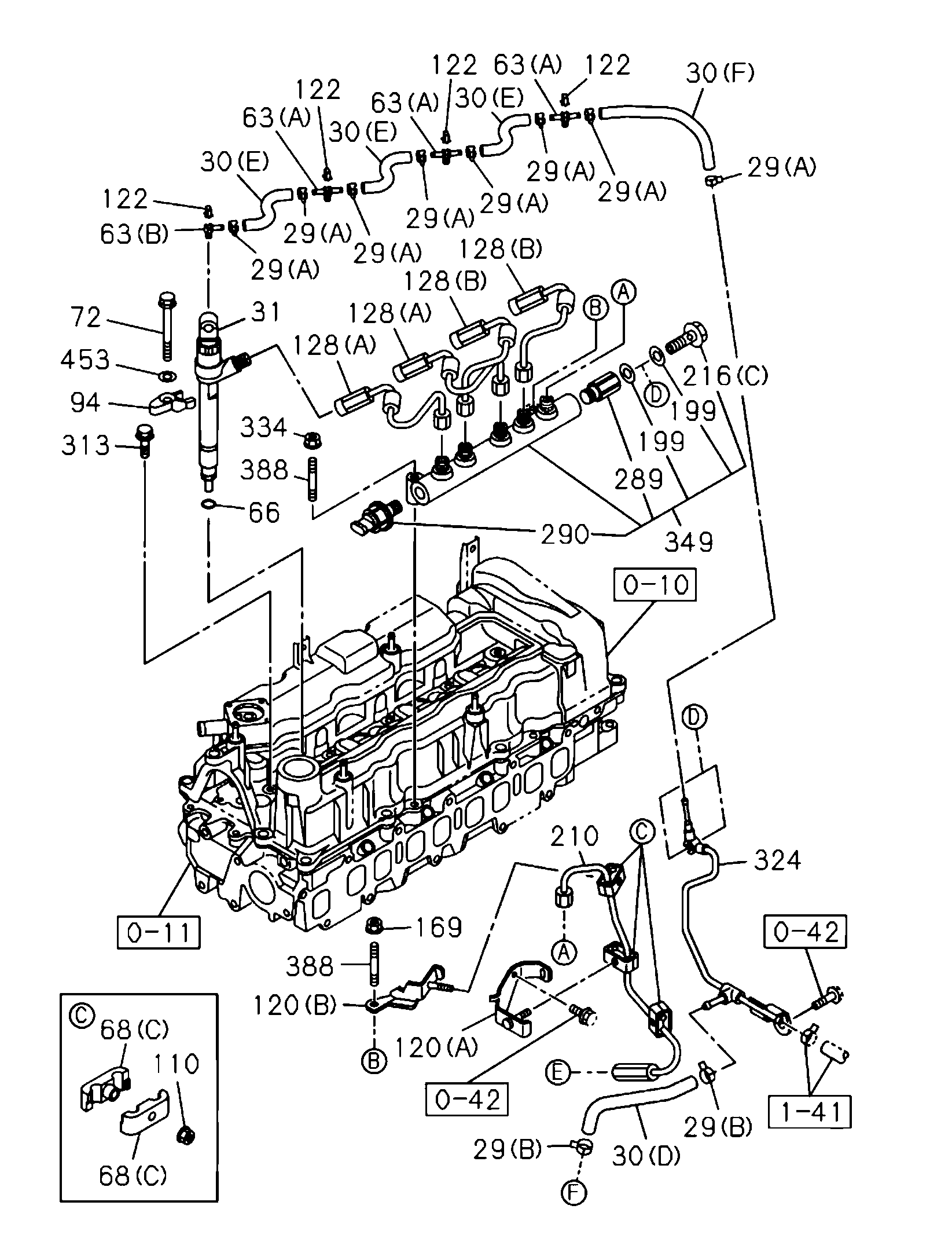

0-40 | FUEL INJECTION SYSTEM
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 122 | I8-97315 286-0 | CLIP; LEAK OFF PIPE | 4 | 2103- | AB | IMA | ||
| 29 | I8-97944 126-0 | CLIP; HOSE | 10 | 2103- | B | (A) ID=10.5 | ||
| 63 | I8-98161 061-0 | PIPE; FUEL.NOZZLE LEAK OFF | 3 | 2103- | A | (A) IMA | ||
| 68 | I8-98148 996-2 | CLIP; INJ PIPE | 6 | 2103- | A | (C) ID=11 &11 L=19 IMA | ||
| 210 | I8-98247 225-1 | PIPE; INJ.C/R | 1 | 2103- | A | |||
| 66 | I8-98181 540-0 | GASKET; INJ NOZZLE | 4 | 2103- | A | ID=7.1 IMA | ||
| 219 | I1-09623 541-0 | GASKET | 1 | 2103- | B | ID=49.7 | ||
| 289 | I8-98138 695-0 | ?MITER; FUEL PRESS | 1 | 2103- | A | |||
| 29 | I8-97944 126-0 | CLIP; HOSE | 8 | 2103- | A | (A) ID=10.5 | ||
| 30 | I8-98250 851-0 | HOSE; RUBBER,FUEL LEAK | 1 | 2103- | A | (F) | ||
| 29 | I8-97944 126-0 | CLIP; HOSE | 8 | 2103- | A | (A) ID=10.5 | ||
| 199 | I8-97602 218-0 | GASKET; EYE BOLT | 2 | 2103- | A | IMA | ||
| 313 | I8-98247 614-1 | BOLT; BRKT.INJ NOZZLE | 4 | 2103- | A | M6X25 FLANGE | ||
| 169 | I0-91180 108-0 | NUT; BRKT | 1 | 2103- | A | M8 FLANGE | ||
| 453 | I8-98302 470-0 | WASHER; INJ NOZZLE | 4 | 2103- | A | |||
| 30 | I8-98250 822-0 | HOSE; RUBBER,FUEL LEAK | 3 | 2103- | A | (E) | ||
| 210 | I8-98247 225-1 | PIPE; INJ.C/R | 1 | 2103- | A | |||
| 120 | I8-98248 157-2 | BRACKET; INJ PIPE | 1 | 2103- | A | (A) | ||
| 128 | I8-98247 229-3 | PIPE ASM; INJ | 2 | 2103- | A | (B) | ||
| 31 | I8-98247 354-0 | NOZZLE ASM; INJ | 4 | 2103- | A | |||
| 29 | I8-97944 126-0 | CLIP; HOSE | 10 | 2103- | B | (A) ID=10.5 | ||
| 29 | I8-97944 126-0 | CLIP; HOSE | 10 | 2103- | B | (A) ID=10.5 | ||
| 29 | I8-97944 126-0 | CLIP; HOSE | 8 | 2103- | A | (A) ID=10.5 | ||
| 334 | I0-91180 208-0 | NUT; FLANGE | 2 | 2103- | A | M8 FLANGE | ||
| 199 | I8-97602 218-0 | GASKET; EYE BOLT | 2 | 2103- | A | IMA | ||
| 30 | I0-01558 300-0 | HOSE; RUBBER,FUEL LEAK | 1 | 2103- | A | (D) L=160 SERVICED BY L=3000 IMA | ||
| 120 | I8-98315 357-1 | BRACKET; INJ PIPE | 1 | 2103- | A | (B) | ||
| 31 | I8-98247 354-0 | NOZZLE ASM; INJ | 4 | 2103- | A | |||
| 128 | I8-98247 227-3 | PIPE ASM; INJ | 2 | 2103- | A | (A) | ||
| 66 | I8-98181 540-0 | GASKET; INJ NOZZLE | 4 | 2103- | A | ID=7.1 IMA | ||
| 122 | I8-97315 286-0 | CLIP; LEAK OFF PIPE | 4 | 2103- | AB | IMA | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 3 | 2103- | A | M6 FLANGE | ||

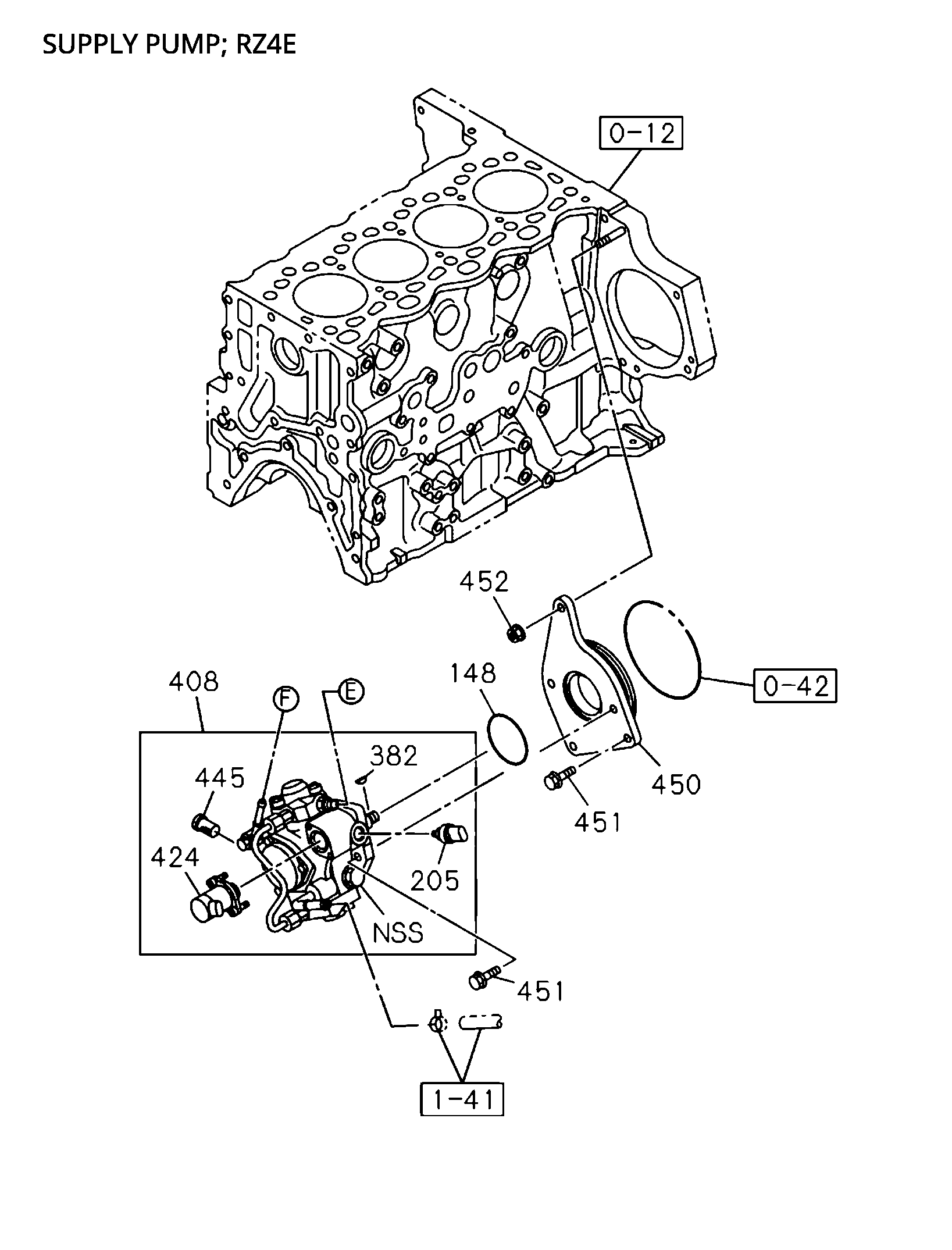

| 408 | I8-98247 350-2 | PUMP ASM; FUEL.SUPPLY | 1 | 2103- | A | |||
| 63 | I8-98161 062-0 | PIPE; FUELNOZZLE LEAK OFF | 1 | 2103- | A | (B) IMA | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 2 | 2103- | B | M6 FLANGE | ||
| 29 | I8-97329 627-0 | CLIP; HOSE | 2 | 2103- | A | ID=13 IMA | ||
| 349 | I8-98247 356-0 | RAIL; COMMON | 1 | 2103- | A | |||
| 313 | I8-98247 614-1 | BOLT; BRKT.INJ NOZZLE | 4 | 2103- | A | M6X25 FLANGE | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 3 | 2103- | A | M6 FLANGE | ||
| 388 | I8-98356 094-0 | STUD; RAIL | 2 | 2103- | A | M 8X72.5 L=100 | ||
| 290 | I8-98178 706-0 | SENSOR; PRESS | 1 | 2103- | A | |||
| 110 | I0-91180 106-0 | NUT; CLIP | 2 | 2103- | B | M6 FLANGE | ||
| 72 | I8-98287 955-2 | BOLT; BRKT TO INJ PUMP | 4 | 2103- | A | M8X80 FLANGE | ||
| 324 | I8-98248 159-0 | PIPE; FUEL RETURN | 1 | 2103- | A | |||
| 216 | I8-98220 020-0 | BOLT; EYE | 1 | 2103- | A | (c) | ||
| 94 | I8-98248 087-1 | BRACKET; INJ NOZZLE | 4 | 2103- | A |
