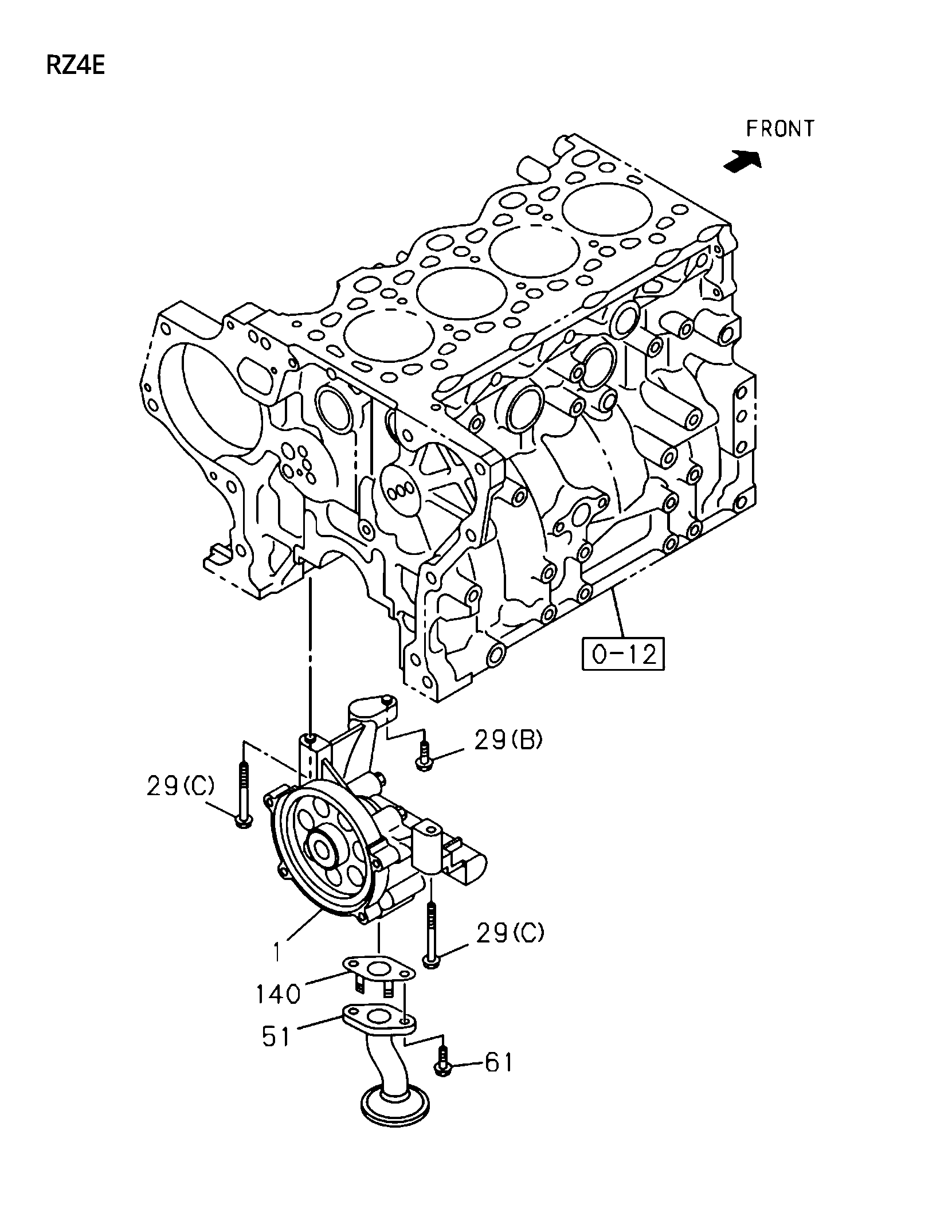

0-51 | OIL PUMP AND OIL STRAINER
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 1 | 2103- | A | (B) M8X30 FLANGE | ||
| 140 | I8-98248 225-1 | GASKET; OIL STRAINER | 1 | 2103- | A | |||
| 51 | I8-98247 414-1 | STRAINER & PIPE ASM; OIL | 1 | 2103- | A | |||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 1 | 2103- | A | (B) M8X30 FLANGE | ||
| 140 | I8-98248 225-1 | GASKET; OIL STRAINER | 1 | 2103- | A | |||
| 1 | I8-97529 942-0 | PUMP ASM; OIL | 1 | 2103- | A | |||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 4 | 2103- | B | (B) M8X30 FLANGE | ||
| 49 | I0-28050 816-0 | BOLT; STRAIN ER.OIL PUMP | 2 | 2103- | B | M8X16 FLANGE | ||
| 29 | I0-28050 845-0 | BOLT; OIL PUMP | 2 | 2103- | B | (A) M8X45 FLANGE | ||
| 1 | I8-97529 942-0 | PUMP ASM; OIL | 1 | 2103- | A | |||
| 29 | I0-28050 860-0 | BOLT; OIL PUMP | 2 | 2103- | A | (C) M8X60 FLANGE | ||
| 61 | I0-58330 820-0 | BOLT; OIL STRAINER | 2 | 2103- | A | M8X20 HEX SOCKET IMA | ||
| 29 | I0-28050 830-0 | BOLT; OIL PUMP | 4 | 2103- | B | (B) M8X30 FLANGE |
