0-60 | ENGINE ELECTRICAL CONTROL PARTS
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 74 | I0-28650 616-0 | BOLT; CONT UNIT | 4 | 2103- | A | (B) M6X16 FLANGE | ||
| 13 | I0-28650 616-0 | BOLT; BRKT | 2 | 2103- | AB | IDLE STOP SYSTEM<8BM> M6X16 FLANGE | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2103- | B | (A) M6X16 FLANGE | ||
| 13 | I0-28650 616-0 | BOLT; BRKT | 2 | 2103- | AB | SAFETY PACKAGE FT & RR<8SY> M6X16 FLANGE | ||
| 797 | I8-98121 697-1 | SENSOR; MAT | 1 | 2103- | A | IMA | ||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG,THERMO | 1 | 2103- | AB | NISHIDA IMA | ||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG,THERMO | 1 | 2103- | AB | NI5HIDA IMA | ||

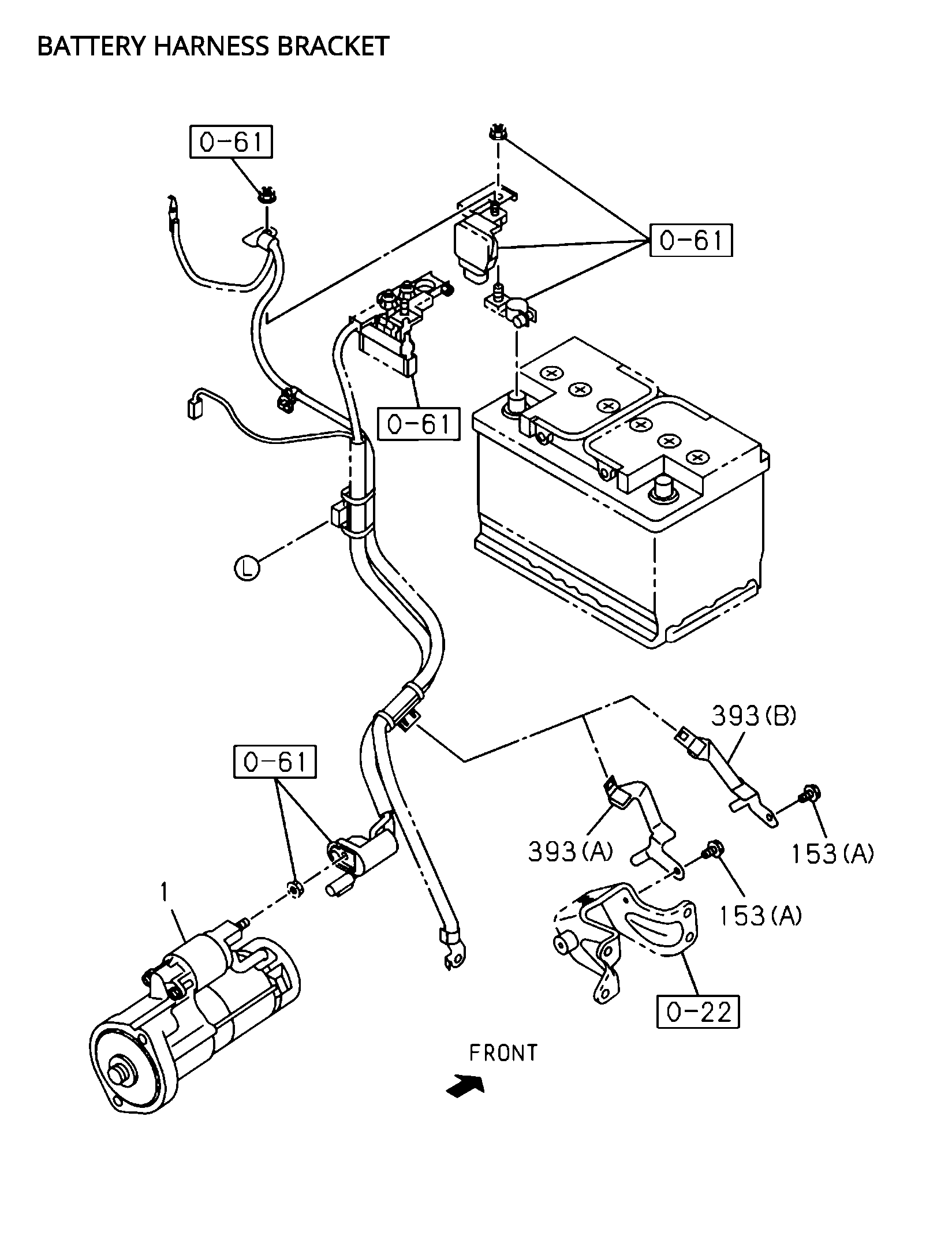

| 393 | I8-98480 358-0 | BRACKET; HARNESS TO BODY | 1 | 2103- | A | (B) | ||
| 16 | I0-28151 070-0 | BOLT; GEN | 3 | 2103- | A | M10X70 FLANGE IMA | ||
| 766 | I8-98318 106-0 | GASKET; SENSOR | 1 | 2103- | A | ID=17.8 OD=22.6 IMA | ||

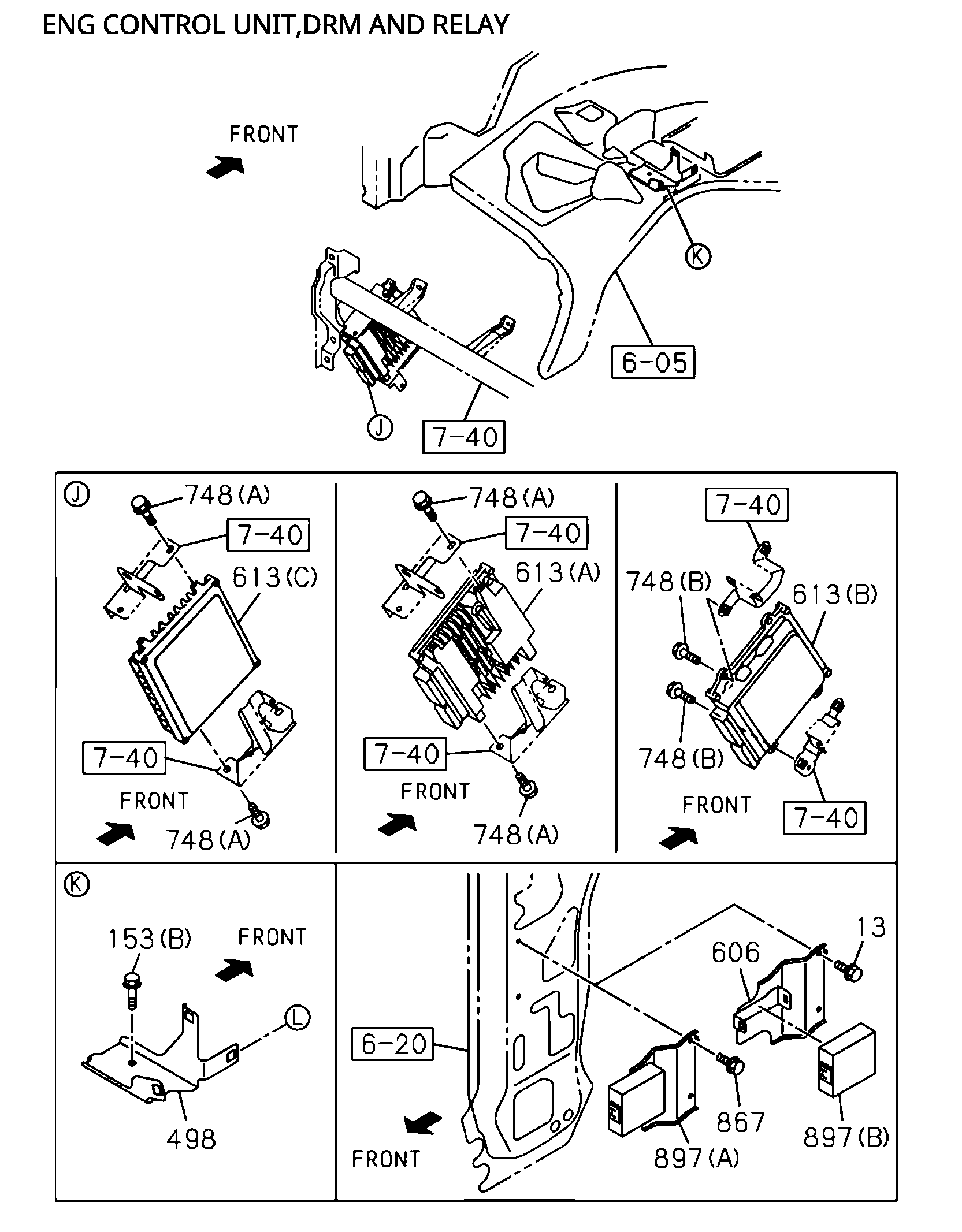

| 748 | I8-98076 109-0 | BOLT; CONT UNIT | 4 | 2103- | B | (A) M8X16 FLANGE | ||
| 867 | I0-28650 616-0 | BOLT | 2 | 2103- | AB | EXC. SAFETY PACKAGE FT & RR<8SY> M6X16 FLANGE | ||
| 498 | I8-98396 304-0 | BRACKET; RELAY | 1 | 2103- | A | EXC. IDLE STOP SYSTEM<8BM> (B) | ||

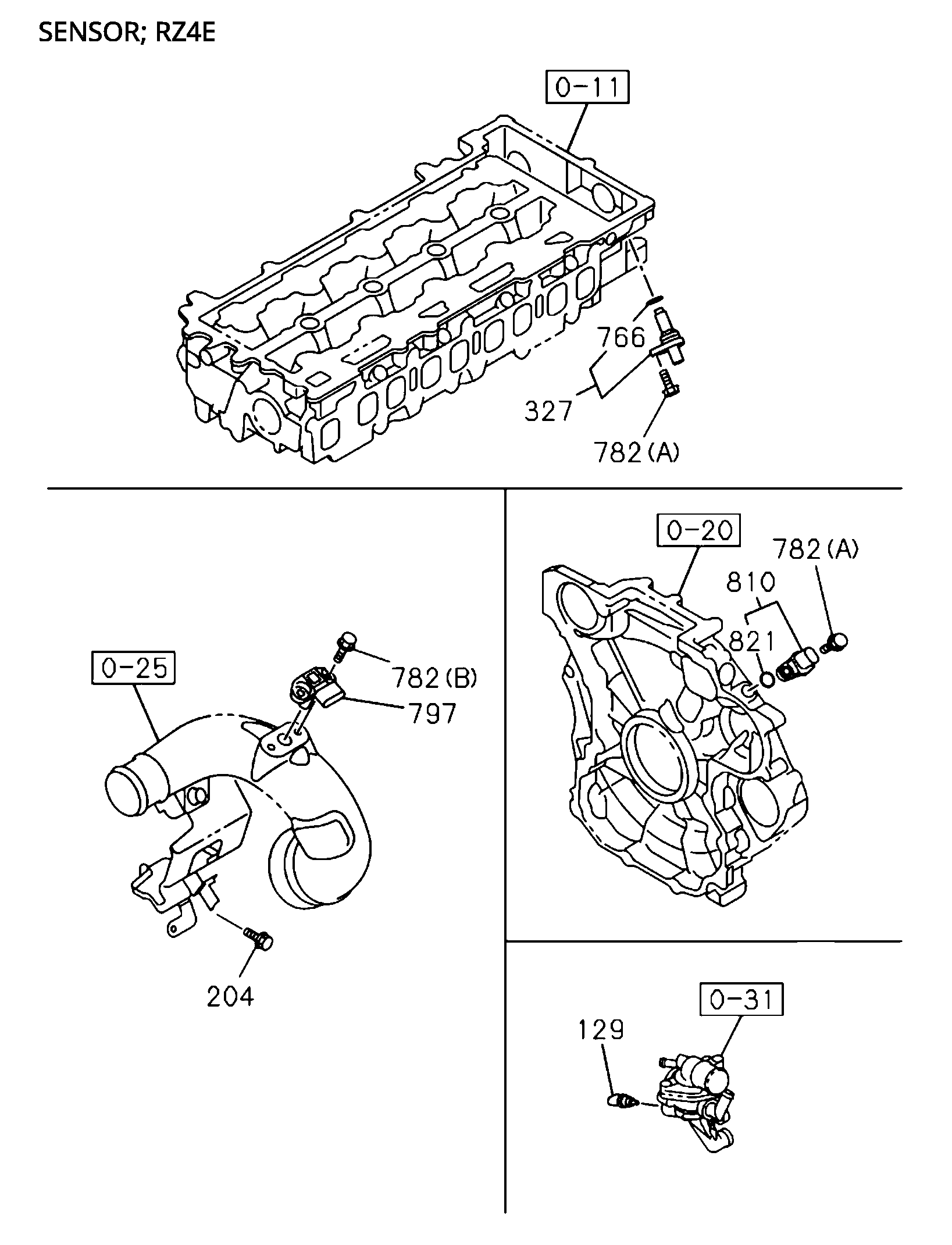

| 327 | I8-98258 187-0 | SENSOR; CAMSHAFT POSITION | 1 | 2103- | A | IMA | ||
| 13 | I0-28650 616-0 | BOLT; BRKT | 2 | 2103- | AB | SAFETY PACKAGE FT & RR<8SY> M6X16 FLANGE | ||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG,THERMO | 1 | 2103- | AB | NISHIDA IMA | ||

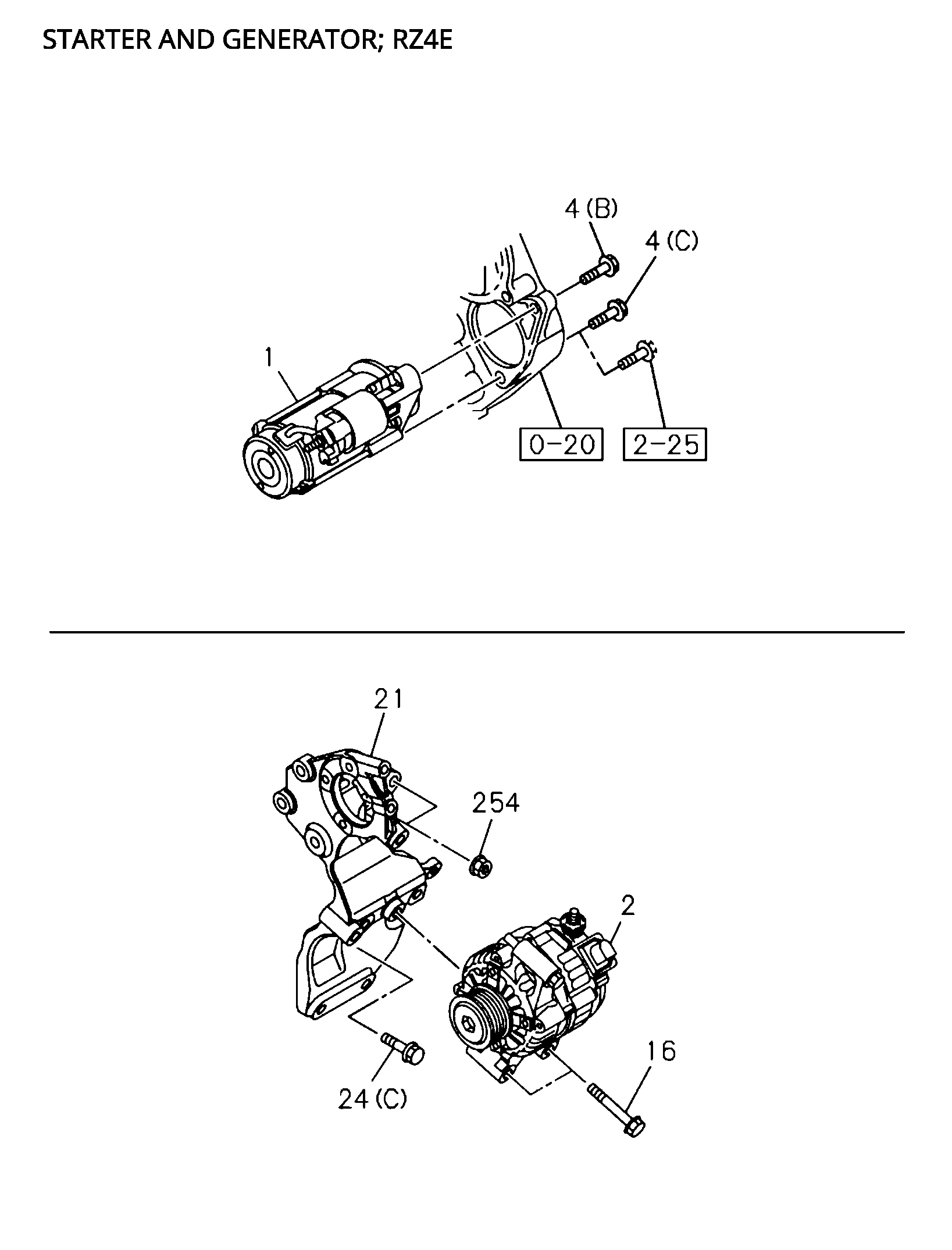

| 1 | I8-98248 271-2 | STARTER ASM | 1 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> SEE RG-NO 0-65 FOR COMPONENT. 12V1.6KW | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 2 | 2103- | A | (A) M6X16 FLANGE | ||
| 21 | I8-98378 725-2 | BRACKET; GEN | 1 | 2103- | A | |||
| 782 | I0-28050 612-0 | BOLT; SENSOR | 2 | 2103- | A | (B) M6X12 FLANGE | ||
| 766 | I8-97369 404-0 | GASKET; SENSOR | 1 | 2103- | B | ID=14.2 OD=18.8 IMA | ||
| 821 | I8-97369 404-0 | GASKET; CRANKSHAFT SENSOR | 1 | 2103- | A | ID=14.2 OD=18.8 IMA | ||
| 782 | I0-28050 612-0 | BOLT; SENSOR | 2 | 2103- | A | (B) M6X12 FLANGE | ||
| 766 | I8-98318 106-0 | GASKET; SENSOR | 1 | 2103- | A | ID=17.8 OD=22.6 IMA | ||

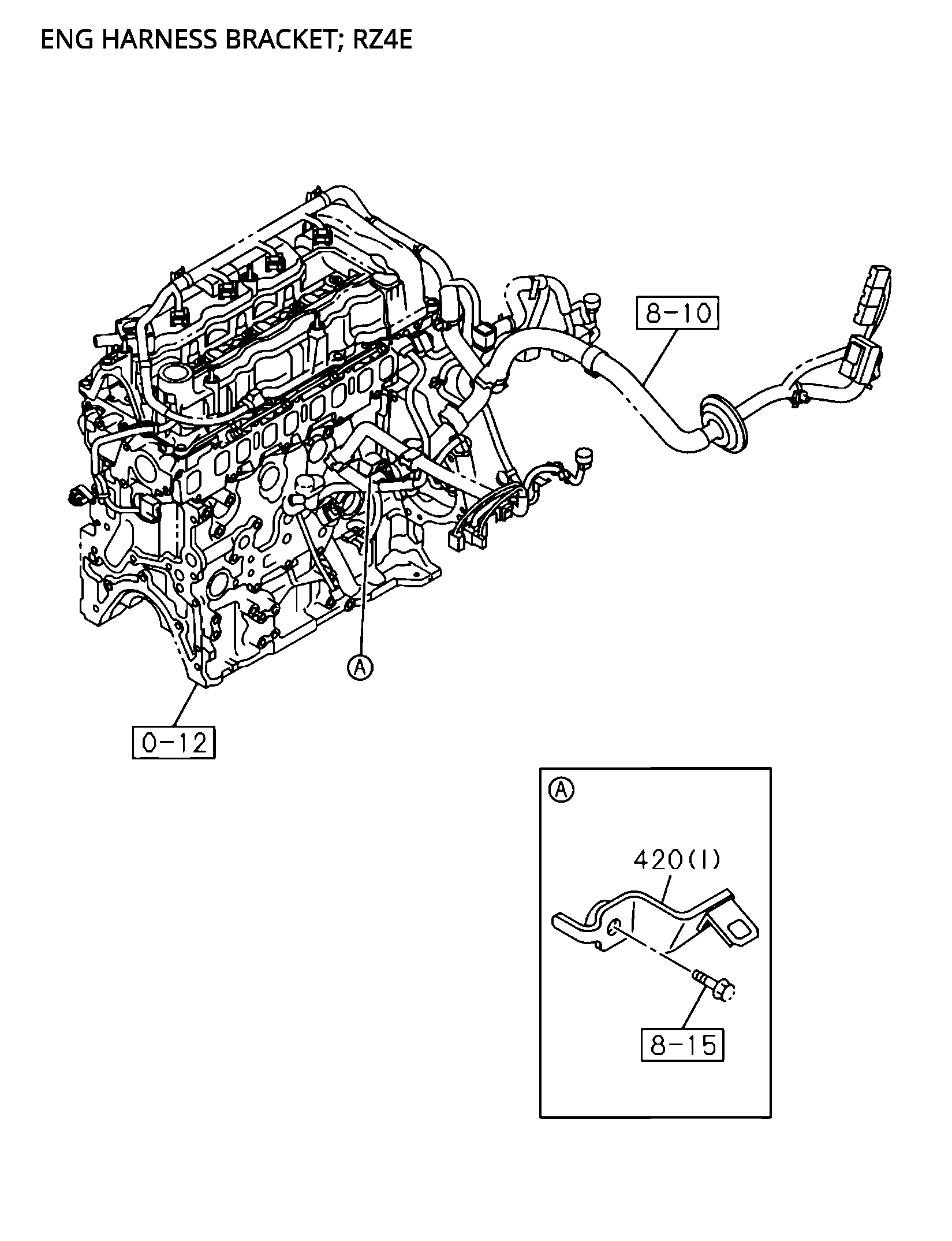

| 420 | I8-97498 154-0 | BRACKET; HARNESS | 1 | 2103- | A | (D) | ||
| 897 | I8-97493 830-1 | ? RM | 1 | 2103- | AB | SAFETY PACKAGE FT 8i RR<8SY> (B) IMA | ||
| 897 | I8-97487 649-2 | DRM | 1 | 2103- | AB | EXC. SAFETY PACKAGE FT 8> RR<8SY> (A) | ||
| 606 | I8-97480 507-0 | BRACKET; CONT UNIT | 1 | 2103- | AB | SAFETY PACKAGE FT 8c RR<8SY> (B) | ||
| 1 | I8-98248 271-2 | STARTER ASM | 1 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> SEE FIG-NO 0-65 FOR COMPONENT. 12V1.6KW | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 2 | 2103- | A | (A) M6X16 FLANGE | ||
| 4 | I0-28151 040-0 | BOLT; STARTER | 1 | 2103- | A | (B) M10X40 FLANGE IMA | ||
| 204 | I0-28050 816-0 | BOLT; BRKT | 2 | 2103- | A | M8X16 FLANGE | ||
| 797 | I8-98121 697-1 | SENSOR; MAT | 1 | 2103- | A | IMA | ||
| 766 | I8-97369 404-0 | GASKET; SENSOR | 1 | 2103- | B | ID=14.2 OD=18.8 IMA | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2103- | B | (A) M6X16 FLANGE | ||
| 153 | I8-97012 320-1 | BOLT; BRKT FIX | 1 | 2103- | AB | (A) M8X12 FLANGE | ||
| 13 | I0-28650 616-0 | BOLT; BRKT | 2 | 2103- | AB | IDLE STOP SYSTEM<8BM> M6X16 FLANGE | ||
| 204 | I0-28050 816-0 | BOLT; BRKT | 2 | 2103- | A | M8X16 FLANGE | ||
| 254 | I0-91180 210-0 | NUT; GEN BRKT | 2 | 2103- | A | M10 FLANGE | ||
| 810 | I8-98183 621-0 | SENSOR; CRANK ANGLE | 1 | 2103- | A | IMA | ||
| 766 | I8-97369 404-0 | GASKET; SENSOR | 1 | 2103- | B | ID=14.2 OD=18.8 IMA | ||
| 2 | I8-98385 218-0 | GENERATOR ASM | 1 | 2103- | A | SEE FIG-NO 0-66 FOR COMPONENT. 12V120A | ||
| 4 | I0-28051 200-0 | BOLT; STARTER | 1 | 2103- | A | A/T 6 SPEED-AISIN<Y6A> (C) M12X100 FLANGE | ||
| 24 | I0-28151 025-0 | BOLT; GEN BRKT | 2 | 2103- | A | (C) M10X25 FLANGE | ||
| 154 | I0-91180 106-0 | NUT; BRKT FIX | 2 | 2103- | B | M6 FLANGE | ||
| 154 | I0-91180 106-0 | NUT; BRKT FIX | 2 | 2103- | A | IDLE STOP SYSTEM<8BM> M6 FLANGE | ||
| 26 | I0-28051 045-0 | BOLT; GEN BRKT | 1 | 2103- | B | (A) M10X45 FLANGE | ||
| 16 | I0-28151 070-0 | BOLT; GEN | 3 | 2103- | A | M10X70 FLANGE IMA | ||

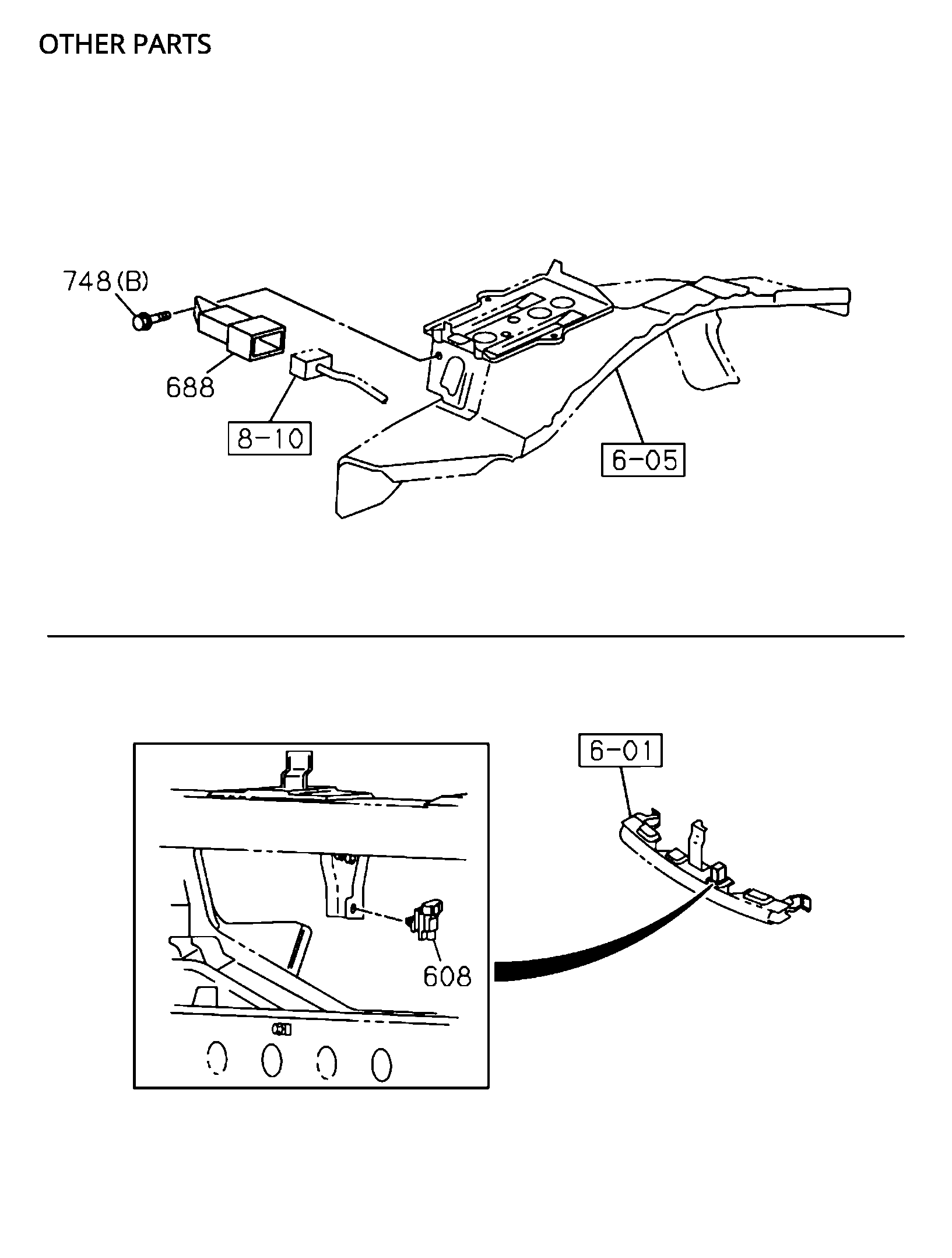

| 608 | I8-98008 687-0 | SENSOR; AIR TEMP | 1 | 2103- | AB | IMA | ||
| 821 | I8-97369 404-0 | GASKET; CRANKSHAFT SENSOR | 1 | 2103- | A | ID=14.2 OD=18.8 IMA | ||
| 327 | I8-98258 187-0 | SENSOR; CAMSHAFT POSITION | 1 | 2103- | A | IMA | ||
| 24 | I0-28650 820-0 | BOLT; GEN BRKT | 1 | 2103- | B | (B) M8X20 FLANGE | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 2 | 2103- | A | (A) M6X16 FLANGE | ||
| 766 | I8-98318 106-0 | GASKET; SENSOR | 1 | 2103- | A | ID=17.8 OD=22.6 IMA | ||
| 810 | I8-98183 621-0 | SENSOR; CRANK ANGLE | 1 | 2103- | A | IMA | ||
| 782 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2103- | B | (A) M6X16 FLANGE | ||
| 153 | I8-97086 823-0 | BOLT; BRKT FIX | 1 | 2103- | AB | (B) M6X16 W/LK&PL WASHER IMA | ||
| 2 | I8-98385 218-0 | GENERATOR ASM | 1 | 2103- | A | SEE FIG-NO 0-66 FOR COMPONENT. 12V120A | ||
| 1 | I8-98248 271-2 | STARTER ASM | 1 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> SEE FIG-NO 0-65 FOR COMPONENT. 12V1.6KW | ||
| 327 | I8-98258 187-0 | SENSOR; CAMSHAFT POSITION | 1 | 2103- | A | IMA | ||
| 24 | I0-28050 825-0 | BOLT; GEN BRKT | 1 | 2103- | B | (A) M8X25 FLANGE | ||
| 21 | I8-98378 725-2 | BRACKET; GEN | 1 | 2103- | A |
