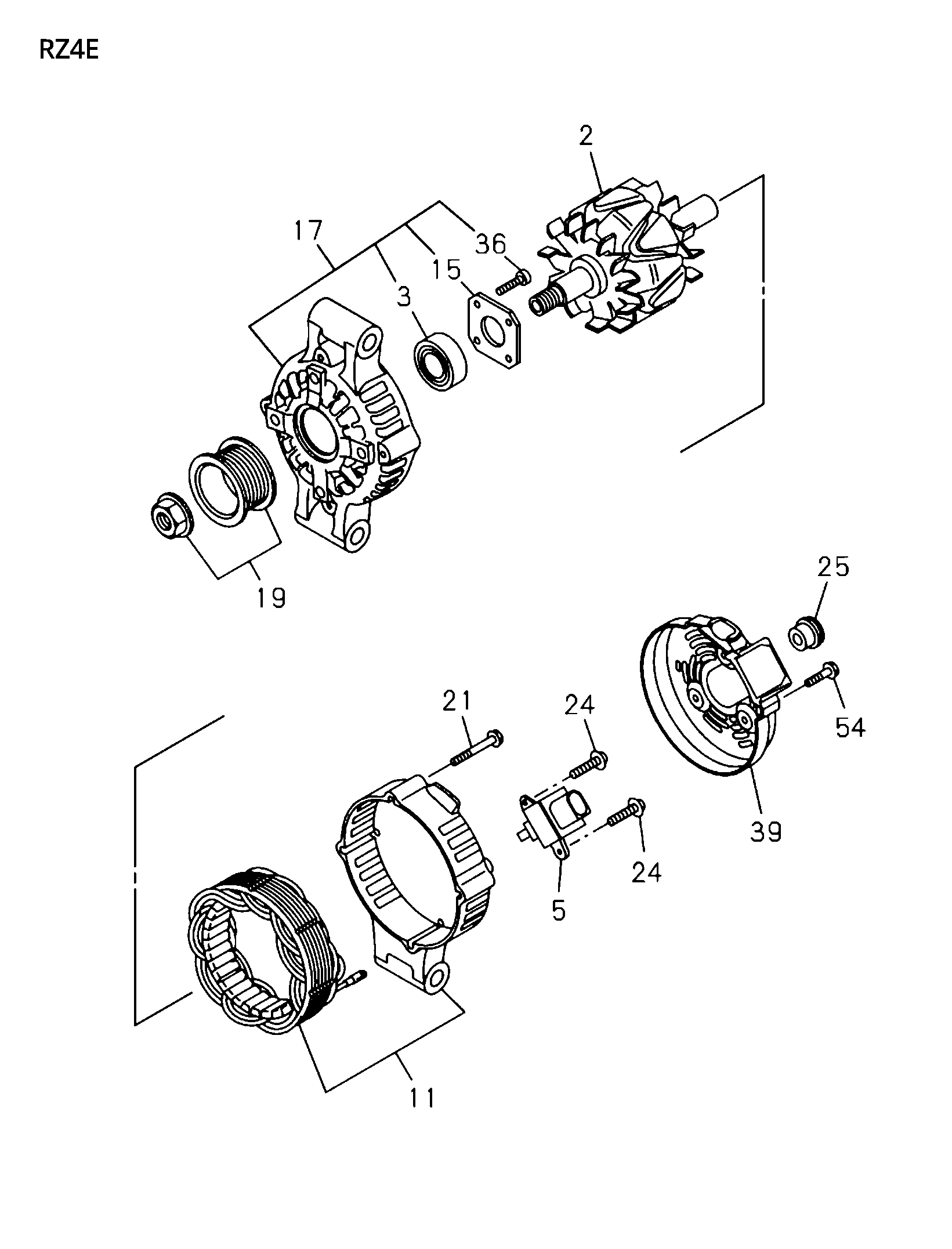

| 24 |
I8-97032 313-0 |
|
SCREW; RECTI FIE R,GEN |
3 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391-755-1 IMA |
| 15 |
I8-94406 982-0 |
|
RETAINER; ROTOR.GEN |
1 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391 -755-1 IMA |
| 11 |
I8-98393 109-0 |
|
COVER; RR.GEN |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
| 39 |
I8-98292 464-0 |
|
COVER; END,RR COVER,GEN |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
| 3 |
I8-98231 355-0 |
|
BEARING; ROTOR.GEN |
1 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391-755-1 |
| 54 |
I8-98231 359-0 |
|
BOLT; RECTIFIER,GEN |
3 |
|
|
AB |
ASM PART A-8-96385-218-0 B=8-98391-755-1 |
| 21 |
I8-98231 358-0 |
|
BOLT; THROUGH,GEN |
4 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391-755-1 |
| 54 |
I8-98231 359-0 |
|
BOLT; RECTIFIER,GEN |
3 |
|
|
AB |
ASM PART A-8-96385-218-0 B=8-98391-755-1 |
| 11 |
I8-98393 109-0 |
|
COVER; RR.GEN |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
| 19 |
I8-98393 107-0 |
|
PULLEY; GEN |
1 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-9B391-755-1 |
| 39 |
I8-98292 464-0 |
|
COVER; END,RR COVER,GEN |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
| 15 |
I8-94406 982-0 |
|
RETAINER; ROTOR.GEN |
1 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391 -755-1 IMA |
| 21 |
I8-98231 358-0 |
|
BOLT; THROUGH,GEN |
4 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391-755-1 |
| 5 |
I8-98249 245-0 |
|
HOLDER; BRUSH,GEN |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
| 36 |
I8-97142 562-0 |
|
SCREW; FRT COVER |
4 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391-755-1 IMA |
| 25 |
I8-98285 771-0 |
|
BUSHING; INSULATION TERMINAL |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
| 17 |
I8-98393 108-0 |
|
COVER ASM; FRT.GEN |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
| 24 |
I8-97032 313-0 |
|
SCREW; RECTI FIE R,GEN |
3 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391-755-1 IMA |
| 25 |
I8-98285 771-0 |
|
BUSHING; INSULATION TERMINAL |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
| 17 |
I8-98393 108-0 |
|
COVER ASM; FRT.GEN |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
| 36 |
I8-97142 562-0 |
|
SCREW; FRT COVER |
4 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391-755-1 IMA |
| 2 |
I8-98231 360-0 |
|
ROTOR; GEN |
1 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-9B391-755-1 |
| 3 |
I8-98231 355-0 |
|
BEARING; ROTOR.GEN |
1 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-98391-755-1 |
| 19 |
I8-98393 107-0 |
|
PULLEY; GEN |
1 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-9B391-755-1 |
| 2 |
I8-98231 360-0 |
|
ROTOR; GEN |
1 |
|
|
AB |
ASM PART A=8-98385-218-0 B=8-9B391-755-1 |
| 5 |
I8-98249 245-0 |
|
HOLDER; BRUSH,GEN |
1 |
|
|
A |
ASM PART A=8-98385-218-0 |
