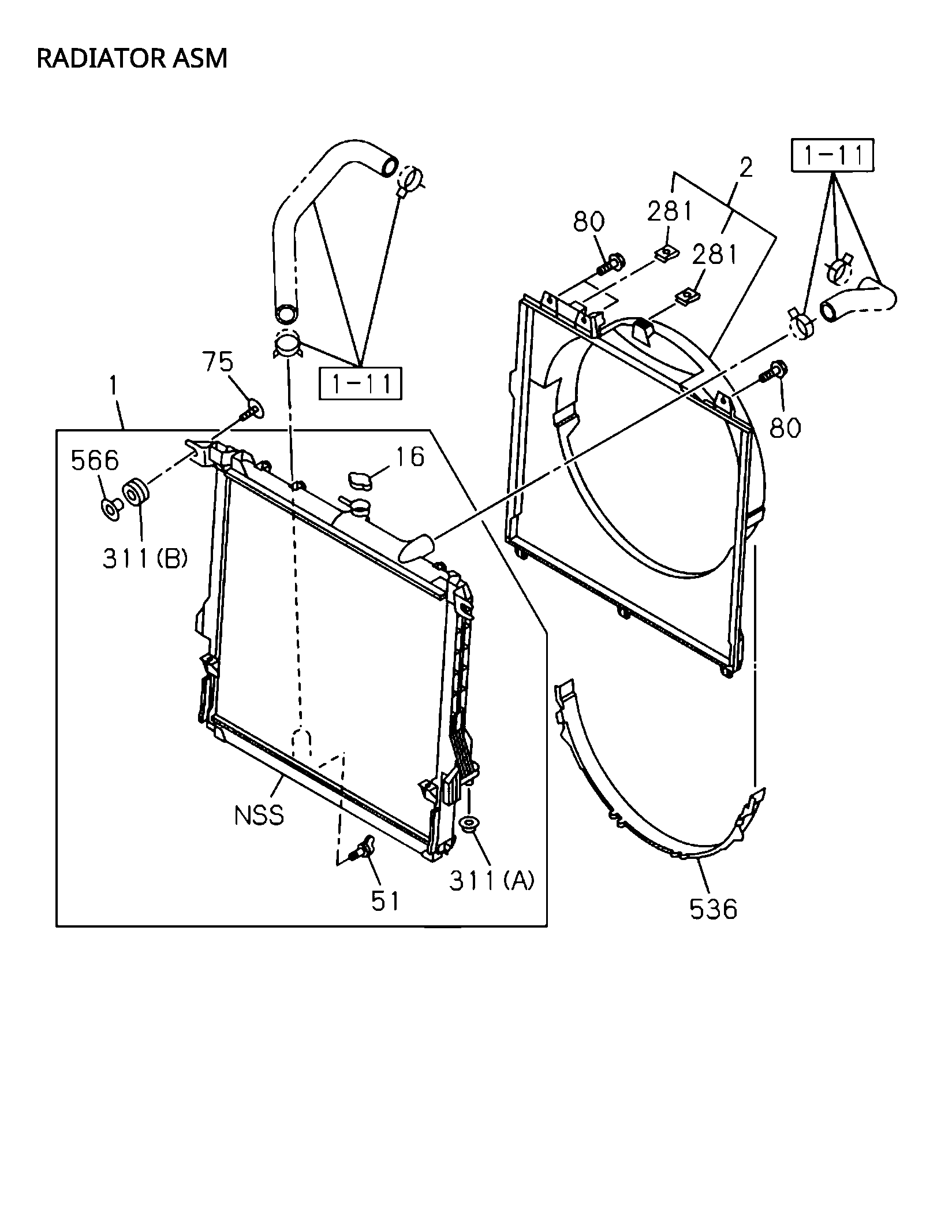

1-10 | RADIATOR
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 311 | I8-97942 297-0 | RUBBER; MTG,RAD | 2 | 2103- | AB | (A) | ||

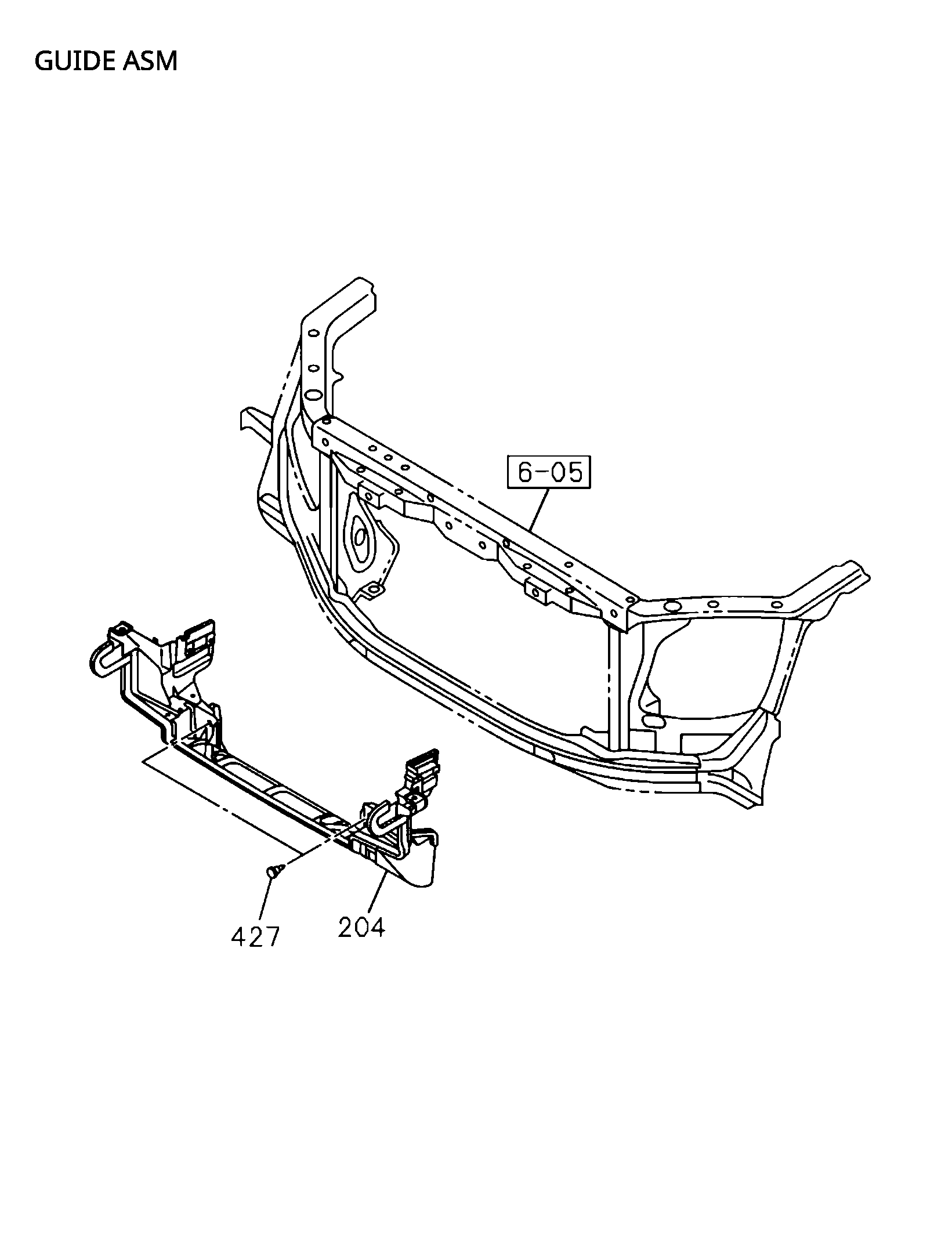

| 204 | I8-97508 286-0 | GUIDE ASM; AIR | 1 | 2103- | AB | |||
| 1 | I8-97553 432-0 | RADIATOR ASM | 1 | 2103- | A | |||
| 51 | I8-97171 437-0 | PLUG; DRAIN | 1 | 2103- | AB | W/GASKET | ||
| 427 | I8-97301 188-0 | CLIP; FAN GUIDE | 4 | 2103- | AB | |||
| 536 | I8-98396 412-0 | SHROUD; FAN | 1 | 2103- | AB | |||
| 566 | I8-97553 701-0 | COLLAR | 2 | 2103- | AB | |||
| 80 | I8-98189 890-0 | BOLT; FAN GUIDE | 3 | 2103- | AB | |||
| 281 | I8-98189 891-0 | NUT; FAN GUIDE | 2 | 2103- | AB | |||
| 75 | I8-98044 006-0 | BOLT; CUSHION RUBBER,RAD MTG | 2 | 2103- | AB | M8X41 W/WASHER | ||
| 2 | I8-97553 444-0 | GUIDE; FAN | 1 | 2103- | A | |||
| 16 | I8-97942 268-1 | CAP; RAD | 1 | 2103- | AB | |||
| 311 | I8-97553 440-0 | RUBBER; MTG,RAD | 2 | 2103- | AB | (B) |
