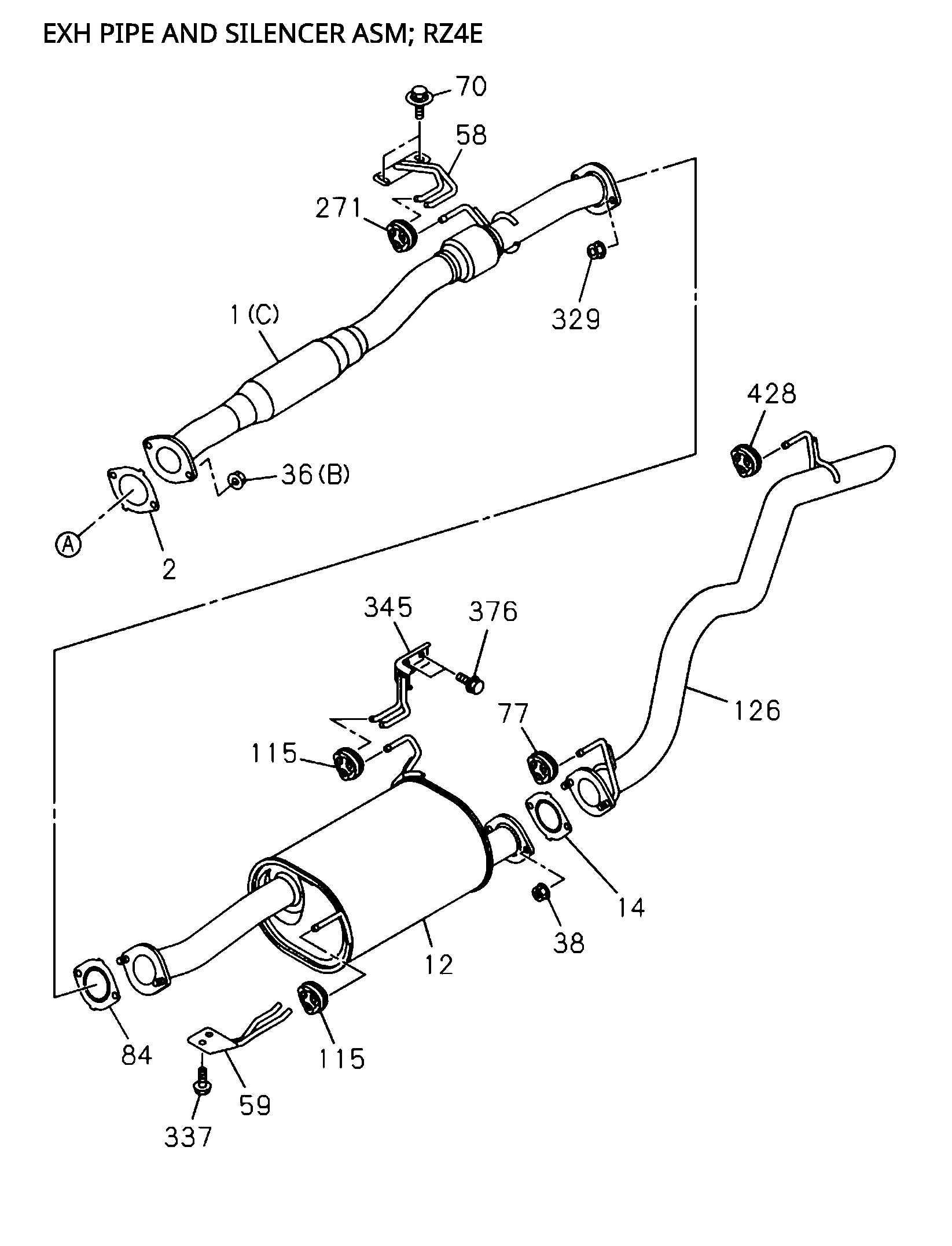

1-50 | EXHAUST PIPE AND SILENCER
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 84 | I8-97263 052-0 | GASKET; EXH PIPE | 1 | 2103- | A B | ID=65 | ||
| 126 | I8-97490 875-0 | PIPE; EXH.RR | 1 | 2103- | A | |||
| 198 | I8-98332 312-0 | BRACKET; CONV MTG | 1 | 2103- | A | (B) | ||
| 77 | I8-97682 112-0 | RUBBER; CUSHION,BRKT | 1 | 2103- | A | |||
| 198 | I8-98248 139-3 | BRACKET; CONV MTG | 1 | 2103- | A | (C) | ||
| 36 | I8-97096 192-1 | NUT; EXH PIPE | 2 | 2103- | AB | (A) M10 FLANGE IMA | ||
| 14 | I8-97263 052-0 | GASKET; SILENCER TO EXH PIPE | 1 | 2103- | AB | ID=65 | ||
| 376 | I8-97945 706-0 | BOLT; BRKT | 2 | 2103- | AB | M10X28 W/LK&PL WASHER | ||
| 27 | I0-44011 025-0 | STUD; EXH PIPE | 2 | 2103- | A | M10X25 L=40 | ||
| 337 | I8-97945 706-0 | BOLT; RUBBER.SUPPORT | 2 | 2103- | AB | M10X28W/LK&PL WASHER | ||
| 84 | I8-97263 052-0 | GASKET; EXH PIPE | 1 | 2103- | A | ID=65 | ||
| 345 | I8-97505 317-0 | BRACKET; EXH SILENCER,RR | 1 | 2103- | AB | |||
| 178 | I8-98248 957-0 | GASKET; CONV TO MANIF | 1 | 2103- | A | (A) | ||
| 12 | I8-97490 872-0 | SILENCER ASM; EXH | 1 | 2103- | A | |||
| 1 | I8-98376 721-0 | PIPE; EXH | 1 | 2103- | A | (B) | ||
| 271 | I8-97682 112-0 | RUBBER; HANGER.RR PIPE | 1 | 2103- | B | 4X2<UCB***> | ||
| 59 | I8-98196 903-0 | BRACKET; EXH SILENCER.FRT | 1 | 2103- | AB | |||
| 58 | I8-97368 450-0 | BRACKET; EXH PIPE.RR | 1 | 2103- | AB | |||
| 70 | I8-97945 706-0 | BOLT; BRKT | 2 | 2103- | AB | M10X28W/LK&PL WASHER | ||
| 2 | I8-97263 052-0 | GASKET; PIPE TO MANIF | 1 | 2103- | AB | ID=65 | ||
| 271 | I8-97682 112-0 | RUBBER; HANGER.RR PIPE | 1 | 2103- | A | |||
| 180 | I8-98032 158-0 | BOLT; CONV TO PIPE | 2 | 2103- | A | M10X30 FLANGE IMA | ||
| 84 | I8-97263 052-0 | GASKET; EXH PIPE | 1 | 2103- | AB | ID=65 | ||
| 198 | I8-98332 311-0 | BRACKET; CONV MTG | 1 | 2103- | A | (A) | ||
| 211 | I8-97309 942-0 | NUT; CONV | 2 | 2103- | A | M10 FLANGE | ||
| 428 | I8-97682 112-0 | RUBBER; MTG,CLAMP,EXH PIPE | 1 | 2103- | AB | |||
| 115 | I8-97682 112-0 | RUBBER; MTG,SILENCER | 2 | 2103- | B | 4X2<UCB***> | ||
| 38 | I0-91180 110-0 | NUT; SILENCER | 2 | 2103- | AB | M10 FLANGE | ||
| 329 | I0-91180 110-0 | NUT; EXH PIPE TO PIPE | 2 | 2103- | AB | M10 FLANGE | ||
| 84 | I8-97263 052-0 | GASKET; EXH PIPE | 1 | 2103- | A | ID=65 | ||
| 541 | I8-97378 063-0 | STUD; CONV TO PIPE | 2 | 2103- | A | M10X28.5 L=41.5 IMA | ||
| 115 | I8-97682 112-0 | RUBBER; MTG,SILENCER | 2 | 2103- | A | |||
| 36 | I0-91180 110-0 | NUT; EXH PIPE | 2 | 2103- | A | (B) M10 FLANGE |
