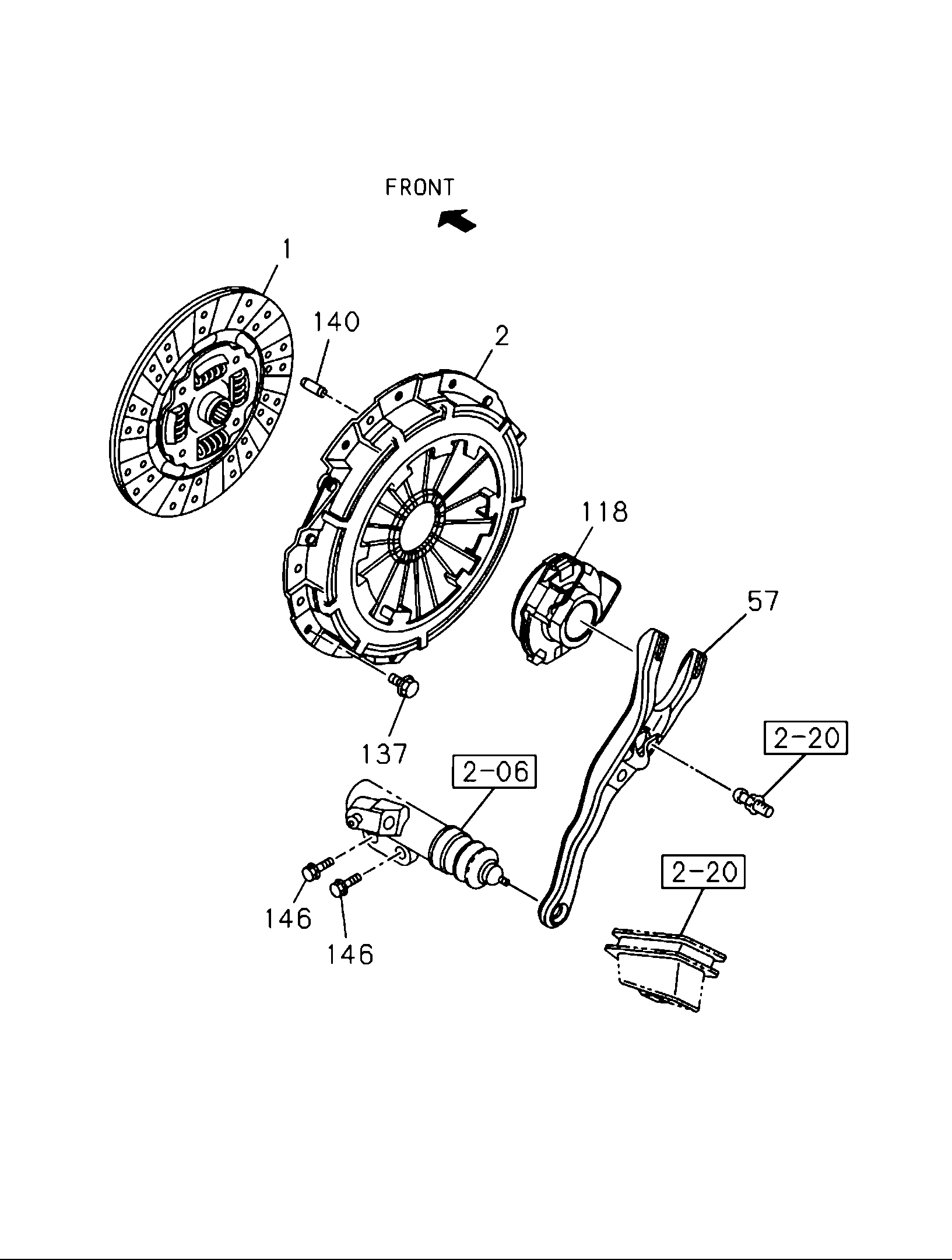

2-01 | CLUTCH
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98398 932-1 | PLATE ASM; PRESSURE.CLU | 1 | 2103- | A | |||
| 57 | I8-97946 622-1 | FORK; SHIFT.CLU | 1 | 2103- | A | |||
| 137 | I0-28050 816-0 | BOLT; CLU COVER | 1 | 2103- | A | M8X16 FLANGE | ||
| 118 | I8-98169 826-1 | BEARING; CLU RELEASE | 1 | 2103- | A | NSK | ||
| 1 | I8-97543 590-0 | DISC; CLUTCH | 1 | 2103- | A | |||
| 146 | I0-28651-025-0 | BOLT; SLAVE CYL TO TRANS CASE | 1 | 2103- | A | M10X25 FLANGE | ||
| 140 | I8-97945 592-0 | PIN; STRAIGHT | 1 | 2103- | A | OD=6 L=27 |
