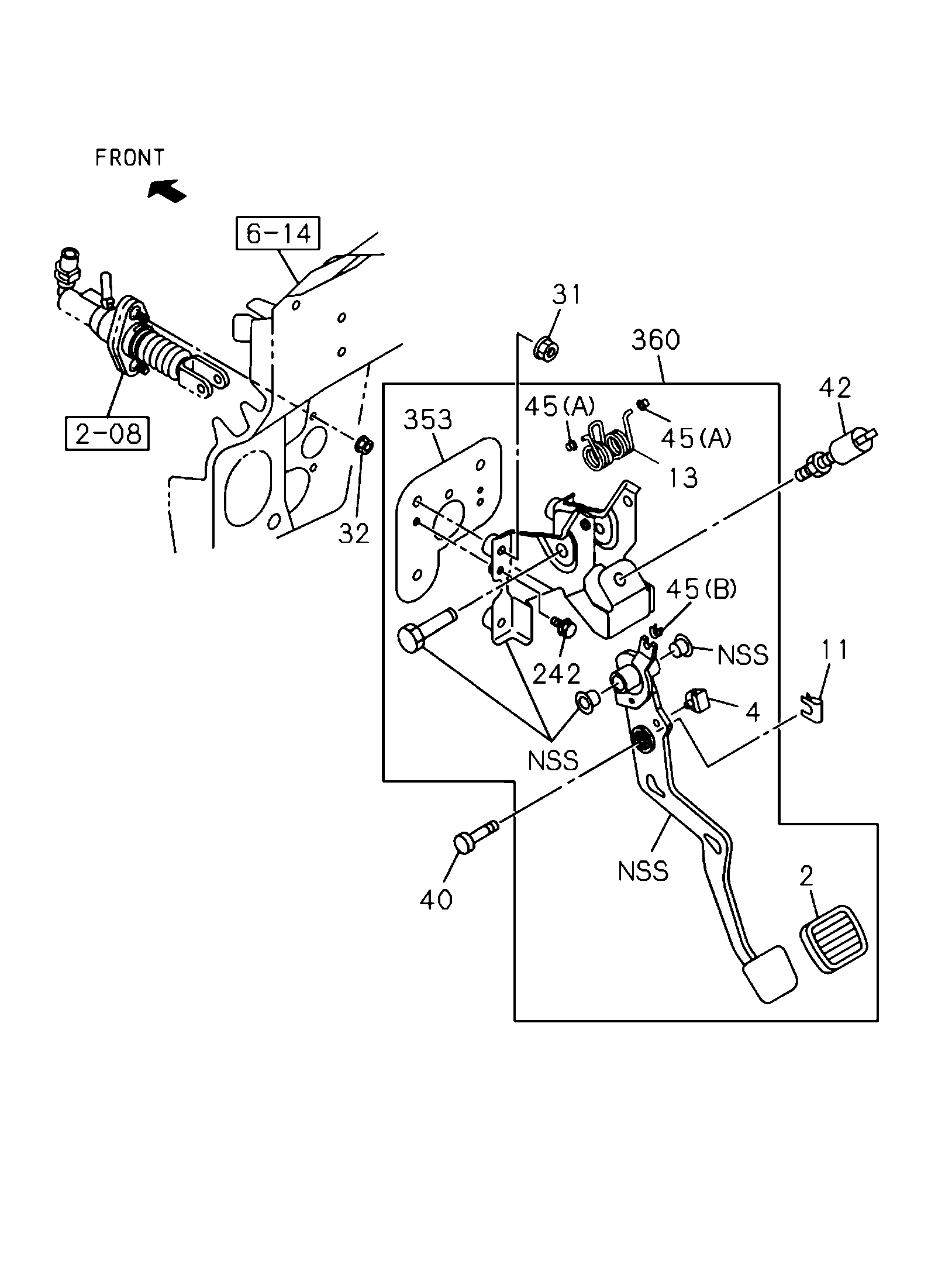

2-03 | CLUTCH PEDAL AND CONTROL
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 11 | I8-98007 161-0 | PIN; SNAP.PUSH ROD TO PEDAL | 1 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> IMA | ||
| 242 | I0-28050 612-0 | BOLT; BRKT.CLUTCH | 2 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> M6X12 FLANGE | ||
| 32 | I0-91180 108-0 | NUT; BRKTTO CLU M/CYL | 2 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> M8 FLANGE | ||
| 31 | I0-91180 108-0 | NUT; MTG BRKTTO BODY | 3 | 2103- | A | M/T MVL 6 SPEED 6Y<Y6P> M8 FLANGE |
