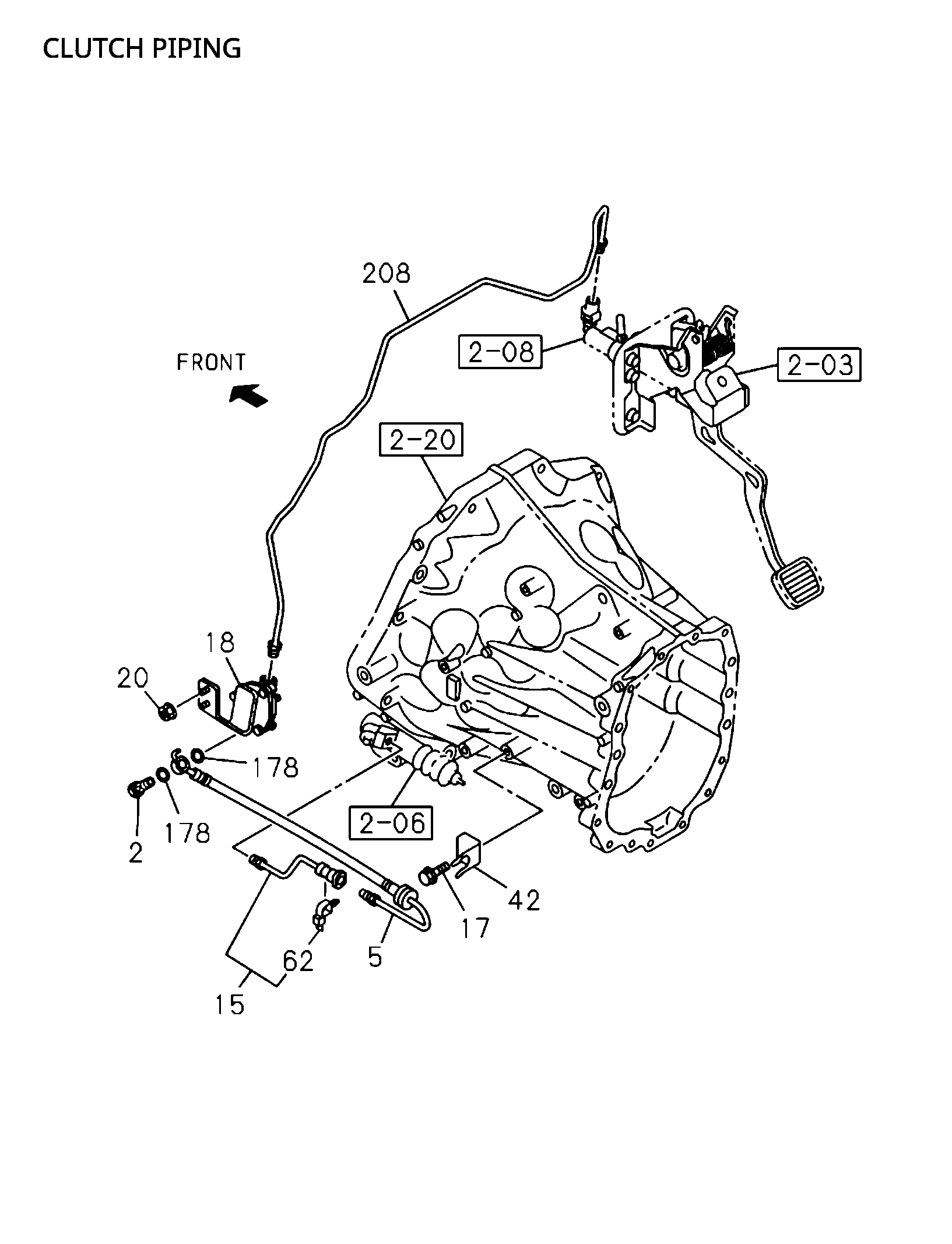

2-05 | CLUTCH PIPING
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I0-91180 106-0 | NUT; CLU OIL DAMPER | 2 | 2103- | A | M6 FLANGE | ||

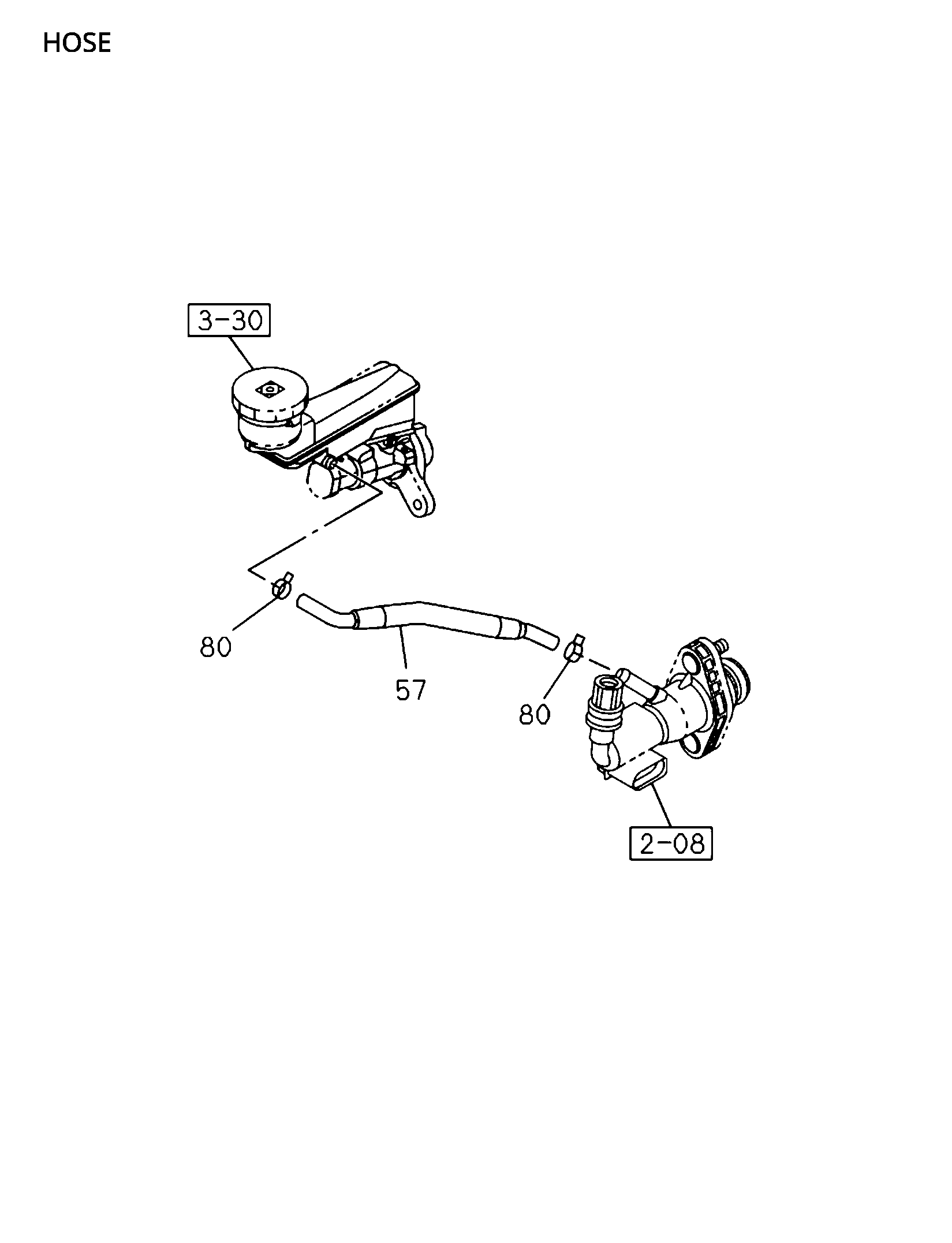

| 80 | I8-97947 824-0 | CLIP; HOSE | 2 | 2103- | A | ID=12 WO/PVC COATING | ||
| 178 | I9-09571 410-0 | GASKET; FLEX HOSE TO M/CYL | 2 | 2103- | A | ID=10.2 OD=16.0 | ||
| 17 | I0-28050 816-0 | BOLT; BRKT | 1 | 2103- | A | M8X16 FLANGE |
