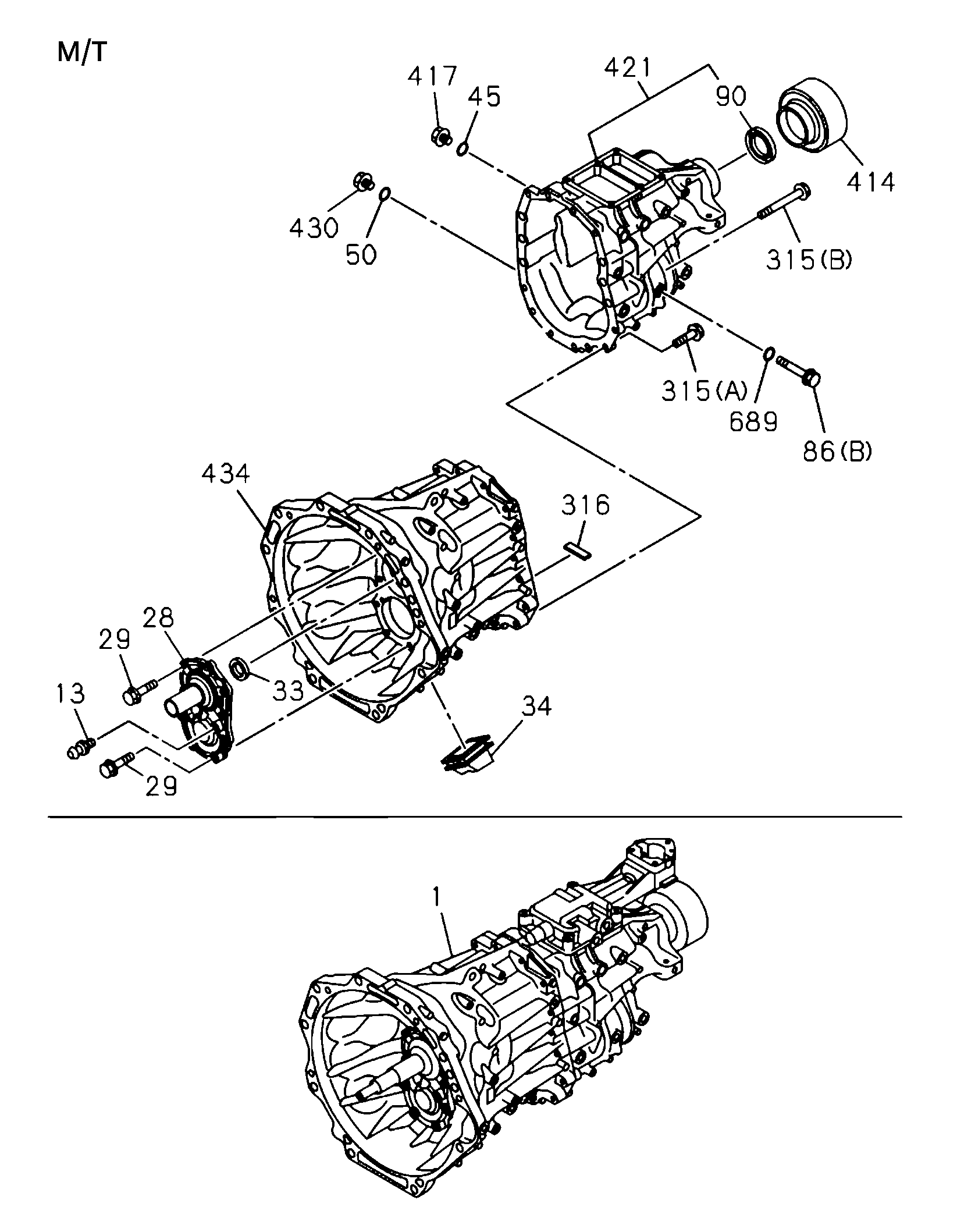

2-20 | MANUAL TRANSMISSION ASM AND CASE
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 90 | I6-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2103- | A | ALSO INCLUDED IN GASKET SET(M/T). NOK IMA | ||
| 90 | I8-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2103- | B | 4X4<UCS***> ALSO INCLUDED IN GASKET SET(M/T). NOK IMA | ||
| 47 | I8-97115 712-0 | GASKET; FILLER PLUG,TRANSFER CASE | 1 | 2103- | B | 4X4<UCS***> ID=17 IMA | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2103- | B | 4X4<UCS***> ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2103- | A | M20X12 W/MAGNET IMA | ||
| 90 | I8-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2103- | A | ALSO INCLUDED IN GASKET SET(M/T). NOK IMA | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2103- | B | 4X4<UCS***> M20X12 W/MAGNET IMA | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2103- | A | ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA | ||
| 90 | I8-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2103- | A | ALSO INCLUDED IN GASKET SET(M/T). NOK IMA | ||
| 79 | I0-28051 045-0 | BOLT; TRANSFER CASE | 7 | 2103- | B | 4X4<UCS***> M10X45 FLANGE | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER.TRANS | 1 | 2103- | A | IMA | ||
| 86 | I0-28050 845-0 | BOLT; RR COVER | 16 | 2103- | B | 4X4<UCS***> (A) M8X45 FLANGE | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 2103- | B | 4X4<UCS***> IMA | ||
| 76 | I8-97238 999-0 | SEAL; OIL/TRANSFER CASE | 1 | 2103- | B | 4X4<UCS***> NOK IMA | ||
| 90 | I6-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2103- | B | 4X4<UCS***> ALSO INCLUDED IN GASKET SET(M/T). NOK IMA | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2103- | B | 4X4<UCS***> ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2103- | A | M20X12 W/MAGNET IMA | ||
| 90 | I8-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2103- | B | 4X4<UCS***> ALSO INCLUDED IN GASKET SET(M/T). NOK IMA | ||
| 299 | I8-94173 641-0 | PLUG; SHIFTER ROD | 2 | 2103- | B | 4X4<UCS***> OD=15.6 IMA | ||
| 689 | I9-09571 412-0 | GASKET | 1 | 2103- | A | ALSO INCLUDED IN GASKET SET(M/T). ID=12.2 OD=18 IMA | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLER,TRANS | 1 | 2103- | A | IMA | ||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 2103- | B | 4X4<UCS***> OD=10 L=20 IMA | ||
| 417 | I8-97365 373-0 | PLUG; OIL FILLERJRANS | 1 | 2103- | B | 4X4<UCS***> IMA | ||
| 45 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 2103- | A | ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2103- | B | 4X4<UCS***> M20X12 W/MAGNET IMA | ||
| 90 | I6-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2103- | A | ALSO INCLUDED IN GASKET SET(M/T). NOK IMA | ||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2103- | A | ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA | ||
| 90 | I6-98189 443-0 | SEAL; OIL,RR COVER | 1 | 2103- | B | 4X4<UCS***> ALSO INCLUDED IN GASKET SET(M/T). NOK IMA | ||
| 315 | I0-28050 840-0 | BOLT; CASE | 11 | 2103- | A | (A) M8X40 FLANGE |
