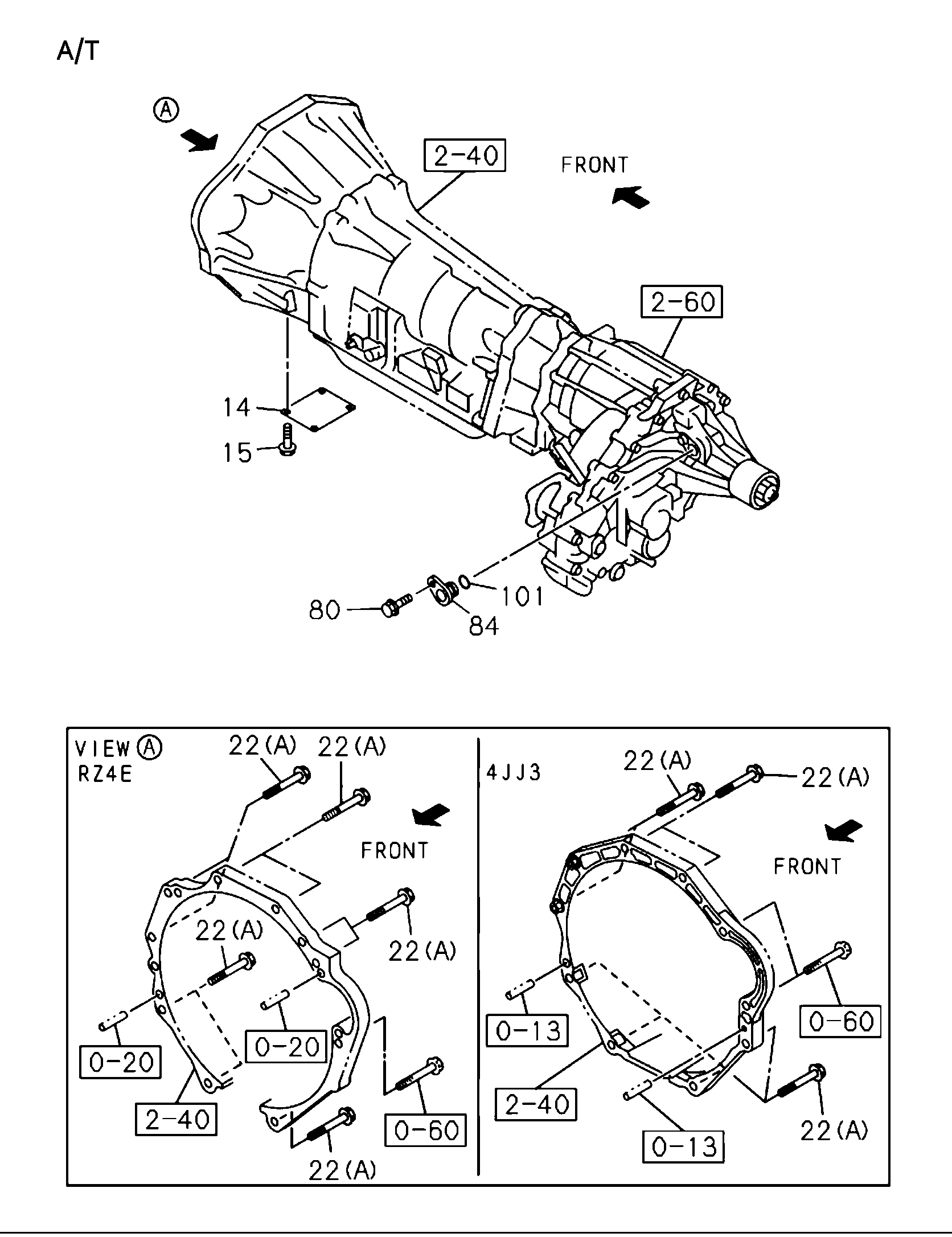

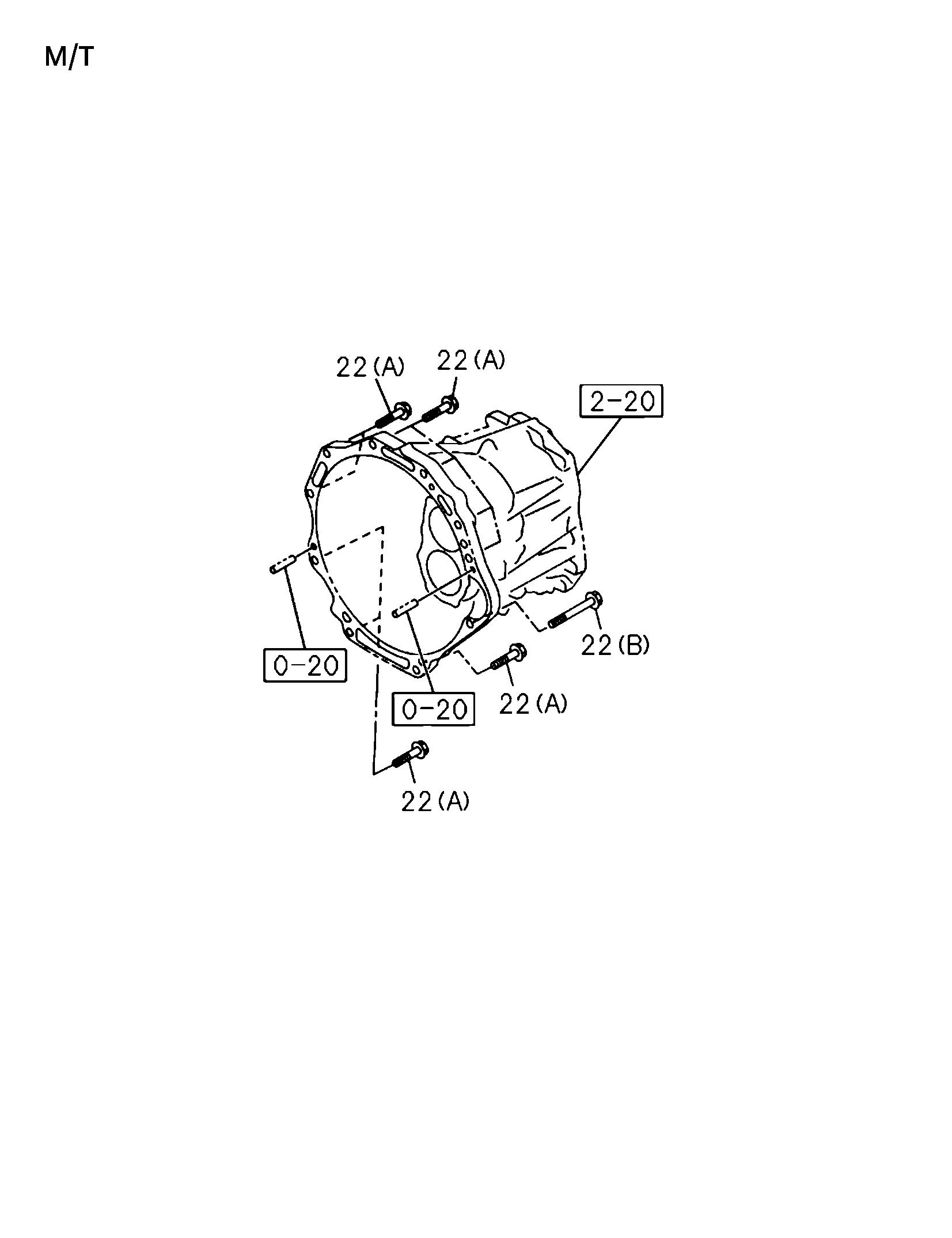

2-25 | SPEEDOMETER DRIVEN GEAR
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 22 | I0-28051 200-0 | BOLT; TRANS CASE TO ENG | 1 | 2103- | A | M12X100 FLANGE | ||
| 80 | I0-28050 820-0 | BOLT; SPD SENSOR | 1 | 2103- | B | 4X4<UCS***> M8X20 FLANGE | ||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 9 | 2103- | B | RZ4E-TC ENG<RDZ> (A) M12X50 FLANGE | ||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 8 | 2103- | B | 41)3 ENG<LNG> (A) M12X50 FLANGE | ||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 9 | 2103- | B | RZ4E-TC ENG<RDZ> (A) M12X50 FLANGE | ||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 8 | 2103- | B | 4JJ3 ENG<LNG> (A) M12X50 FLANGE | ||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 9 | 2103- | A | (A) M12X50 FLANGE | ||
| 101 | I9-09921 100-0 | GASKET; CAP | 1 | 2103- | B | 4X4<UCS***> ID=21.7 OD=28.7 IMA | ||
| 15 | I0-28650 616-0 | BOLT; UNDER COVER TO TRANS | 4 | 2103- | B | M6X16 FLANGE | ||
| 14 | I8-98278 957-0 | COVER; UNDER,TRANS | 1 | 2103- | B | |||
| 22 | I0-28051 250-0 | BOLT; TRANS CASE TO ENG | 9 | 2103- | A | (A) M12X50 FLANGE | ||
| 84 | I8-98103 318-0 | CAP; BUSHING,SPEEDOMETER GEAR | 1 | 2103- | B | 4X4<UCS***> |
