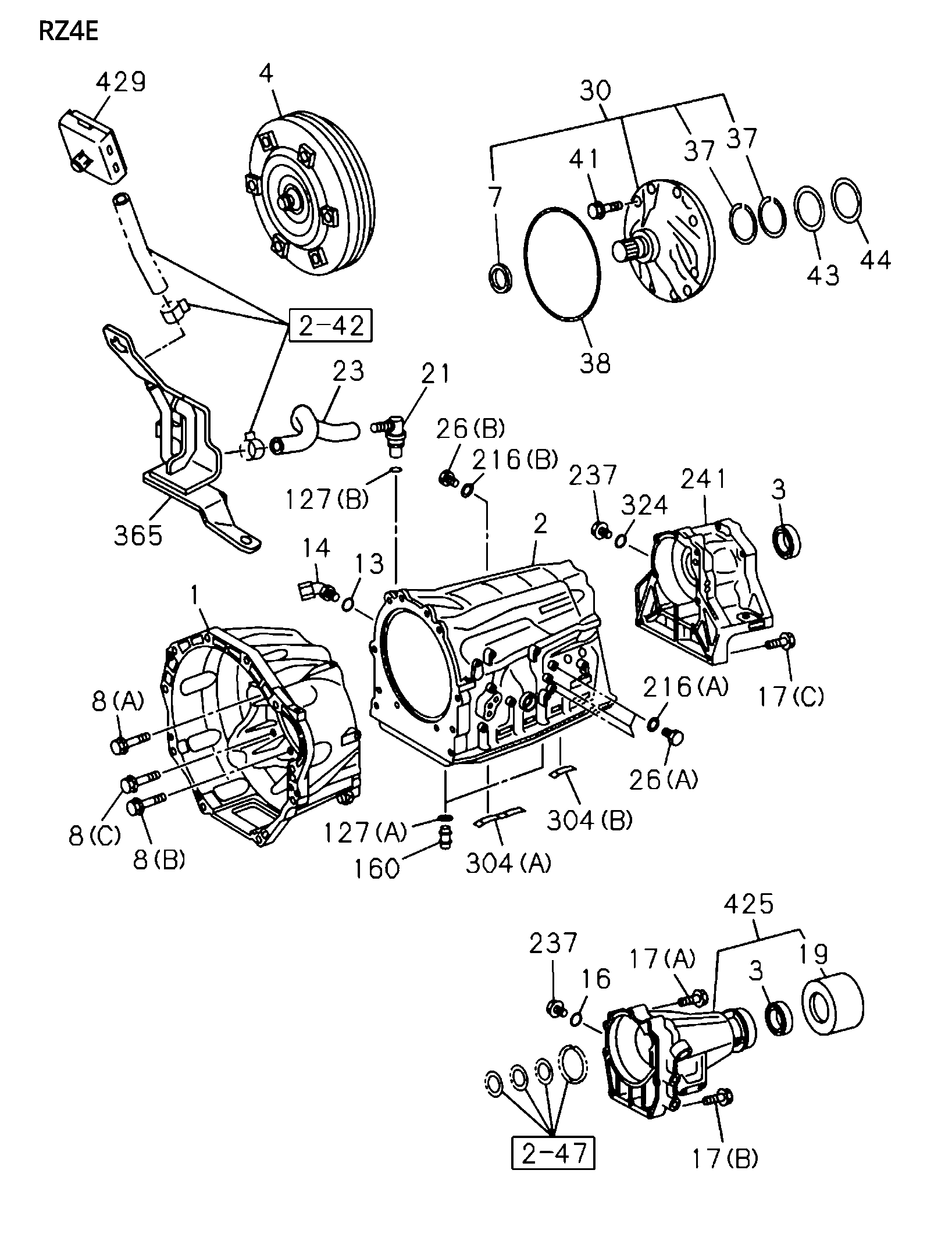

2-41 | AUTO TRANS CASE,CONVERTER AND OIL PUMP
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 216 | I5-34119 001-0 | GASKET; SOLENOID OUTER | 6 | 2103- | B | (A) ID=6 IMA | ||
| 216 | I8-94479 724-0 | GASKET; SOLENOID OUTER | 1 | 2103- | B | (B) ID=11.7 IMA | ||
| 365 | I8-98393 846-1 | BRACKET; BREATHER HOSE,A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> | ||
| 324 | I8-98189 759-0 | GASKET; PLUG,REAR COVER | 1 | 2103- | B | 4X4<UCS***> ID=15.4 IMA | ||
| 127 | I8-98341 730-0 | GASKET; CASE TO COVER | 1 | 2103- | B | (B) IMA | ||
| 43 | I8-98341 720-0 | RACE; THRUST BRG.OIL PUMP,A/T | 1 | 2103- | B | IMA | ||
| 13 | I8-94479 724-0 | GASKET; OIL COOLER PIPE | 2 | 2103- | B | ID=11.7 IMA | ||
| 3 | I8-98336 875-0 | SEAL; OIL.RR COVER,A/T | 1 | 2103- | B | IMA | ||
| 241 | I8-98342 209-0 | ADAPTER; A/T | 1 | 2103- | B | 4X4<UCS***> IMA | ||
| 304 | I8-98342 002-0 | SPRING; LEAF,A/T | 1 | 2103- | B | (B) IMA | ||
| 16 | I8-98189 759-0 | GASKET; EXT HSG | 1 | 2103- | B | 4X2<UCB***> ID=15.4 IMA | ||
| 43 | I8-98341 720-0 | RACE; THRUST BRG.OIL PUMP,A/T | 1 | 2103- | B | IMA | ||
| 304 | I8-98342 001-0 | SPRING; LEAF,A/T | 1 | 2103- | B | (A) IMA | ||
| 26 | I5-34119 002-0 | PLUG; TRANS CASE | 6 | 2103- | B | (A) IMA | ||
| 37 | I8-98189 492-0 | RING; SEAL,OIL PUMP,A/T | 2 | 2103- | B | ID=63 IMA | ||
| 26 | I8-98189 490-0 | PLUG; TRANS CASE | 1 | 2103- | B | (B) M14X12 IMA | ||
| 13 | I8-94479 724-0 | GASKET; OIL COOLER PIPE | 2 | 2103- | B | ID=11.7 IMA | ||
| 2 | I8-98341 907-0 | CASE ASM; A/T | 1 | 2103- | B | IMA | ||
| 237 | I8-98189 760-0 | PLUG; COVER | 1 | 2103- | B | IMA | ||
| 17 | I8-94479 935-0 | BOLT; REAR COVER TO CASE | 10 | 2103- | B | 4X4<UCS***> (C) M10X50 IMA | ||
| 30 | I8-97550 325-0 | PUMP ASM; OIL,A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> IMA | ||
| 8 | I8-90257 082-0 | BOLT; HSG TO CASE | 8 | 2103- | B | (A) M10X35 IMA | ||
| 26 | I5-34119 002-0 | PLUG; TRANS CASE | 6 | 2103- | B | (A) IMA | ||
| 4 | I8-97550 318-0 | CONVERTER ASM; TORQUE,A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> IMA | ||
| 41 | I8-94479 749-0 | BOLT; OIL PUMP HSG.A/T | 10 | 2103- | B | M8X35 IMA | ||
| 425 | I8-98341 901-0 | COVER SUB ASM; RR.A/T | 1 | 2103- | B | 4X2<UCB***> IMA | ||
| 8 | I8-90257 082-0 | BOLT; HSG TO CASE | 8 | 2103- | B | (A) M10X35 IMA | ||
| 17 | I8-94479 935-0 | BOLT; REAR COVER TO CASE | 10 | 2103- | B | 4X4<UCS***> (C) M10X50 IMA | ||
| 38 | I8-98329 780-0 | GASKET; OIL PUMP.A/T | 1 | 2103- | B | IMA | ||
| 8 | I8-98189 487-0 | BOLT; HSG TO CASE | 2 | 2103- | B | (C) M12X38 IMA | ||
| 1 | I8-97550 319-0 | HOUSING; CONV.A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> IMA | ||
| 38 | I8-98329 780-0 | GASKET; OIL PUMP.A/T | 1 | 2103- | B | IMA | ||
| 44 | I8-98341 744-0 | BEARING; THRUST,OIL PUMP,A/T | 1 | 2103- | B | IMA | ||
| 30 | I8-97550 325-0 | PUMP ASM; OIL,A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> IMA | ||
| 1 | I8-97550 319-0 | HOUSING; CONV.A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> IMA | ||
| 17 | I8-94479 936-0 | BOLT; REAR COVER TO CASE | 3 | 2103- | B | 4X2<UCB***> (B) M10X40 IMA | ||
| 3 | I8-98336 875-0 | SEAL; OIL.RR COVER,A/T | 1 | 2103- | B | IMA | ||
| 8 | I8-98189 486-0 | BOLT; HSG TO CASE | 2 | 2103- | B | (B) M10X35 IMA | ||
| 26 | I8-98189 490-0 | PLUG; TRANS CASE | 1 | 2103- | B | (B) M14X12 IMA | ||
| 7 | I8-98341 992-0 | SEAL; OIL.LIPA/T | 1 | 2103- | B | IMA | ||
| 324 | I8-98189 759-0 | GASKET; PLUG,REAR COVER | 1 | 2103- | B | 4X4<UCS***> ID=15.4 IMA | ||
| 365 | I8-98393 846-1 | BRACKET; BREATHER HOSE,A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> | ||
| 21 | I8-98341 990-0 | PLUG; BREATHER.A/T | 1 | 2103- | B | IMA | ||
| 14 | I8-97550 324-0 | UNION; OIL COOLER RETURN PIPE | 2 | 2103- | B | IMA | ||
| 216 | I5-34119 001-0 | GASKET; SOLENOID OUTER | 6 | 2103- | B | (A) ID=6 IMA | ||
| 2 | I8-98341 907-0 | CASE ASM; A/T | 1 | 2103- | B | IMA | ||
| 304 | I8-98342 002-0 | SPRING; LEAF,A/T | 1 | 2103- | B | (B) IMA | ||
| 8 | I8-98189 487-0 | BOLT; HSG TO CASE | 2 | 2103- | B | (C) M12X38 IMA | ||
| 160 | I8-98341 911-0 | GASKET; BRK DRUM,A/T | 2 | 2103- | B | IMA | ||
| 237 | I8-98189 760-0 | PLUG; COVER | 1 | 2103- | B | IMA | ||
| 21 | I8-98341 990-0 | PLUG; BREATHER.A/T | 1 | 2103- | B | IMA | ||
| 23 | I0-02857 300-0 | HOSE; BREATHER.A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> L=220 SERVICED BY L=3000 | ||
| 127 | I8-98341 730-0 | GASKET; CASE TO COVER | 1 | 2103- | B | (B) IMA | ||
| 7 | I8-98341 992-0 | SEAL; OIL.LIPA/T | 1 | 2103- | B | IMA | ||
| 14 | I8-97550 324-0 | UNION; OIL COOLER RETURN PIPE | 2 | 2103- | B | IMA | ||
| 23 | I0-02857 300-0 | HOSE; BREATHER.A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> L=220 SERVICED BY L=3000 | ||
| 4 | I8-97550 318-0 | CONVERTER ASM; TORQUE,A/T | 1 | 2103- | B | RZ4E-TC ENG<RDZ> IMA | ||
| 216 | I8-94479 724-0 | GASKET; SOLENOID OUTER | 1 | 2103- | B | (B) ID=11.7 IMA | ||
| 160 | I8-98341 911-0 | GASKET; BRK DRUM,A/T | 2 | 2103- | B | IMA | ||
| 425 | I8-98341 901-0 | COVER SUB ASM; RR.A/T | 1 | 2103- | B | 4X2<UCB***> IMA | ||
| 19 | I8-98189 756-0 | COVER; DUST,REAR COVER | 1 | 2103- | B | 4X2<UCB***> IMA | ||
| 17 | I8-94479 936-0 | BOLT; REAR COVER TO CASE | 3 | 2103- | B | 4X2<UCB***> (B) M10X40 IMA | ||
| 429 | I8-98161 881-0 | CLIP; BREATHER HOSE | 1 | 2103- | B | |||
| 241 | I8-98342 209-0 | ADAPTER; A/T | 1 | 2103- | B | 4X4<UCS***> IMA | ||
| 17 | I8-94473 632-0 | BOLT; REAR COVER TO CASE | 5 | 2103- | B | 4X2<UCB***> (A) M10X45 IMA | ||
| 17 | I8-94473 632-0 | BOLT; REAR COVER TO CASE | 5 | 2103- | B | 4X2<UCB***> (A) M10X45 IMA | ||
| 429 | I8-98161 881-0 | CLIP; BREATHER HOSE | 1 | 2103- | B | |||
| 16 | I8-98189 759-0 | GASKET; EXT HSG | 1 | 2103- | B | 4X2<UCB***> ID=15.4 IMA | ||
| 19 | I8-98189 756-0 | COVER; DUST,REAR COVER | 1 | 2103- | B | 4X2<UCB***> IMA | ||
| 304 | I8-98342 001-0 | SPRING; LEAF,A/T | 1 | 2103- | B | (A) IMA | ||
| 8 | I8-98189 486-0 | BOLT; HSG TO CASE | 2 | 2103- | B | (B) M10X35 IMA | ||
| 37 | I8-98189 492-0 | RING; SEAL,OIL PUMP,A/T | 2 | 2103- | B | ID=63 IMA | ||
| 41 | I8-94479 749-0 | BOLT; OIL PUMP HSG.A/T | 10 | 2103- | B | M8X35 IMA | ||
| 44 | I8-98341 744-0 | BEARING; THRUST,OIL PUMP,A/T | 1 | 2103- | B | IMA | ||
| 127 | I8-98189 488-0 | GASKET; CASE TO COVER | 2 | 2103- | B | (A) ID=10 IMA | ||
| 127 | I8-98189 488-0 | GASKET; CASE TO COVER | 2 | 2103- | B | (A) ID=10 IMA |
