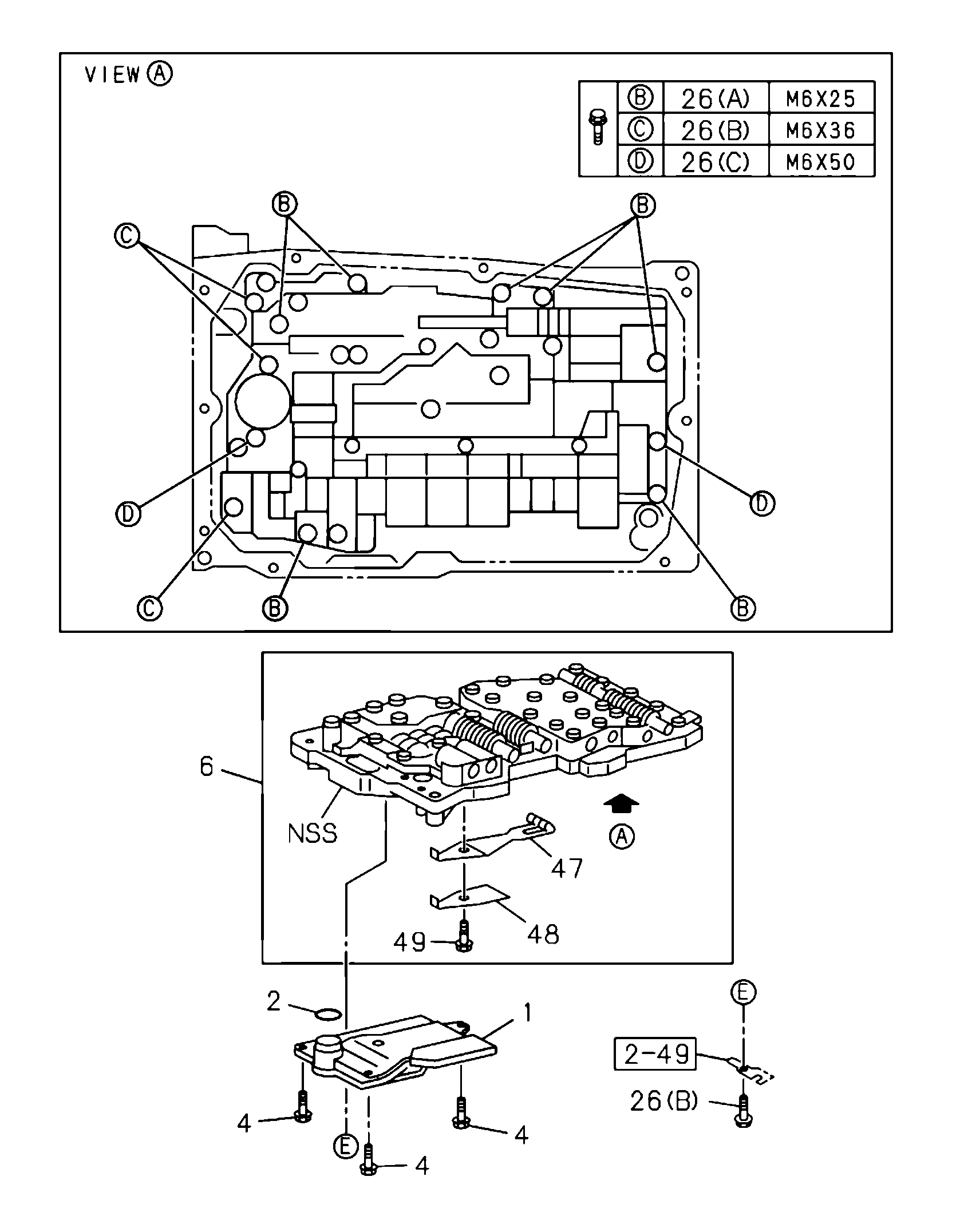

2-44 | AUTO TRANS CONTROL VALVE; LOWER BODY
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 48 | I8-98189 499-0 | PLATE; DETENT SPR.A/T | 1 | 2103- | B | IMA | ||
| 26 | I8-98341 688-0 | BOLT; BODY FIX.VLV LWR.A/T | 2 | 2103- | B | (C) M6X50 IMA | ||
| 49 | I8-98189 500-0 | BOLT; DETENT SPR PLATE,A/T | 1 | 2103- | B | M6X14 IMA | ||
| 6 | I8-98357 314-0 | BODY ASM; VLV LWR.A/T | 1 | 2103- | B | EXC. IDLE STOP SYSTEM<8BM> IMA | ||
| 1 | I8-98341 789-0 | STRAINER ASM; OIL,A/T | 1 | 2103- | B | IMA | ||
| 2 | I8-98341 731-0 | GASKET; OIL STRAINER,A/T | 1 | 2103- | B | IMA | ||
| 47 | I8-98342 000-0 | SPRING; DETENT.A/T | 1 | 2103- | B | IMA | ||
| 26 | I8-94473 630-0 | BOLT; BODY FIX,VLV LWR.A/T | 4 | 2103- | B | (B) M6X36 IMA | ||
| 4 | I8-94480 096-0 | BOLT; OIL STRAINER.A/T | 3 | 2103- | B | L=16 IMA | ||
| 26 | I8-94473 624-0 | BOLT; BODY FIX,VLV LWR.A/T | 7 | 2103- | B | (A) M6X25 IMA |
