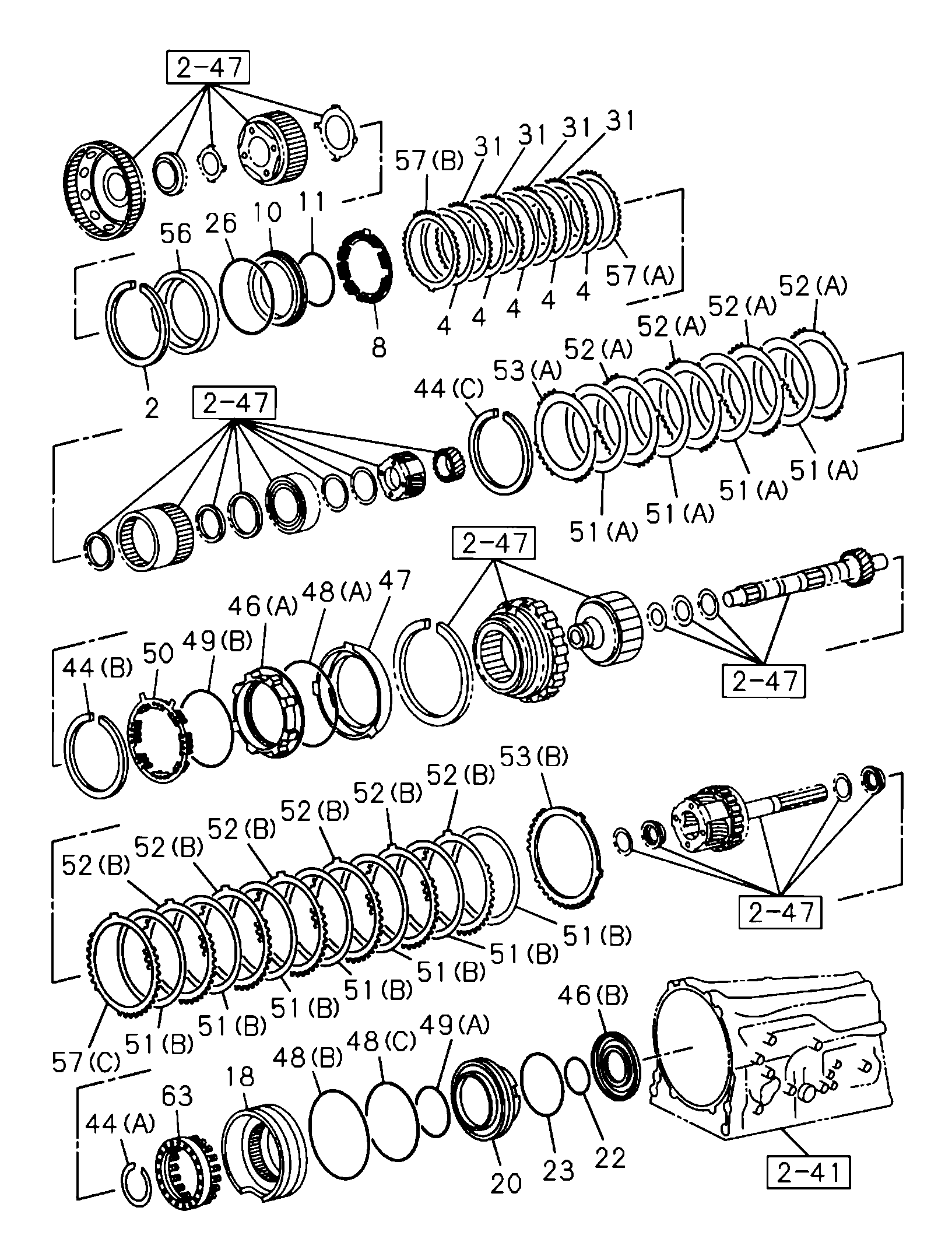

2-46 | AUTO TRANS SUPPORT AND PLANETARY GEAR
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 22 | I8-98189 645-0 | GASKET; BRK PISTON,RR.INNER.A/T | 1 | 2103- | B | ID=67 IMA | ||
| 46 | I8-98341 925-0 | PISTON; BRK | 1 | 2103- | B | (A) IMA | ||
| 57 | I8-98189 665-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=2.67 IMA | ||
| 48 | I8-98341 736-0 | GASKET; BRK | 1 | 2103- | B | (C) IMA | ||
| 57 | I8-98341 633-0 | FLANGE; BRAKE | AR | 2103- | B | (B) T=2.0 IMA | ||
| 53 | I8-98341 657-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=5.6 IMA | ||
| 57 | I8-98341 640-0 | FLANGE; BRAKE | AR | 2103- | B | (B) T=2.7 IMA | ||
| 53 | I8-98341 653-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=5.2 IMA | ||
| 20 | I8-98341 995-0 | SLEEVE; BRK REACTION.A/T | 1 | 2103- | B | IMA | ||
| 53 | I8-98341 650-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=4.9 IMA | ||
| 53 | I8-98341 660-0 | FLANGE; BRAKE | 1 | 2103- | B | (B) IMA | ||
| 53 | I8-98341 651-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=5.0 IMA | ||
| 63 | I8-98189 654-0 | SPRING; 1ST & REVS BRAKE RETURN | 1 | 2103- | B | IMA | ||
| 53 | I8-98341 656-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=5.5 IMA | ||
| 57 | I8-98189 660-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=1.97 IMA | ||
| 57 | I8-98189 666-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=2.81 IMA | ||
| 53 | I8-98341 652-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=5.1 IMA | ||
| 50 | I8-98341 997-0 | SPRING; BRK PISTON RETURN | 1 | 2103- | B | IMA | ||
| 52 | I8-98341 959-0 | PLATE; BRAKE | 4 | 2103- | B | (A) IMA | ||
| 47 | I8-98341 909-0 | CYLINDER; BRK | 1 | 2103- | B | IMA | ||
| 44 | I8-98189 655-0 | RING; RET | 1 | 2103- | B | (A) ID=61 IMA | ||
| 8 | I8-98341 998-0 | SPRING; RETURN,FRT BRK.A/T | 1 | 2103- | B | IMA | ||
| 53 | I8-98341 655-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=5.4 IMA | ||
| 49 | I8-98189 647-0 | GASKET; BRK PISTON | 1 | 2103- | B | (A) ID=79 IMA | ||
| 48 | I8-98189 650-0 | GASKET; BRK | 1 | 2103- | B | (B) ID=132 IMA | ||
| 18 | I8-98341 924-0 | PISTON; LOW & REV BRK.A/T | 1 | 2103- | B | IMA | ||
| 53 | I8-98341 659-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=5.8 IMA | ||
| 11 | I8-98341 734-0 | GASKET; BRK PISTON,FRT,INNER,A/T | 1 | 2103- | B | IMA | ||
| 44 | I8-98341 883-0 | RING; RET | 1 | 2103- | B | (B) IMA | ||
| 44 | I8-98341 884-0 | RING; RET | 1 | 2103- | B | (C) IMA | ||
| 57 | I8-98341 636-0 | FLANGE; BRAKE | AR | 2103- | B | (B) T=2.3 IMA | ||
| 57 | I8-98341 639-0 | FLANGE; BRAKE | AR | 2103- | B | (B) T=2.6 IMA | ||
| 46 | I8-98341 927-0 | PISTON; BRK | 1 | 2103- | B | (B) IMA | ||
| 51 | I8-98341 869-0 | DISC; BRK | 7 | 2103- | B | (B) IMA | ||
| 57 | I8-98341 635-0 | FLANGE; BRAKE | AR | 2103- | B | (B) T=2.2 IMA | ||
| 57 | I8-98341 634-0 | FLANGE; BRAKE | AR | 2103- | B | (B) T=2.1 IMA | ||
| 52 | I8-98189 657-0 | PLATE; BRAKE | 6 | 2103- | B | (B) ID=125 IMA | ||
| 57 | I8-98189 663-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=2.39 IMA | ||
| 57 | I8-98189 667-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=2.95 IMA | ||
| 57 | I8-98189 662-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=2.25 IMA | ||
| 57 | I8-98341 641-0 | FLANGE; BRAKE | AR | 2103- | B | (B) T=2.8 IMA | ||
| 4 | I8-98341 868-0 | DISC ASM; CLU & FACING,2ND BRK.A/T | 5 | 2103- | B | IMA | ||
| 57 | I8-98341 638-0 | FLANGE; BRAKE | AR | 2103- | B | (B) T=2.5 IMA | ||
| 23 | I8-97184 353-0 | GASKET; BRK PISTON,RR.OUTER,A/T | 1 | 2103- | B | IMA | ||
| 57 | I8-98189 661-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=2.11 IMA | ||
| 57 | I8-98189 669-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=3.23 IMA | ||
| 56 | I8-98341 910-0 | CYLINDER; BRAKE | 1 | 2103- | B | IMA | ||
| 10 | I8-98341 926-0 | PISTON; BRK,FRT,2ND BRK.A/T | 1 | 2103- | B | IMA | ||
| 53 | I8-98341 658-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=5.7 IMA | ||
| 53 | I8-98341 654-0 | FLANGE; BRAKE | AR | 2103- | B | (A) T=5.3 IMA | ||
| 49 | I8-98341 735-0 | GASKET; BRK PISTON | 1 | 2103- | B | (B) IMA | ||
| 51 | I8-98341 867-0 | DISC; BRK | 4 | 2103- | B | (A) IMA | ||
| 48 | I8-98189 631-0 | GASKET; BRK | 1 | 2103- | B | (A) ID=149 IMA | ||
| 57 | I8-98189 664-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=2.53 IMA | ||
| 57 | I8-98189 659-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T-1.8 IMA | ||
| 31 | I8-98341 960-0 | PLATE; CLU BACKING,2ND BRK.A/T | 4 | 2103- | B | IMA | ||
| 57 | I8-98341 637-0 | FLANGE; BRAKE | AR | 2103- | B | (B) T=2.4 IMA | ||
| 26 | I8-98341 737-0 | GASKET; BRK PISTON,FRT,OUTER,A/T | 1 | 2103- | B | IMA | ||
| 57 | I8-98189 668-0 | FLANGE; BRAKE | AR | 2103- | B | (C) T=3.09 IMA | ||
| 57 | I8-98341 642-0 | FLANGE; BRAKE | 1 | 2103- | B | (A) IMA | ||
| 2 | I8-98341 885-0 | RING; RET.FRT BRK.2ND BRK.A/T | 1 | 2103- | B | IMA |
