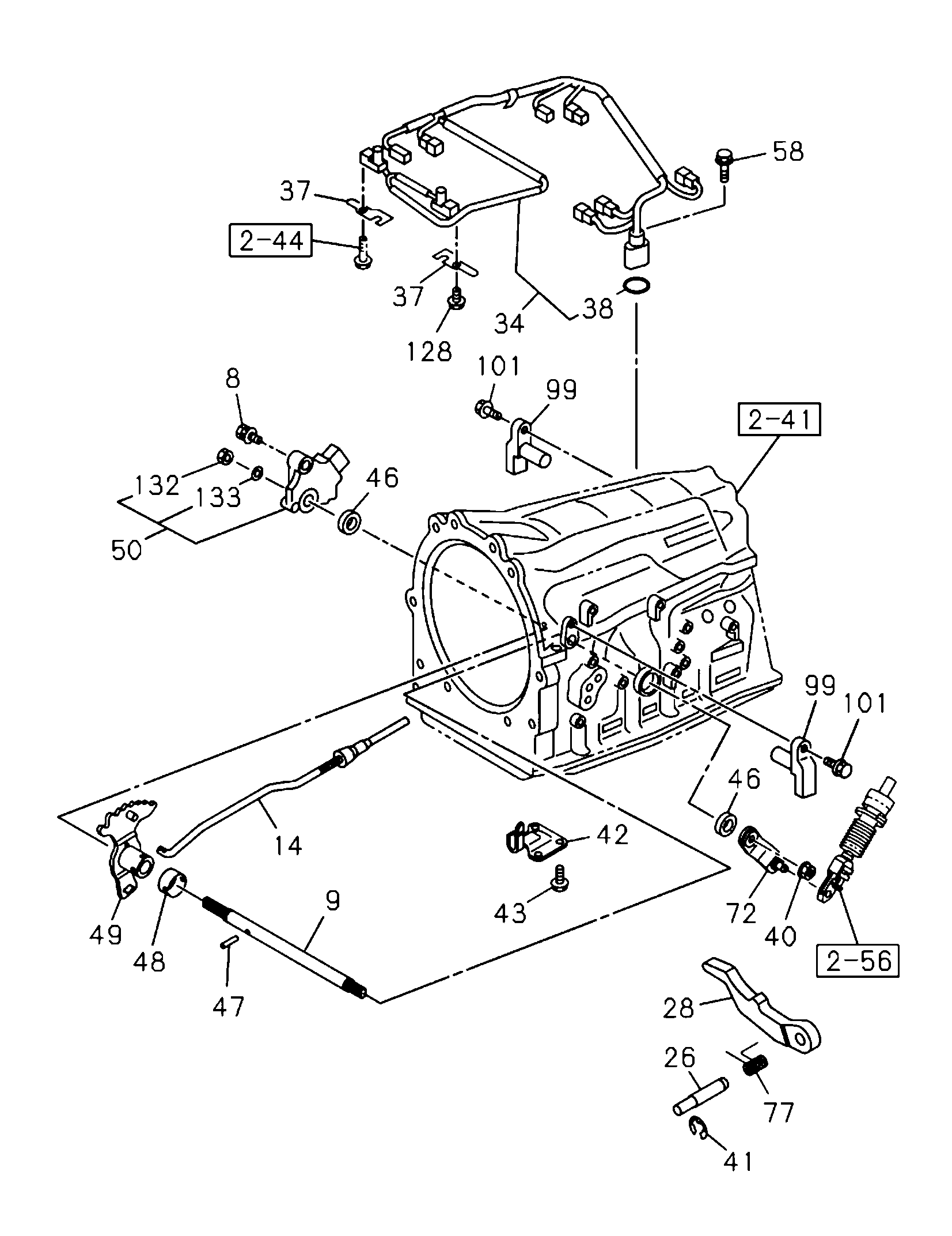

2-49 | AUTO TRANS INHIBITOR SWITCH
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 41 | I5-34488 002-0 | RETAINER; SPR.SHAFT | 1 | 2103- | B | IMA | ||
| 50 | I8-98189 469-0 | SWITCH; NEUTRAL.A/T | 1 | 2103- | B | IMA | ||
| 40 | I0-91180 108-0 | NUT; LEVER TO SHAFT | 1 | 2103- | B | M8 FLANGE | ||
| 9 | I8-98189 472-0 | SHAFT; MANUAL,A/T | 1 | 2103- | B | IMA | ||
| 99 | I8-98342 063-0 | SENSOR; SPD | 2 | 2103- | B | IMA | ||
| 46 | I8-94479 740-0 | SEAL; OIL | 2 | 2103- | B | OD=22 IMA | ||
| 26 | I8-98189 505-0 | SHAFT; PARKING PAWL.A/T | 1 | 2103- | B | IMA | ||
| 49 | I8-98341 900-0 | LEVER ASM; CAM | 1 | 2103- | B | IMA | ||
| 48 | I8-97362 483-0 | COVER; SLEEVE | 1 | 2103- | B | IMA | ||
| 133 | I8-97354 889-0 | WASHER; SWITCH | 1 | 2103- | B | ID=16 IMA | ||
| 43 | I8-98341 689-0 | BOLT; BRKT | 3 | 2103- | B | IMA | ||
| 132 | I8-97354 883-0 | NUT; SWITCH | 1 | 2103- | B | M16 IMA | ||
| 47 | I8-94257 081-0 | PIN; ROLL SHAFT | 1 | 2103- | B | D=4 IMA | ||
| 72 | I8-98393 845-0 | LEVER; SELECT CONT | 1 | 2103- | B | |||
| 8 | I8-97130 929-0 | BOLT; NEUTRAL START SW.A/T | 1 | 2103- | B | M 8X30 IMA | ||
| 37 | I8-98341 908-0 | CLAMP; SOLENOID.A/T | 2 | 2103- | B | IMA | ||
| 77 | I8-98189 506-0 | SPRING; TORSION.PARKING BRK LK.A/T | 1 | 2103- | B | IMA | ||
| 128 | I8-98189 500-0 | BOLT; CLAMP | 1 | 2103- | B | M 6X14 IMA | ||
| 28 | I8-98341 923-0 | PAWL; PARKING.A/T | 1 | 2103- | B | IMA | ||
| 34 | I8-98357 313-0 | SOLENOID ASM; A/T | 1 | 2103- | B | EXC. IDLE STOP SY5TEM<8BM> IMA | ||
| 14 | I8-98341 899-0 | ROD ASM; PARKING.A/T | 1 | 2103- | B | IMA | ||
| 42 | I8-98342 009-0 | BRACKET; PARKING LOCK | 1 | 2103- | B | IMA | ||
| 38 | I8-98341 733-0 | GASKET; SOLENOID INNER | 1 | 2103- | B | IMA | ||
| 58 | I8-94479 978-0 | BOLT; SOLENOID TO A/T | 1 | 2103- | B | M 6X14 IMA | ||
| 101 | I8-94479 978-0 | BOLT; SPD SENSOR | 2 | 2103- | B | M 6X14 IMA |
