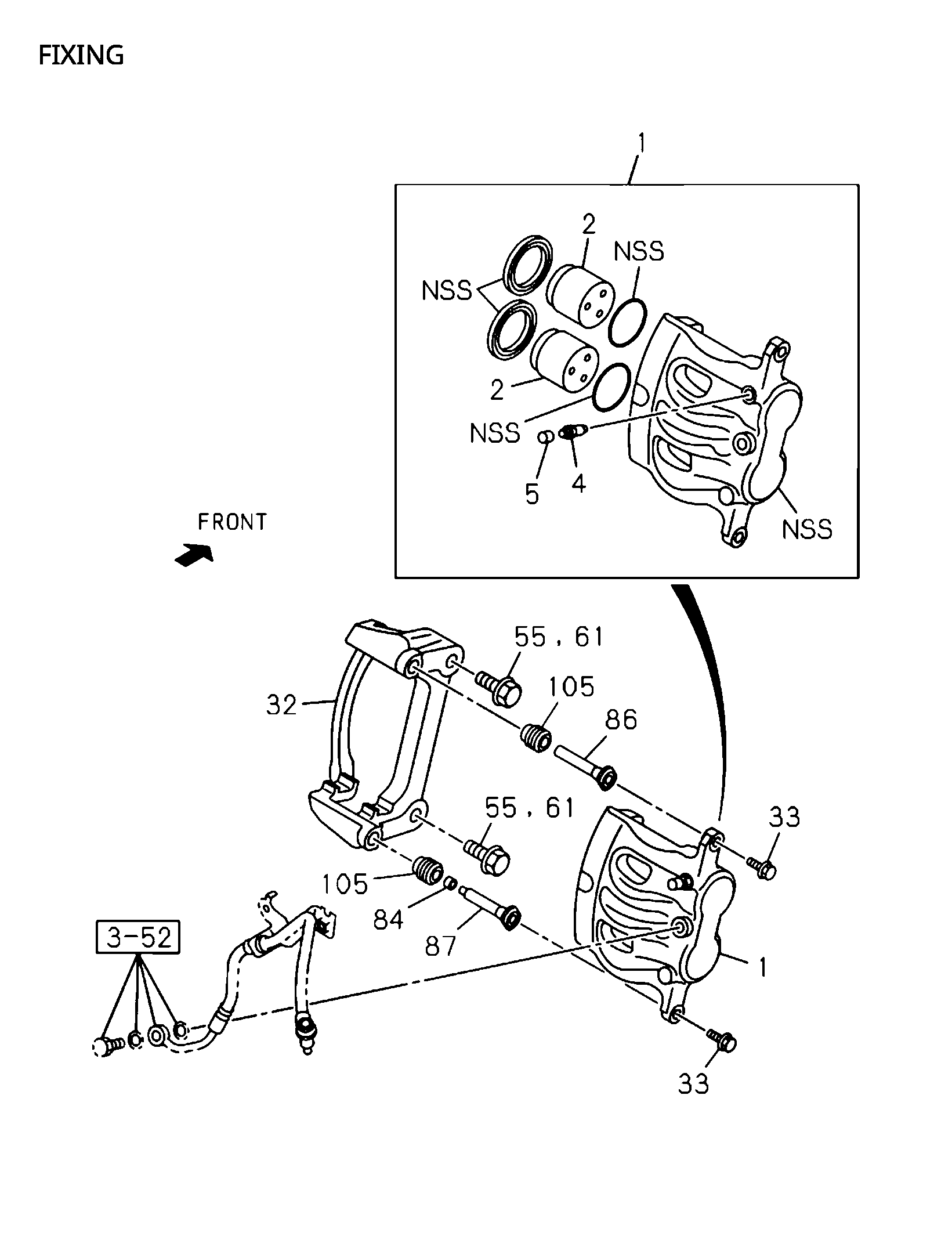

3-02 | FRONT DISC BRAKE CALIPER
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 5 | I8-98050 479-0 | CAP; BLEEDER.DISC BRK.FRT | 2 | 2103- | AB | IMA | ||
| 2 | I8-98078 000-0 | PISTON; CALIPER.DISC BRK.FRT | 4 | 2103- | AB | |||
| 61 | I8-98395 588-0 | BOLT; SUPPORT BRKTTO KNUCKLE | 2 | 2103- | R | AB | ||
| 87 | I8-98489 325-0 | PIN; LOCK | 2 | 2103- | AB | |||
| 86 | I8-98489 326-0 | PIN; GUIDE | 2 | 2103- | AB | |||
| 55 | I8-98395 588-0 | BOLT; SUPPORT BRKTTO DISC BRK | 2 | 2103- | L | AB | ||
| 105 | I8-98078 193-0 | BOOT; CALIPER | 4 | 2103- | AB | |||
| 1 | I8-98489 317-0 | CALIPER; FRT DISC BRK | 1 | 2103- | R | AB | ||
| 1 | I8-98489 318-0 | CALIPER; FRT DISC BRK | 1 | 2103- | L | AB | ||
| 84 | I8-97487 324-0 | BUSHING; LOCK PIN | 2 | 2103- | AB | |||
| 5 | I8-98050 479-0 | CAP; BLEEDER.DISC BRK,FRT | 2 | 2103- | AB | IMA | ||

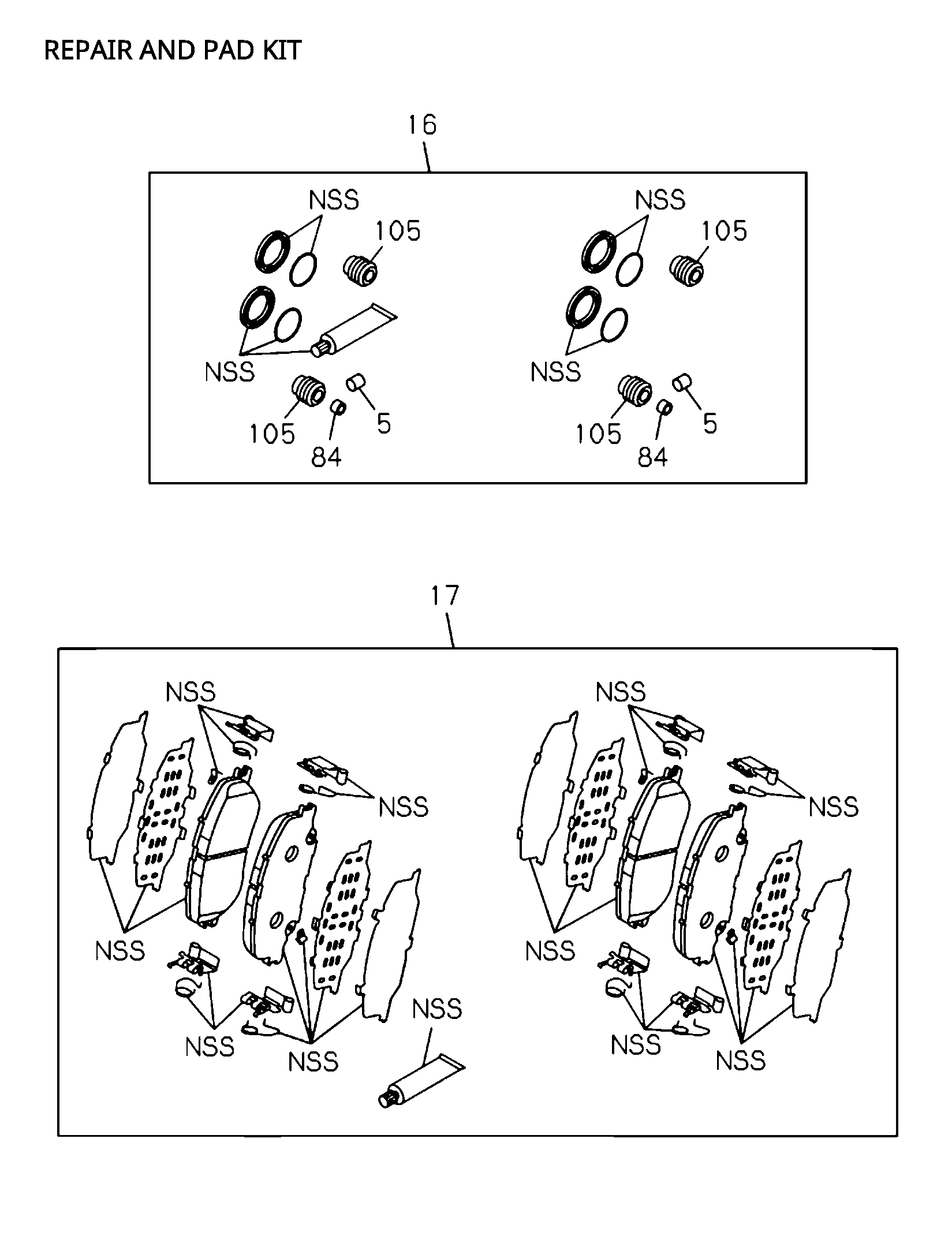

| 17 | I8-97505 680-0 | PAD KIT; CALIPER,DISC BRK,FRT | 1 | 2103- | AB | W/GREASE | ||
| 4 | I8-98050 476-0 | SCREW; BLEEDER.DISC BRK.FRT | 2 | 2103- | AB | IMA | ||
| 84 | I8-97487 324-0 | BUSHING; LOCK PIN | 2 | 2103- | AB | |||
| 105 | I8-98078 193-0 | BOOT; CALIPER | 4 | 2103- | AB | |||
| 33 | I8-98078 192-0 | BOLT; SUPPORT BRKTTO DISC BRK | 4 | 2103- | AB | |||
| 16 | I8-97505 681-0 | REPAIR KIT; CALIPER,DISC BRK,FRT | 1 | 2103- | AB | W/GREASE | ||
| 32 | I8-98489 324-0 | SUPPORT; FRT DISC BRK | 2 | 2103- | AB |
