3-06 | REAR DISC BRAKE CALIPER
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

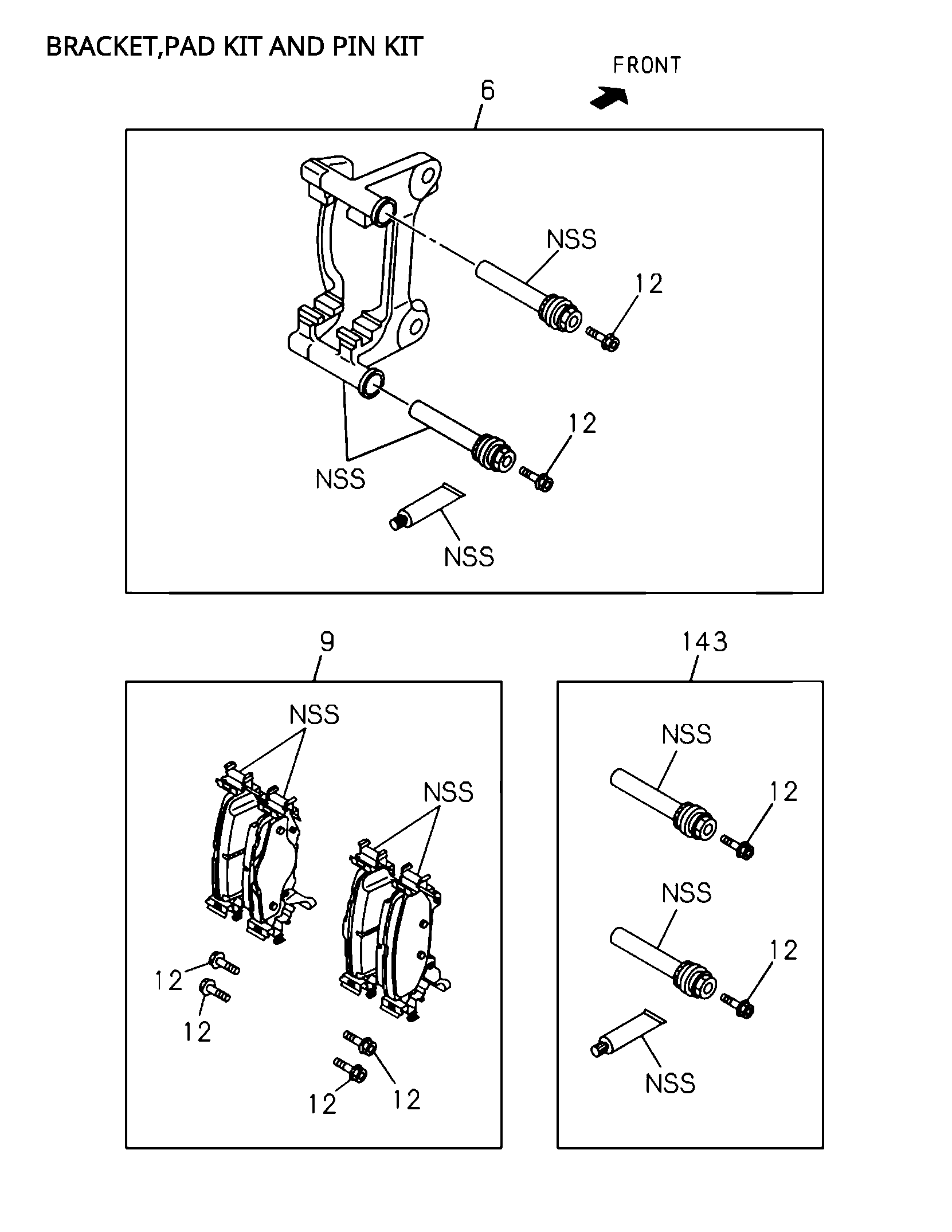

| 6 | I8-97655 210-0 | BRACKET; SUPPORT,RR DISC BRK | 1 | 2103- | AB | |||
| 9 | I8-97689 077-0 | PAD KIT; CAUPER.RR | 1 | 2103- | AB | |||
| 12 | I8-97655 199-0 | PIN; RET,CALIPER,RR DISC BRK | 4 | 2103- | AB | |||
| 12 | I8-97655 199-0 | PIN; RET,CALIPER,RR DISC BRK | 4 | 2103- | AB | |||
| 6 | I8-97655 204-0 | BRACKET; SUPPORTER DISC BRK | 1 | 2103- | AB | |||

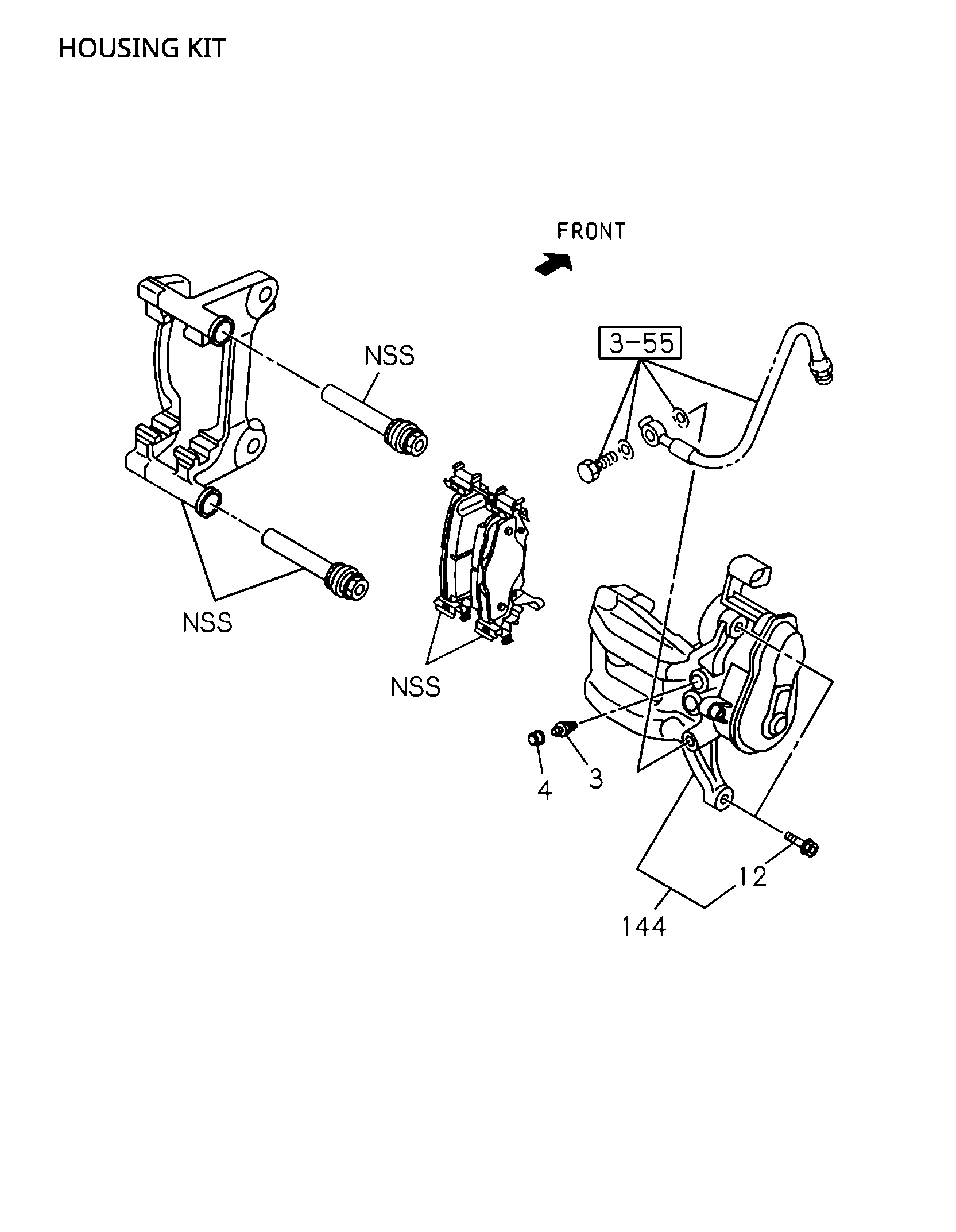

| 144 | I8-97655 205-0 | HOUSING KIT | 1 | 2103- | AB | |||

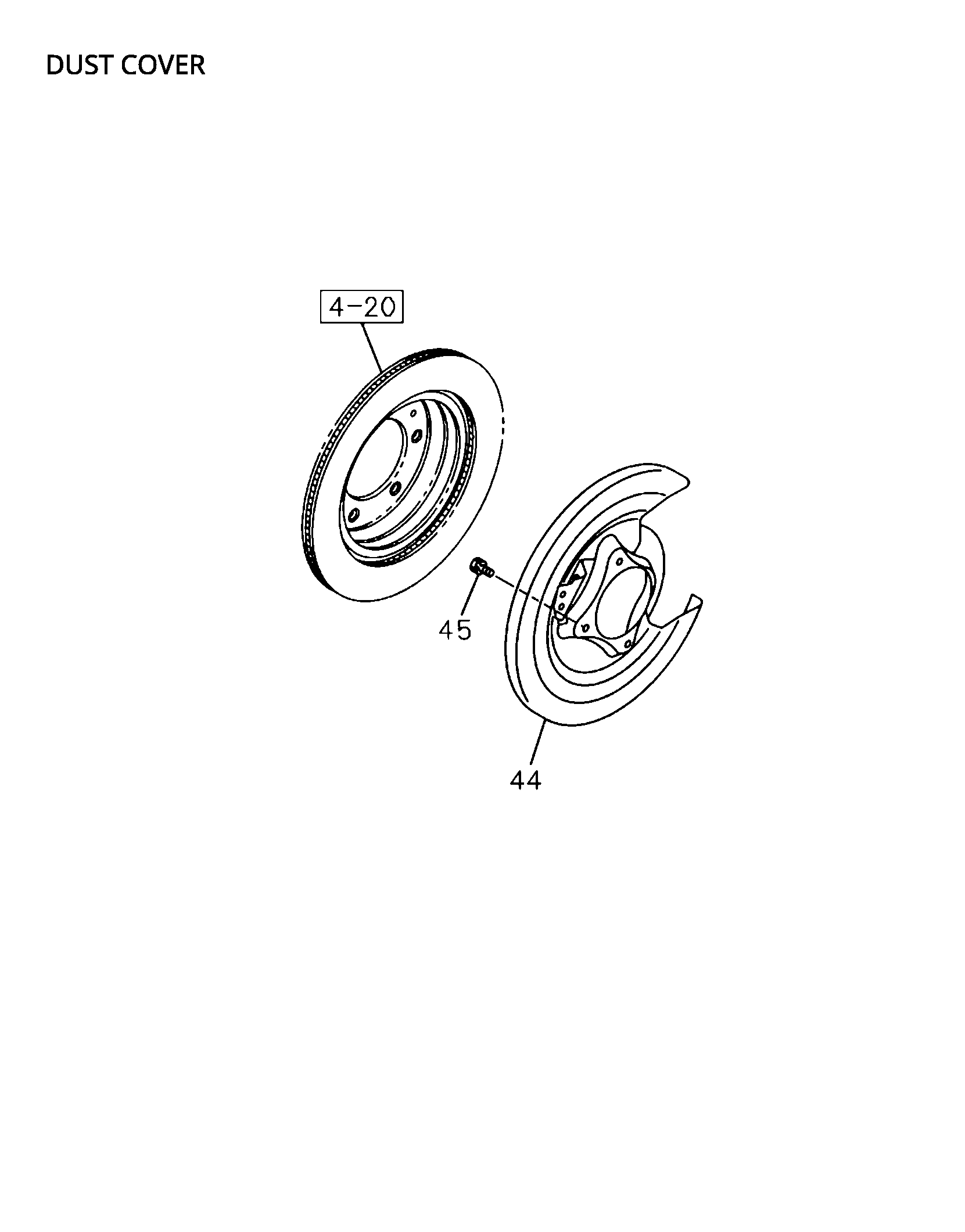

| 44 | I8-97503 584-0 | COVER; DUST | 1 | 2103- | AB | |||
| 143 | I8-97655 200-0 | PIN KIT | 2 | 2103- | AB | |||
| 45 | I8-97542 225-2 | BOLT; DUST COVER SET | 6 | 2103- | AB | M8X10W/PL WASHER | ||
| 144 | I8-97655 209-0 | HOUSING KIT | 1 | 2103- | AB |
