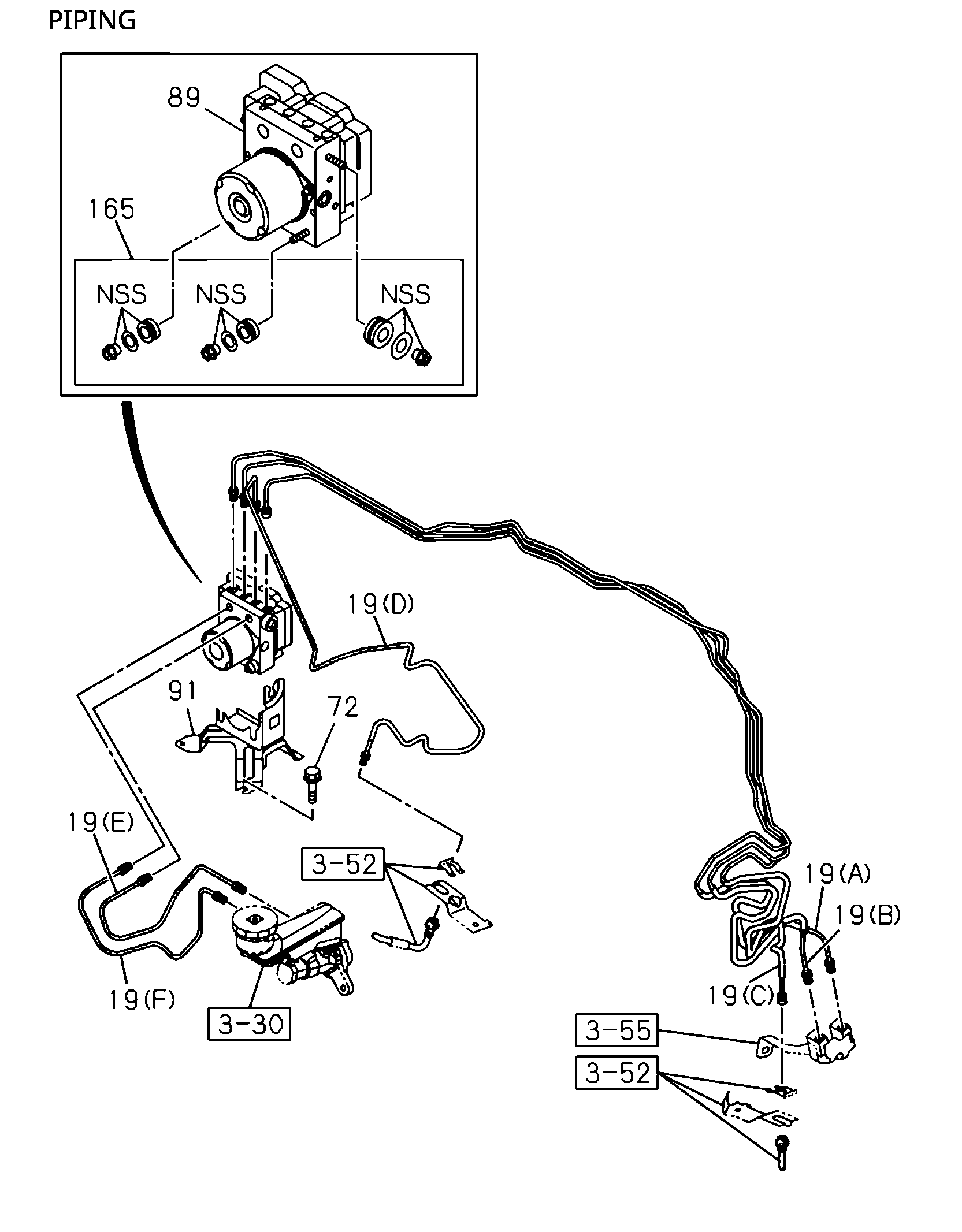

3-50 | BRAKE PIPING; OIL,MASTER CYLINDER
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I8-98484 280-1 | PIPE; BRK.M/CYLTO UNION | 1 | 2103- | AB | (B) | ||
| 19 | I8-98484 278-0 | PIPE; BRK.M/CYLTO UNION | 1 | 2103- | AB | (D) | ||

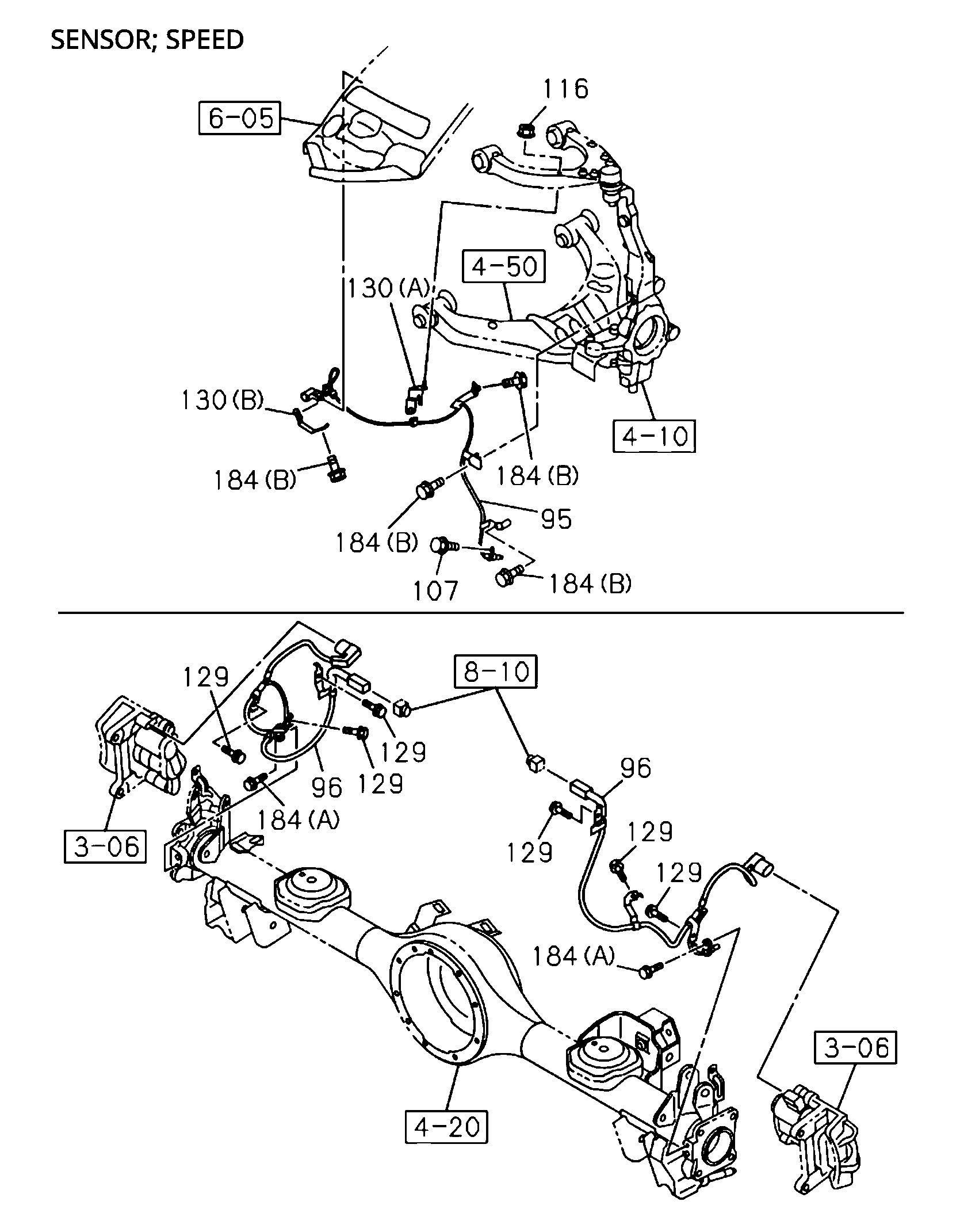

| 95 | I8-98371 293-0 | SENSOR; SPD.FRT WHEEL | 1 | 2103- | AB | |||
| 19 | I8-98395 375-0 | PIPE; BRK.M/CYLTO UNION | 1 | 2103- | AB | |||
| 95 | I8-98371 294-0 | SENSOR; SPD.FRT WHEEL | 1 | 2103- | AB | |||
| 72 | I0-28650 616-0 | BOLT; BRKT TO BODY | 3 | 2103- | AB | M6X16 FLANGE | ||
| 116 | I0-91180 106-0 | NUT | 2 | 2103- | AB | M6 FLANGE | ||
| 130 | I8-97517 084-0 | BRACKET; SPEED SENSOR | 1 | 2103- | AB | (A) | ||
| 96 | I8-97503 590-0 | SENSOR; SPD.RR WHEEL | 1 | 2103- | AB | |||
| 91 | I8-98395 130-0 | BRACKET; HYDRAULIC UNIT | 1 | 2103- | AB | |||
| 130 | I8-97517 085-0 | BRACKET; SPEED SENSOR | 1 | 2103- | AB | (B) | ||
| 96 | I8-97503 591-0 | SENSOR; SPD.RR WHEEL | 1 | 2103- | AB | |||
| 184 | I0-28650 616-0 | BOLT; CLIP | 2 | 2103- | AB | (A) M6X16 FLANGE | ||
| 130 | I8-97517 083-0 | BRACKET; SPEED SENSOR | 1 | 2103- | AB | (A) | ||
| 165 | I8-97536 877-0 | RUBBER KIT; HYDRAULIC UNIT | 1 | 2103- | AB | |||
| 19 | I8-98484 279-1 | PIPE; BRK.M/CYLTO UNION | 1 | 2103- | AB | (A) | ||
| 129 | I0-28650 616-0 | BOLT; BRKT | 6 | 2103- | AB | M6X16 FLANGE | ||
| 19 | I8-98395 377-0 | PIPE; BRK.M/CYLTO UNION | 1 | 2103- | AB | (F) | ||
| 19 | I8-98484 281-1 | PIPE; BRK.M/CYLTO UNION | 1 | 2103- | AB | (C) | ||
| 107 | I0-28050 612-0 | BOLT; WHEEL SPD SENSOR | 2 | 2103- | AB | M6X12 FLANGE | ||
| 184 | I0-28050 612-0 | BOLT; CLIP | 8 | 2103- | AB | (B) M6X12 FLANGE | ||
| 130 | I8-97517 086-0 | BRACKET; SPEED SENSOR | 1 | 2103- | AB | (B) |
