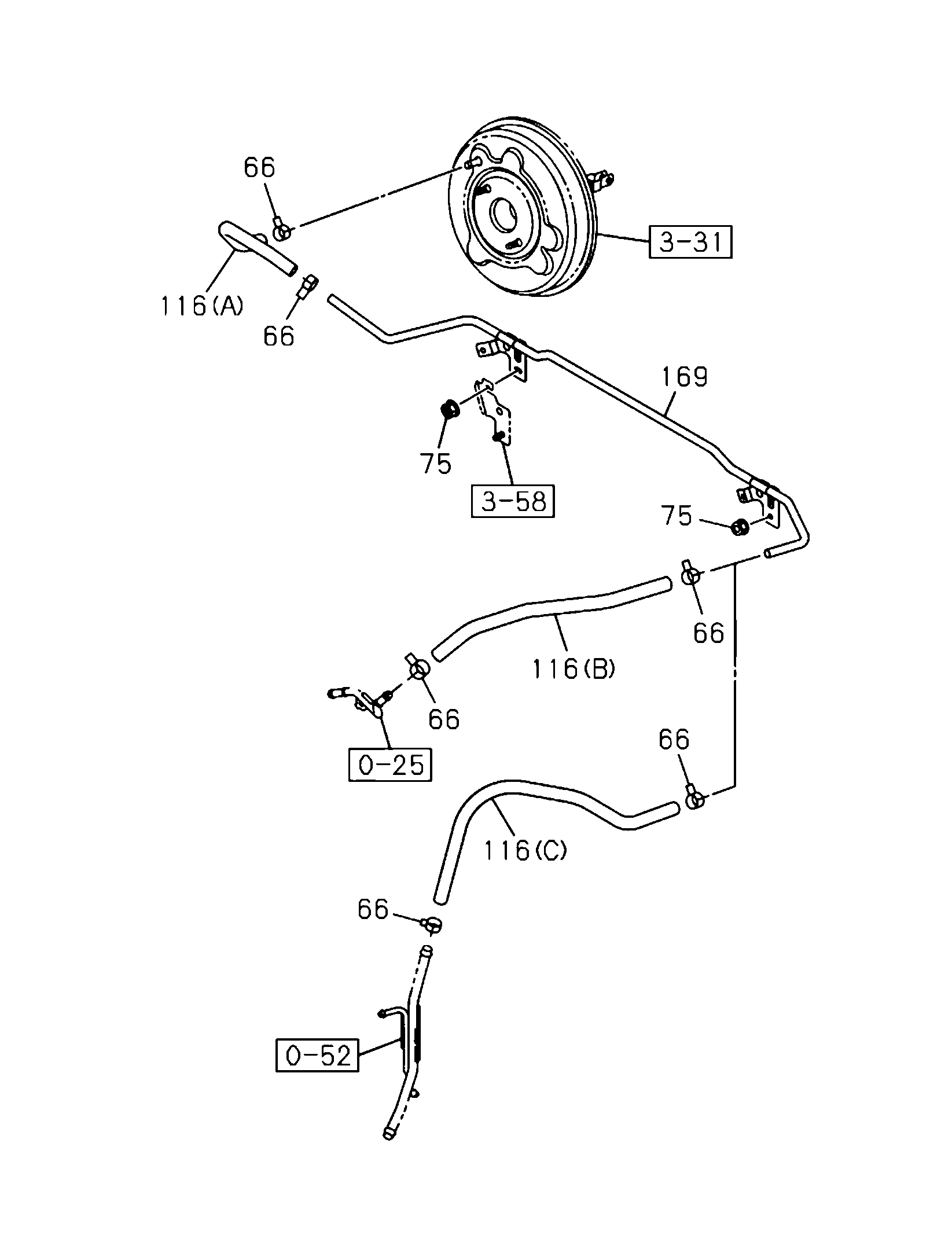

3-60 | BRAKE PIPING; VACUUM
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 116 | I8-98274 256-1 | HOSE; VAC, M/VAC | 1 | 2103- | L | A | RZ4E-TC ENG<RDZ> (B) | |
| 169 | I8-98395 384-0 | PIPE; VAC,BOOSTER SIDE | 1 | 2103- | AB | |||
| 75 | I0-91180 106-0 | NUT; CLIP.VAC HOSE | 2 | 2103- | AB | M6 FLANGE | ||
| 66 | I8-98036 539-0 | CLIP; VAC HOSE,M/VAC | 4 | 2103- | AB | ID=16 | ||
| 116 | I8-98395 380-0 | HOSE; VAC.M/VAC | 1 | 2103- | R | AB | (A) |
