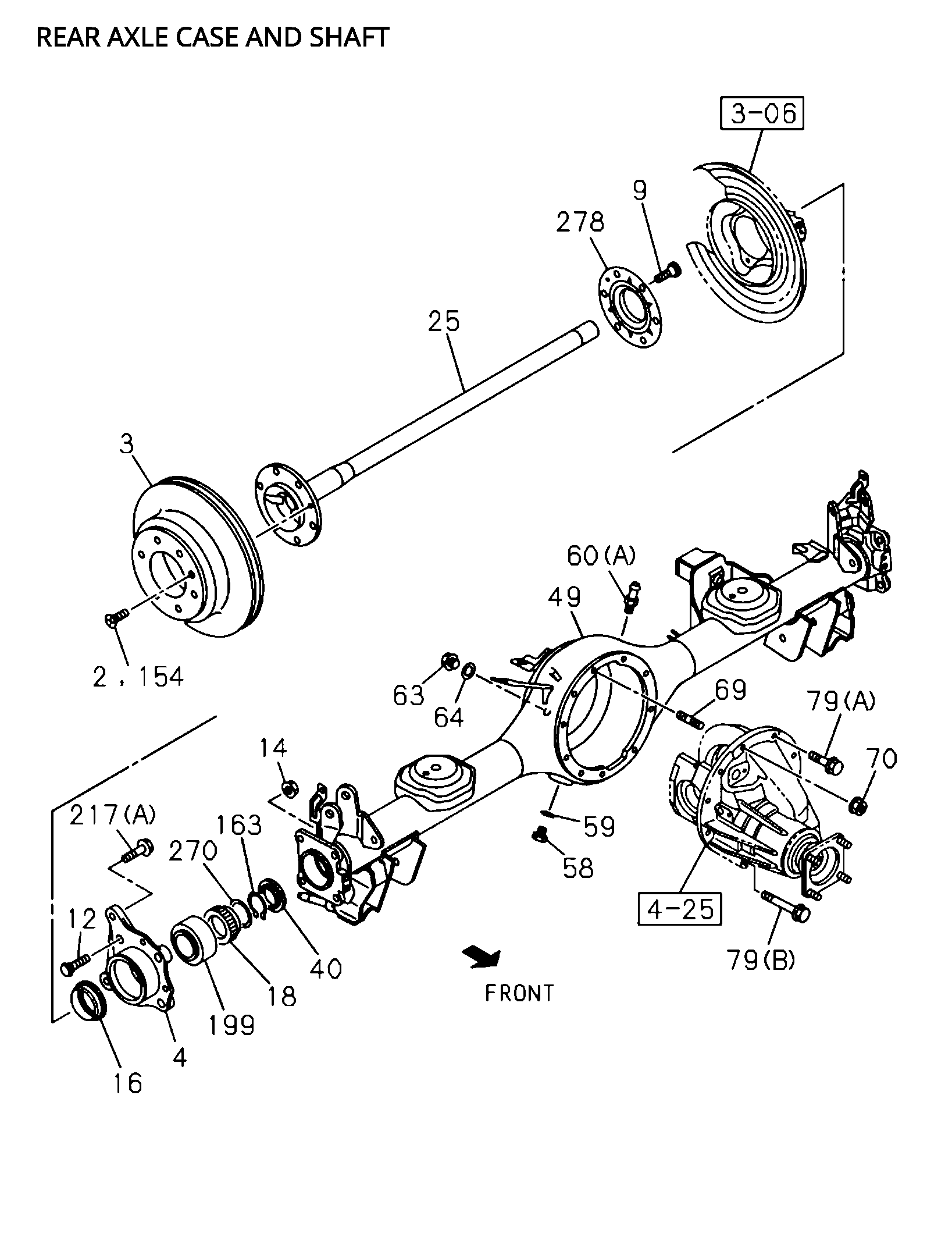

4-20 | REAR AXLE CASE AND SHAFT
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I0-36410 616-0 | BOLT; BRK DRUM | 1 | 2103- | AB | M6X16 CK-HEAD | ||
| 270 | I9-41519 109-0 | SHIM; RETAINER | AR | 2103- | AB | T=0.24 IMA | ||
| 18 | I8-98009 341-0 | RETAINER; RR AXLE | 2 | 2103- | AB | |||
| 3 | I8-97503 571-0 | ROTOR; DISC BRK.RR | 2 | 2103- | AB | |||
| 154 | I0-36410 616-0 | SCREW; SLOTTED | 1 | 2103- | AB | M6X16 CK-HEAD | ||

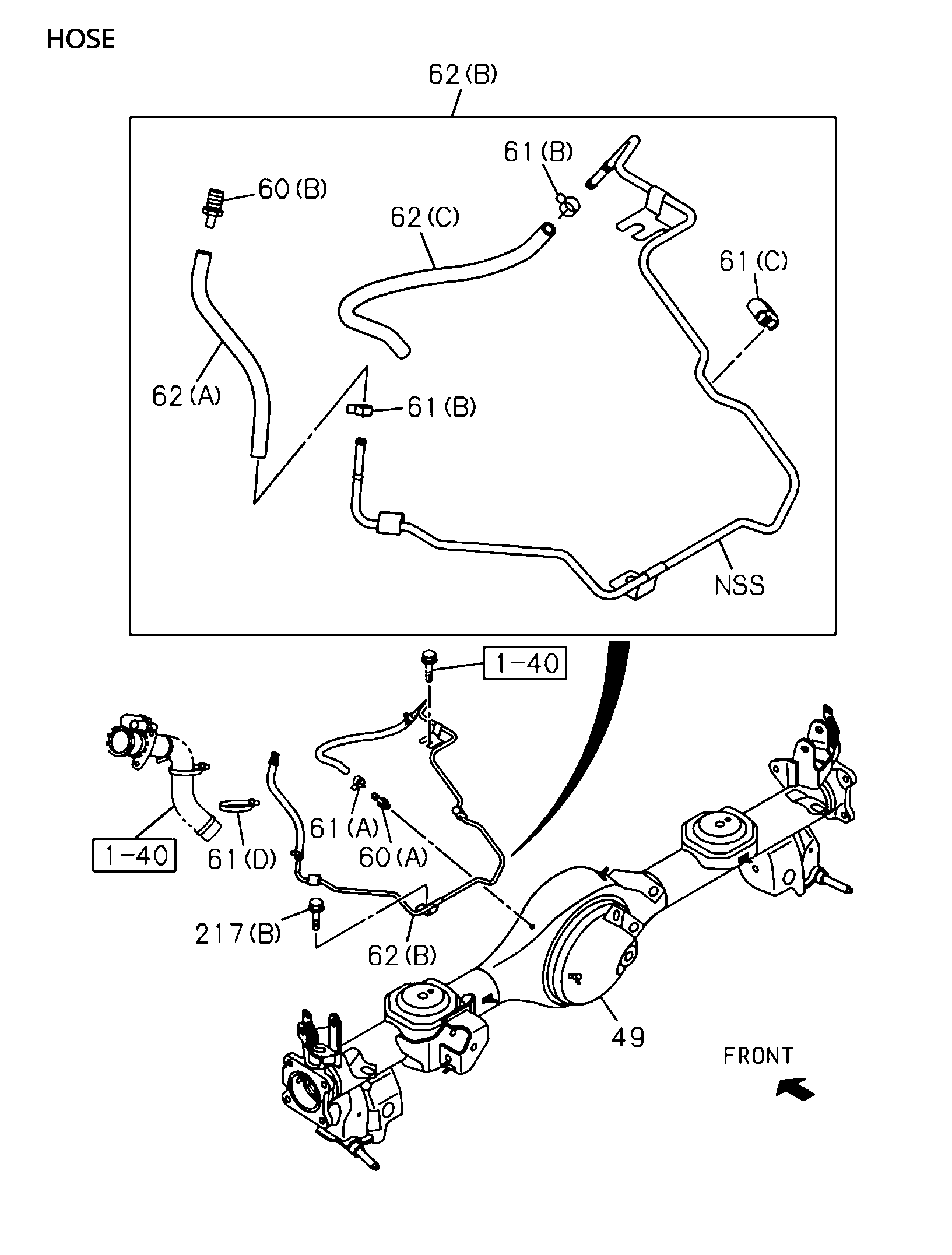

| 62 | I8-97507 475-1 | HOSE; RUBBER,BREATHER,RR AXLE | 1 | 2103- | AB | (B) | ||
| 63 | I8-97307 059-1 | PLUG; OIL FILLER,AXLE CASE | 1 | 2103- | AB | M20X17 | ||
| 62 | I0-04750 300-0 | HOSE; RUBBER,BREATHER,RR AXLE | 1 | 2103- | AB | (A) L=320 SERVICED BY L=3000 IMA | ||
| 59 | I9-09571 416-0 | GASKET; DRAIN PLUG | 1 | 2103- | AB | ID=16.2 OD=24 | ||
| 61 | I8-94151 373-0 | CLIP; BREATHER HOSE,RR AXLE | 1 | 2103- | AB | (D) L=300 IMA | ||
| 163 | I9-09180 042-0 | RING; SNAP.AXLE SHAFT | AR | 2103- | AB | ID=38.5 T=1.75 IMA | ||
| 12 | I8-97529 514-0 | BOLT; BRG HOLDER TO CASE | 8 | 2103- | AB | |||
| 199 | I8-97216 797-A | BEARING; RR AXLE | 2 | 2103- | AB | ( IADG ) | ||
| 14 | I0-91180 212-0 | NUT; BRG HOLDER TO CASE | 8 | 2103- | AB | M12 FLANGE | ||
| 70 | I0-91180 210-0 | NUT; CARRIER | 2 | 2103- | AB | M10 FLANGE | ||
| 199 | I8-97216 797-2 | BEARING; RR AXLE | 2 | 2103- | AB | |||
| 62 | I0-04750 300-0 | HOSE; RUBBER,BREATHER,RR AXLE | 1 | 2103- | AB | (A) L=190 SERVICED BY L=3000 IMA | ||
| 217 | I0-28660 820-0 | BOLT; RR BRK | 1 | 2103- | AB | (B) M8X20 FLANGE IMA | ||
| 61 | I8-97944 126-0 | CLIP; BREATHER HOSE,RR AXLE | 2 | 2103- | AB | (B) ID=10.5 | ||
| 25 | I8-98080 678-2 | SHAFT; AXLE,RR | 2 | 2103- | AB | |||
| 163 | I9-09952 253-0 | RING; SNAP,AXLE SHAFT | AR | 2103- | AB | ID=38.5 T=2.00 IMA | ||
| 49 | I8-97528 150-1 | CASE; RR AXLE | 1 | 2103- | AB | |||
| 9 | I8-97944 831-1 | PIN; WHEEL,RR AXLE | 12 | 2103- | AB | M12X42.5 RH THREAD | ||
| 79 | I0-28061 090-0 | BOLT; COVER TO CASE | 1 | 2103- | AB | (B) M10X90 | ||
| 60 | I8-98018 796-0 | BREATHER; RR AXLE CASE | 1 | 2103- | AB | (B) L=29.6 | ||
| 4 | I8-97528 299-0 | HOLDER; BRG,AXLE SHAFT | 1 | 2103- | AB | |||
| 217 | I8-98033 645-0 | BOLT; RR BRK | 4 | 2103- | AB | (A) M12X25 FLANGE | ||
| 61 | I8-94238 570-0 | CLIP; BREATHER HOSE.RR AXLE | 1 | 2103- | AB | (A) ID=11 IMA | ||
| 79 | I0-28061 030-0 | BOLT; COVER TO CASE | 7 | 2103- | AB | (A) M10X30 FLANGE | ||
| 64 | I8-94462 734-0 | GASKET; OIL FILLER.AXLE CASE | 1 | 2103- | AB | ID=20 OD=30 | ||
| 40 | I8-97323 297-0 | SEAL; OIL,REAR AXLE | 2 | 2103- | AB | |||
| 60 | I8-98396 031-0 | BREATHER; RR AXLE CASE | 1 | 2103- | AB | (A) L=38.5 | ||
| 16 | I6-98134 394-0 | SEAL; OIL.RR HUB,OUTER | 2 | 2103- | AB | |||
| 40 | I6-97323 297-0 | SEAL; OIL,REAR AXLE | 2 | 2103- | AB | |||
| 4 | I8-97528 300-0 | HOLDER; BRG,AXLE SHAFT | 1 | 2103- | AB | |||
| 58 | I8-97307 060-0 | PLUG; DRAIN.AXLE CASE | 1 | 2103- | AB | M16X12.5 IMA | ||
| 61 | I8-94474 113-0 | CLIP; BREATHER HOSE,RR AXLE | 1 | 2103- | AB | (C) ID=6.35 & 6.35 IMA | ||
| 49 | I8-97528 150-1 | CASE; RR AXLE | 1 | 2103- | AB | |||
| 60 | I8-98396 031-0 | BREATHER; RR AXLE CASE | 1 | 2103- | AB | (A) L=38.5 | ||
| 278 | I8-98103 447-2 | CATCHER; OIL | 2 | 2103- | AB | |||
| 16 | I8-98134 394-0 | SEAL; OIL.RR HUB,OUTER | 2 | 2103- | AB | |||
| 69 | I8-98022 413-0 | STUD; AXLE CASE | 2 | 2103- | AB | M10X31 L=43 |
