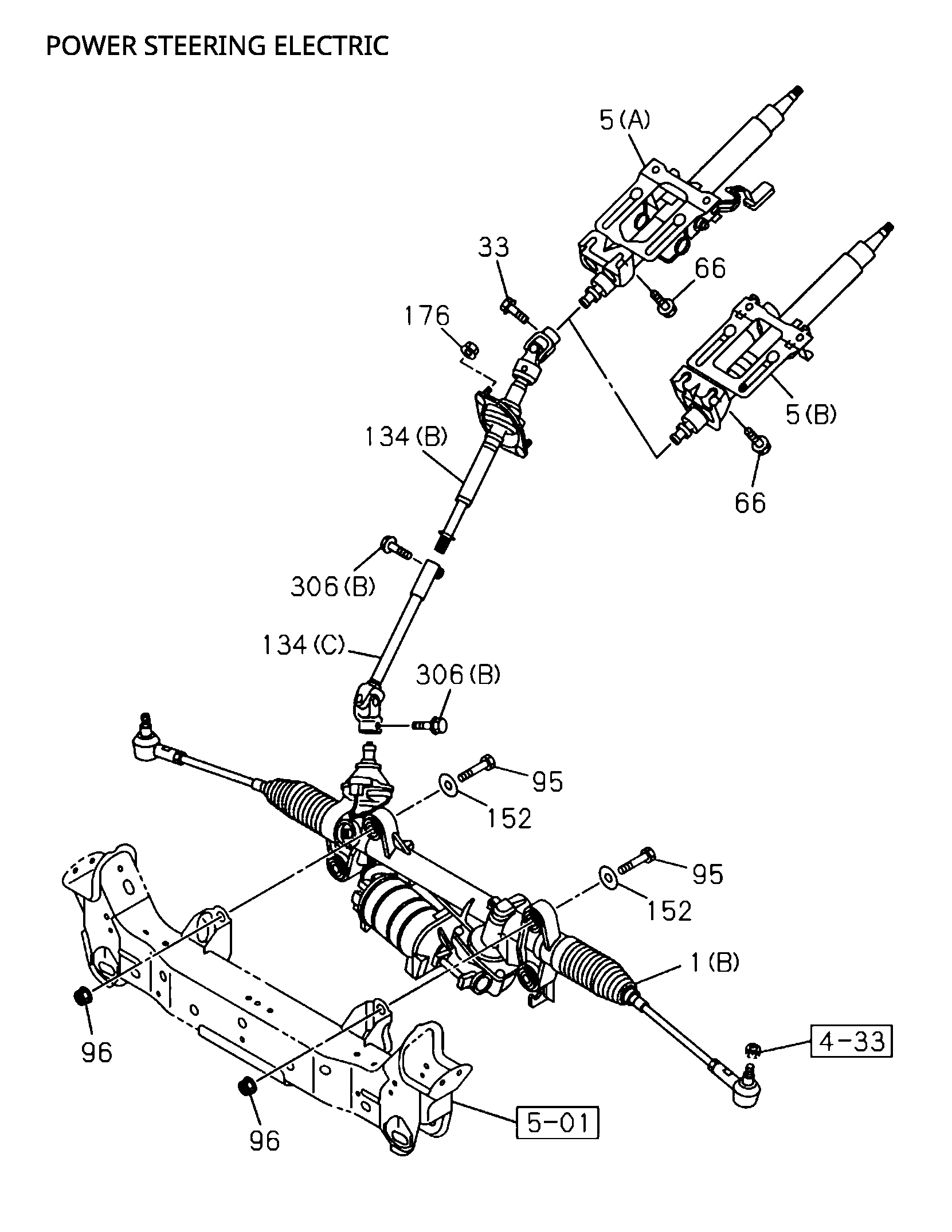

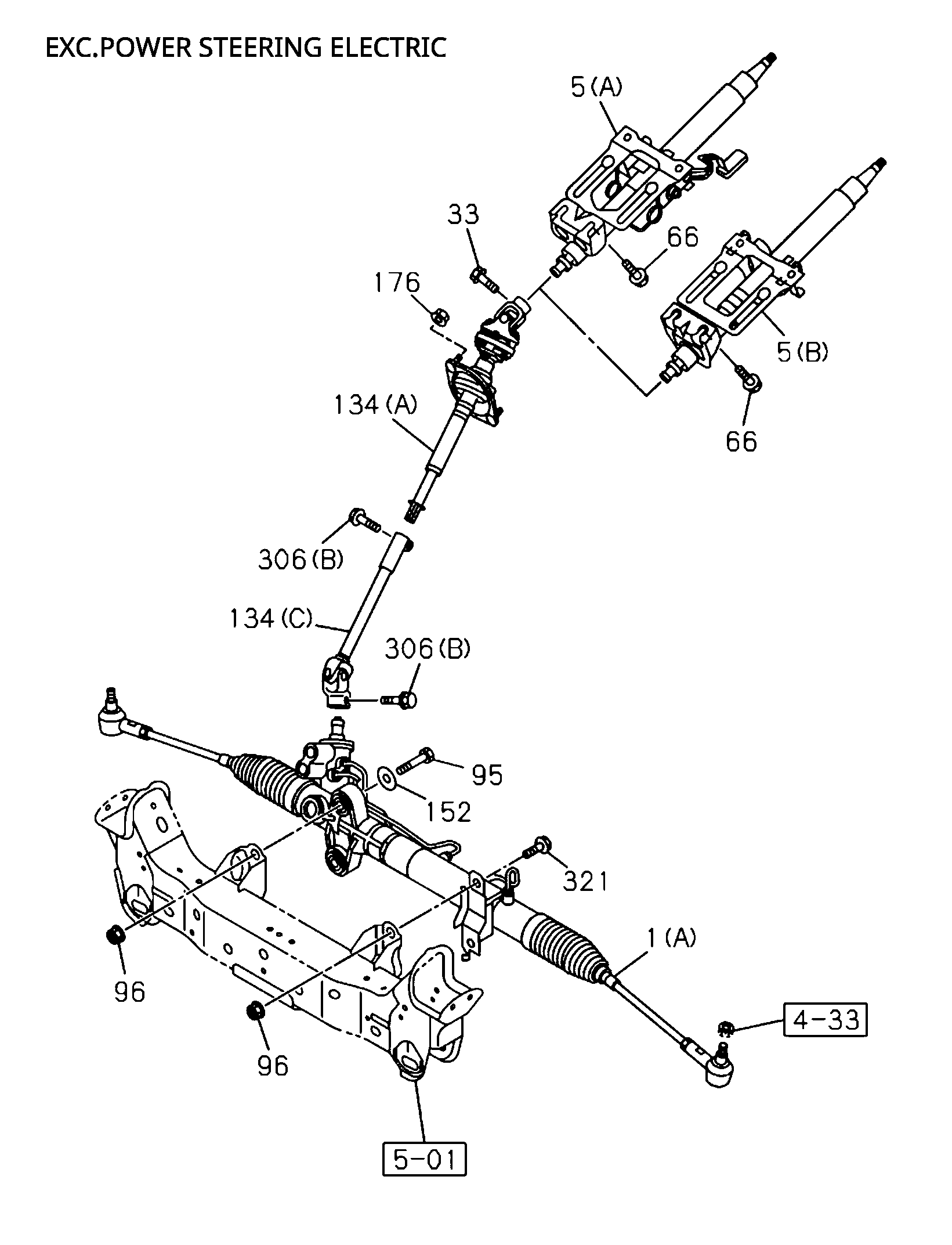

4-31 | STEERING COLUMN AND SHAFT
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 5 | I8-97677 302-0 | COLUMN; STRG | 1 | 2103- | A | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 5 | I8-97677 303-0 | COLUMN; STRG | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> STEERING COLUMN TILT TELESCOPING<N37> | ||
| 306 | I8-98396 032-0 | BOLT; STRG SHAFT | 2 | 2103- | AB | (B) M8X30 FLANGE | ||
| 176 | I0-91180 106-0 | NUT; STRG | 2 | 2103- | AB | M6 FLANGE | ||
| 152 | I8-98296 670-0 | WASHER; LK,STRG UNIT | 2 | 2103- | AB | ID=17 | ||
| 66 | I0-28650 825-0 | BOLT; STRG COLUMN | 4 | 2103- | AB | M8X25 FLANGE | ||
| 1 | I8-97658 012-0 | STEERING UNIT | 1 | 2103- | AB | SEE FIG-NO 4-40 FOR COMPONENT. | ||
| 96 | I0-91180 216-0 | NUT; STRG UNIT | 2 | 2103- | AB | M16 FLANGE IMA | ||
| 236 | I8-97504 364-0 | SWITCH; DOOR WARNING,STRG LOCK | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> | ||
| 5 | I8-97677 302-0 | COLUMN; STRG | 1 | 2103- | B | |||
| 105 | I8-98192 449-0 | SCREW; IGN SW | 1 | 2103- | A | A/T 6 SPEED-AISIN<Y6A> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> | ||
| 33 | I8-98396 032-0 | BOLT; STRG SHAFT TO UNIT | 1 | 2103- | AB | M8X30 FLANGE | ||
| 5 | I8-97677 302-0 | COLUMN; STRG | 1 | 2103- | B | |||

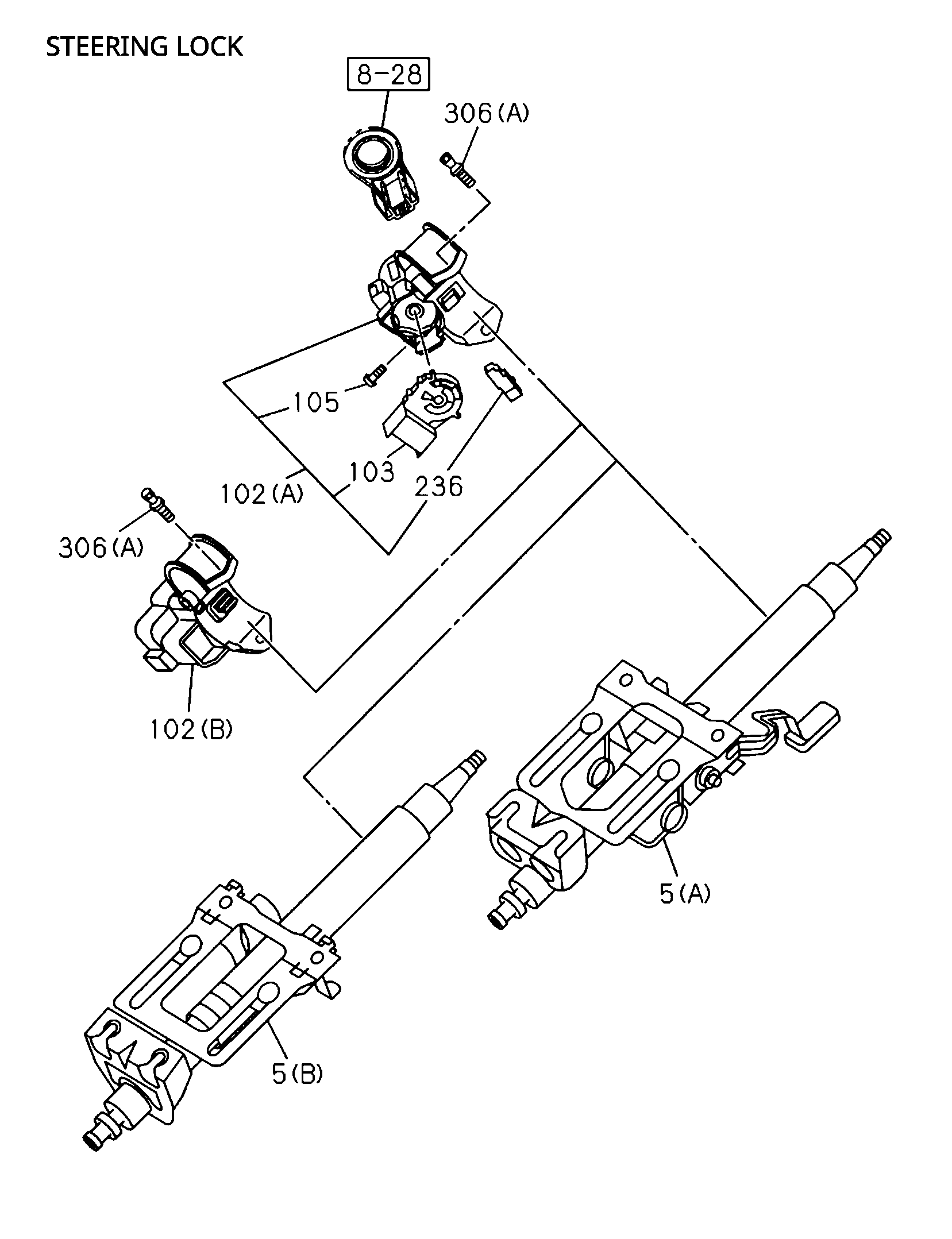

| 102 | I8-98394 496-1 | LOCK ASM; STRG | 1 | 2103- | A | A/T 6 SPEED-AISIN<Y6A> REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (A) | ||
| 5 | I8-97677 303-0 | COLUMN; STRG | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> STEERING COLUMN TILT TELESCOPING<N37> | ||
| 103 | I8-97504 363-0 | SWITCH; IGNITION | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> | ||
| 5 | I8-97677 302-0 | COLUMN; STRG | 1 | 2103- | A | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 306 | I8-97945 749-0 | BOLT; STRG SHAFT | 1 | 2103- | AB | (A) M8X18.5 TORQUE SHEAR BOLT | ||
| 321 | I0-28851 625-0 | BOLT; BRKT.STRG | 2 | 2103- | AB | M16X25 FLANGE IMA | ||
| 95 | I8-97542 132-0 | BOLT; STRG UNIT | 2 | 2103- | AB | M16X75 | ||
| 134 | I8-98394 881-1 | SHAFT; STRG,2ND | 1 | 2103- | AB | (B) |
