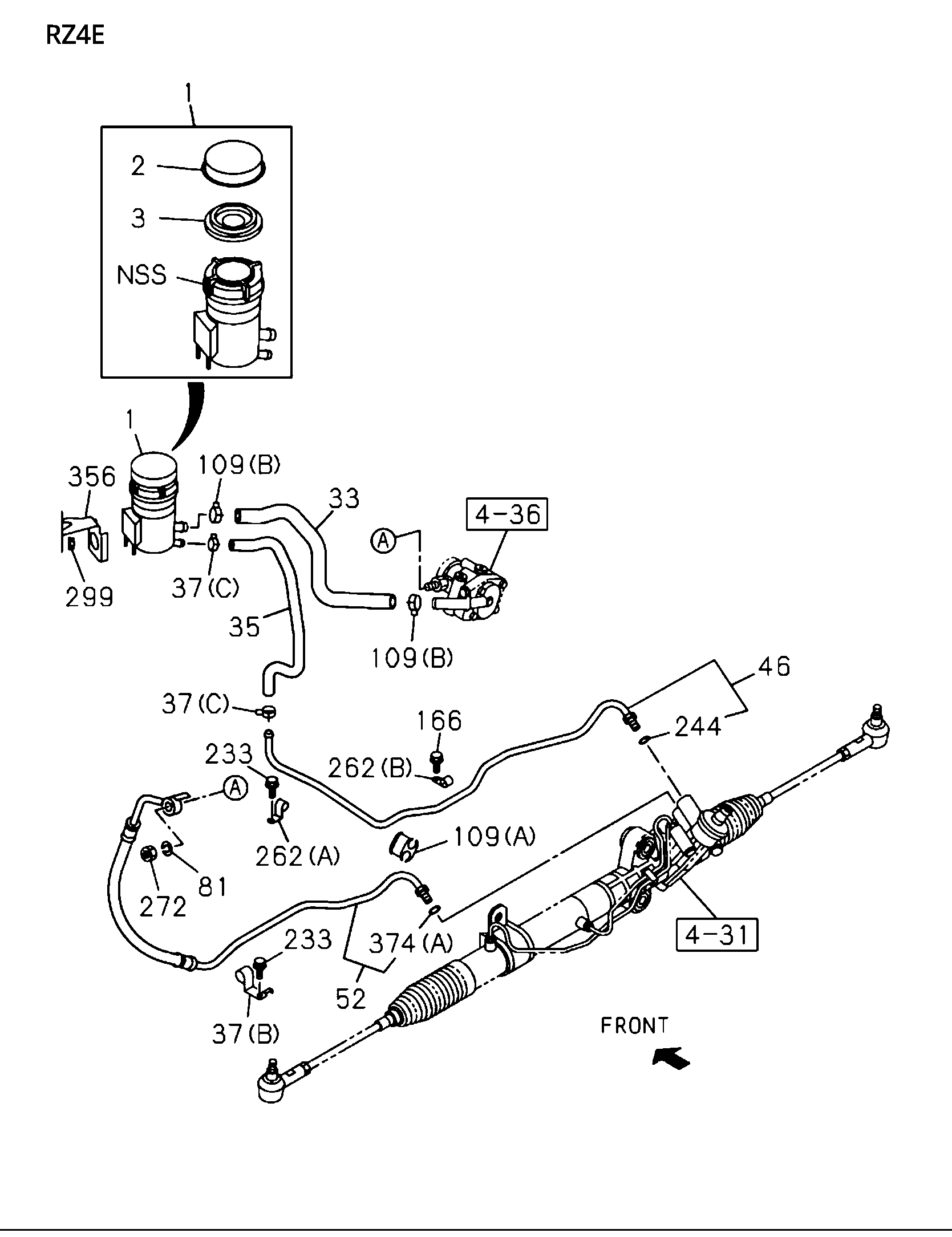

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 37 | I8-98030 682-0 | CLIP; HOSE.P/S | 2 | 2103- | AB | (C) ID=16 | ||
| 244 | I8-97557 813-0 | GASKET; OIL PIPE.P/S | 1 | 2103- | AB | |||
| 233 | I0-28650 616-0 | BOLT; PIPE CLIP,P/S | 2 | 2103- | AB | M6X16 FLANGE | ||
| 166 | I0-28650 616-0 | BOLT; CLIP | 1 | 2103- | AB | M6X16 FLANGE | ||
| 262 | I0-95207 310-0 | CLIP; P/S PIPE | 1 | 2103- | AB | (A) ID=11 H=20 L=20 IMA | ||
| 1 | I8-97234 350-0 | TANK ASM; OIL,P/S | 1 | 2103- | AB | |||
| 33 | I8-98395 019-1 | HOSE; RUBBER,POWER STRG | 1 | 2103- | A | RZ4E-TC ENG<RDZ> | ||
| 2 | I8-97349 476-0 | CAP; OIL TANK,P/S | 1 | 2103- | AB | |||
| 271 | I0-28650 616-0 | BOLT; P/S OIL PIPE FIX | 2 | 2103- | B | M6X16 FLANGE | ||
| 35 | I8-98395 020-1 | HOSE; RETURN.P/S TANK | 1 | 2103- | AB | |||
| 1 | I8-97234 350-0 | TANK ASM; OIL,P/S | 1 | 2103- | AB | |||
| 3 | I8-97349 477-0 | GASKET; OIL TANK.P/S | 1 | 2103- | AB | |||
| 233 | I0-28650 616-0 | BOLT; PIPE CLIP, P/S | 2 | 2103- | AB | M6X16 FLANGE | ||
| 262 | I0-95235 032-0 | CLIP; P/S PIPE | 1 | 2103- | AB | (B) ID=11 L=20 IMA | ||
| 3 | I8-97349 477-0 | GASKET; OIL TANK.P/S | 1 | 2103- | AB | |||
| 46 | I8-98395 016-1 | PIPE; OIL,P/S UNrTTO OIL TANK | 1 | 2103- | AB | L=966 | ||
| 46 | I8-98395 016-1 | PIPE; OIL,P/S UNTTTO OIL TANK | 1 | 2103- | AB | L=966 | ||
| 166 | I0-28650 616-0 | BOLT; CLIP | 1 | 2103- | AB | M6X16 FLANGE | ||
| 299 | I0-91180 106-0 | NUT; OIL TANK BRIO" | 2 | 2103- | AB | M6 FLANGE | ||
| 33 | I8-98395 019-1 | HOSE; RUBBER,POWER STRG | 1 | 2103- | A | RZ4E-TC ENG<RDZ> | ||
| 272 | I0-91111 512-0 | NUT; P/S OIL PIPE FIX | 1 | 2103- | A | RZ4E-TC ENG<RDZ> M12 IMA | ||
| 109 | I8-97944 127-0 | CLIP; RUBBER HOSE | 2 | 2103- | AB | (B) ID=20.8 | ||
| 262 | I0-95235 032-0 | CLIP; P/S PIPE | 1 | 2103- | AB | (B) ID=11 L=20 IMA | ||
| 37 | I8-98395 349-0 | CLIP; HOSE.P/S | 1 | 2103- | AB | (B) ID=21.5 | ||
| 35 | I8-98395 020-1 | HOSE; RETURN.P/S TANK | 1 | 2103- | AB | |||
| 356 | I8-98395 350-2 | BRACKET; P/S.RESERVOIR | 1 | 2103- | AB | |||
| 37 | I8-98030 682-0 | CLIP; HOSE,P/S | 2 | 2103- | AB | (C) ID=16 | ||
| 374 | I8-97557 810-0 | GASKET; HOSE.P/S | 1 | 2103- | AB | (A) | ||
| 271 | I0-28650 616-0 | BOLT; P/S OIL PIPE FIX | 2 | 2103- | A | 4JJ3 ENG<LNG> M6X16 FLANGE | ||
| 109 | I8-97944 127-0 | CLIP; RUBBER HOSE | 2 | 2103- | AB | (B) ID=20.8 | ||
| 244 | I8-97557 813-0 | GASKET; OIL PIPE.P/S | 1 | 2103- | AB | |||
| 81 | I0-91510 812-0 | WASHER; LK,FLEX HOSE | 1 | 2103- | A | RZ4E-TC ENG<RDZ> ID=12.2 IMA | ||
| 2 | I8-97349 476-0 | CAP; OIL TANK,P/S | 1 | 2103- | AB | |||
| 52 | I8-98395 009-2 | HOSE; FLEX.P/S CONT VLV | 1 | 2103- | A | RZ4E-TC ENG<RDZ> | ||
| 52 | I8-98395 009-2 | HOSE; FLEX.P/S CONT VLV | 1 | 2103- | A | RZ4E-TC ENG<RDZ> | ||
| 262 | I0-95207 310-0 | CLIP; P/S PIPE | 1 | 2103- | AB | (A) ID=11 H=20 L=20 IMA | ||
| 37 | I8-98395 349-0 | CLIP; HOSE,P/S | 1 | 2103- | AB | (B) ID=21.5 | ||
| 356 | I8-98395 350-2 | BRACKET; P/S.RESERVOIR | 1 | 2103- | AB | |||
| 299 | I0-91180 106-0 | NUT; OIL TANK BRKT | 2 | 2103- | AB | M6 FLANGE | ||
| 109 | I8-94252 455-2 | CLIP; RUBBER HOSE | 1 | 2103- | AB | (A) ID=10X2 H=22 | ||
| 374 | I8-97557 810-0 | GASKET; HOSE,P/S | 1 | 2103- | AB | (A) | ||
| 109 | I8-94252 455-2 | CLIP; RUBBER HOSE | 1 | 2103- | AB | (A) ID=10X2 H=22 |
