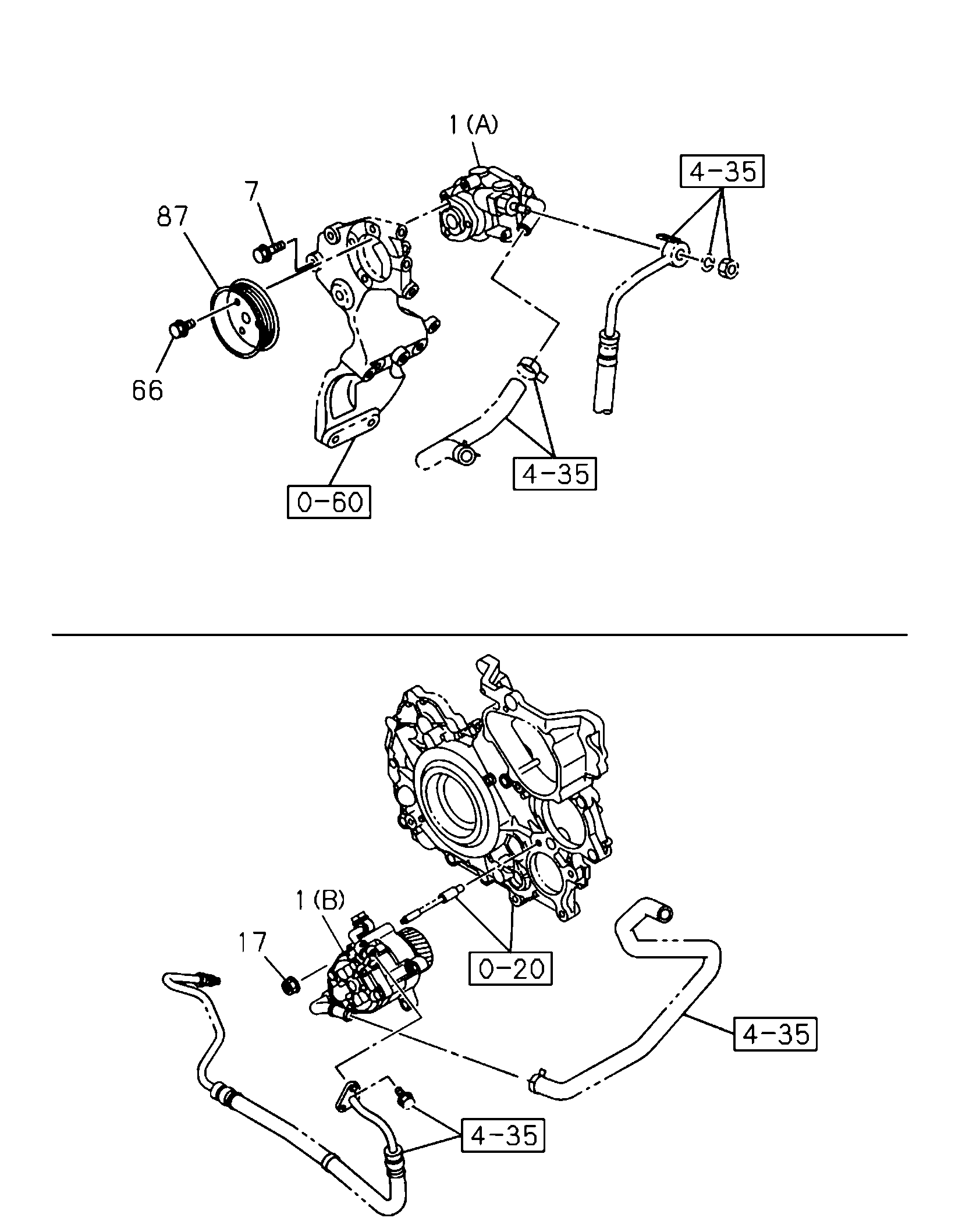

4-36 | POWER STEERING CONTROL; ENGINE SIDE
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 87 | I8-98383 519-0 | PULLEY; P/S PUMP | 1 | 2103- | A | RZ4E-TC ENG<RDZ> | ||
| 7 | I0-28050 830-0 | BOLT; OIL PUMP,P/S | 3 | 2103- | A | RZ4E-TC ENG<RDZ> M8X30 FLANGE | ||
| 1 | I8-97824 300-1 | PUMP ASM; OIL,P/S | 1 | 2103- | A | RZ4E-TC ENG<RDZ> SEE FIG-NO 4-42 FOR COMPONENT. (A) | ||
| 66 | I0-28050 812-0 | BOLT; PULLEY | 3 | 2103- | A | RZ4E-TC ENG<RDZ> M8X12 FLANGE | ||
| 17 | I0-91180 208-0 | NUT; POWER STRG PUMP | 3 | 2103- | B | M8 FLANGE | ||
| 17 | I0-91180 208-0 | NUT; POWER STRG PUMP | 3 | 2103- | A | 4JJ3 ENG<LNG> M8 FLANGE |
