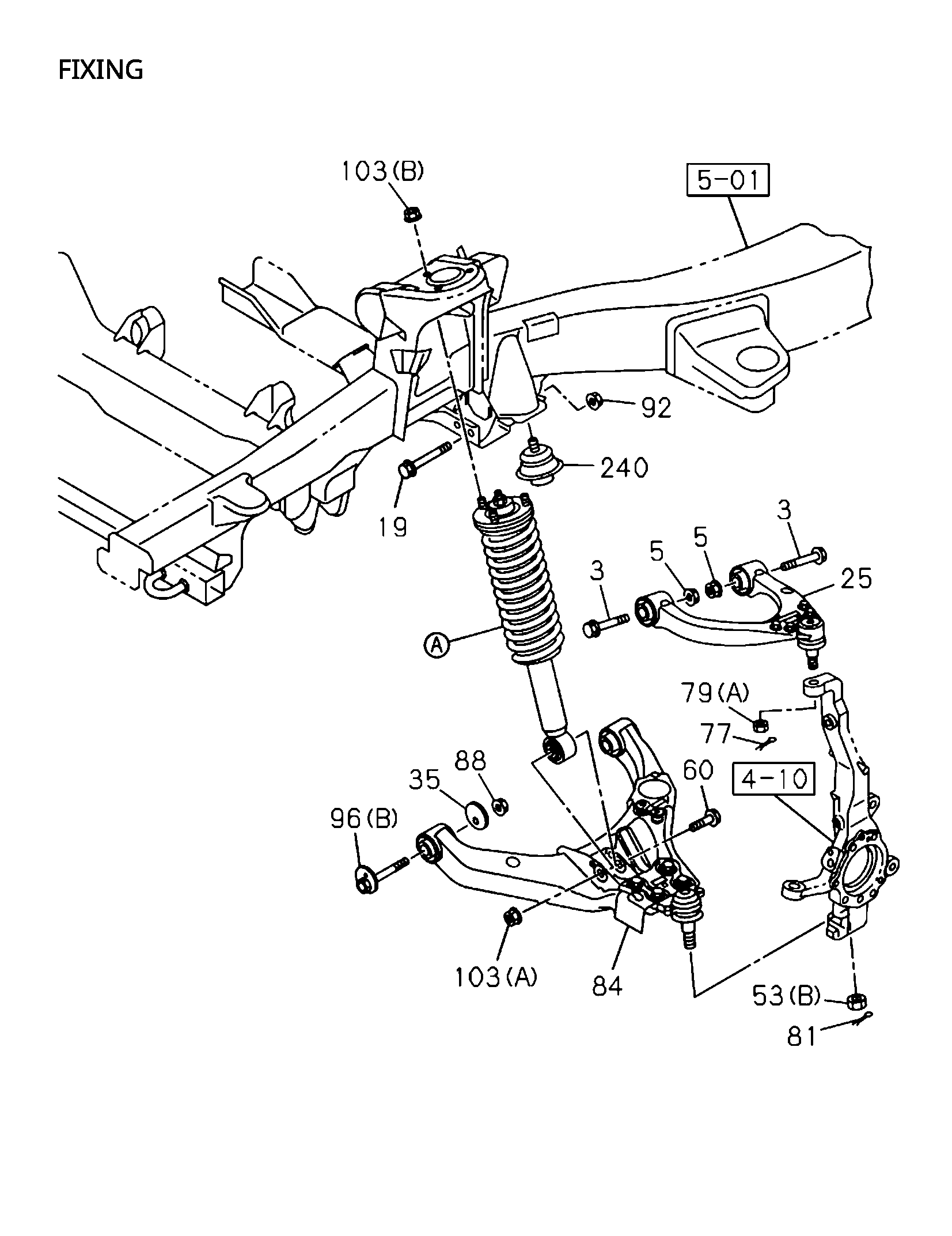

| 3 |
I0-29261 490-0 |
|
BOLT; UPR LINK TO FRAME |
4 |
2103- |
|
AB |
M14X90 IMA |
| 48 |
I8-98005 875-0 |
|
JOINT ASM; BALL.LWR CONT ARM |
2 |
2103- |
|
AB |
|
| 79 |
I0-91110 514-0 |
|
NUT; UPR LINK END TO KNUCKLE |
2 |
2103- |
|
AB |
(A) M14 |
| 79 |
I0-91180 208-0 |
|
NUT; UPR LINK END TO KNUCKLE |
8 |
2103- |
|
AB |
(B) M8 FLANGE |
| 62 |
I8-97653 845-0 |
|
ABSORBER ASM; SHOCK.FRT |
2 |
2103- |
|
AB |
|
| 58 |
I8-98389 670-0 |
|
BUSHING; LWR LINK |
4 |
2103- |
|
AB |
|
| 103 |
I8-97245 635-0 |
|
NUT; S/ABS TO LWR LINK |
2 |
2103- |
|
AB |
(A) M14 FLANGE |
| 65 |
I8-97944 892-0 |
|
WASHER; S/ABS |
2 |
2103- |
|
AB |
(O |
| 84 |
I8-98389 434-1 |
|
ARM; LWR CONT |
1 |
2103- |
|
AB |
|
| 75 |
I8-98177 899-1 |
|
BRACKET; FRT S/ABS |
2 |
2103- |
|
AB |
|
| 92 |
I0-91180 210-0 |
|
NUT; FRT SUSP |
4 |
2103- |
|
AB |
M10 FLANGE |
| 65 |
I8-98005 972-0 |
|
WASHER; S/ABS |
2 |
2103- |
|
AB |
(A) |
| 20 |
I0-28060 825-0 |
|
BOLT; UPR LINK END TO UPR LINK |
8 |
2103- |
|
AB |
M8X25 FLANGE IMA |
| 88 |
I8-97245 631-0 |
|
NUT; LWR LINK |
4 |
2103- |
|
AB |
M16 FLANGE |
| 77 |
I0-81123 028-0 |
|
PIN; SPLIT,LINK END TO KNUCKLE |
2 |
2103- |
|
AB |
OD=2.8 L=28 IMA |
| 21 |
I8-98480 997-0 |
|
JOINT ASM; BALL,UPR CONT ARM |
2 |
2103- |
|
AB |
|
| 14 |
I8-97236 304-0 |
|
NUT; S/ABS,UPR |
2 |
2103- |
|
AB |
M12 FLANGE |
| 240 |
I8-97946 180-0 |
|
BUMPER; LWR CONT ARM |
2 |
2103- |
|
AB |
|
| 25 |
I8-98389 432-1 |
|
ARM; UPRCONT |
1 |
2103- |
|
AB |
|
| 96 |
I8-98186 404-0 |
|
BOLT; LWR LINK |
4 |
2103- |
|
AB |
(B) M16X102W/P LATE |
| 53 |
I0-91180 212-0 |
|
NUT; LWR LINK |
8 |
2103- |
|
AB |
(A) M12 FLANGE |
| 35 |
I8-97214 814-0 |
|
PLATE; BUSHING SUPPORT |
4 |
2103- |
|
AB |
|
| 60 |
I8-97947 455-0 |
|
BOLT; S/ABS TO LWR UNK |
2 |
2103- |
|
AB |
M14X74 |
| 96 |
I8-97245 639-0 |
|
BOLT; LWR LINK |
8 |
2103- |
|
AB |
(A) M12X37 FLANGE |
| 17 |
I8-97264 184-0 |
|
BUSHING; RUBBER,S/ABS |
2 |
2103- |
|
AB |
(B) |
| 45 |
I8-98389 666-1 |
|
BUSHING; UPR UNK.FRT |
4 |
2103- |
|
AB |
|
| 25 |
I8-98389 432-1 |
|
ARM; UPRCONT |
1 |
2103- |
|
AB |
|
| 17 |
I8-97236 303-0 |
|
BUSHING; RUBBER,S/ABS |
2 |
2103- |
|
AB |
(A) |
| 84 |
I8-98389 433-1 |
|
ARM; LWR CONT |
1 |
2103- |
|
AB |
|
| 16 |
I8-97947 100-0 |
|
COVER; DUST.FRT S/ABS |
2 |
2103- |
|
AB |
|
| 103 |
I8-97245 637-0 |
|
NUT; S/ABS TO LWR LINK |
6 |
2103- |
|
AB |
(B) M10 FLANGE |
| 19 |
I0-28061 000-0 |
|
BOLT; FRT SUSP TO C/MBR |
4 |
2103- |
|
AB |
M10X100 |
| 47 |
I8-97653 846-0 |
|
SPRING; COIL.FRT SUSP |
2 |
2103- |
|
A |
RZ4E-TC ENG<RDZ> |
| 65 |
I8-98005 971-0 |
|
WASHER; S/ABS |
2 |
2103- |
|
AB |
(B) |
| 53 |
I0-91110 518-0 |
|
NUT; LWR LINK |
2 |
2103- |
|
AB |
(B) M18 |
| 48 |
I6-98005 875-0 |
|
JOINT ASM; BALL.LWR CONT ARM |
2 |
2103- |
|
AB |
|
| 5 |
I8-97245 635-0 |
|
NUT; UPR LINK TO FRAME |
4 |
2103- |
|
AB |
M14 FLANGE |
| 81 |
I0-81123 028-0 |
|
PIN; SPLIT,LWR UNK TO KNUCKLE |
2 |
2103- |
|
AB |
OD=2.8 L-28 IMA |
| 84 |
I8-98389 434-1 |
|
ARM; LWR CONT |
1 |
2103- |
|
AB |
|
| 84 |
I8-98389 433-1 |
|
ARM; LWR CONT |
1 |
2103- |
|
AB |
|
