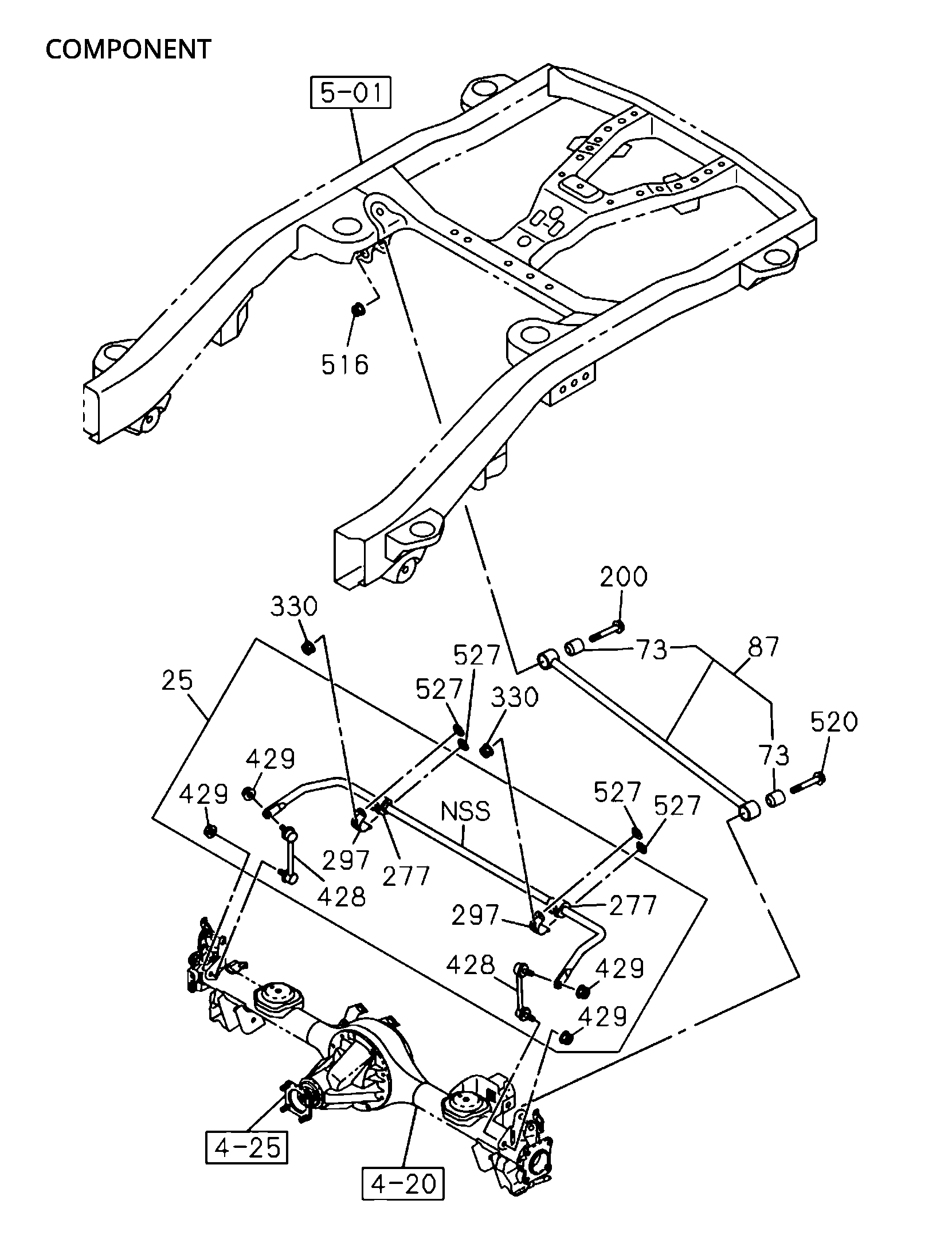

4-60 | REAR SUSPENSION
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 520 | I0-29261 490-0 | BOLT; ROD | 1 | 2103- | AB | M14X90 IMA | ||
| 330 | I0-91180 208-0 | NUT; STAB | 4 | 2103- | AB | M8 FLANGE | ||
| 429 | I8-98395 346-0 | NUT; LINK | 4 | 2103- | AB | |||
| 277 | I8-97559 026-0 | BUSHING; STAB.RR UPR | 2 | 2103- | AB | |||
| 428 | I8-97559 024-0 | LINK; RR STABILIZER | 1 | 2103- | AB | |||
| 330 | I0-91180 208-0 | NUT; STAB | 4 | 2103- | AB | M8 FLANGE | ||
| 297 | I8-97947 948-0 | CAP; STAB BAR | 2 | 2103- | AB | |||
| 165 | I0-28661 025-0 | BOLT; HELPER RUBBER | 4 | 2103- | AB | M10X25 FLANGE | ||
| 428 | I8-97559 025-0 | LINK; RR STABILIZER | 1 | 2103- | AB | |||
| 25 | I8-97506 929-0 | BAR ASM; STAB,RR SUSP | 1 | 2103- | AB | |||
| 516 | I8-98217 474-0 | NUT; ROD | 1 | 2103- | AB | M14 | ||
| 79 | I8-97506 916-0 | LINK; TRAILING,RR SUSP | 2 | 2103- | AB | |||
| 73 | I8-97947 786-0 | BUSHING; LATERAL ROD.RR SUSP | 2 | 2103- | AB | |||
| 87 | I8-97506 917-0 | LINK; LATERAL.RR SUSP | 1 | 2103- | AB | |||
| 516 | I8-98217 474-0 | NUT; ROD | 1 | 2103- | AB | M14 | ||
| 25 | I8-97506 929-0 | BAR ASM; STAB,RR SUSP | 1 | 2103- | AB | |||
| 200 | I0-29261 490-0 | BOLT; BRKT | 1 | 2103- | AB | M14X90 IMA | ||
| 429 | I8-98395 346-0 | NUT; LINK | 4 | 2103- | AB | |||
| 428 | I8-97559 024-0 | LINK; RR STABILIZER | 1 | 2103- | AB | |||
| 172 | I8-97947 789-0 | INSULATOR; RRSPRUPR | 2 | 2103- | AB | |||
| 297 | I8-97947 948-0 | CAP; STAB BAR | 2 | 2103- | AB | |||
| 140 | I8-97947 834-0 | BOLT; CONT ARM TO BODY | 8 | 2103- | AB | |||
| 520 | I0-29261 490-0 | BOLT; ROD | 1 | 2103- | AB | M14X90 IMA | ||
| 163 | I8-97947 790-0 | RUBBER; HELPER.RRSPR | 2 | 2103- | AB | |||
| 428 | I8-97559 025-0 | LINK; RR STABILIZER | 1 | 2103- | AB | |||
| 115 | I8-97947 367-1 | LINK; UPR.W/BUSHING | 2 | 2103- | AB | |||
| 200 | I0-29261 490-0 | BOLT; BRKT | 1 | 2103- | AB | M14X90 IMA | ||
| 141 | I8-98217 474-0 | NUT; CONT ARM TO BODY | 8 | 2103- | AB | M14 | ||
| 73 | I8-97947 786-0 | BUSHING; LATERAL ROD.RR SUSP | 2 | 2103- | AB | |||
| 87 | I8-97506 917-0 | LINK; LATERAL.RR SUSP | 1 | 2103- | AB | |||
| 399 | I8-97947 788-0 | BUSHING; TRAILING ROD | 4 | 2103- | AB | |||
| 277 | I8-97559 026-0 | BUSHING; STAB.RR UPR | 2 | 2103- | AB | |||
| 105 | I8-97947 787-0 | BUSHING; UPR LINK | 4 | 2103- | AB |
