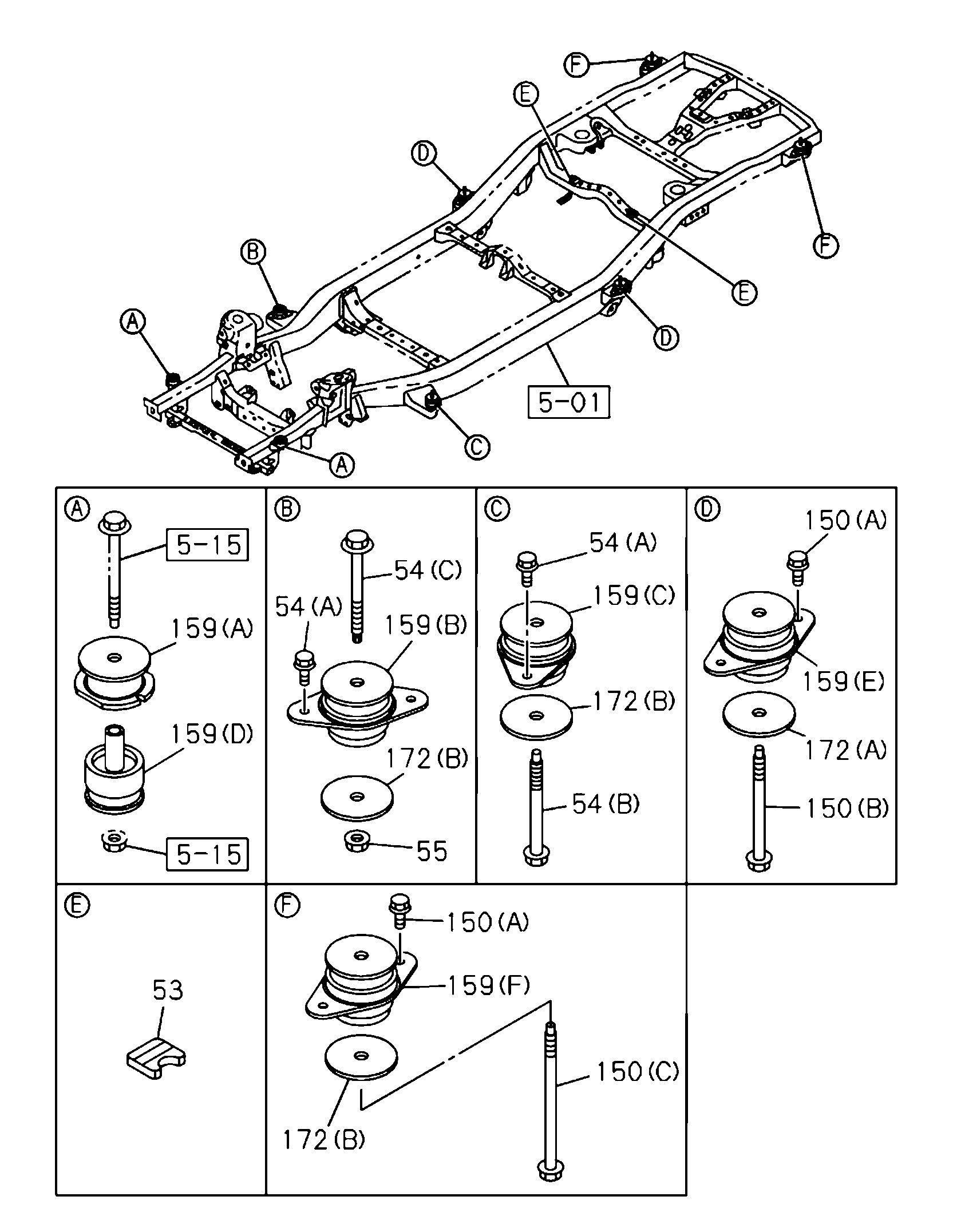

5-10 | CAB MOUNTING; FRAME SIDE
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 150 | I8-98199 238-0 | BOLT; CAB MTG RR | 2 | 2103- | AB | (C) M14X180 FLANGE | ||
| 150 | I0-28661 025-0 | BOLT; CAB MTG RR | 8 | 2103- | AB | (A) M10X25 FLANGE | ||
| 159 | I6-98051 326-0 | RUBBER; CUSHION.CAB MTG | 2 | 2103- | AB | (D) | ||
| 54 | I8-98398 066-0 | BOLT; RUBBER | 1 | 2103- | AB | (C) M14X120 FLANGE | ||
| 172 | I8-97507 398-0 | WASHER; BODY MTG RUBBER | 2 | 2103- | AB | (A) ID=15.6 OD=85 T=4.5 | ||
| 150 | I8-97507 725-0 | BOLT; CAB MTG RR | 2 | 2103- | AB | (B) | ||
| 53 | I8-97653 879-0 | RUBBER; STOPPER | 2 | 2103- | AB | |||
| 172 | I8-98371 291-0 | WASHER; BODY MTG RUBBER | 4 | 2103- | AB | (B) ID=15.6 OD=75 T=4.5 | ||
| 159 | I8-98369 973-0 | RUBBER; CUSHION.CAB MTG | 2 | 2103- | AB | (E) | ||
| 159 | I6-97367 285-0 | RUBBER; CUSHION.CAB MTG | 2 | 2103- | AB | (A) | ||
| 54 | I0-28661 025-0 | BOLT; RUBBER | 4 | 2103- | AB | (A) M10X25 FLANGE | ||
| 159 | I8-97367 285-0 | RUBBER; CUSHION.CAB MTG | 2 | 2103- | AB | (A) | ||
| 159 | I8-98372 169-0 | RUBBER; CUSHION.CAB MTG | 1 | 2103- | AB | (B) | ||
| 159 | I8-98051 326-0 | RUBBER; CUSHION.CAB MTG | 2 | 2103- | AB | (D) | ||
| 55 | I8-98220 857-1 | NUT; RUBBER | 1 | 2103- | AB | M14 FLANGE | ||
| 159 | I8-98371 801-0 | RUBBER; CUSHION.CAB MTG | 2 | 2103- | AB | (F) | ||
| 54 | I8-98398 065-0 | BOLT; RUBBER | 1 | 2103- | AB | (B) M14X130 FLANGE | ||
| 159 | I8-98369 972-0 | RUBBER; CUSHION.CAB MTG | 1 | 2103- | AB | (C) |
