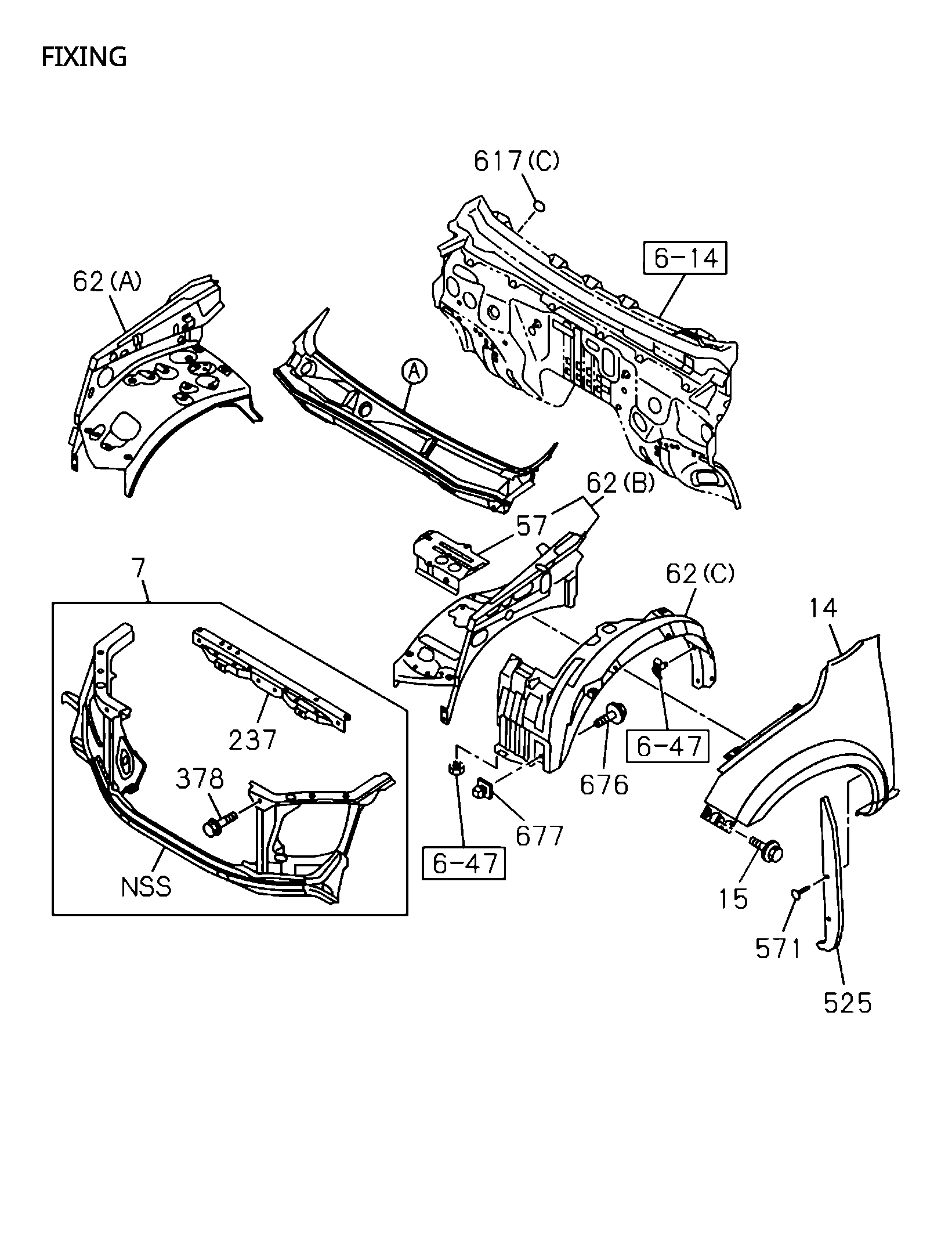

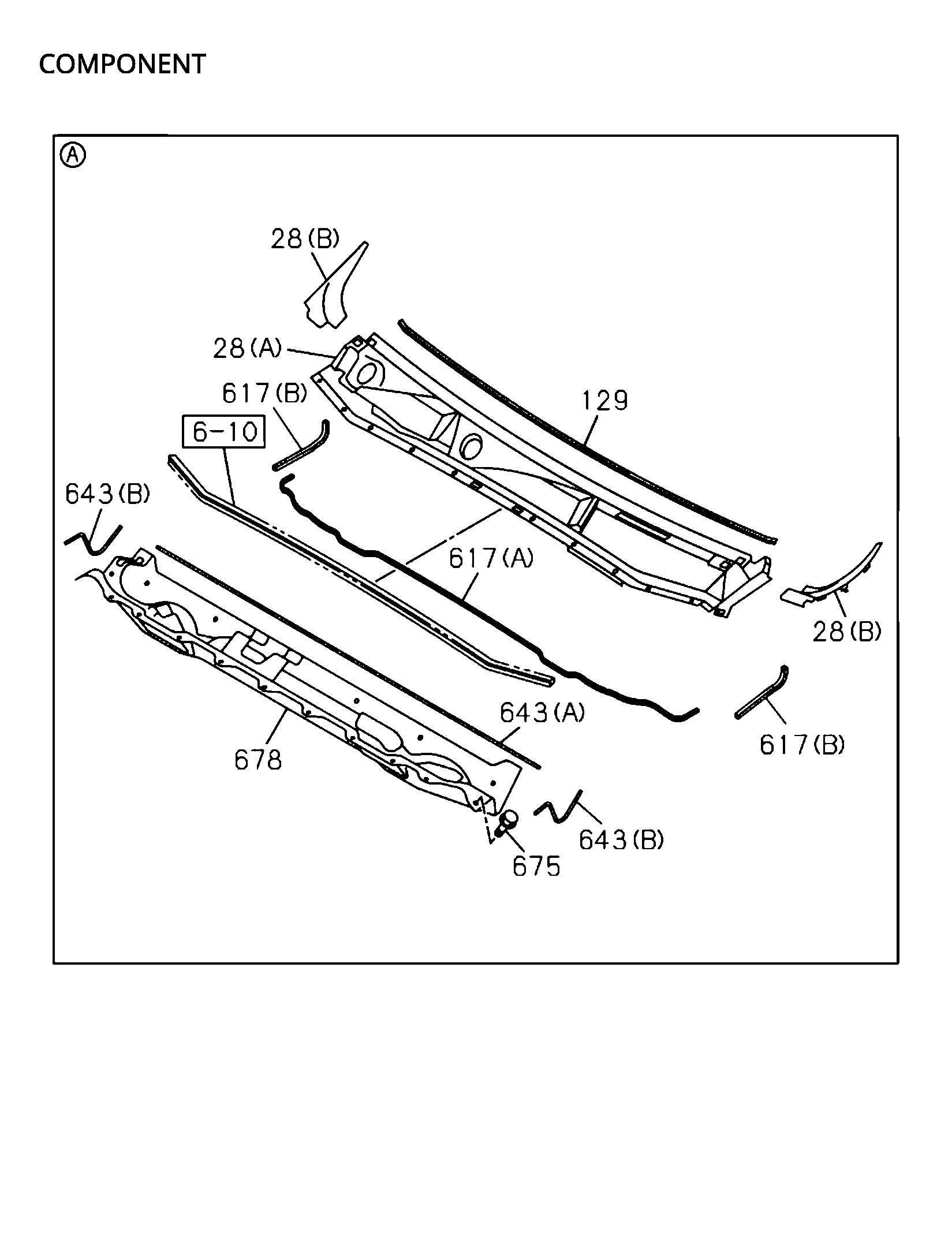

6-05 | FRONT PANEL
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 28 | I8-97558 630-0 | COVER; DASH COWL | 1 | 2103- | A | GRADE CUSTOM<RBD> (A) | ||
| 28 | I8-98356 793-2 | COVER; DASH COWL | 1 | 2103- | AB | (B) | ||
| 378 | I0-28050 816-0 | BOLT; SUPPORT | 2 | 2103- | AB | M8X16 FLANGE | ||
| 62 | I8-98356 210-1 | PANEL; WHEEL HOUSE | 1 | 2103- | AB | (C) | ||
| 62 | I8-98385 434-4 | PANEL; WHEEL HOUSE | 1 | 2103- | AB | (B) | ||
| 28 | I8-97558 630-0 | COVER; DASH COWL | 1 | 2103- | B | (A) | ||
| 678 | I8-98394 018-2 | PANEL; COWL | 1 | 2103- | A | GRADE LUXURY<RBC> | ||
| 643 | I8-98394 023-0 | SEAL; COWL | 2 | 2103- | AB | (B) | ||
| 62 | I8-98356 212-1 | PANEL; WHEEL HOUSE | 1 | 2103- | AB | (C) | ||
| 677 | I8-94222 314-0 | NUT; WHEEL HOUSE | 2 | 2103- | AB | D=9.7X9.7 L-8 | ||
| 678 | I8-98394 016-3 | PANEL; COWL | 1 | 2103- | A | GRADE CUSTOM<RBD> | ||
| 237 | I8-98385 266-2 | SUPPORT; DEFLECTOR | 1 | 2103- | AB | |||
| 676 | I8-98167 444-0 | BOLT; WHEEL HOUSE | 2 | 2103- | AB | SCREW M6X20 TAPPING W/PL WASHER | ||
| 15 | I8-98167 615-0 | BOLT; FENDER | 14 | 2103- | AB | M6X15 W/LK&PL WASHER | ||
| 62 | I8-98385 917-4 | PANEL; WHEEL HOUSE | 1 | 2103- | AB | (A) | ||
| 643 | I8-98394 022-0 | SEAL; COWL | 1 | 2103- | AB | (A) | ||
| 129 | I8-97556 552-0 | FINISHER; COWL COVER | 1 | 2103- | AB | |||
| 617 | I8-97556 547-0 | SEAL; DASH | 2 | 2103- | AB | (B) | ||
| 57 | I8-98385 585-1 | TRAY; BATTERY | 1 | 2103- | AB | |||
| 28 | I8-97558 634-0 | COVER; DASH COWL | 1 | 2103- | A | GRADE LUXURY<RBC> (A) | ||
| 7 | I8-98385 225-5 | PANEL; DEFLECTOR | 1 | 2103- | AB | |||
| 525 | I8-98360 960-0 | SEAL; FENDER | 2 | 2103- | AB | |||
| 675 | I8-98180 459-2 | BOLT; PANEL | 8 | 2103- | AB | M6X12W/PL WASHER | ||
| 28 | I8-98356 792-2 | COVER; DASH COWL | 1 | 2103- | AB | (B) | ||
| 617 | I8-98233 595-1 | SEAL; DASH | 1 | 2103- | AB | (C) OD=29 | ||
| 678 | I8-98394 016-3 | PANEL; COWL | 1 | 2103- | B | |||
| 617 | I8-97556 546-0 | SEAL; DASH | 1 | 2103- | AB | (A) |
