6-10 | ENGINE HOOD AND LOCK
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 31 | I8-98363 571-1 | LOCK; ENG HOOD | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,IDLE STOP SYSTEM<8BM> | ||
| 44 | I0-28660 820-0 | BOLT; STAY.HOOD | 2 | 2103- | AB | (A) M8X20 FLANGE IMA | ||
| 17 | I8-98386 276-1 | HINGE; ENG HOOD | 1 | 2103- | AB | |||
| 31 | I8-98363 569-1 | LOCK; ENG HOOD | 1 | 2103- | B | |||
| 17 | I8-98386 268-1 | HINGE; ENG HOOD | 1 | 2103- | AB | |||
| 50 | I8-98391 469-1 | ROD; SUPPORT,ENG HOOD | 1 | 2103- | AB | |||
| 44 | I8-97370 668-0 | BOLT; STAY.HOOD | 1 | 2103- | AB | (B) M6X20W/PL WASHER | ||

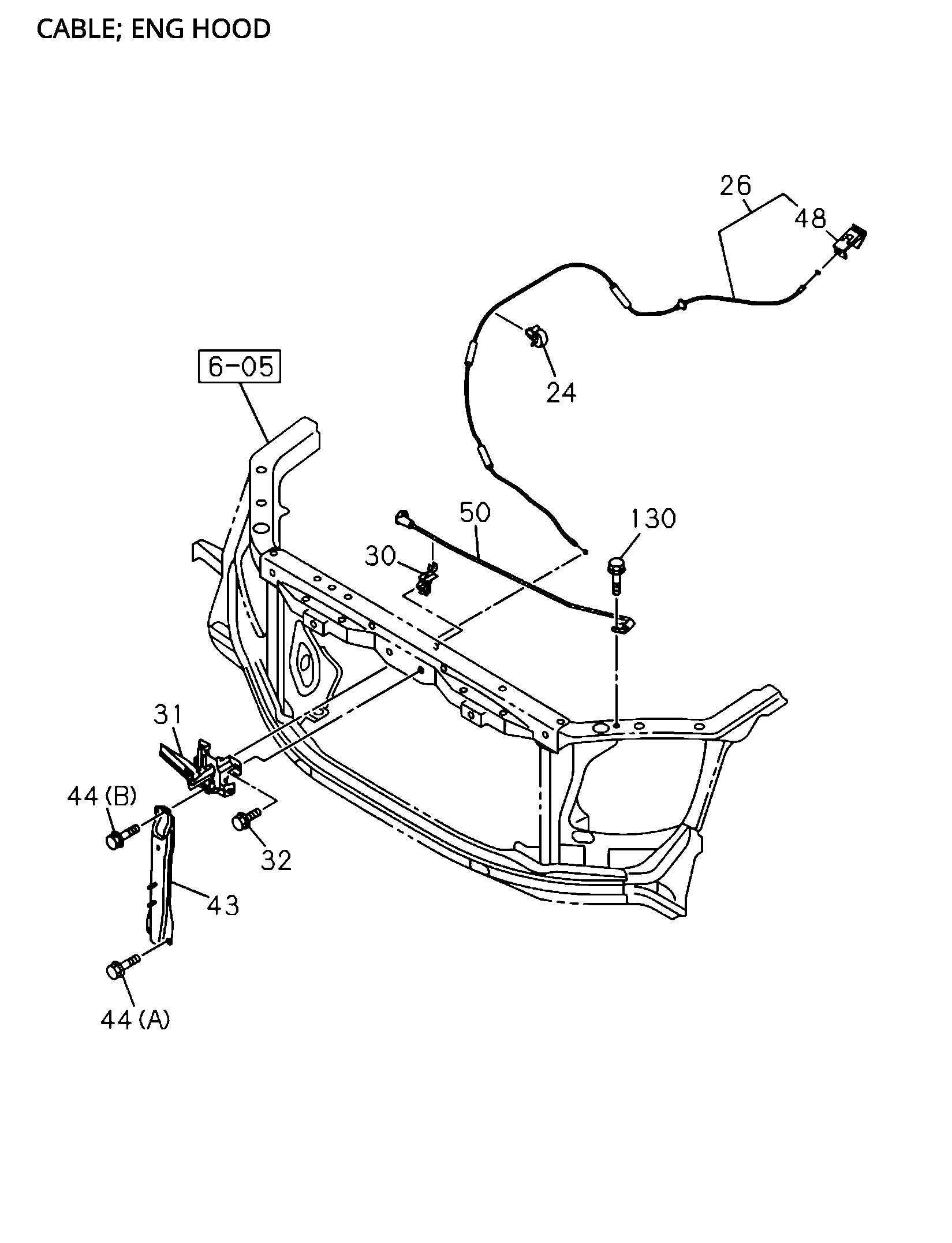

| 26 | I8-98393 091-0 | CABLE; ENG HOOD CONT | 1 | 2103- | AB | |||
| 18 | I8-98056 122-0 | BOLT; HINGE | 4 | 2103- | AB | (A) M8X16 | ||
| 3 | I8-98312 732-0 | BUFFER; ENG HOOD.FRT | 4 | 2103- | AB | (A) | ||
| 31 | I8-98363 569-1 | LOCK; ENG HOOD | 1 | 2103- | A | PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> | ||
| 31 | I8-98363 569-1 | LOCK; ENG HOOD | 1 | 2103- | A | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,IDLE STOP SYSTEM<8BM> | ||
| 48 | I8-97555 705-0 | LEVER; ENG HOOD | 1 | 2103- | AB | |||
| 130 | I0-28650 616-0 | BOLT; SUPPORT ROD.HOOD | 1 | 2103- | AB | M6X16 FLANGE | ||
| 32 | I8-97370 668-0 | BOLT; HOOD LK | 2 | 2103- | AB | M6X20W/PL WASHER | ||
| 31 | I8-98363 569-1 | LOCK; ENG HOOD | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IDLE STOP SYSTEM<8BM> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> | ||

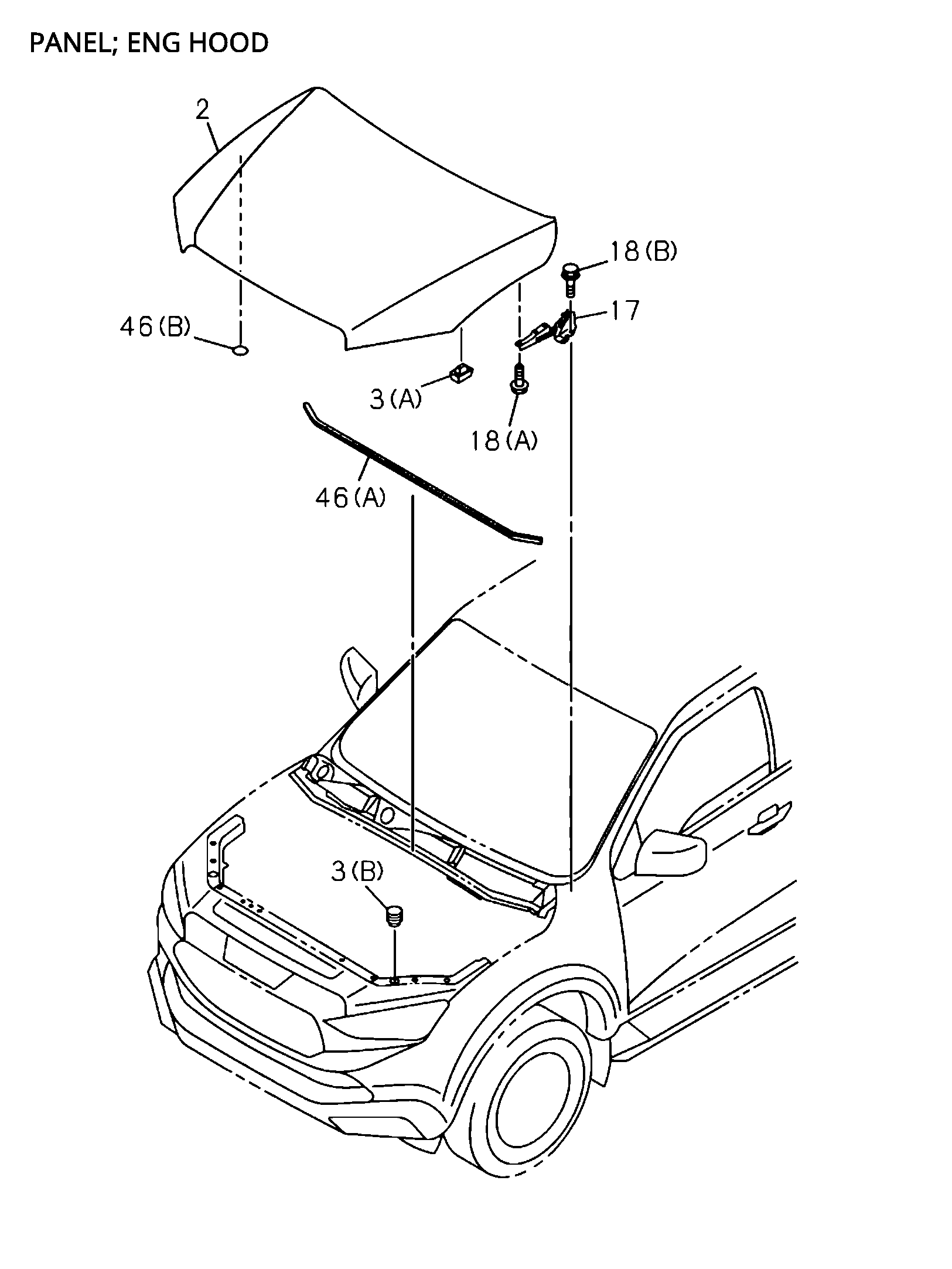

| 2 | I8-97684 458-0 | PANEL; ENG HOOD | 1 | 2103- | AB | |||
| 46 | I8-98394 032-3 | SEAL; ENG HOOD | 1 | 2103- | AB | (A) | ||
| 3 | I8-98195 454-0 | BUFFER; ENG HOOD.FRT | 2 | 2103- | AB | (B) | ||
| 18 | I8-98208 786-0 | BOLT; HINGE | 4 | 2103- | AB | (B) M8X27 | ||
| 24 | I8-97182 405-0 | CLIP; CONT CABLE | 4 | 2103- | AB | |||
| 43 | I8-97507 212-0 | STAY; ENG HOOD.FRT END | 1 | 2103- | AB |
