6-30 | FRONT DOOR AND HINGE
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

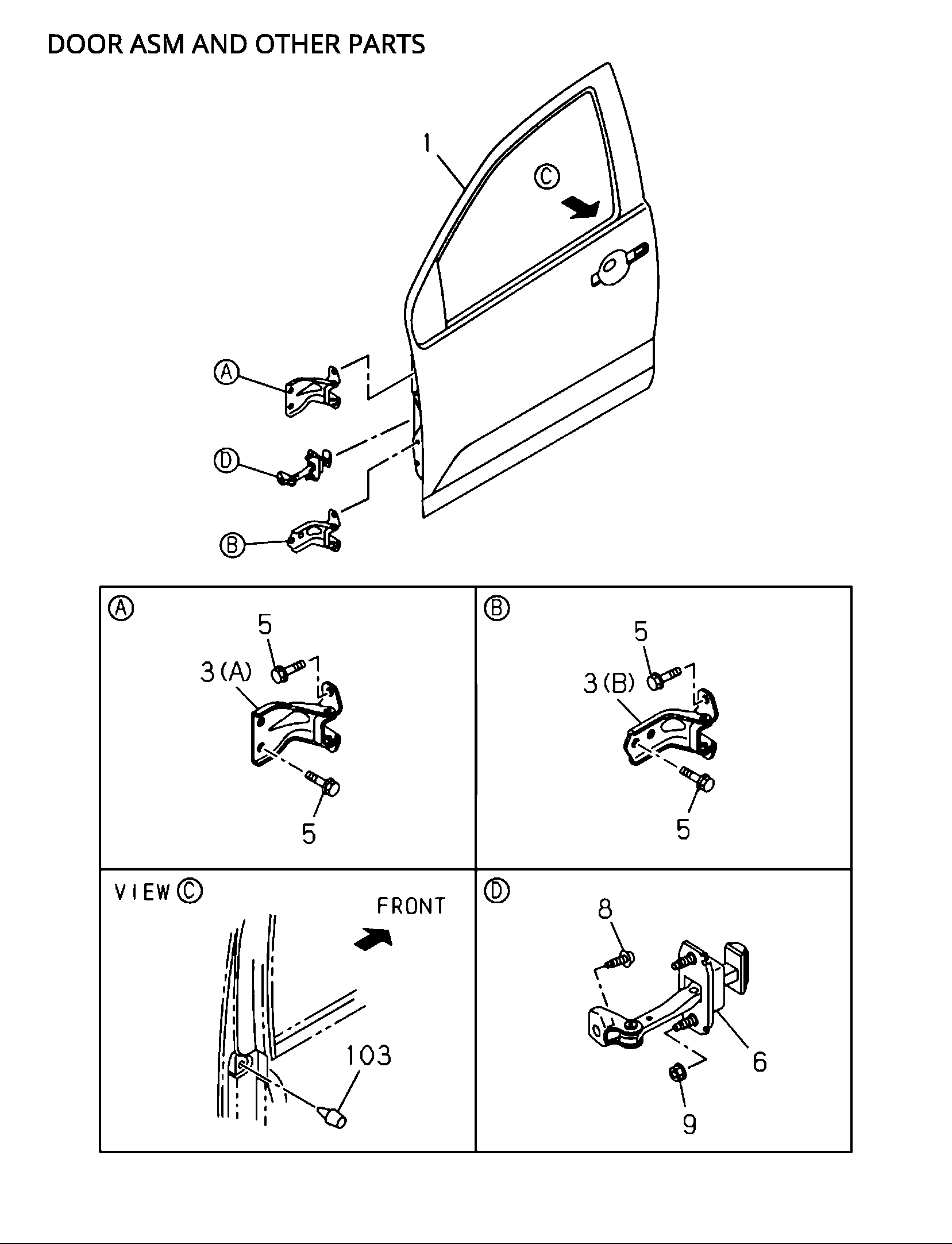

| 1 | I8-98398 750-9 | DOOR ASM; FRT,WO/TRIM | 1 | 2103- | AB | |||

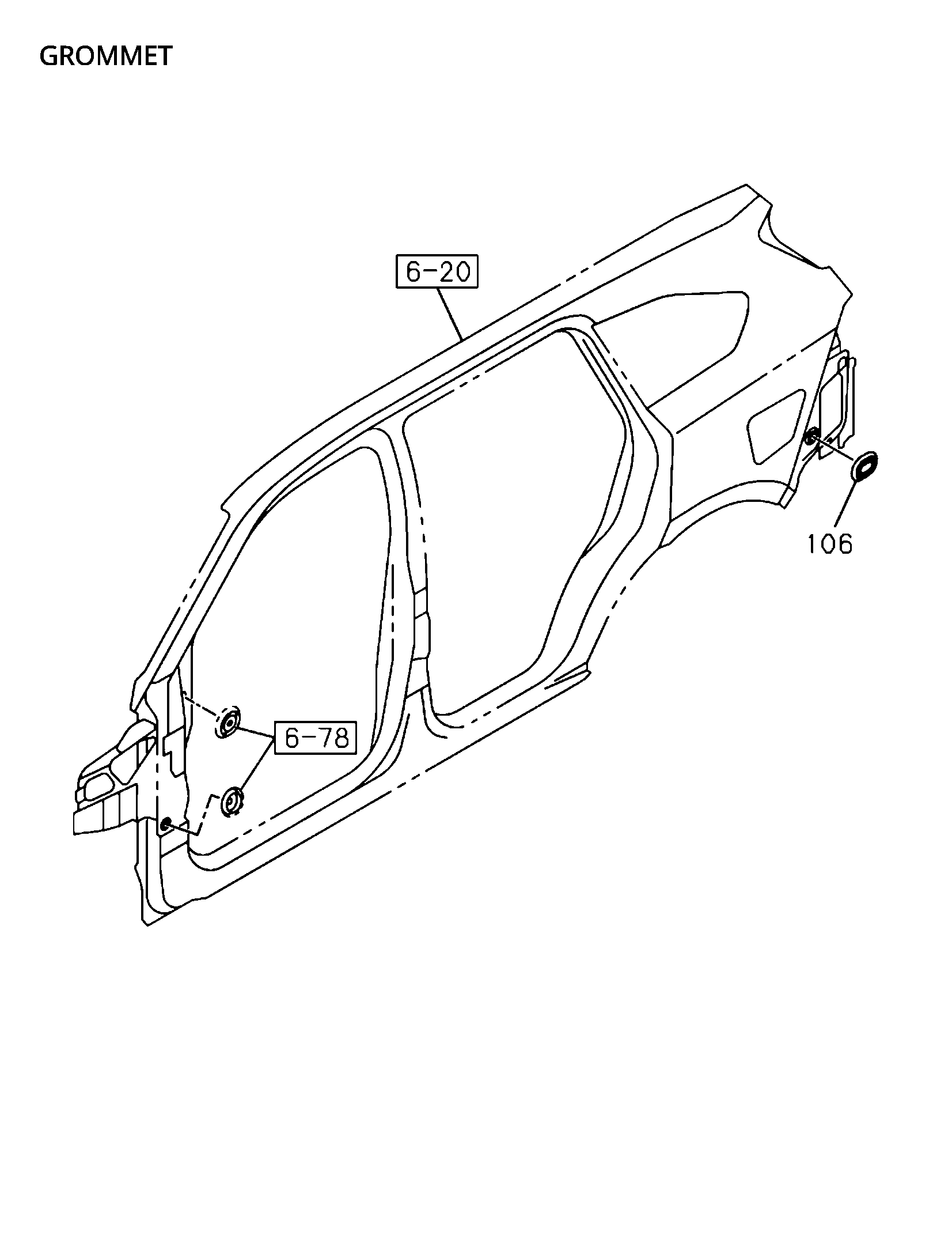

| 106 | I8-94279 724-0 | GROMMET; PROTECTOR | 2 | 2103- | AB THA | |||
| 8 | I8-98166 694-0 | BOLT; CHECK ARM | 2 | 2103- | AB | M8X23 | ||
| 9 | I8-98049 362-0 | NUT; CHECK ARM | 4 | 2103- | AB | M6 FLANGE | ||
| 3 | I8-98398 908-0 | HINGE; DOOR FRT | 2 | 2103- | AB | (A) UPPER | ||
| 1 | I8-98398 751-9 | DOOR ASM; FRT,WO/TRIM | 1 | 2103- | AB | |||
| 6 | I8-98358 926-0 | ARM; CHECK.FRT DOOR | 2 | 2103- | AB | |||
| 5 | I8-98005 842-0 | BOLT; HINGE | 16 | 2103- | AB | M8X23 FLANGE | ||
| 3 | I8-98398 909-0 | HINGE; DOOR FRT | 2 | 2103- | AB | (B) LOWER | ||
| 103 | I8-98202 864-0 | PROTECTOR; FRT DOOR | 2 | 2103- | AB |
