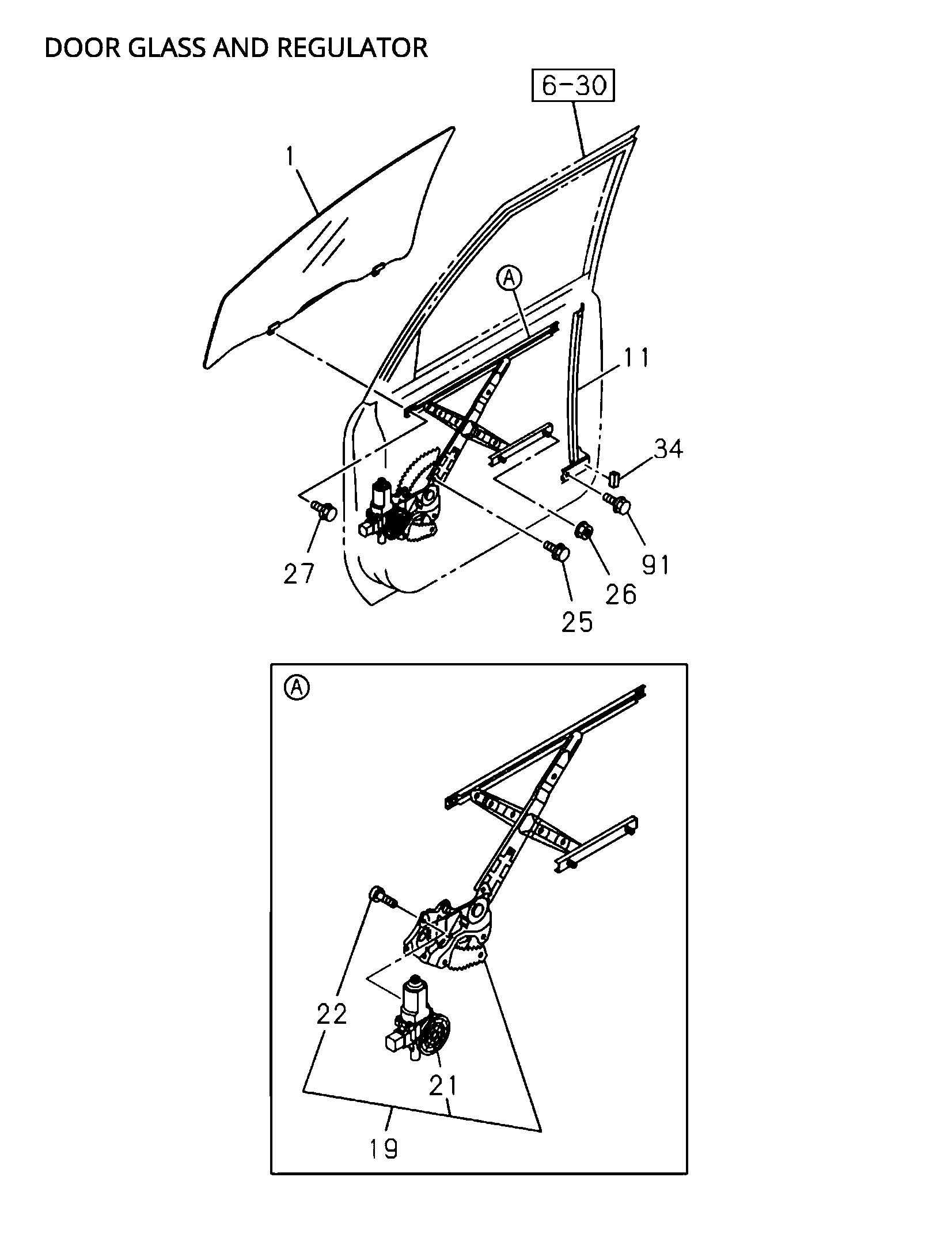

6-31 | FRONT DOOR GLASS AND REGULATOR_1
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98334 250-0 | GLASS; FRT DOOR | 1 | 2103- | AB | |||
| 21 | I8-98335 763-0 | MOTOR; POWER WINDOW REG,FRT DOOR | 1 | 2103- | A | DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> | ||

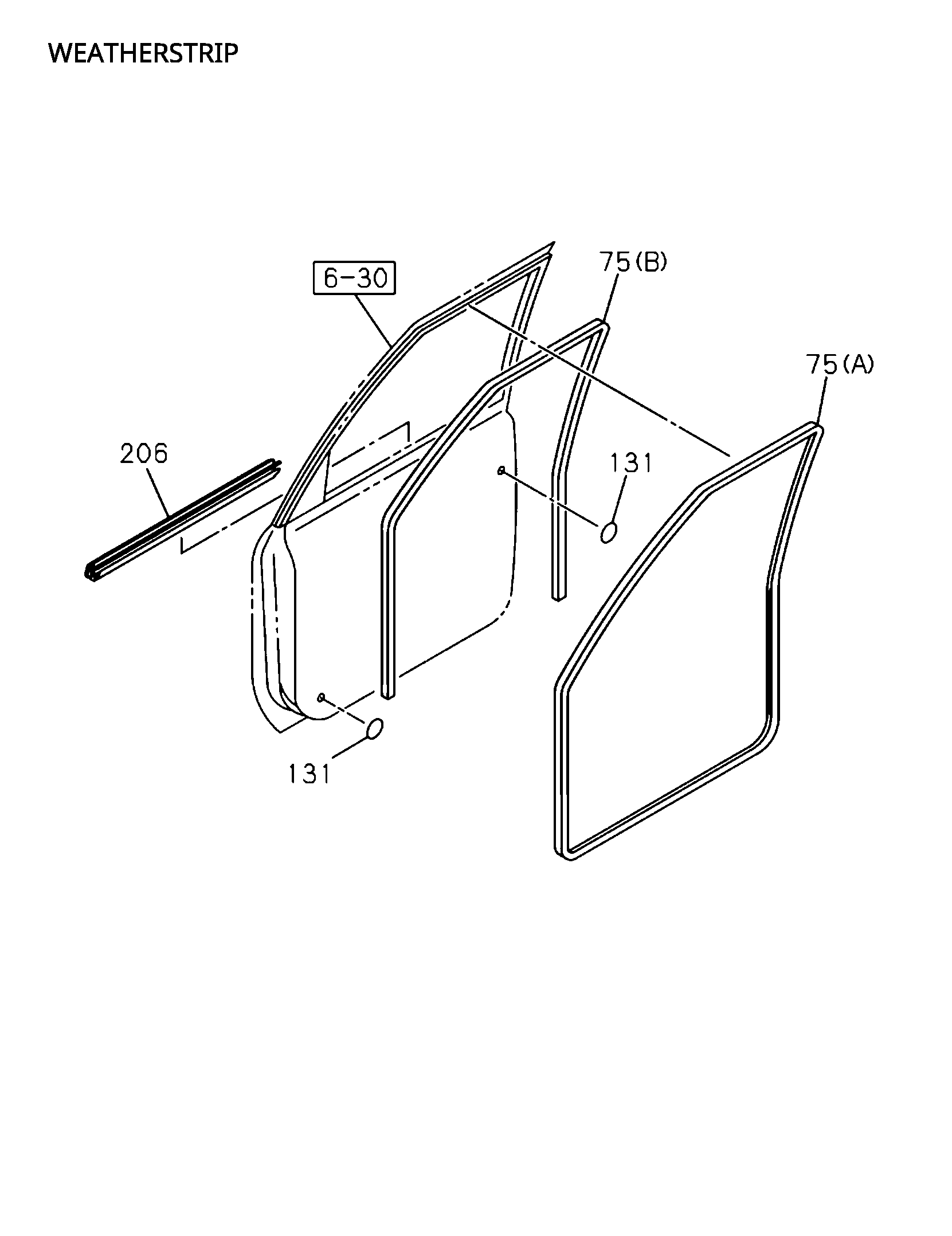

| 75 | I8-98335 582-1 | WEATHERSTRIP; FRT DOOR | 1 | 2103- | AB | (A) | ||
| 11 | I8-98376 801-2 | RAIL; RR GUIDE.FRT DOOR | 1 | 2103- | B | |||
| 21 | I8-98336 006-0 | MOTOR; POWER WINDOW REG,FRT DOOR | 1 | 2103- | B | |||
| 75 | I8-98335 588-8 | WEATHERSTRIP; FRT DOOR | 1 | 2103- | AB | (B) | ||
| 11 | I8-98376 802-2 | RAIL; RR GUIDE.FRT DOOR | 1 | 2103- | A | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 11 | I8-98376 801-2 | RAIL; RR GUIDE.FRT DOOR | 1 | 2103- | A | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 21 | I8-97557 498-0 | MOTOR; POWER WINDOW REG,FRT DOOR | 1 | 2103- | AB | |||
| 1 | I8-98334 249-A | GLASS; FRT DOOR | 1 | 2103- | AB | |||
| 206 | I8-98395 598-2 | WEATHERSTRIP; FRT DOOR GLASS | 1 | 2103- | AB | BODY SIDE MOLDING<B85> | ||
| 11 | I8-98376 802-2 | RAIL; RR GUIDE.FRT DOOR | 1 | 2103- | B | |||
| 27 | I8-98188 381-1 | BOLT; GLASS FIX | 4 | 2103- | AB | M6X10 FLANGE | ||
| 206 | I8-98335 587-3 | WEATHERSTRIP; FRT DOOR GLASS | 1 | 2103- | AB | EXC. BODY SIDE MOLDING<B85> | ||
| 26 | I8-98049 362-0 | NUT; FLANGE.WINDOW REG | 4 | 2103- | AB | M6 FLANGE | ||
| 206 | I8-98335 586-3 | WEATHERSTRIP; FRT DOOR GLASS | 1 | 2103- | AB | EXC. BODY SIDE MOLDING<B85> | ||
| 19 | I8-98335 521-0 | REGULATOR; WINDOW,FRT DOOR | 1 | 2103- | A | DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> | ||
| 206 | I8-98395 597-2 | WEATHERSTRIP; FRT DOOR GLASS | 1 | 2103- | AB | BODY SIDE MOLDING<B85> | ||
| 22 | I8-98195 236-0 | SCREW; POWER WINDOW MOTOR | 3 | 2103- | AB | |||
| 91 | I8-98048 996-0 | BOLT; GUIDE RAIL TO DOOR | 4 | 2103- | AB | M6X8 FLANGE | ||
| 75 | I8-98335 589-8 | WEATHERSTRIP; FRT DOOR | 1 | 2103- | AB | (B) | ||
| 11 | I8-98376 291-2 | RAIL; RR GUIDE.FRT DOOR | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> | ||
| 1 | I8-98334 249-0 | GLASS; FRT DOOR | 1 | 2103- | AB | |||
| 19 | I8-98335 523-0 | REGULATOR; WINDOW.FRT DOOR | 1 | 2103- | A | DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> | ||
| 75 | I8-98335 581-1 | WEATHERSTRIP; FRT DOOR | 1 | 2103- | AB | (A) | ||
| 22 | I8-98195 236-0 | SCREW; POWER WINDOW MOTOR | 3 | 2103- | AB | |||
| 21 | I8-98336 006-0 | MOTOR; POWER WINDOW REG,FRT DOOR | 1 | 2103- | A | DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> | ||
| 19 | I8-98335 523-0 | REGULATOR; WINDOW.FRT DOOR | 1 | 2103- | B | |||
| 25 | I8-98188 381-1 | BOLT; WINDOW REG | 6 | 2103- | AB | M6X10 FLANGE | ||
| 1 | I8-98334 250-A | GLASS; FRT DOOR | 1 | 2103- | AB | |||
| 19 | I8-97508 548-0 | REGULATOR; WINDOW.FRT DOOR | 1 | 2103- | AB | |||
| 11 | I8-98376 292-2 | RAIL; RR GUIDE.FRT DOOR | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> |
