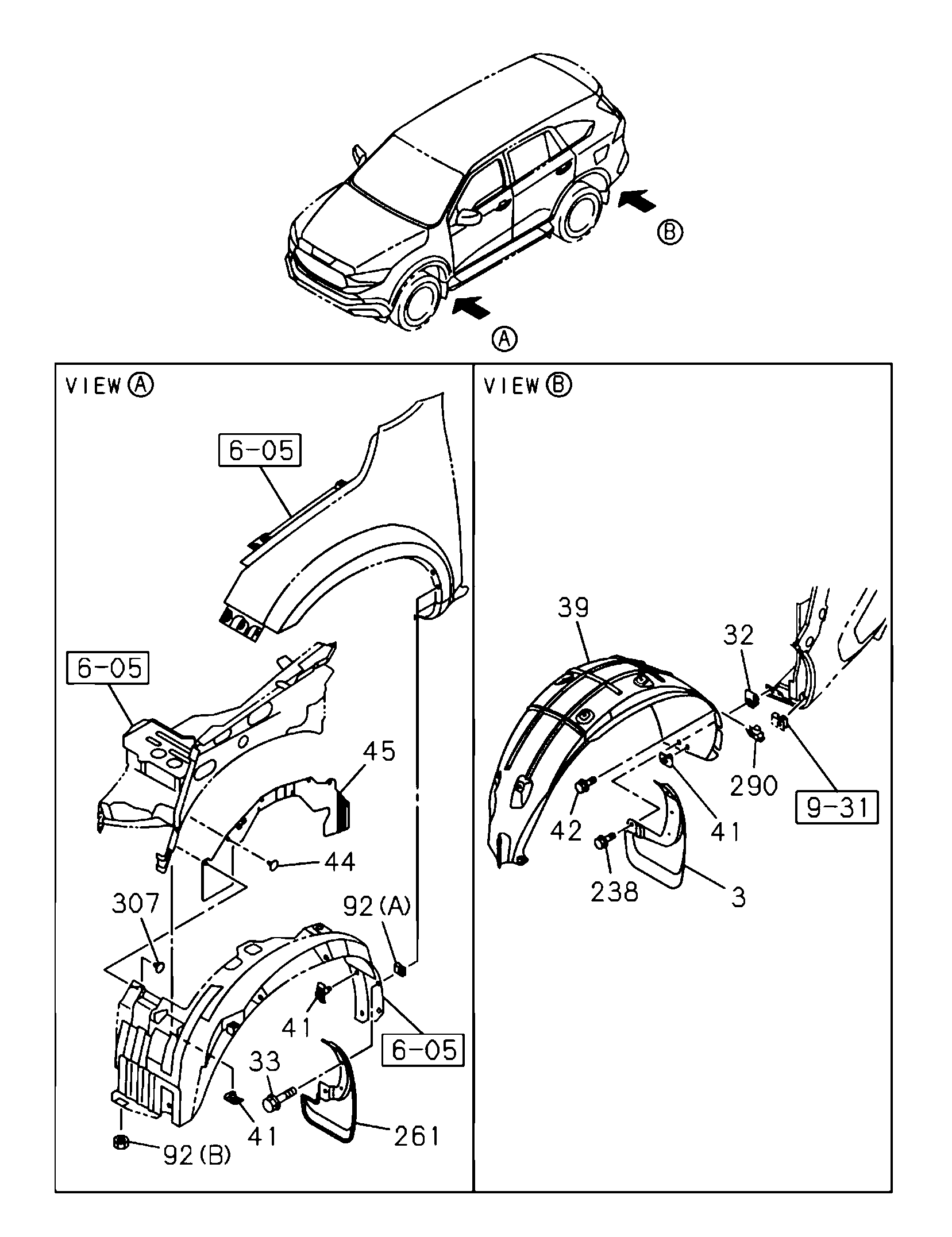

6-47 | MUD GUARD AND INSULATOR
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 261 | I8-98356 196-0 | RUBBER; FRT.MUD GUARD | 1 | 2103- | AB | |||
| 92 | I8-97125 519-0 | NUT; MUD COVER | 8 | 2103- | AB | (A) | ||
| 261 | I8-98356 195-0 | RUBBER; FRT.MUD GUARD | 1 | 2103- | AB | |||
| 33 | I8-98167 444-0 | BOLT; MUD COVER | 8 | 2103- | AB | SCREW M6X20 TAPPING W/PL WASHER | ||
| 45 | I8-98393 944-1 | COVER; MUD,FENDER SKIRT | 1 | 2103- | AB | |||
| 290 | I8-98245 063-0 | NUT; LINER | 2 | 2103- | AB | |||
| 92 | I8-98049 368-0 | NUT; MUD COVER | 2 | 2103- | AB | (B) M6W/DISHED WASHER | ||
| 307 | I8-98050 462-0 | RETAINER | 6 | 2103- | AB | |||
| 3 | I8-98363 232-1 | GUARD; MUD,RR | 1 | 2103- | AB | |||
| 3 | I8-98363 231-1 | GUARD; MUD,RR | 1 | 2103- | AB | |||
| 44 | I8-94215 211-0 | CLIP; ANCHOR | 10 | 2103- | AB | OD=22 L=10.7 | ||
| 41 | I8-94221 150-0 | RIVET; INNER LINER | 30 | 2103- | AB | |||
| 45 | I8-98393 945-1 | COVER; MUD,FENDER SKIRT | 1 | 2103- | AB | |||
| 238 | I8-98167 444-0 | SCREW; MUD GUARD | 10 | 2103- | AB | M6X20 TAPPING W/PL WASHER | ||
| 32 | I8-97125 519-0 | NUT; MUD GUARD | 2 | 2103- | AB |
