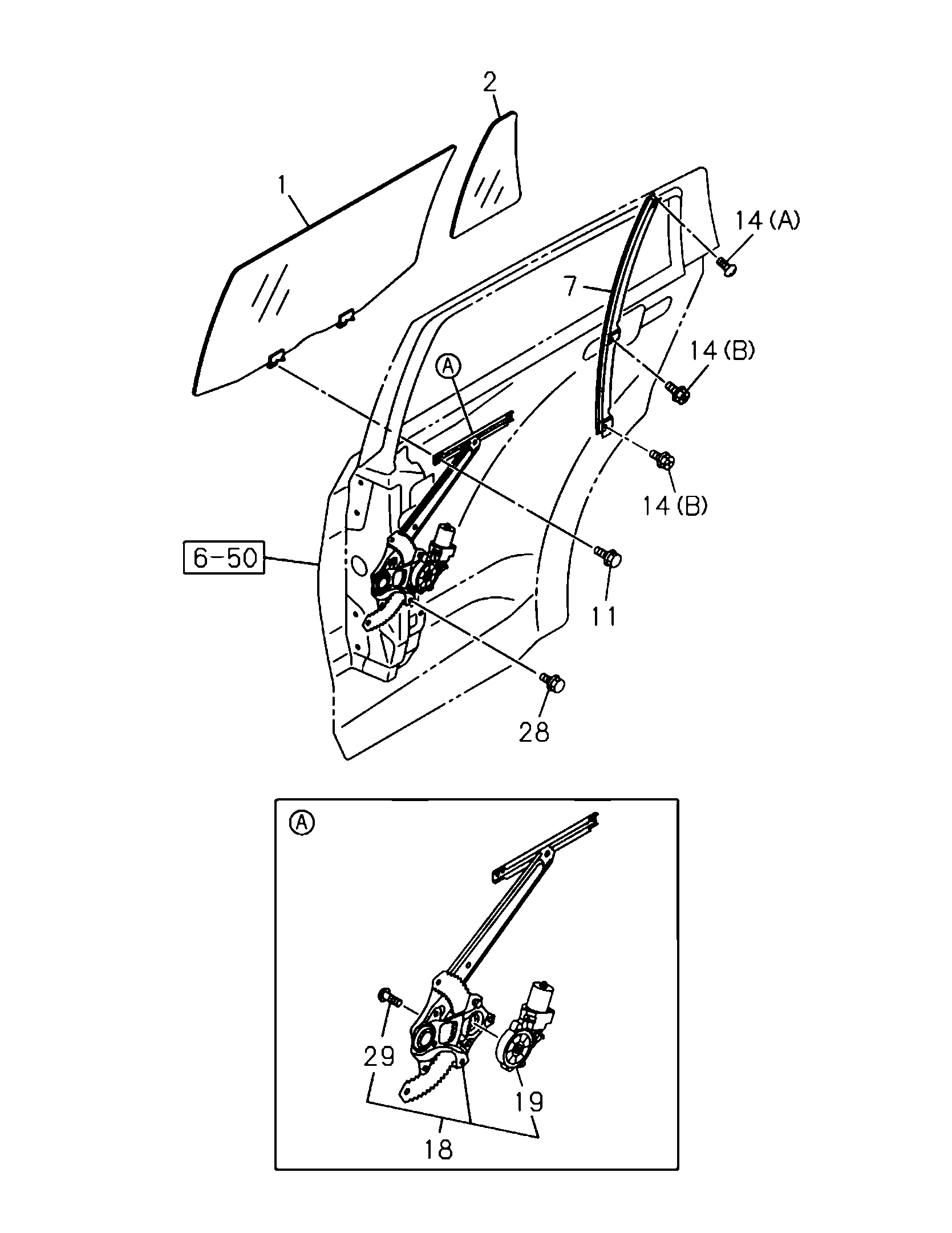

6-51 | REAR DOOR GLASS AND REGULATOR
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 11 | I8-98188 381-1 | BOLT; GLASS | 4 | 2103- | AB | M6X10 FLANGE | ||
| 14 | I8-97664 488-0 | BOLT; RR DOOR GLASS | 2 | 2103- | AB | (A) | ||
| 1 | I8-98334 261-0 | GLASS; RR DOOR | 1 | 2103- | AB | |||
| 7 | I8-98376 287-5 | CHANNEL; GLASS RUN.RR DOOR | 1 | 2103- | AB | |||
| 28 | I8-98188 381-1 | BOLT; WINDOW REG | 6 | 2103- | AB | M6X10 FLANGE | ||
| 19 | I8-97557 504-0 | MOTOR; POWER WINDOW REG.RR DOOR | 1 | 2103- | AB | |||
| 2 | I8-98334 308-0 | GLASS; RR DOOR.RR | 1 | 2103- | AB | |||
| 19 | I8-97557 503-0 | MOTOR; POWER WINDOW REG.RR DOOR | 1 | 2103- | AB | |||
| 14 | I8-98048 996-0 | BOLT; RR DOOR GLASS | 4 | 2103- | AB | (B) M6X8 FLANGE | ||
| 18 | I8-97503 602-0 | REGULATOR; WINDOW.RR DOOR | 1 | 2103- | AB | |||
| 7 | I8-98376 286-5 | CHANNEL; GLASS RUN.RR DOOR | 1 | 2103- | AB | |||
| 2 | I8-98334 307-0 | GLASS; RR DOOR.RR | 1 | 2103- | AB | |||
| 1 | I8-98334 260-0 | GLASS; RR DOOR | 1 | 2103- | AB | |||
| 29 | I8-98195 236-0 | SCREW; WINDOW REG | 6 | 2103- | AB | |||
| 18 | I8-97503 601-0 | REGULATOR; WINDOW.RR DOOR | 1 | 2103- | AB |
