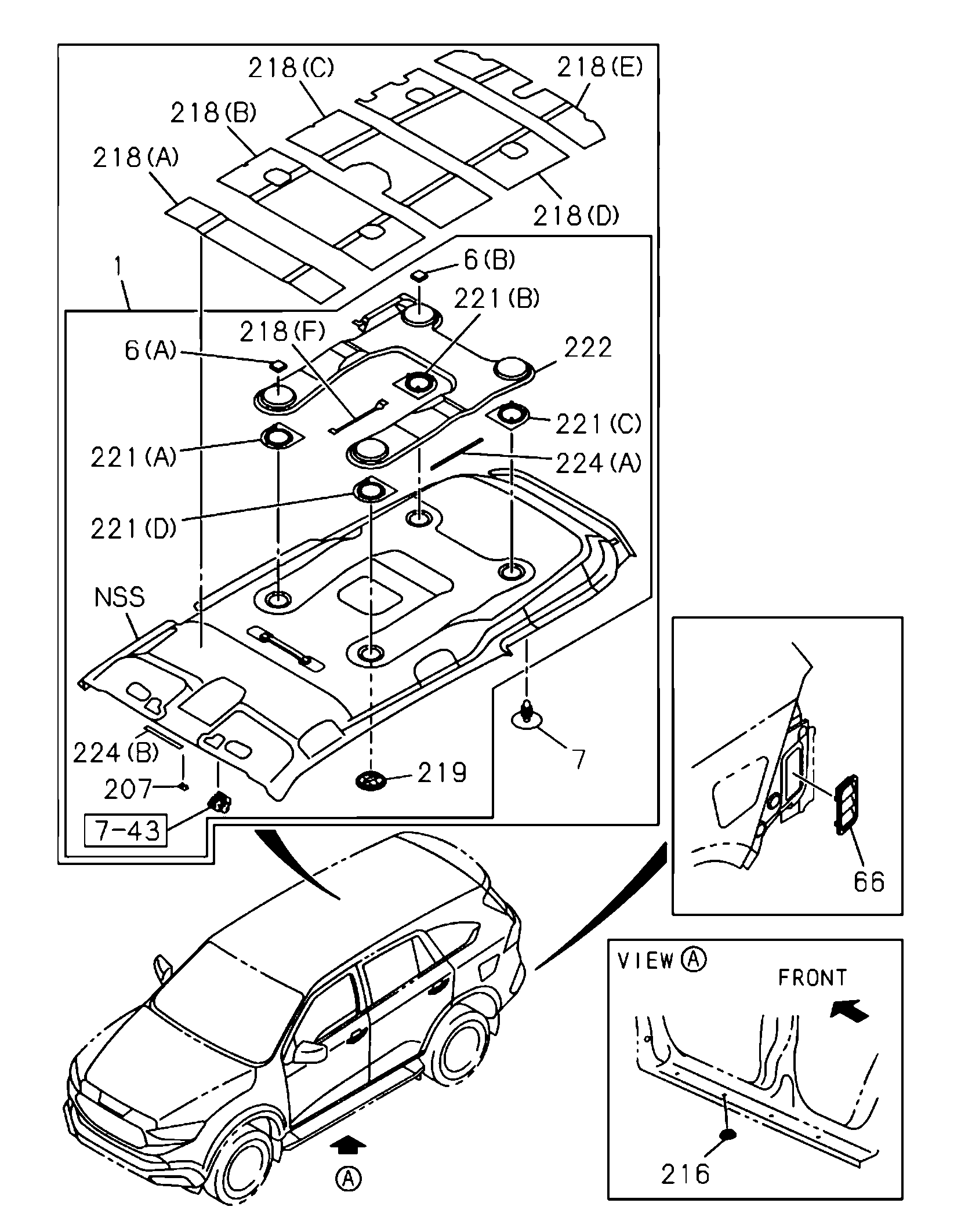

6-66 | HEAD LINING AND TRIM
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 218 | I8-98360 690-0 | INSULATOR; ROOF | 1 | 2103- | AB | (B) | ||
| 218 | I8-98360 689-0 | INSULATOR; ROOF | 1 | 2103- | AB | (A) | ||
| 218 | I8-97507 235-1 | INSULATOR; ROOF | 1 | 2103- | AB | (D) | ||
| 221 | I8-97683 944-0 | STIFFEN ER; HD LINING | 1 | 2103- | AB | (C) | ||
| 6 | I8-97683 948-0 | SPACER; HD LINING | 2 | 2103- | AB | (B) | ||
| 221 | I8-97683 943-0 | STIFFENER; HD LINING | 1 | 2103- | AB | (B) | ||
| 221 | I8-97683 942-0 | STIFFENER; HD LINING | 1 | 2103- | AB | (A) | ||
| 221 | I8-97683 945-0 | STIFFEN ER; HD LINING | 1 | 2103- | AB | (D) | ||
| 222 | I8-97683 939-0 | DUCT; COOLER | 1 | 2103- | AB | |||
| 219 | I8-97425 070-0 | GRILLE; RR COOLER | 4 | 2103- | AB | GRAY | ||
| 218 | I8-97507 236-0 | INSULATOR; ROOF | 1 | 2103- | AB | (E) | ||
| 6 | I8-97683 947-0 | SPACER; HD LINING | 2 | 2103- | AB | (A) | ||
| 216 | I8-97365 823-0 | GROMMET; HOLE | 28 | 2103- | AB | OD=19 | ||
| 218 | I8-98360 691-0 | INSULATOR; ROOF | 1 | 2103- | AB | (C) | ||
| 224 | I8-97683 955-0 | TAPE | 1 | 2103- | A | HEADER CONSOLE<DK6> | ||
| 66 | I8-97652 642-2 | GRILLE; AIR OUTLET | 2 | 2103- | AB | |||
| 7 | I8-97471 357-0 | RETAINER; HEADLINING RAIL | 6 | 2103- | AB | LIGHT GRAY | ||
| 224 | I8-97683 955-0 | TAPE | 1 | 2103- | B |
