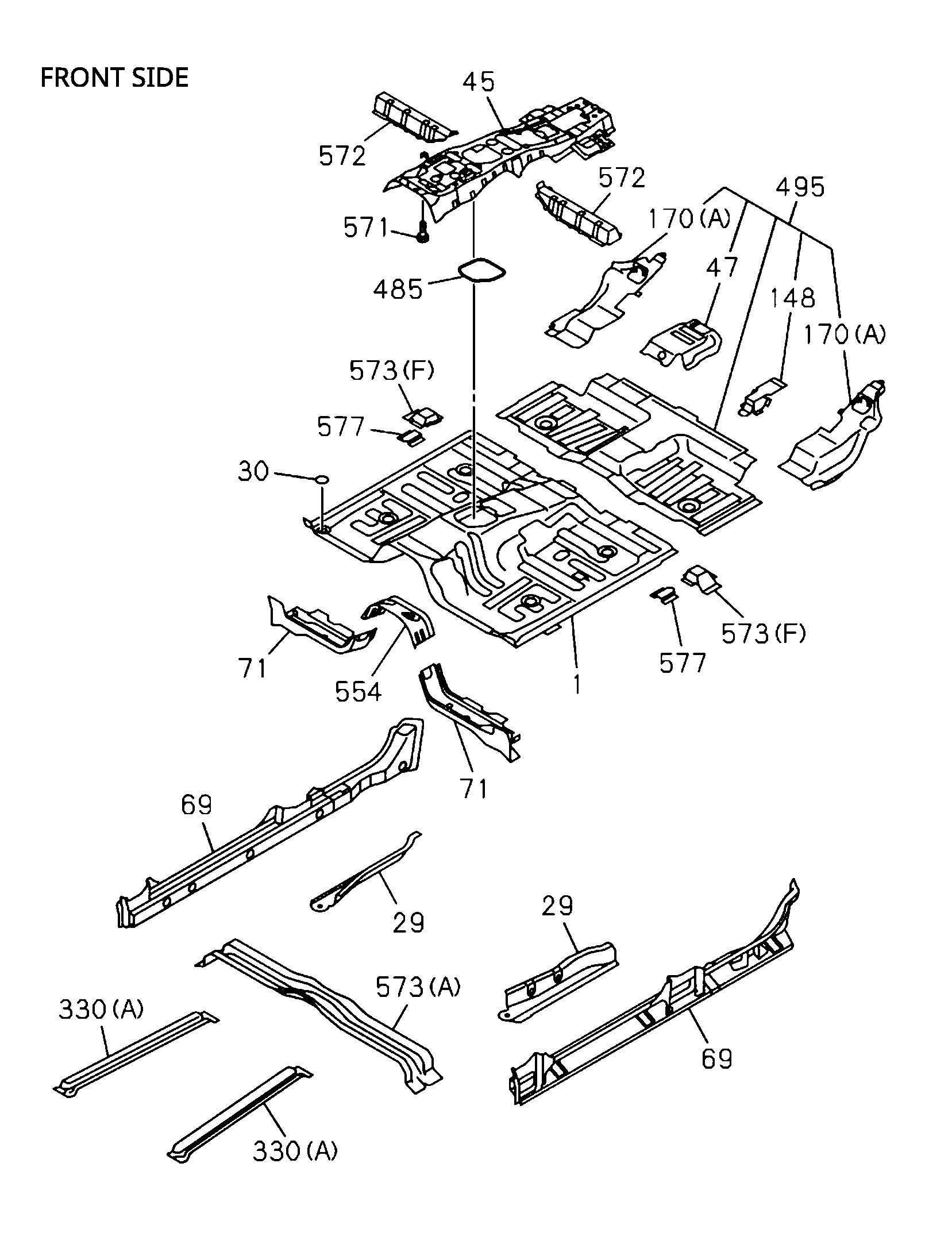

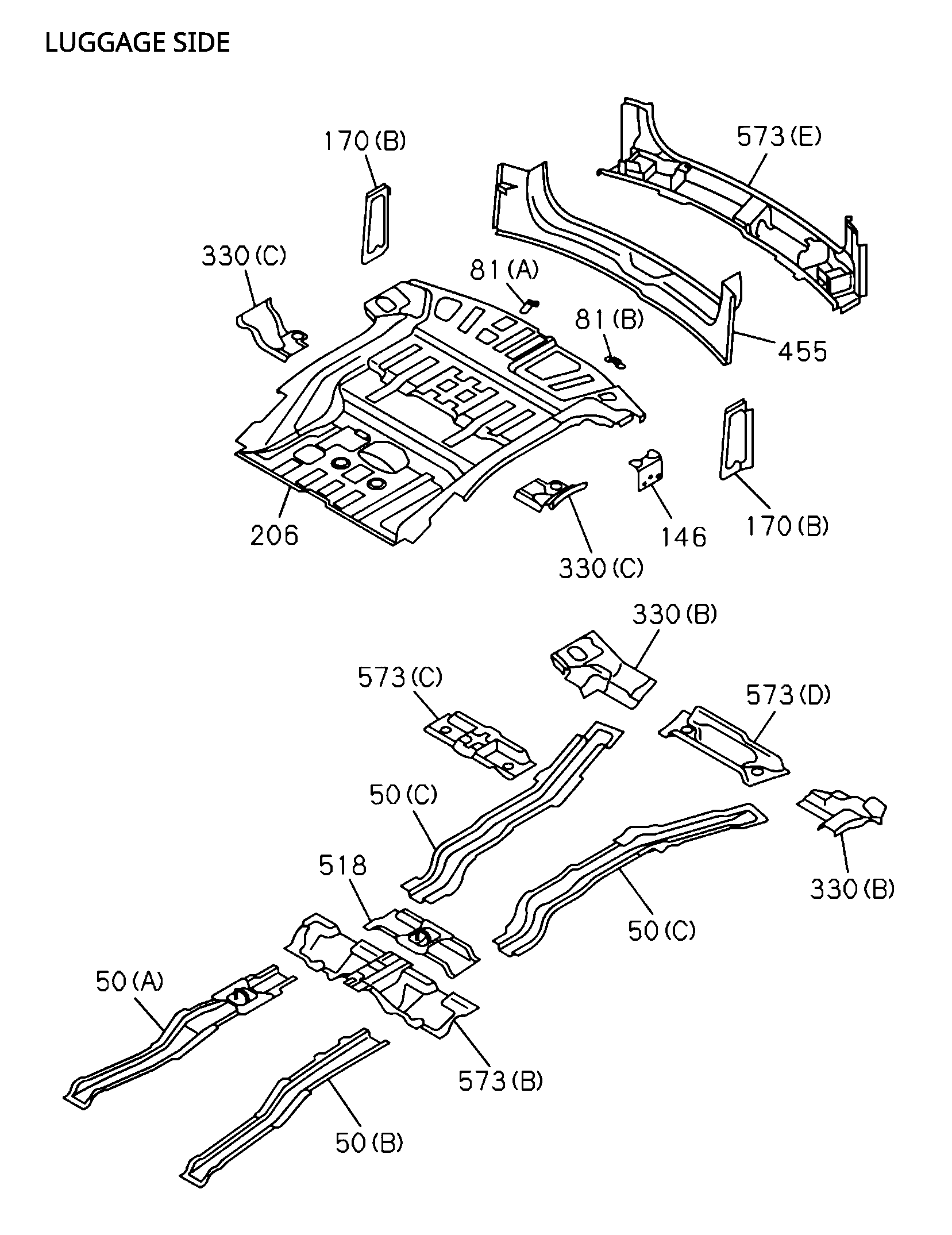

6-70 | FLOOR PANEL
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 29 | I8-98385 700-0 | GUSSET | 1 | 2103- | R | AB | ||
| 50 | I8-97504 178-1 | RAIL; FLOOR PANEL | 1 | 2103- | R | AB | (C) | |
| 554 | I8-98385 704-0 | REINFORCEMENT; FLOOR CENTER | 1 | 2103- | AB | |||
| 571 | I8-98154 159-0 | STUD | 6 | 2103- | AB | M6X18 | ||
| 81 | I8-97524 105-0 | BRACKET; HARNESS SUPPORT | 1 | 2103- | AB | (A) | ||
| 330 | I8-97503 989-0 | REINFORCEMENT; FLOOR | 1 | 2103- | L | AB | (B) | |
| 170 | I8-97515 119-3 | EXTENSION; RR FLOOR | 1 | 2103- | R | AB | (A) | |
| 71 | I8-97503 869-1 | BRACKET; CAB MTG.CENTER | 1 | 2103- | R | AB | ||
| 170 | I8-97503 984-1 | EXTENSION; RR FLOOR | 1 | 2103- | R | AB | (B) | |
| 573 | I8-98385 469-2 | SILL; FLOOR.RR | 1 | 2103- | L | AB | (F) | |
| 1 | I8-98385 447-1 | PANEL; FLOOR | 1 | 2103- | AB | |||
| 573 | I8-97503 918-1 | SILL; FLOOR.RR | 1 | 2103- | AB | (A) | ||
| 170 | I8-97515 118-3 | EXTENSION; RR FLOOR | 1 | 2103- | L | AB | (A) | |
| 69 | I8-97504 127-3 | PANEL; ROCKER INNER | 1 | 2103- | L | AB | ||
| 485 | I8-98385 817-1 | SEAL; TAPE TYPE | 1 | 2103- | AB | |||
| 50 | I8-97503 921-1 | RAIL; FLOOR PANEL | 1 | 2103- | L | AB | ||
| 573 | I8-97687 579-0 | SILL; FLOOR.RR | 1 | 2103- | AB | |||
| 330 | I8-97504 160-1 | REINFORCEMENT; FLOOR | 1 | 2103- | R | AB | (D) | |
| 455 | I8-97504 163-2 | BAR; RR FLOOR | 1 | 2103- | AB | |||
| 573 | I8-97504 120-0 | SILL; FLOOR.RR | 1 | 2103- | AB | (B) | ||
| 50 | I8-97504 125-1 | RAIL; FLOOR PANEL | 1 | 2103- | R | AB | (A) | |
| 30 | I8-98202 803-0 | GROMMET; CAB MTG RAIL | 2 | 2103- | AB | OD-59 T-9 | ||
| 330 | I8-97504 159-1 | REINFORCEMENT; FLOOR | 1 | 2103- | L | AB | (D) | |
| 330 | I8-97503 990-0 | REINFORCEMENT; FLOOR | 1 | 2103- | R | AB | (C) | |
| 170 | I8-97503 983-1 | EXTENSION; RR FLOOR | 1 | 2103- | L | AB | (B) | |
| 45 | I8-98385 448-3 | REINFORCEMENT; TUNNEL,FRT | 1 | 2103- | AB | |||
| 50 | I8-97504 177-0 | RAIL; FLOOR PANEL | 1 | 2103- | L | AB | (C) | |
| 71 | I8-98385 705-1 | BRACKET; CAB MTG,CENTER | 1 | 2103- | L | AB | ||
| 572 | I8-98385 462-2 | SILL; FLOOR.FRT | 1 | 2103- | R | AB | ||
| 81 | I8-97503 981-0 | BRACKET; HARNESS SUPPORT | 1 | 2103- | AB | (B) | ||
| 518 | I8-97503 933-0 | SILL; FLOOR | 1 | 2103- | AB | |||
| 330 | I8-97503 901-1 | REINFORCEMENT; FLOOR | 1 | 2103- | R | AB | (A) | |
| 29 | I8-98385 697-0 | GUSSET | 1 | 2103- | L | AB | ||
| 573 | I8-97504 181-0 | SILL; FLOOR.RR | 1 | 2103- | AB | (D) | ||
| 572 | I8-98385 459-2 | SILL; FLOOR.FRT | 1 | 2103- | L | AB | ||
| 330 | I8-97503 900-1 | REINFORCEMENT; FLOOR | 1 | 2103- | L | AB | (A) | |
| 206 | I8-97504 154-0 | PANEL; FLOOR BOARD RR | 1 | 2103- | AB | |||
| 69 | I8-97504 128-3 | PANEL; ROCKER INNER | 1 | 2103- | R | AB | ||
| 495 | I8-97503 944-3 | PANEL; FLOOR,CTR | 1 | 2103- | AB | |||
| 47 | I8-97505 406-0 | REINFORCEMENT; TUNNEL,RR | 1 | 2103- | AB | |||
| 577 | I8-98385 473-0 | BRACKET; SENSOR,YAW | 2 | 2103- | AB | |||
| 573 | I8-97504 172-0 | SILL; FLOOR.RR | 1 | 2103- | AB | (C) | ||
| 573 | I8-98385 471-2 | SILL; FLOOR.RR | 1 | 2103- | R | AB | ||
| 148 | I8-97504 150-0 | BRACKET; SEAT | 3 | 2103- | AB |
