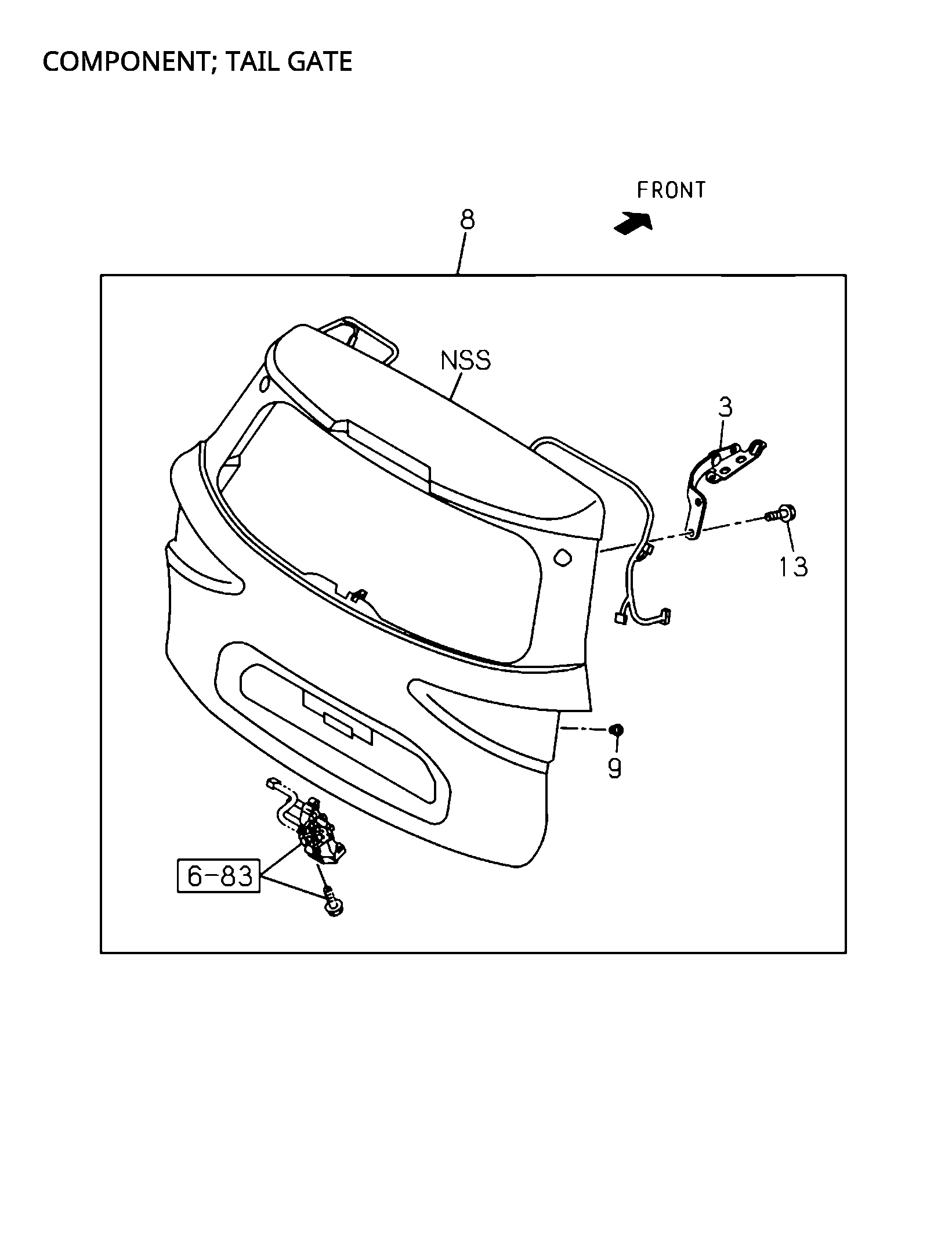

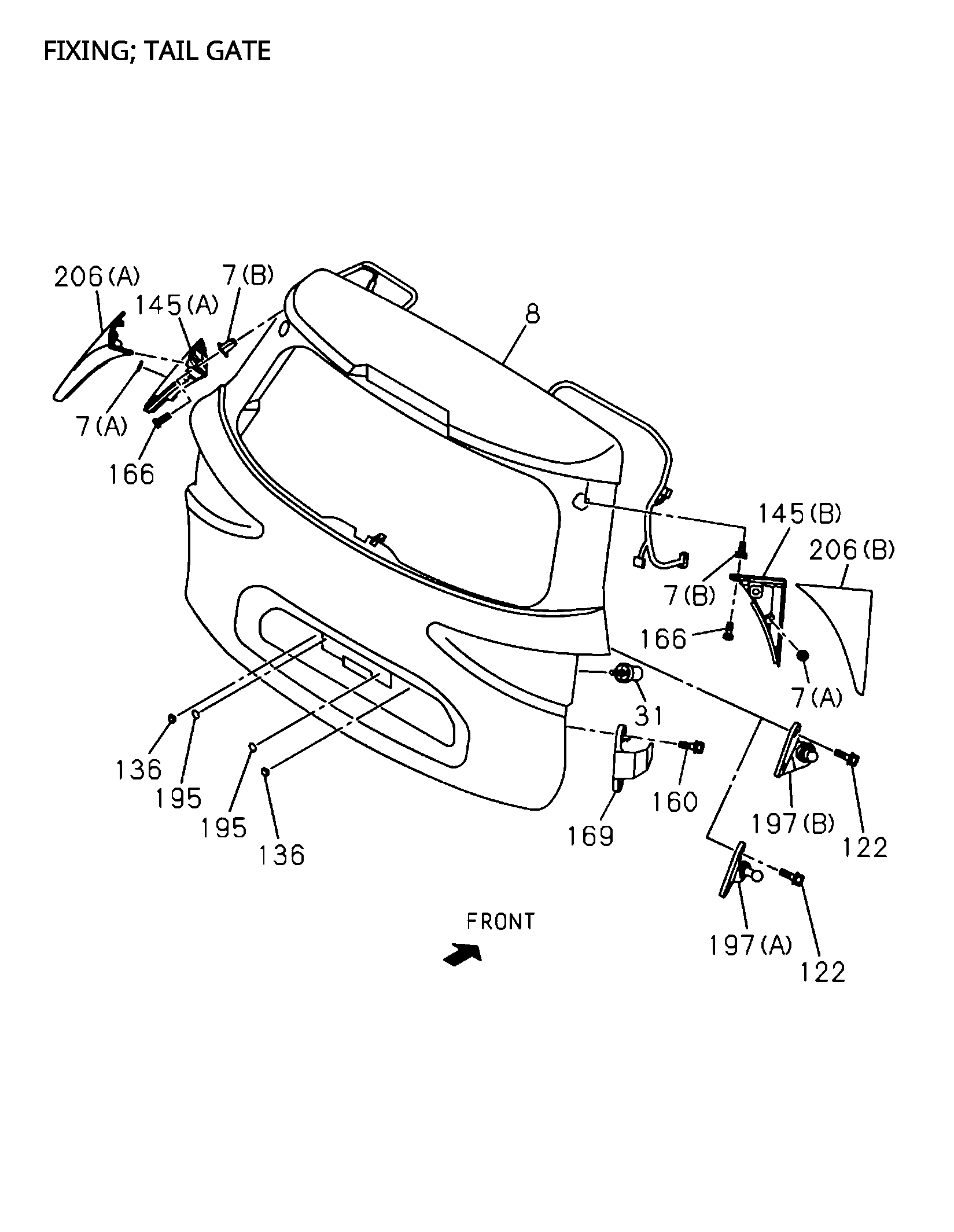

6-81 | BACK DOOR AND HINGE
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 166 | I8-97687 059-0 | SCREW | 2 | 2103- | AB | |||
| 8 | I8-97687 886-1 | PANEL; TAIL GATE | 1 | 2103- | AB | POWER TAIL GATE<E61 > PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY 8< START SYSTEM W/REMOTE ENG<8SR> REAR CAMERA ATTAIL GATE HANDLE<8PK> PRIMER | ||
| 160 | I8-98125 360-1 | BOLT | 4 | 2103- | AB | M6X16 W/LK&PL WASHER | ||
| 9 | I8-97686 213-0 | NUT; TAIL GATE | 2 | 2103- | AB | |||
| 195 | I8-97686 203-0 | SEAL; LOCATION HOLE | 2 | 2103- | AB | |||
| 8 | I8-97687 888-1 | PANEL; TAIL GATE | 1 | 2103- | AB | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> REAR CAMERA ATTAIL GATE HANDLE<8PK> EXC. POWER TAIL GATE<E61 > PRIMER | ||
| 197 | I8-97512 083-1 | BRACKET; TAIL GATE | 1 | 2103- | B | (B) | ||
| 206 | I8-97905 769-1 | SPOILER; RR | 1 | 2103- | AB | (B) BLACK | ||
| 145 | I8-97686 201-0 | BRACKET | 1 | 2103- | AB | (B) | ||
| 197 | I8-97512 082-1 | BRACKET; TAIL GATE | 1 | 2103- | B | (B) | ||
| 197 | I8-98372 408-0 | BRACKET; TAIL GATE | 1 | 2103- | A | EXC. POWER TAIL GATE<E61 > (A) | ||
| 8 | I8-97687 890-1 | PANEL; TAIL GATE | 1 | 2103- | AB | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. POWER TAIL GATE<E61 >,REAR CAMERA AT TAIL GATE HANDLE<8PK> PRIMER | ||
| 8 | I8-97687 888-1 | PANEL; TAIL GATE | 1 | 2103- | AB | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> REAR CAMERA ATTAIL GATE HANDLE<8PK> EXC. POWER TAIL GATE<E61 > PRIMER | ||
| 8 | I8-97687 890-1 | PANEL; TAIL GATE | 1 | 2103- | AB | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> EXC. POWER TAIL GATE<E61 >,REAR CAMERA AT TAIL GATE HANDLE<8PK> PRIMER | ||
| 197 | I8-97512 082-1 | BRACKET; TAIL GATE | 1 | 2103- | A | POWER TAIL GATE<E61> (B) | ||
| 169 | I8-97514 265-1 | WEDGE; RUBBER | 2 | 2103- | AB | |||
| 197 | I8-98372 409-0 | BRACKET; TAIL GATE | 1 | 2103- | A | EXC. POWER TAIL GATE<E61 > (A) | ||
| 145 | I8-97686 200-0 | BRACKET | 1 | 2103- | AB | (A) | ||
| 7 | I8-97686 216-0 | NUT; SPOILER | 2 | 2103- | AB | (A) | ||
| 122 | I8-97687 080-0 | BOLT; BRKT | 4 | 2103- | AB | |||
| 7 | I8-97687 058-0 | NUT; SPOILER | 2 | 2103- | AB | (B) | ||
| 206 | I8-97905 770-1 | SPOILER; RR | 1 | 2103- | AB | (A) BLACK | ||
| 136 | I8-97686 202-0 | CUSHION; MTG.UCENSE PLATE | 2 | 2103- | AB | |||
| 8 | I8-97687 886-1 | PANEL; TAIL GATE | 1 | 2103- | AB | POWER TAIL GATE<E61 > PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY 8< START SYSTEM W/REMOTE ENG<8SR> REAR CAMERA ATTAIL GATE HANDLE<8PK> PRIMER | ||
| 31 | I8-97514 275-0 | BUFFER; BACK DOOR | 2 | 2103- | AB | |||
| 13 | I8-97790 089-0 | BOLT; HINGE TO TAIL GATE | 4 | 2103- | AB THA | |||
| 197 | I8-97512 083-1 | BRACKET; TAIL GATE | 1 | 2103- | A | POWER TAIL GATE<E61 > (B) |
