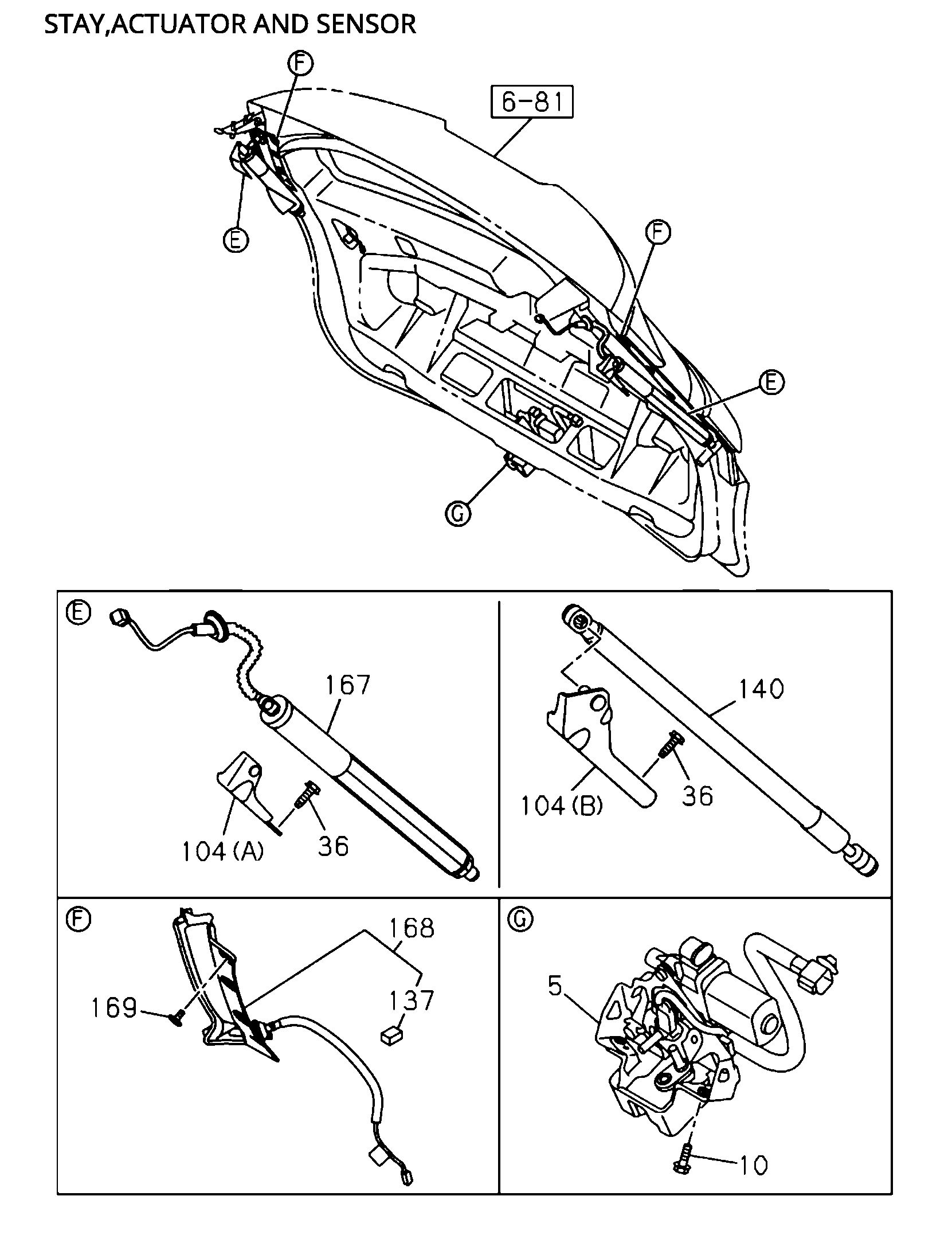

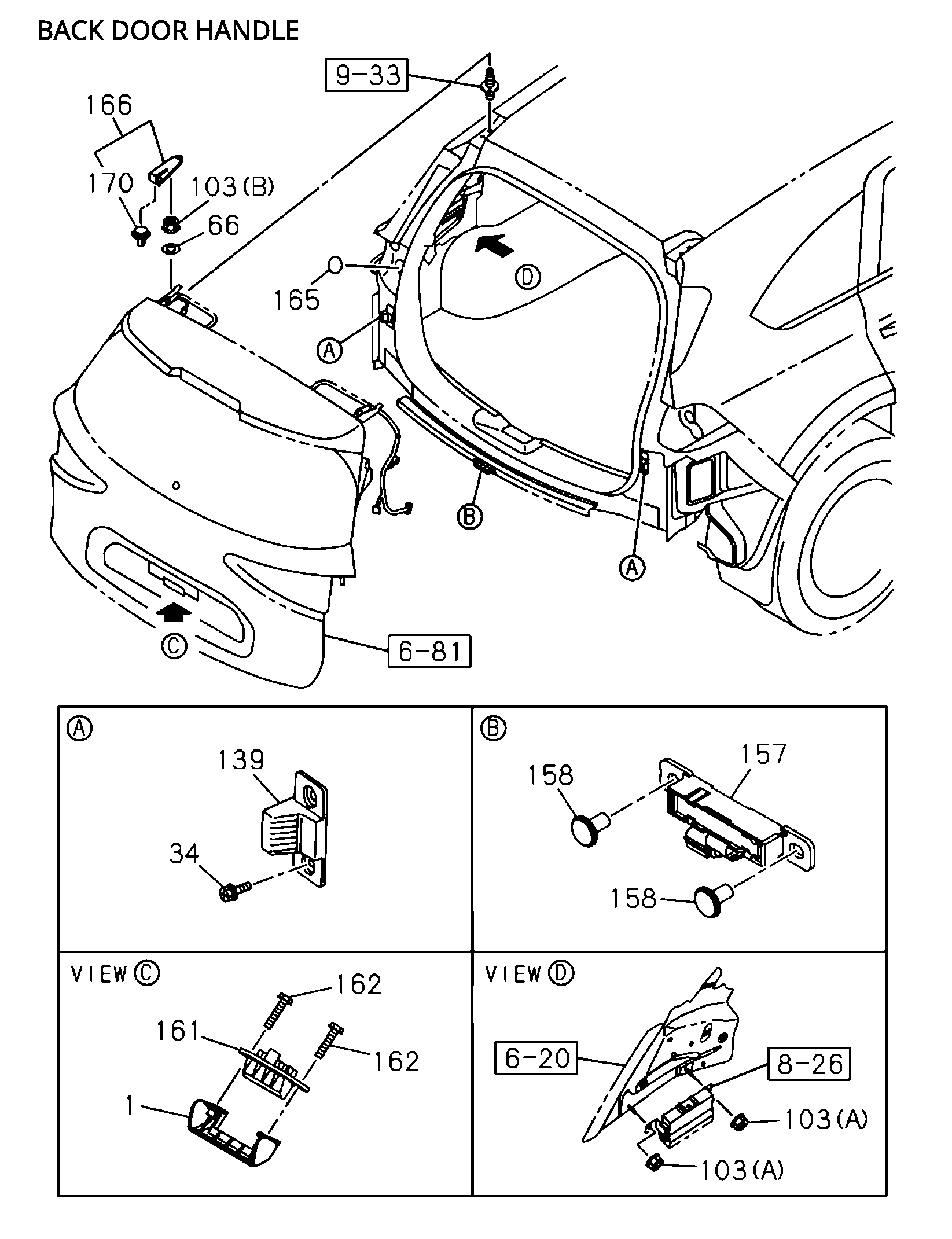

6-83 | BACK DOOR LOCK AND HANDLE
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 140 | I8-98374 349-0 | STAY; TAIL GATE | 1 | 2103- | A | EXC. POWER TAIL GATE<E61> | ||
| 5 | I8-98337 563-1 | LOCK; BACK DOOR | 1 | 2103- | B | |||
| 158 | I8-97372 006-0 | FASTENER; DOOR LOCK | 2 | 2103- | B | IMA | ||
| 161 | I8-97498 300-0 | SWITCH; BACK DOOR LK | 1 | 2103- | A | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 170 | I8-97685 528-0 | CLIP; COVER | 2 | 2103- | AB | |||
| 168 | I8-98372 412-2 | SENSOR; TAIL GATE | 1 | 2103- | A | POWER TAIL GATE<E61 > | ||
| 157 | I8-98394 786-0 | ANTENNA; DOOR LOCK | 1 | 2103- | A | PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> | ||
| 169 | I8-97539 336-0 | CLIP; TAIL GATE | 8 | 2103- | A | POWER TAIL GATE<E61> | ||
| 167 | I8-98372 406-1 | ACTUATOR; TAIL GATE | 2 | 2103- | A | POWER TAIL GATE<E61> | ||
| 104 | I8-97512 085-0 | BRACKET | 1 | 2103- | A | POWER TAIL GATE<E61> | ||
| 161 | I8-97498 299-0 | SWITCH; BACK DOOR LK | 1 | 2103- | A | REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> | ||
| 34 | I8-98125 360-1 | BOLT; DOVETAIL TO BACK DOOR | 4 | 2103- | AB | M6X16 W/LK&PL WASHER | ||
| 158 | I8-97372 006-0 | FASTENER; DOOR LOCK | 2 | 2103- | A | EXC. REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> IMA | ||
| 167 | I8-98372 406-1 | ACTUATOR; TAIL GATE | 2 | 2103- | B | |||
| 10 | I8-97687 080-0 | BOLT; LOCK | 4 | 2103- | B | |||
| 104 | I8-97512 084-0 | BRACKET | 1 | 2103- | A | POWER TAIL GATE<E61> | ||
| 36 | I8-98049 357-0 | BOLT; LINK | 4 | 2103- | A B | M6X16 FLANGE | ||
| 4 | I8-98378 093-0 | BRACKET | 1 | 2103- | A | EXC. POWER TAIL GATE<E61> (B) | ||
| 169 | I8-97539 336-0 | CLIP; TAIL GATE | 8 | 2103- | B | |||
| 157 | I8-98394 786-0 | ANTENNA; DOOR LOCK | 1 | 2103- | B | |||
| 103 | I0-91180 106-0 | NUT | 2 | 2103- | B | (A) M6 FLANGE | ||
| 103 | I8-98049 361-0 | NUT | 4 | 2103- | AB | (B) M8 FLANGE | ||
| 168 | I8-98372 412-2 | SENSOR; TAIL GATE | 1 | 2103- | B | |||
| 162 | I0-28050 625-0 | SCREW; SWITCH, BACK DOOR LK | 2 | 2103- | AB | M6X25 FLANGE IMA | ||
| 139 | I8-97507 262-0 | DOVETAIL; BODY | 2 | 2103- | AB | |||
| 166 | I8-98483 496-3 | COVER; HINGE | 1 | 2103- | AB | |||
| 103 | I0-91180 106-0 | NUT | 2 | 2103- | A | POWER TAIL GATE<E61 > (A) M6 FLANGE | ||
| 104 | I8-98378 094-0 | BRACKET | 1 | 2103- | A | EXC. POWER TAIL GATE<E61> (B) | ||
| 140 | I8-98374 348-0 | STAY; TAIL GATE | 1 | 2103- | A | EXC. POWER TAIL GATE<E61 > | ||
| 5 | I8-98337 562-1 | LOCK; BACK DOOR | 1 | 2103- | A | EXC. POWER TAIL GATE<E61 > | ||
| 168 | I8-98372 413-2 | SENSOR; TAIL GATE | 1 | 2103- | A | POWER TAIL GATE<E61 > | ||
| 104 | I8-97512 084-0 | BRACKET | 1 | 2103- | B | (A) | ||
| 165 | I8-97539 355-0 | TAPE; TAIL GATE | 2 | 2103- | AB | |||
| 5 | I8-98337 563-1 | LOCK; BACK DOOR | 1 | 2103- | A | POWER TAIL GATE<E61> | ||
| 10 | I8-97687 080-0 | BOLT; LOCK | 4 | 2103- | A | POWER TAIL GATE<E61> | ||
| 10 | I8-97687 080-0 | BOLT; LOCK | 3 | 2103- | A | EXC. POWER TAIL GATE<E61> | ||
| 104 | I8-97512 085-0 | BRACKET | 1 | 2103- | B | (A) | ||
| 161 | I8-97498 300-0 | SWITCH; BACK DOOR LK | 1 | 2103- | B | |||
| 1 | I8-97539 082-0 | HANDLE; OUTSIDE,BACK DOOR | 1 | 2103- | AB | |||
| 166 | I8-98483 495-3 | COVER; HINGE | 1 | 2103- | AB | |||
| 168 | I8-98372 413-2 | SENSOR; TAIL GATE | 1 | 2103- | B |
