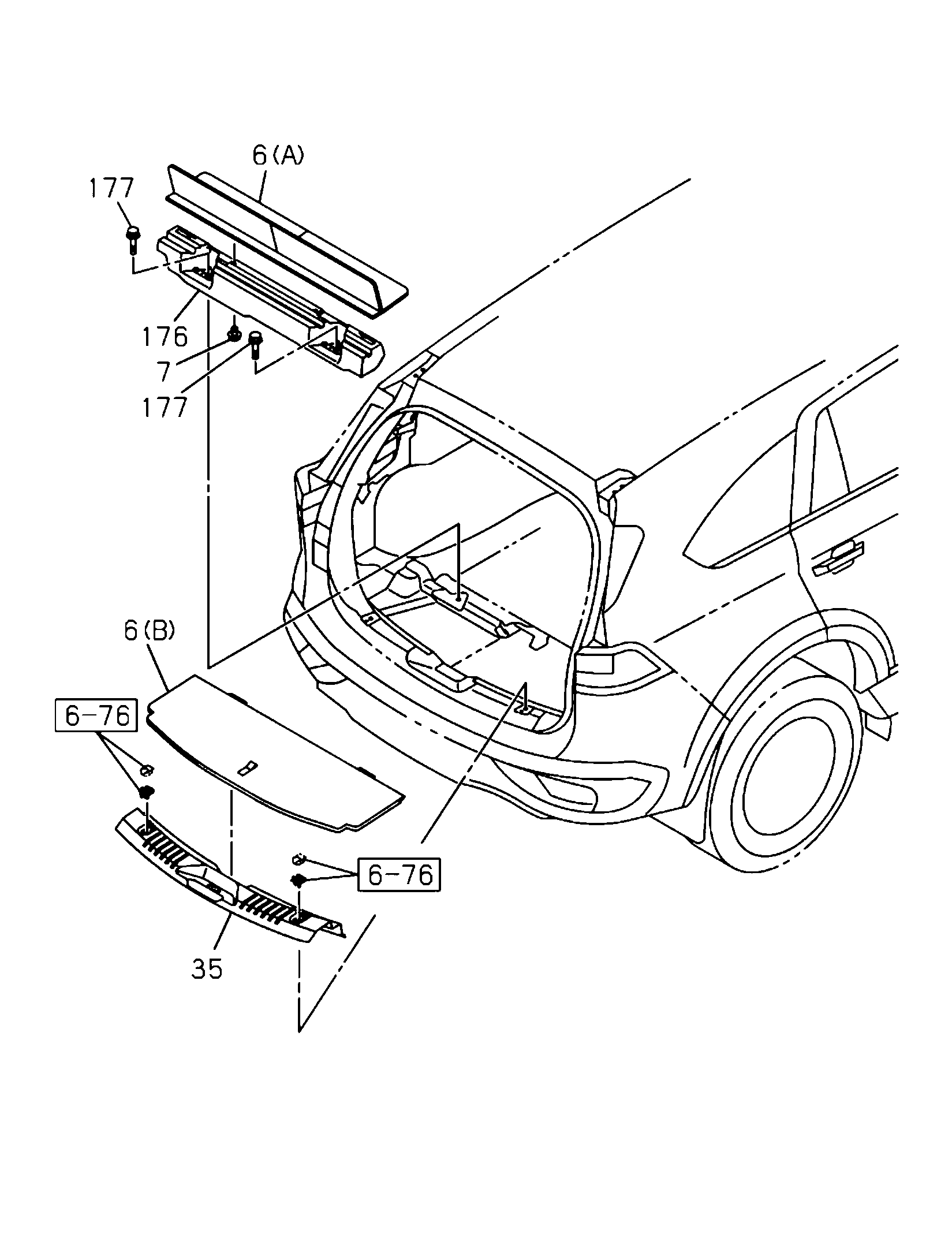

6-87 | TRUNK ROOM PACKAGE AND REAR PARCEL
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 6 | I8-97907 144-0 | BOARD; LUGGAGE FLOOR | 1 | 2103- | AB | (A) BLACK | ||
| 176 | I8-97907 143-0 | BASE ASM | 1 | 2103- | AB | BLACK | ||
| 7 | I8-97683 919-0 | SCREW; BOARD FIX | 5 | 2103- | AB | M4X8 | ||
| 35 | I8-97474 565-0 | COVER; LUGGAGE | 1 | 2103- | AB | BLACK | ||
| 177 | I0-28650 616-0 | BOLT; BASE ASM | 2 | 2103- | AB | M6X16 FLANGE |
