| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
8 |
2103- |
|
AB |
|
| 341 |
I8-97471 683-3 |
|
UD; FUSE BOX |
1 |
2103- |
|
AB |
BLACK |
| 14 |
I8-98167 449-0 |
|
SCREW; INST PNL |
15 |
2103- |
|
AB |
(B) M5X16 TAPPING |
| 256 |
I8-97907 367-0 |
|
BEZEL ASM; CENTER |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> EXC. INTERIOR LUXURY<B20> BLACK |
| 626 |
I8-98164 677-0 |
|
RETAINER |
4 |
2103- |
|
AB |
|
| 18 |
I8-94358 694-0 |
|
BOLT; BRKT |
2 |
2103- |
|
AB |
(B) M5X16 |
| 16 |
I8-98398 508-0 |
|
BRACKET; INST PNL |
1 |
2103- |
|
A |
RZ4E-TC ENG<RDZ> (B) |
| 726 |
I8-97471 679-2 |
|
PANEL; INST LW |
1 |
2103- |
|
AB |
(C) BLACK |
| 14 |
I8-98167 220-0 |
|
SCREW; INST PNL |
1 |
2103- |
|
AB |
(A) M5X16 |
| 304 |
I8-97907 369-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> SILVER |
| 256 |
I8-97907 365-0 |
|
BEZEL ASM; CENTER |
1 |
2103- |
|
B |
INTERIOR LUXURY<B20> BLACK |
| 11 |
I8-98057 964-0 |
|
BOLT; INST PNL |
1 |
2103- |
|
AB |
(C) M8X30 W/LK&PL WASHER |
| 477 |
I8-97553 912-0 |
|
RUBBER; CUSHION.COMPARTMENT PANEL |
2 |
2103- |
|
AB |
|
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
35 |
2103- |
|
A |
GRADE CUSTOM<RBD> COOLER W/FRESH AIR<C65> (C) M5X16 |
| 42 |
I8-97907 387-0 |
|
BOX; GLOVE.INST PNL |
1 |
2103- |
|
B |
INTERIOR LUXURY<B20> AM/FM,DVD,NAVI W/DISPLAY.SMART PHONE<8RW>,AM/FM, MEMOLY NÄVI W/DISPLAY,SMART PHONE<8TG>,SCREEN 9" WO/DVD<8TK> (B) BLACK |
| 546 |
I8-97474 463-1 |
|
PANEL; INST,SUB |
1 |
2103- |
|
A |
PASSIVE ENTRY AND START SYSTEM<AP3>,PASSIVE ENTRY & START SYSTEM W/REMOTE ENG<8SR> BLACK |
| 579 |
I8-97907 639-0 |
|
COVER; INST PNL |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> EXC. SPECIAL EDmON<6RT> (C) DARK SILVER |
| 69 |
I8-97907 373-0 |
|
GRILLE; SIDE.AIR OUTLET |
1 |
2103- |
|
B |
(B) BLACK |
| 148 |
I8-98038 450-0 |
|
NUT; INST PANEL BRKT |
2 |
2103- |
|
AB |
IMA |
| 170 |
I8-97905 138-0 |
|
COVER; HOLE |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> COOLER W/FRESH AIR<C65> (B) BLACK |
| 729 |
I8-97905 146-0 |
|
COVER; GRILLE |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> BLACK |
| 419 |
I8-97907 393-0 |
|
PANEL; SHELF,GLOVE BOX |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> EXC. SPECIAL EDmON<6RT> (A) DARK SILVER |
| 136 |
I8-98164 677-0 |
|
CLIP; INST COVER |
6 |
2103- |
|
AB |
|
| 265 |
I8-97907 362-0 |
|
HOLDER; CUP |
1 |
2103- |
|
AB |
BLACK |
| 304 |
I8-97686 408-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
B |
INTERIOR LUXURY<B20> |
| 579 |
I8-97907 382-0 |
|
COVER; INST PNL |
1 |
2103- |
|
A |
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> (B) BLACK |
| 125 |
I8-98164 677-0 |
|
CLIP; INST PANEL |
5 |
2103- |
|
AB |
|
| 70 |
I8-97905 024-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> BLACK |
| 69 |
I8-97907 373-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> STEERING COLUMN TILT TELESCOPING<N37> (B) BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
33 |
2103- |
|
A |
GRADE CUSTOM<RBD> AIR CONDmONER AUTOMATIC CONT<C61 > (C) M5X16 |
| 287 |
I8-97907 379-0 |
|
PANEL; CLUSTER SIDE |
1 |
2103- |
|
AB |
GRADE CUSTOM<RBD> EXC. INTERIOR LUXURY<B20> (B) SILVER |
| 579 |
I8-97474 856-1 |
|
COVER; INST PNL |
1 |
2103- |
|
AB |
(A) BLACK |
| 42 |
I8-97907 385-0 |
|
BOX; GLOVE.INST PNL |
1 |
2103- |
|
B |
AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE<8RW>,AM/FM, MEMOLY NÄVI W/DISPLAY.SMART PHONE<8TG>,SCREEN 9" WO/DVD<8TK> EXC. INTERIOR LUXURY<B20> (B) SILVER |
| 11 |
I0-28450 825-0 |
|
BOLT; INST PNL |
6 |
2103- |
|
AB |
(A) M8X25 FLANGE |
| 729 |
I8-97907 637-0 |
|
COVER; GRILLE |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
35 |
2103- |
|
A |
GRADE LUXURY<RBC> (C) M5X16 |
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
12 |
2103- |
|
AB |
(B) |
| 530 |
I8-98336 064-0 |
|
CLIP; GLOVE BOX |
17 |
2103- |
|
AB |
|
| 729 |
I8-97905 145-0 |
|
COVER; GRILLE |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> COOLER W/FRESH AIR<C65> (B) BLACK |
| 304 |
I8-97907 371-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
B |
EXC. INTERIOR LUXURY<B20> SILVER |
| 42 |
I8-97907 387-0 |
|
BOX; GLOVE,INST PNL |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> INTERIOR LUXURY<B20> AM/FM,CLOCK,BLUE TOOTH.CD PLAYER<UGQ>AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE<8RW>,AM/FM,MEMOLY NÄVI W/DISPLAY,SMART PHONE<8TG>,SCREEN 9" WO/DVD<8TK> (B) BLACK |
| 69 |
I8-97907 391-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> (A) BLACK |
| 42 |
I8-97471 680-2 |
|
BOX; GLOVE.INST PNL |
1 |
2103- |
|
A |
LOCK GLOVE BOX<A99> (A) BLACK |
| 598 |
I8-98164 685-0 |
|
GROMMET; SCREW |
6 |
2103- |
|
AB |
(B) |
| 42 |
I8-97471 680-2 |
|
BOX; GLOVE,INST PNL |
1 |
2103- |
|
B |
(A) BLACK |
| 42 |
I8-97907 384-0 |
|
BOX; GLOVE.INST PNL |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> AM/FM,CLOCK,BLUE TOOTH.CD PLAYER<UGQ>AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE<8RW>,AM/FM,MEMOLY NÄVI W/DISPLAY,SMART PHONE<8TG>,SCREEN 9" WO/DVD<8TK> (B) SILVER |
| 726 |
I8-97474 460-1 |
|
PANEL; INST LW |
1 |
2103- |
|
A B |
(B) BLACK |
| 11 |
I8-98167 449-0 |
|
BOLT; INST PNL |
4 |
2103- |
|
AB |
(B) SCREW M5X16 TAPPING |
| 729 |
I8-97905 145-0 |
|
COVER; GRILLE |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> (B) BLACK |
| 287 |
I8-97907 380-0 |
|
PANEL; CLUSTER SIDE |
1 |
2103- |
|
AB |
GRADE CUSTOM<RBD> INTERIOR LUXURY<B20> (B) BLACK |
| 304 |
I8-97686 408-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> INTERIOR LUXURY<B20> |
| 287 |
I8-97907 378-0 |
|
PANEL; CLUSTER SIDE |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> (B) SILVER |
| 70 |
I8-97907 363-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> BLACK |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
8 |
2103- |
|
AB |
(A) M5X16 |
| 546 |
I8-97474 462-2 |
|
PANEL; INST.SUB |
1 |
2103- |
|
A |
REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM<AP5> BLACK |
| 304 |
I8-97907 370-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> SILVER |
| 16 |
I8-98386 340-0 |
|
BRACKET; INST PNL |
1 |
2103- |
|
AB |
(E) |
| 3 |
I8-98246 739-0 |
|
SCREW; BINDER HD |
33 |
2103- |
|
B |
(C) M5X16 |
| 18 |
I0-28650 840-0 |
|
BOLT; BRKT |
1 |
2103- |
|
AB |
(A) M8X40 FLANGE |
| 419 |
I8-97907 392-0 |
|
PANEL; SHELF,GLOVE BOX |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> AM/FM.CLOCK.BLUE TOOTH.CD PLAYER<UGQ>AM/FM,DVD,NAVI W/DISPLAY.SMART PHONE<8RW>,AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE<8TG>,SCREEN 9" WO/DVD<8TK> (A) GRAY |
| 656 |
I8-98164 677-0 |
|
CLIP; TRIM |
6 |
2103- |
|
AB |
|
| 694 |
I8-98164 677-0 |
|
CLIP; INST PNL |
6 |
2103- |
|
AB |
(A) |
| 419 |
I8-97907 393-0 |
|
PANEL; SHELF.GLOVE BOX |
1 |
2103- |
|
B |
EXC. SPECIAL EDmON<6RT> (A) DARK SILVER |
| 341 |
I8-97471 684-3 |
|
UD; FUSE BOX |
1 |
2103- |
|
AB |
BLACK |
| 732 |
I8-97684 833-0 |
|
BEZEL |
1 |
2103- |
|
AB |
|
| 277 |
I8-97553 901-0 |
|
RUBBER; STOPPER GLOVE UD |
2 |
2103- |
|
AB |
(B) |
| 69 |
I8-97905 017-0 |
|
GRILLE; SIDE.AIR OUTLET |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> AM/FM,CLOCK,BLUE TOOTH.CD PLAYER<UGQ>,AM/FM,DVD,NAVI W/DISPLAY.SMART PHONE<8RW>,AM/FM,MEMOLY NAV1 W/DISPLAY.SMART PHONE<8TG>,SCREEN 9" WO/DVD<8TK> (A) BLACK |
| 729 |
I8-97907 637-0 |
|
COVER; GRILLE |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> COOLER W/FRESH AIR<C65> (A) BLACK |
| 70 |
I8-97907 364-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> BLACK |
| 121 |
I8-98336 064-0 |
|
CLIP; RADIO,INST PNL |
13 |
2103- |
|
AB |
|
| 546 |
I8-97474 463-1 |
|
PANEL; INST,SUB |
1 |
2103- |
|
B |
BLACK |
| 726 |
I8-97471 678-4 |
|
PANEL; INST LW |
1 |
2103- |
|
AB |
(A) BLACK |
| 256 |
I8-97907 366-0 |
|
BEZEL ASM; CENTER |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> BLACK |
| 729 |
I8-97907 636-0 |
|
COVER; GRILLE |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> COOLER W/FRESH AIR<C65> (A) BLACK |
| 61 |
I8-98167 449-0 |
|
SCREW; GLOVE BOX |
2 |
2103- |
|
AB |
AM/FM,CLOCK,BLUE TOOTH.CD PLAYER<UGQ>AM/FM,DVD,NAVI W/DISPLAY.SMART PHONE<8RW>,AM/FM,MEMOLY NAVI W/DISPLAY,SMART PHONE<8TG>,SCREEN 9" WO/DVD<8TK> M5X16 TAPPING |
| 304 |
I8-97907 368-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> EXC. INTERIOR LUXURY<B20> SILVER |
| 1 |
I8-97477 993-1 |
|
PANEL; INST |
1 |
2103- |
|
AB |
(B) BLACK |
| 42 |
I8-97471 681-2 |
|
BOX; GLOVE,INST PNL |
1 |
2103- |
|
A |
INTERIOR COLOR GRAY<160> EXC. LOCK GLOVE BOX<A99> (A) BLACK |
| 42 |
I8-97907 385-0 |
|
BOX; GLOVE.INST PNL |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> AM/FM,CLOCK,BLUE TOOTH.CD PLAYER<UGQ>,AM/FM,DVD,NAVI W/DISPLAY,SMART PHONE<8RW>,AM/FM,MEMOLY NÄVI W/DISPLAY.SMART PHONE<8TG>,SCREEN 9" WO/DVD<8TK> EXC. INTERIOR LUXURY<B20> (B) SILVER |
| 170 |
I8-97905 018-0 |
|
COVER; HOLE |
1 |
2103- |
|
AB |
(A) BLACK |
| 3 |
I8-97553 417-0 |
|
SCREW; BINDER HD |
6 |
2103- |
|
AB |
(D) |
| 304 |
I8-97907 368-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
B |
EXC. INTERIOR LUXURY<B20> SILVER |
| 729 |
I8-97907 636-0 |
|
COVER; GRILLE |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> (A) BLACK |
| 70 |
I8-97905 023-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> BLACK |
| 108 |
I8-97471 685-1 |
|
GRILLE; INST PNL |
1 |
2103- |
|
AB |
BLACK |
| 265 |
I8-97907 361-0 |
|
HOLDER; CUP |
1 |
2103- |
|
AB |
BLACK |
| 277 |
I8-97553 227-0 |
|
RUBBER; STOPPER GLOVE UD |
2 |
2103- |
|
AB |
(A) |
| 256 |
I8-97907 365-0 |
|
BEZEL ASM; CENTER |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> INTERIOR LUXURY<B20> BLACK |
| 11 |
I8-98136 167-0 |
|
BOLT; INST PNL |
1 |
2103- |
|
AB |
(D) M6X22 W/PL WASHER |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
15 |
2103- |
|
AB |
|
| 287 |
I8-97907 374-0 |
|
PANEL; CLUSTER SIDE |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> (A) GRAY |
| 598 |
I8-98164 685-0 |
|
GROMMET; SCREW |
16 |
2103- |
|
AB |
(A) |
| 178 |
I0-91180 106-0 |
|
NUT; INST PANEL |
2 |
2103- |
|
AB |
M6 FLANGE |
| 69 |
I8-97905 003-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> (B) BLACK |
| 304 |
I8-97686 427-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
B |
INTERIOR LUXURY<B20> |
| 579 |
I8-97907 640-0 |
|
COVER; INST PNL |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> (C) GRAY |
| 729 |
I8-97905 146-0 |
|
COVER; GRILLE |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> COOLER W/FRESH AIR<C65> (B) BLACK |
| 16 |
I8-97509 764-0 |
|
BRACKET; INST PNL |
1 |
2103- |
|
A |
RZ4E-TC ENG<RDZ> (A) |
| 43 |
I8-97474 480-1 |
|
BOX; GLOVE,LWR |
1 |
2103- |
|
AB |
AM/FM,CLOCK,BLUE TOOTH.CD PLAYER<UGQ>AM/FM,DVD,NAVI W/DISPLAY.SMART PHONE<8RW>,AM/FM,MEMOLY NAVI W/DI5PLAY,SMART PHONE<8TG>,SCREEN 9" WO/DVD<8TK> BLACK |
| 304 |
I8-97686 427-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> INTERIOR LUXURY<B20> |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
15 |
2103- |
|
AB |
|
| 582 |
I8-97477 997-0 |
|
UD; FUSE & RELAY |
1 |
2103- |
|
AB |
BLACK |
| 235 |
I8-97553 417-0 |
|
SCREW; GRILLE |
8 |
2103- |
|
AB |
|
| 419 |
I8-97907 390-0 |
|
PANEL; SHELF.GLOVE BOX |
1 |
2103- |
|
AB |
(B) BLACK |
| 70 |
I8-97907 363-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2103- |
|
B |
BLACK |
| 42 |
I8-97907 389-0 |
|
BOX; GLOVE,INST PNL |
1 |
2103- |
|
AB |
(C) BLACK |
| 256 |

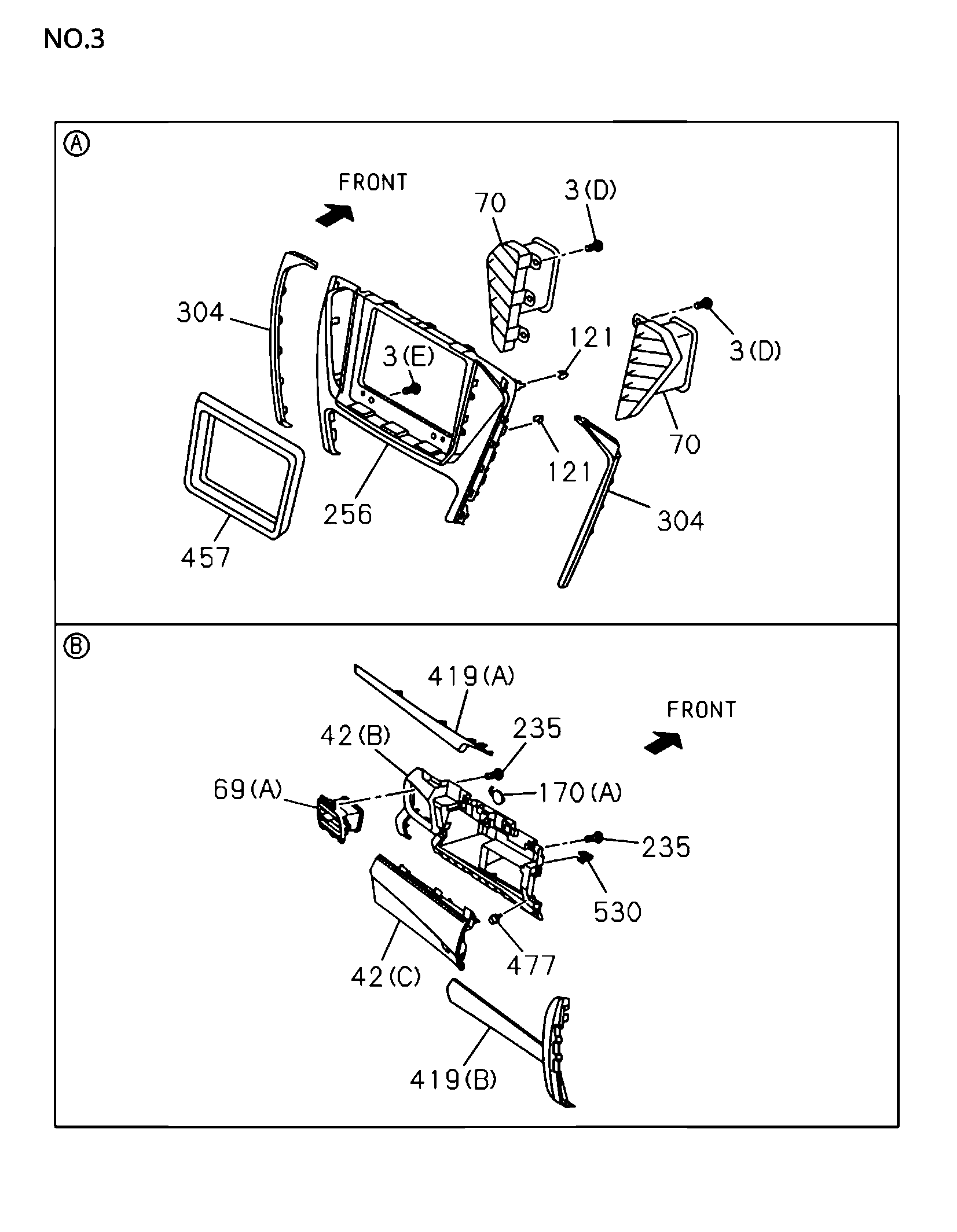

I8-97907 367-0 |
|
BEZEL ASM; CENTER |
1 |
2103- |
|
B |
EXC. INTERIOR LUXURY<B20> BLACK |
| 304 |
I8-97907 371-0 |
|
GARNISH; INST CLUSTER CENTER |
1 |
2103- |
|
A |
GRADE CUSTOM<RBD> EXC. INTERIOR LUXURY<B20> SILVER |
| 124 |

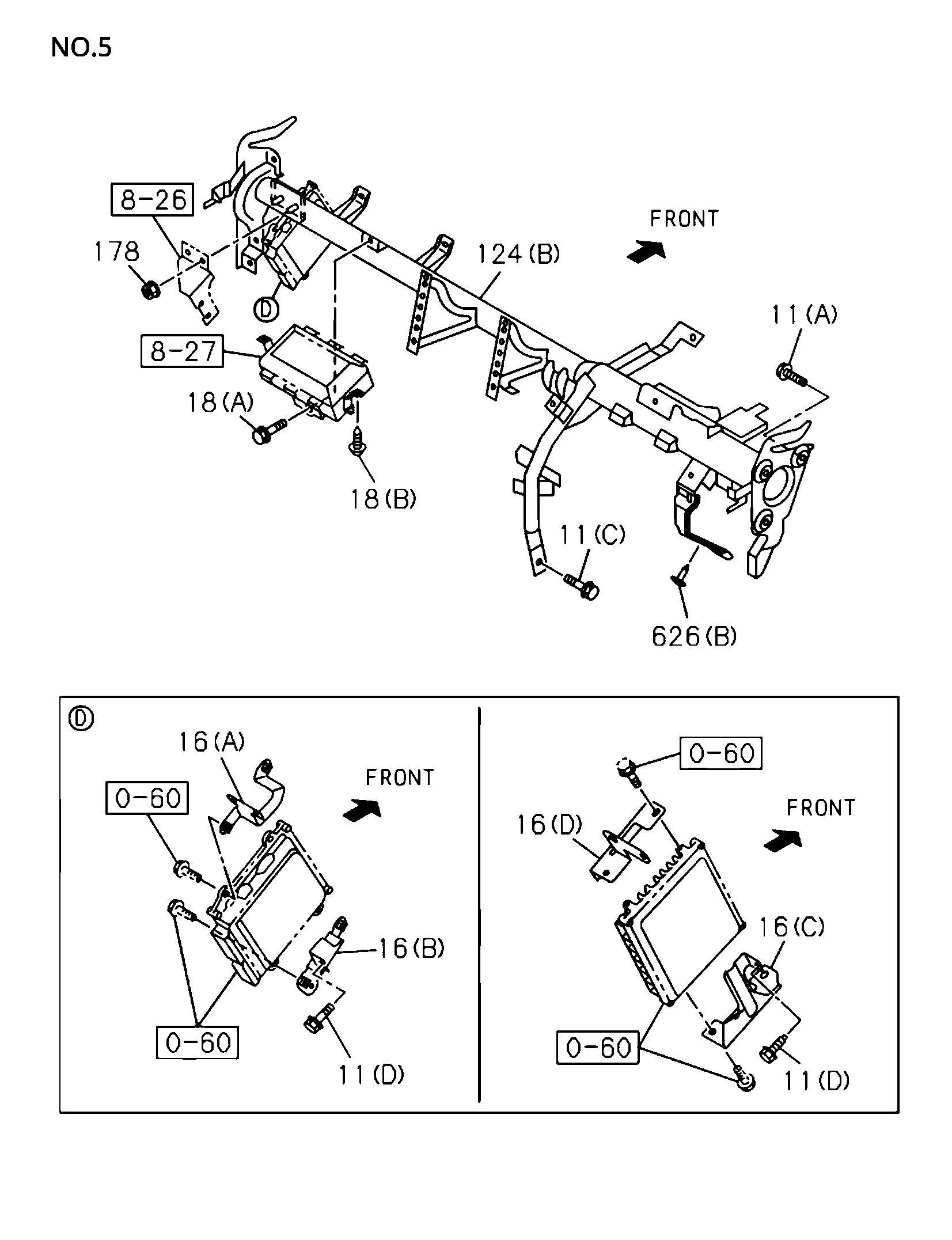

I8-98398 488-4 |
|
REINFORCEMENT; INST PNL |
1 |
2103- |
|
AB |
(B) |
| 69 |
I8-97907 391-0 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2103- |
|
B |
(A) BLACK |
| 11 |
I8-97947 104-1 |
|
BOLT; INST PNL |
8 |
2103- |
|
AB |
M8X22.5 W/PL WASHER |
| 579 |
I8-97907 639-0 |
|
COVER; INST PNL |
1 |
2103- |
|
B |
EXC. SPECIAL EDmON<6RT> (C) DARK SILVER |
| 287 |

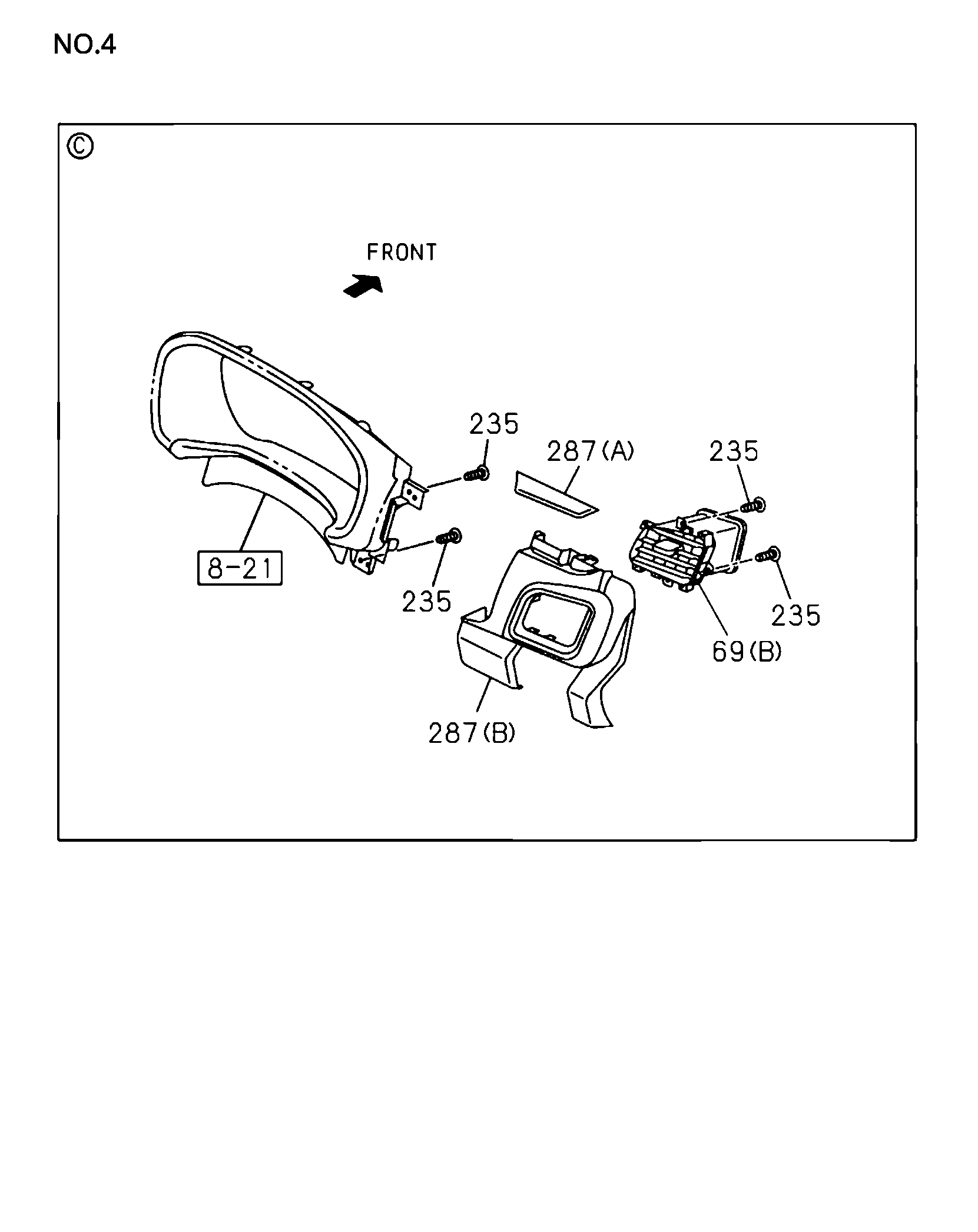

I8-97907 376-0 |
|
PANEL; CLUSTER SIDE |
1 |
2103- |
|
AB |
GRADE CUSTOM<RBD> EXC. SPECIAL EDmON<6RT> (A) DARK SILVER |
| 170 |
I8-97905 138-0 |
|
COVER; HOLE |
1 |
2103- |
|
A |
GRADE LUXURY<RBC> (B) BLACK |
| 16 |
I8-98386 338-0 |
|
BRACKET; INST PNL |
1 |
2103- |
|
AB |
(E) |
| 70 |
I8-97907 364-0 |
|
GRILLE; CENTER.AIR OUTLET |
1 |
2103- |
|
B |
BLACK |
| 576 |
I8-97553 498-0 |
|
CUSHION |
1 |
2103- |
|
AB |
|
| 108 |
I8-97471 686-1 |
|
GRILLE; INST PNL |
1 |
2103- |
|
AB |
BLACK |
