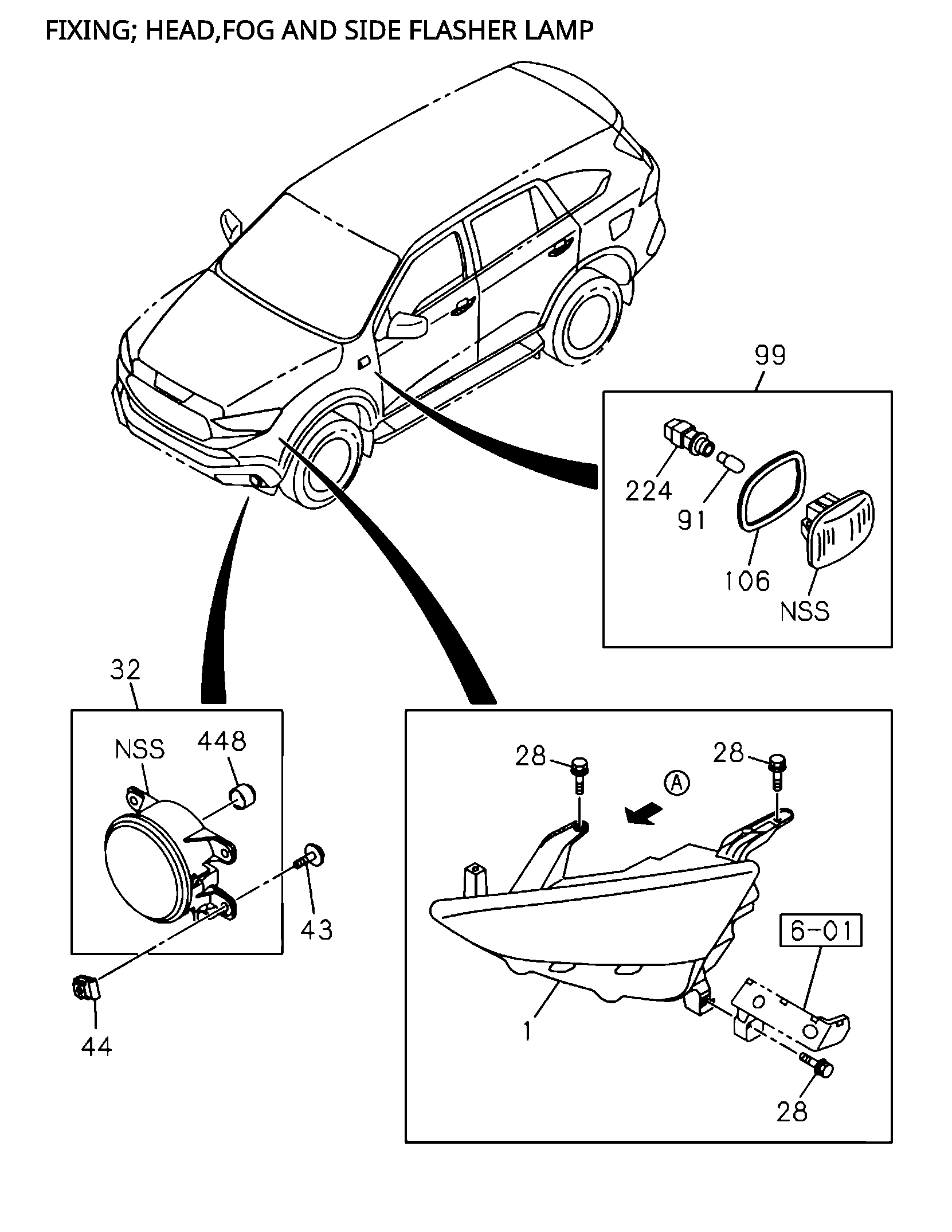

8-01 | LAMP; FRONT AND FRONT SIDE
MUX
MU-X 2021
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 43 | I8-98167 444-0 | BOLT; FOG LAMP | 4 | 2103- | A | FOG LAMP<T96> M6X20 TAPPING W/PL WASHER | ||
| 357 | I8-97678 940-0 | BULB; TURN SIGNAL | 2 | 2103- | AB | |||
| 224 | I8-97310 953-0 | SOCKET; SIDE FLASHER LAMP | 2 | 2103- | A | DOOR MIRROR ELECTRIC<D22> | ||
| 382 | I8-97684 107-0 | PLUG; SOCKET,HEADLAMP | 2 | 2103- | AB | |||
| 43 | I8-98167 444-0 | BOLT; FOG LAMP | 4 | 2103- | B | M6X20 TAPPING W/PL WASHER | ||

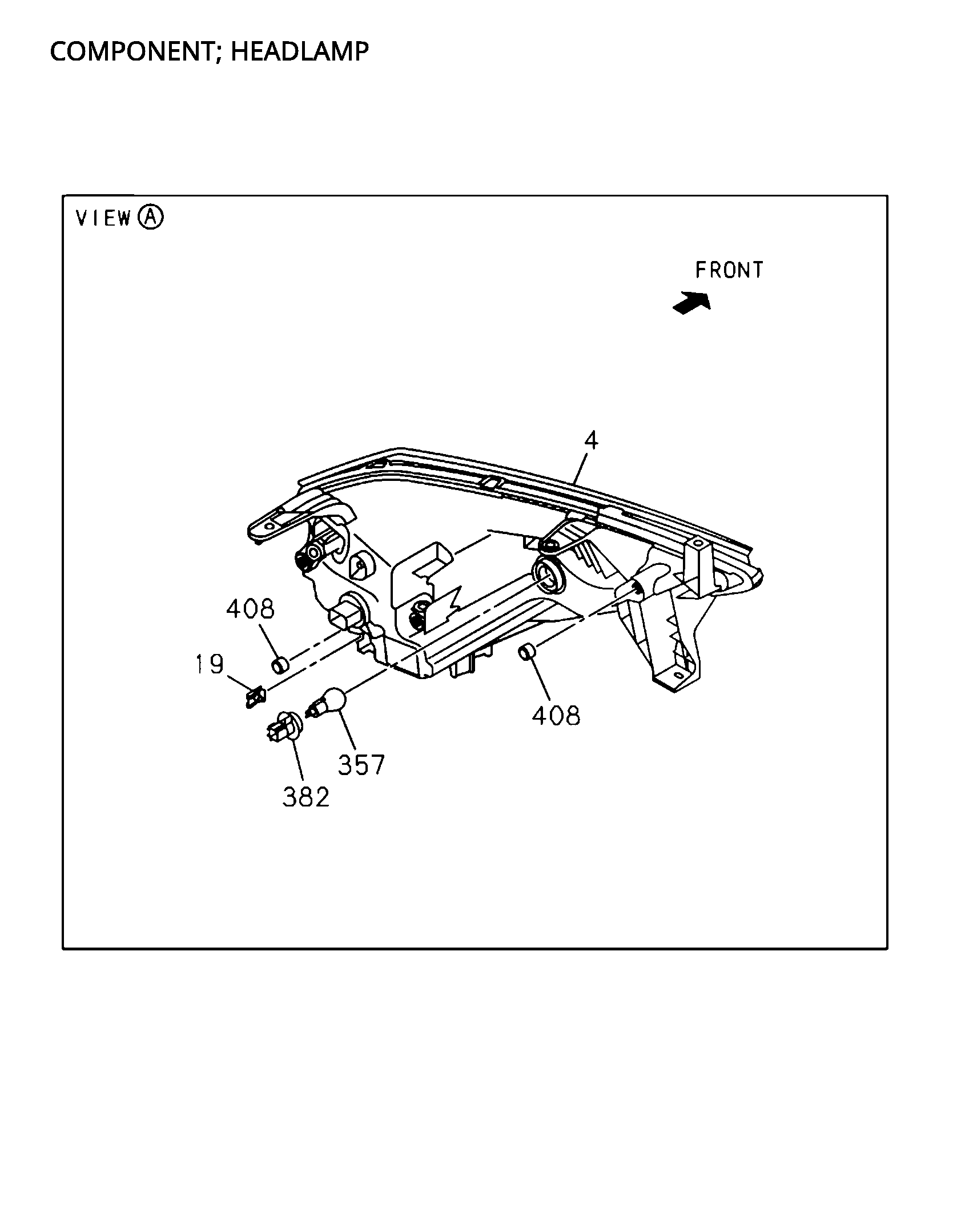

| 4 | I8-97684 395-0 | HEADLAMP UNIT | 1 | 2103- | R | AB | ||
| 28 | I8-98062 140-0 | BOLT; HEADLAMP | 8 | 2103- | AB | M6X18 TAPPING W/LK&PL WASHER | ||
| 4 | I8-97684 396-0 | HEADLAMP UNIT | 1 | 2103- | L | AB | ||
| 44 | I8-97502 880-1 | NUT; FOG LAMP | 4 | 2103- | A | FOG LAMP<T96> | ||
| 91 | I8-97310 952-0 | BULB; SIDE TURN SIGNAL | 2 | 2103- | A | DOOR MIRROR ELECTRIC<D22> 12V5W | ||
| 448 | I8-97515 122-0 | CAP ASM; LAMP | 2 | 2103- | B | |||
| 99 | I8-98395 031-0 | LAMP; SIDE FLASHER | 2 | 2103- | A | DOOR MIRROR ELECTRIC<D22> | ||
| 448 | I8-97515 122-0 | CAP ASM; LAMP | 2 | 2103- | A | FOG LAMP<T96> | ||
| 44 | I8-97502 880-1 | NUT; FOG LAMP | 4 | 2103- | B | |||
| 19 | I8-97684 110-0 | NUT; HEADLAMP | 2 | 2103- | AB | |||
| 106 | I8-97333 420-0 | GASKET; SIDE TURN SIGNAL | 2 | 2103- | A | DOOR MIRROR ELECTRIC<D22> | ||
| 408 | I8-97684 111-0 | CAP; BREATHER,HEADLAMP | 4 | 2103- | AB |
